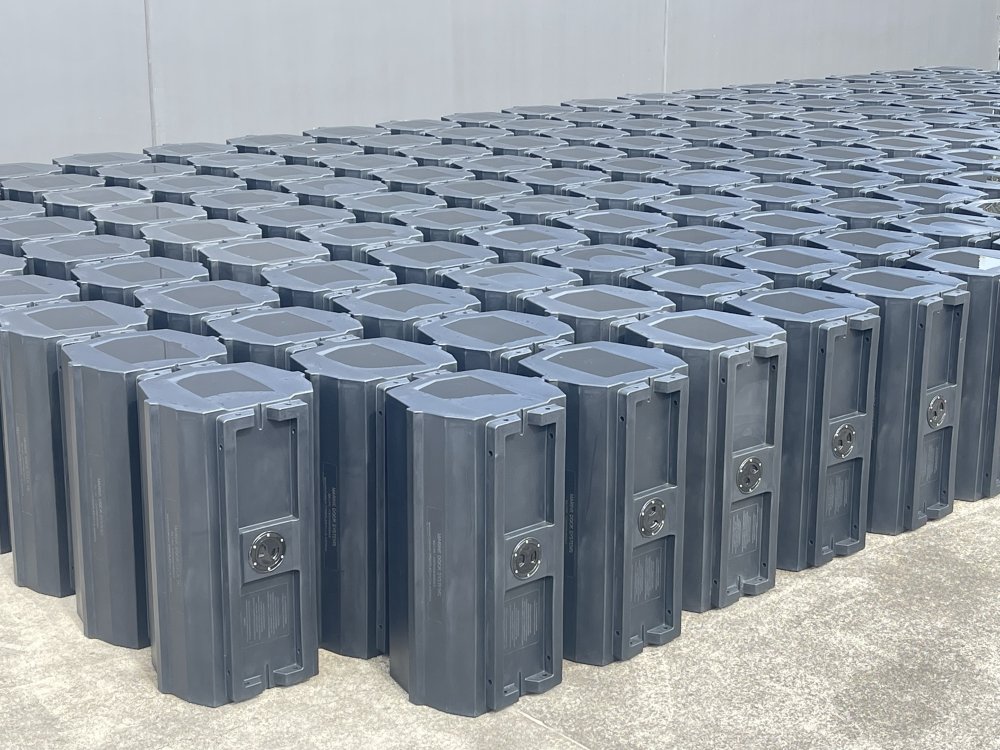

333 LITRE FLOTATION MODULE
This is a multipurpose float, it can be used for providing flotation for smaller docks and when mounted in line with the matching nose cone, can form one of the hulls of a cpontoon boat. Floats are made from food grade polyethylene and can be used to store drinking water or septic. Providing 150kg lift at halfway submerged. Floats can also be foam filled for extra security if required. In stock now! Stock held at our Sydney factory and Qld branch. Dynaplas Pty Ltd.

Moving Craft To see our pontoon boats click here



Large Detailed Drawing

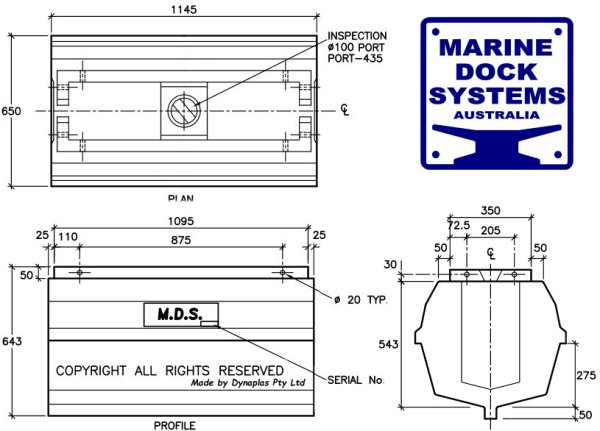

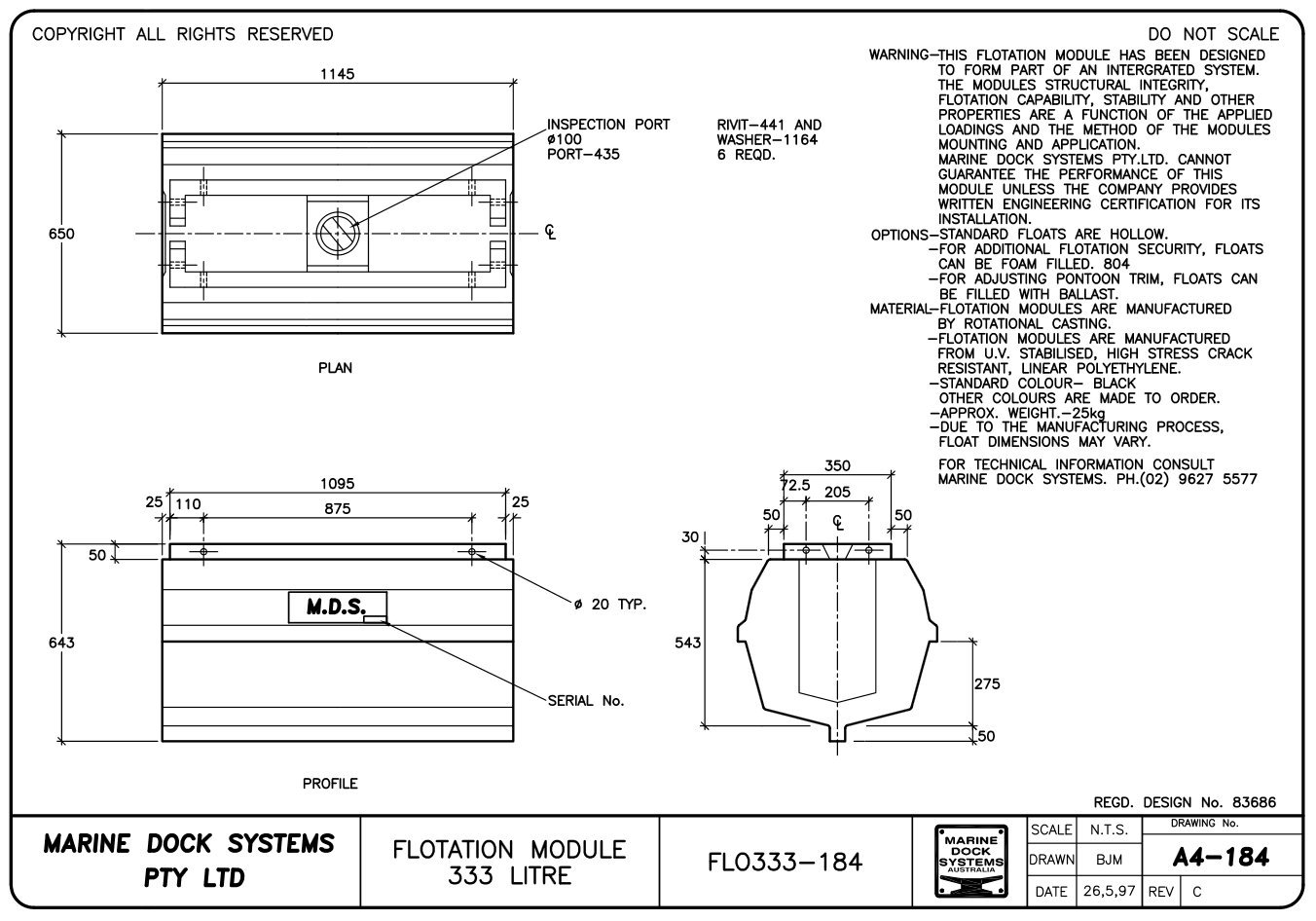

a4-0184 - 333 Litre float
a4-0184 - 333 Litre float
a4-0774 float assembly detail
a4-217 Hydrostatic graph
a4-0306 - 333 Nose Cone

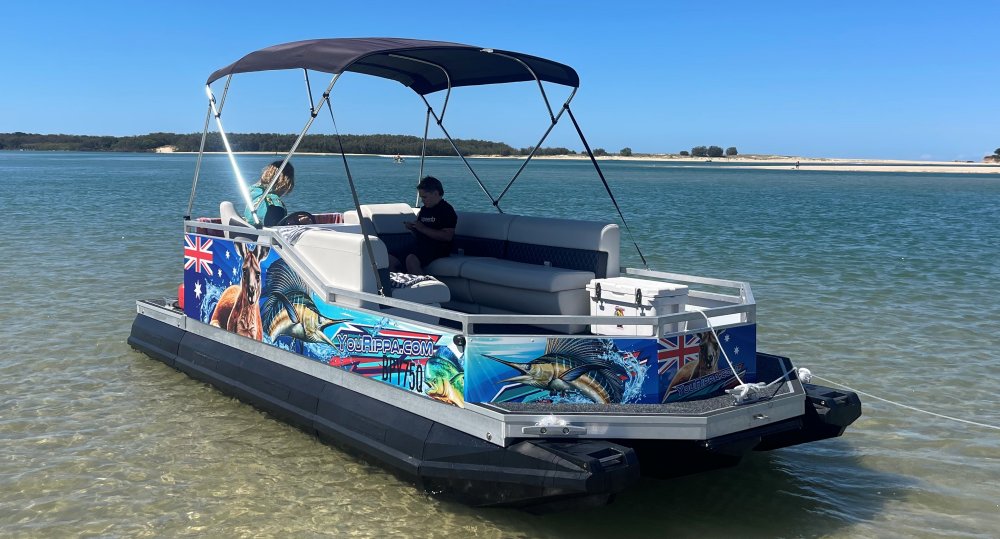

Floating pontoon Boats
Floating pontoon Boats

Floating pontoon Boats

Floating pontoon Boats

Floating pontoon Boats



Pontoon Boats
3.4 Mtr Boats
4.6 Mtr Boats
5.7 Mtr Boats



Floating pontoon Boats

Float Drawing




Float Drawing

Craft assembly

A4-0774 - Craft assembly

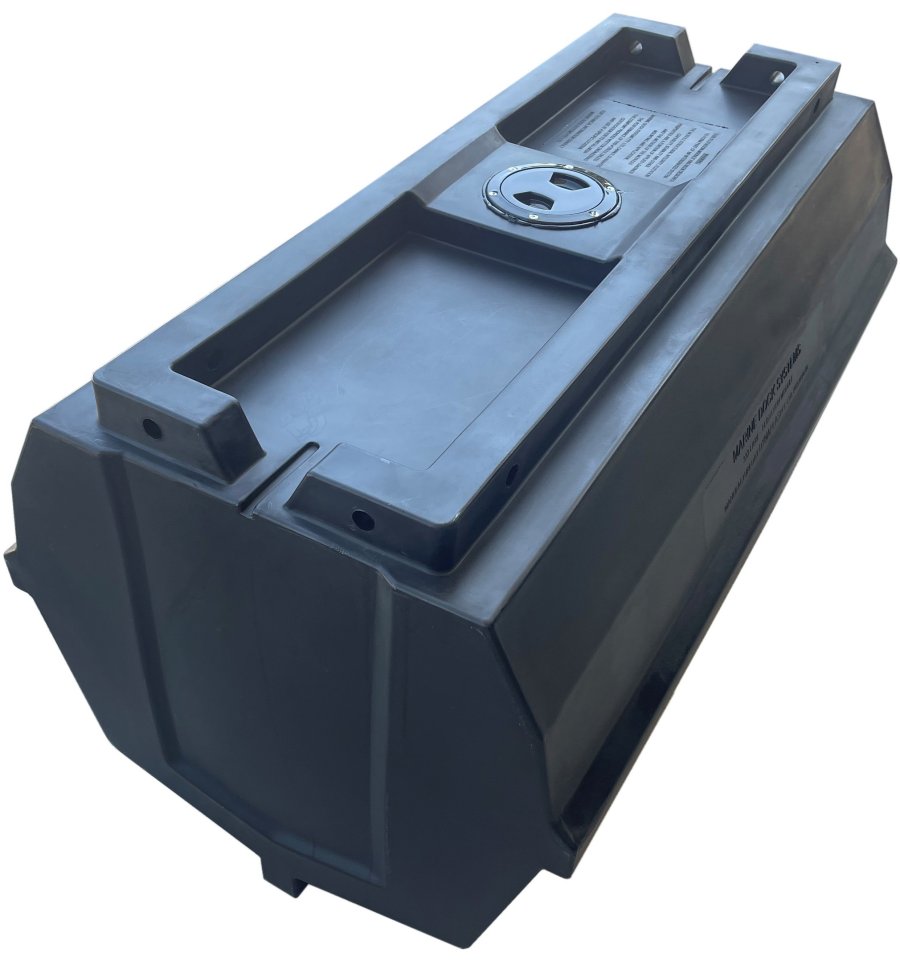

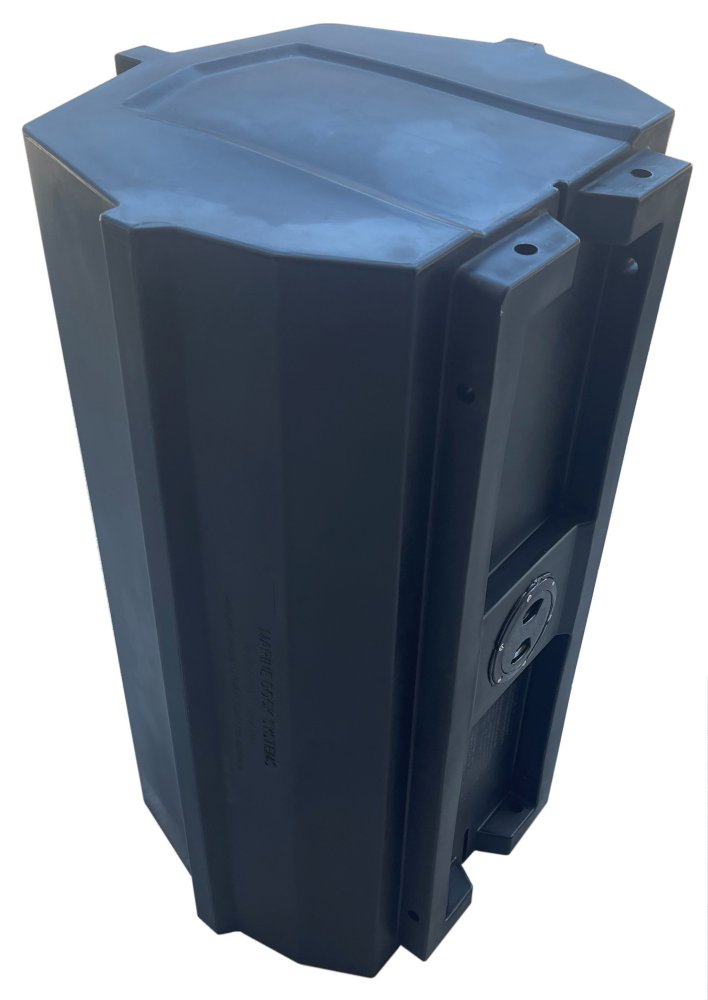

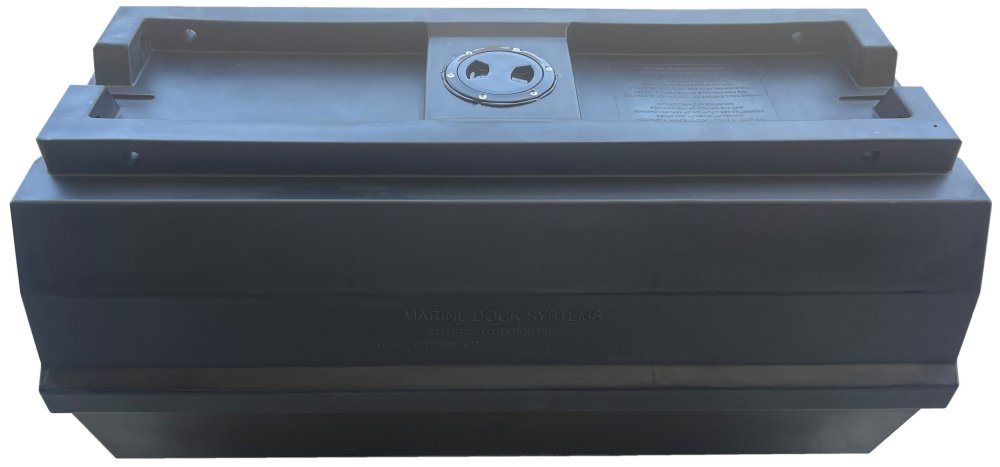

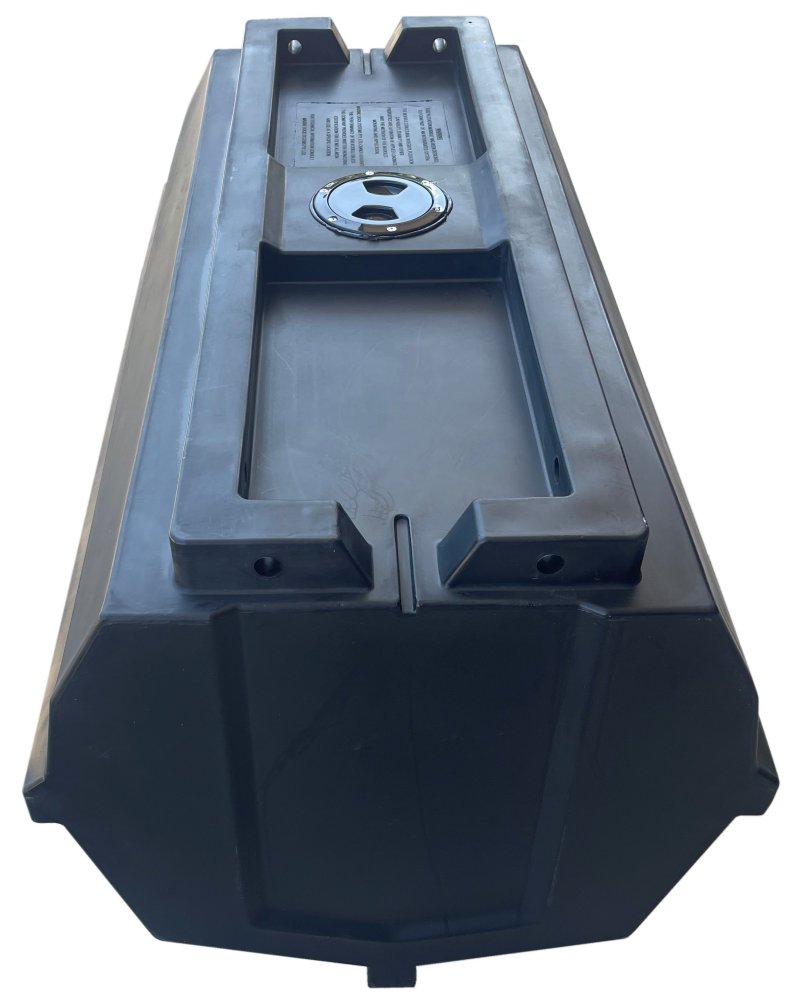

333 Litre Flotation Hull

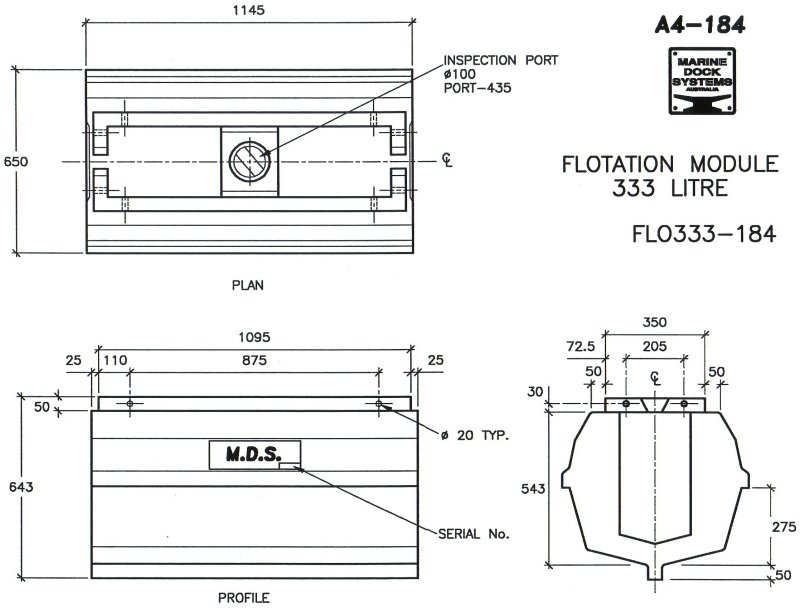

A4-0184 - 333 Litre # FLO333-184

Max load 160kg

Pump pontoon

A4-0927 - Pump pontoon
Max evenly distributed pay load 300kg
Light Ramp

a4-2900 - Aluminium Ramp 6mtr x 0.6 with 333 litre float attached<

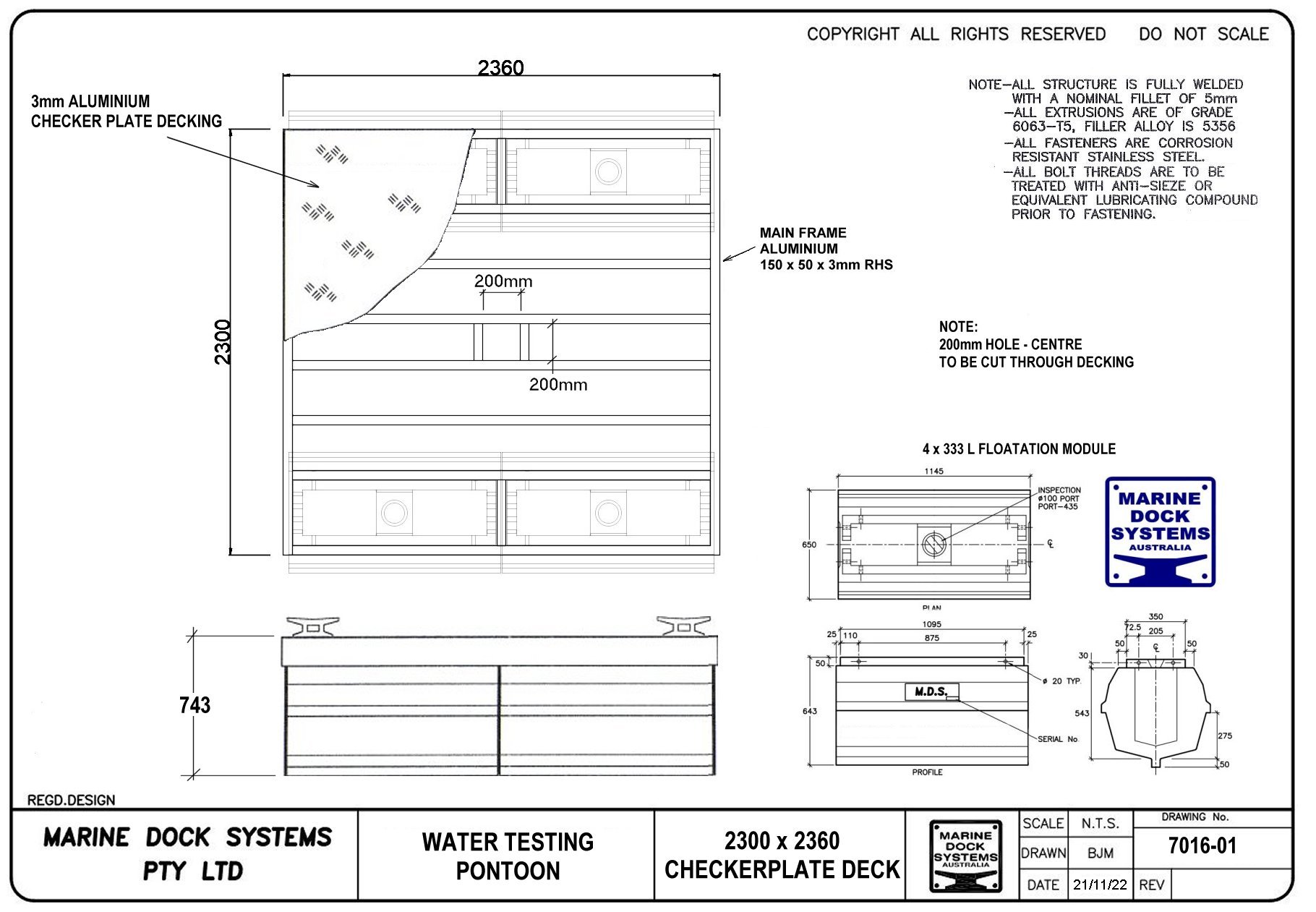

Pump pontoon

Drawing # 7016 - Pump pontoon 2300 x 2360
Max evenly distributed pay load 600kg

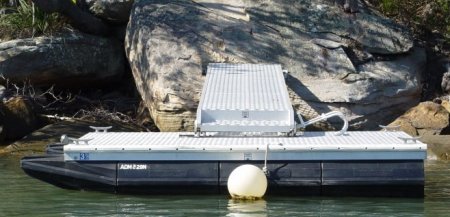

333 Litre floats can be used for small residential, swimming and pump pontoons. Here is a example of a great little pontoon one of our customers put together. Great work!

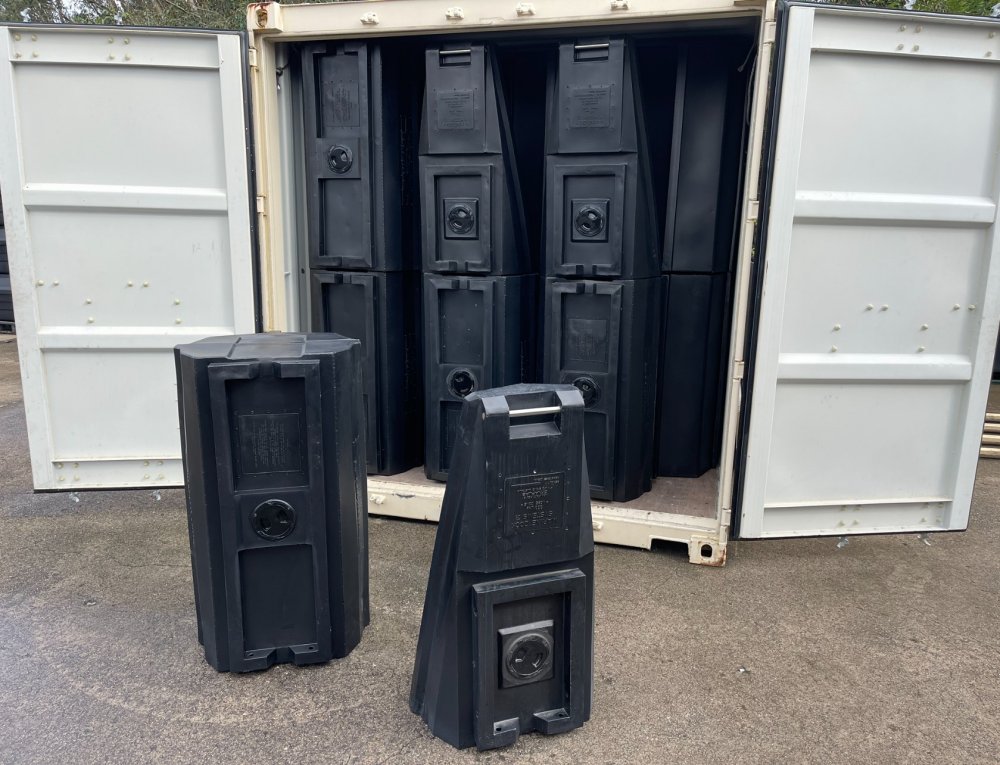

Shipping
Pontoon boat floats fit and pack well onto pallets.
8 x 333 litre floats - Dimentions and weight
130cm x
130cm x
246cm tall
240kg

Marinas     Email - sales@marinedocksystems.com

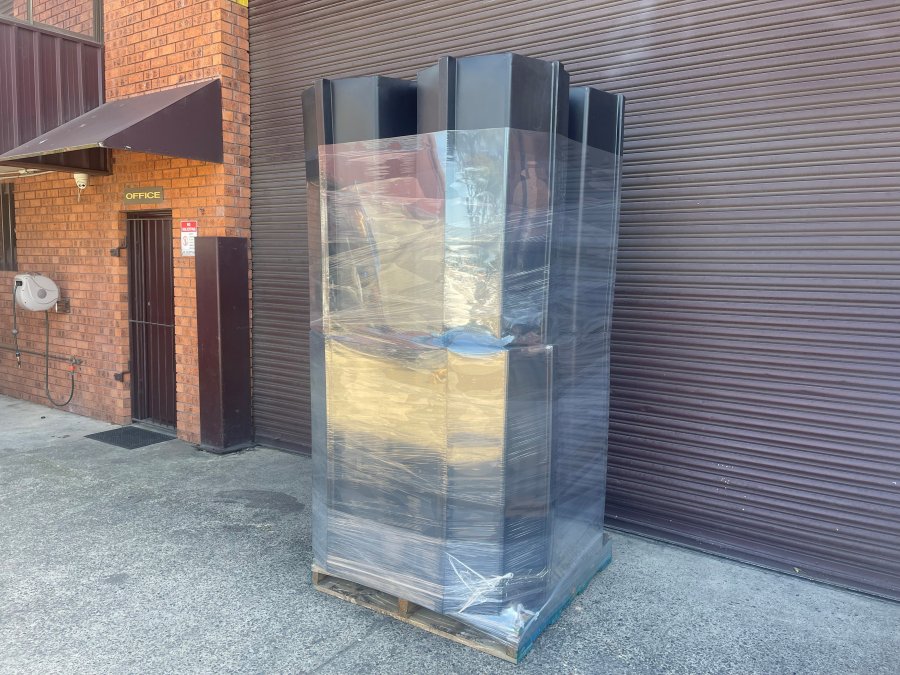

8 x 333 Litre on standard pallet
