550 LITRE FLOTATION MODULE
This float has been specifically designed for use under 'Sea Grass' pontoons and 'Effluent Treatment' pontoons. The narrow width and larger depth of the floats allows us to build pontoons with much smaller water plane area in comparison to deck area. Floats can be filled with water or concrete to add ballast to increase stability. Ballast can also be used to raise and lower the float for different freeboard requirements. Floats can also be foam filled for extra security if required.

Large Detailed Drawings

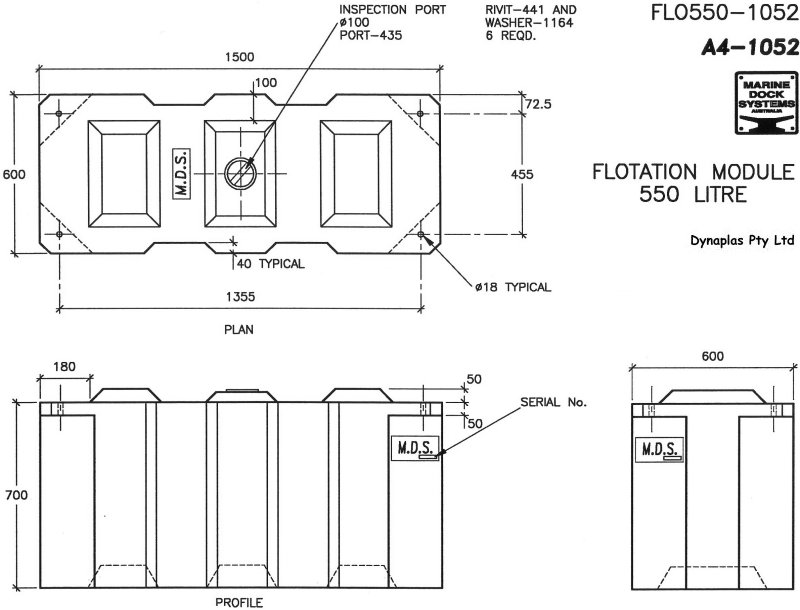

a4-1052 - 550 Litre float
a4-1052 - 550 Litre float
Hrdrostatic graph

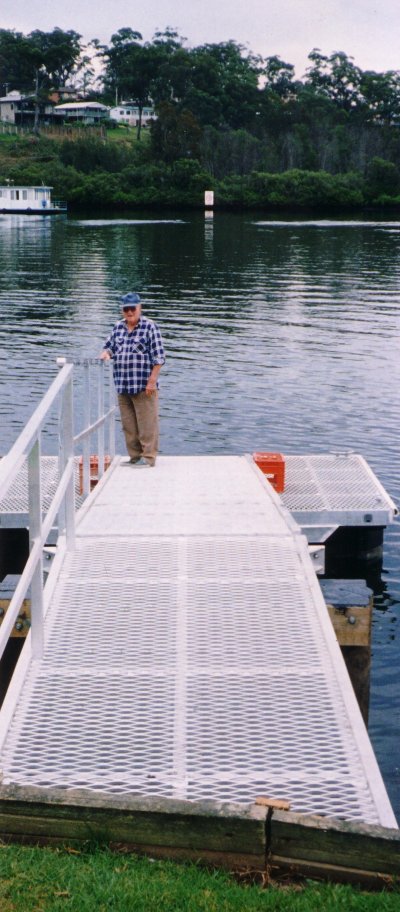

Pontoon 3.6 x 2.5 mtr Timber & Mesh

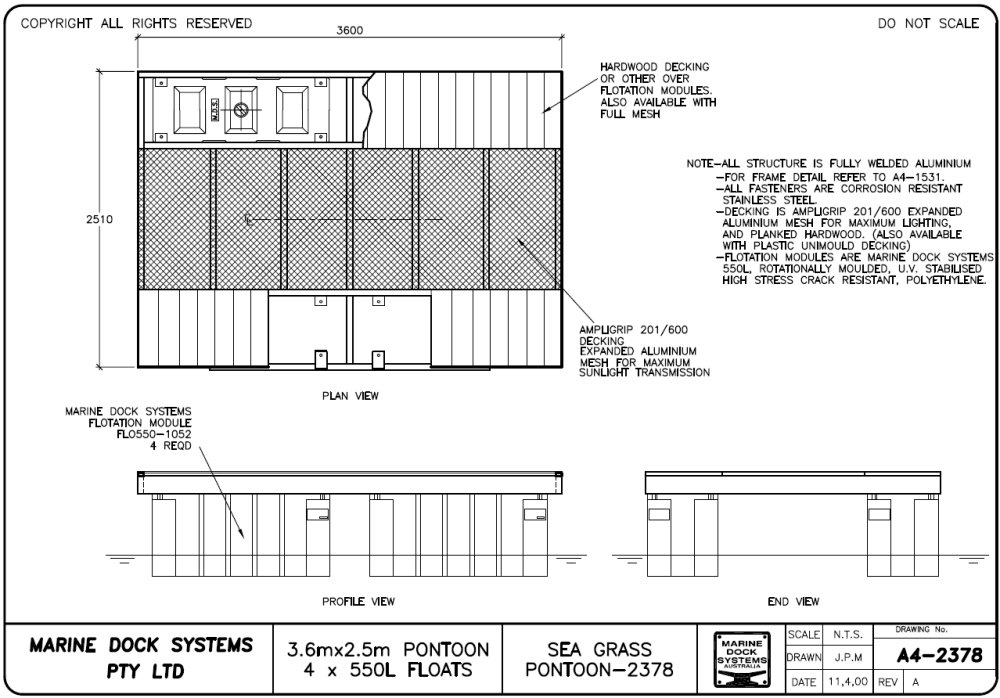

A4-2378 - Sea Grass Pontoon 3.6 x 2.5 mtr Timber & Mesh Deck
550 Litre float

A4-1052 - 550 Litre floatation module

a4-2378a
Sludge Mixer pontoon 3.5 x 2.4mtr

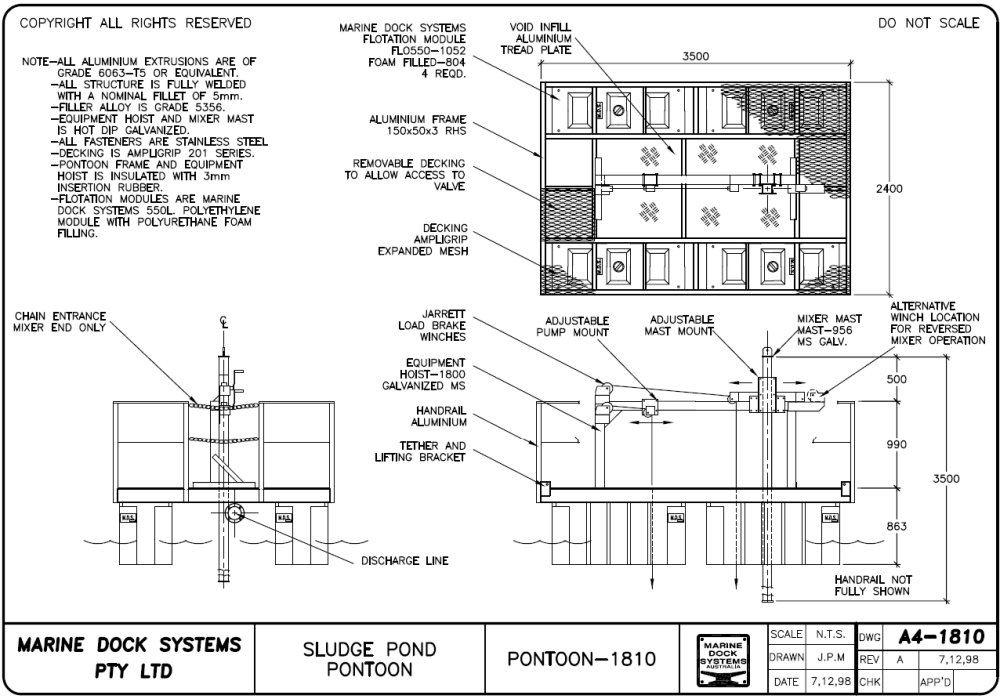

A4-1810 Sludge Mixer pontoon 3.5 x 2.4 mtr
Pump/Mixer pontoon 3.5 x 2.4mtr

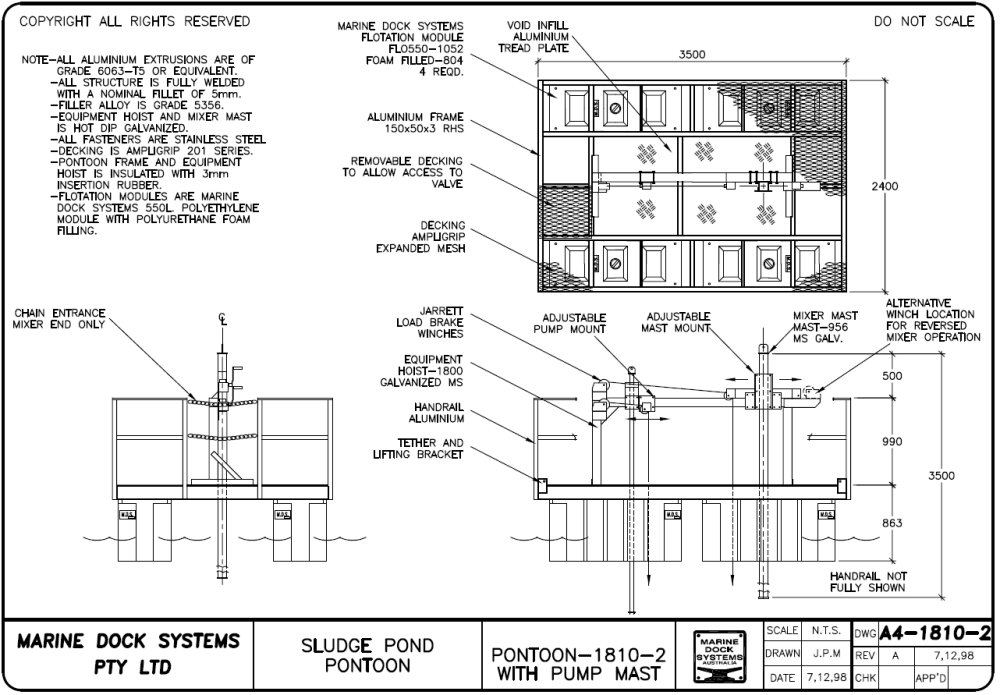

a4-1810-2 Sludge pontoon with pump and mixer mast

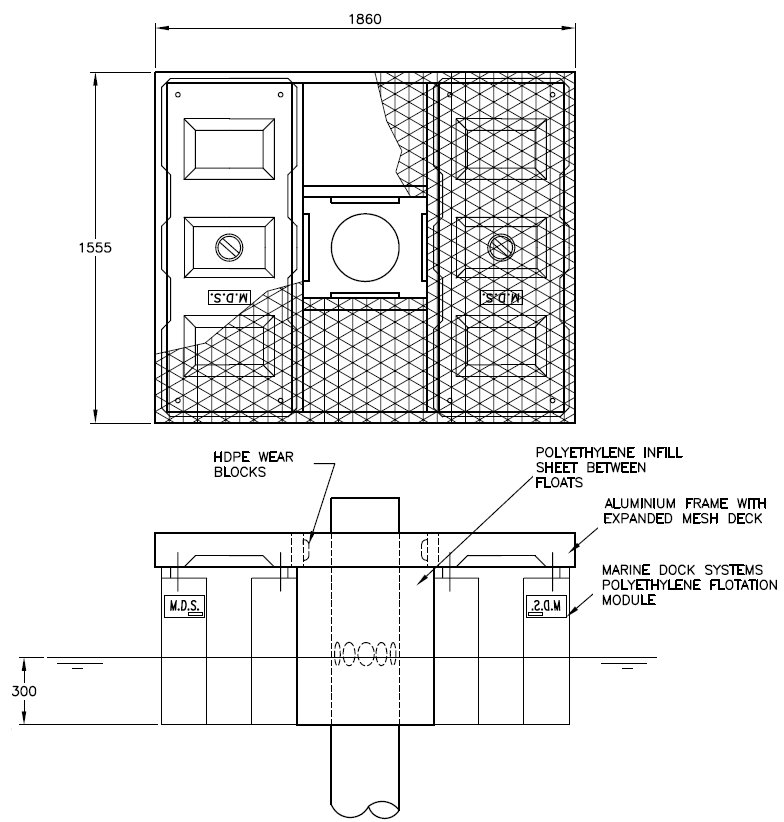

Overflow Screening Pontoon

Overflow Screening Pontoon 2 x 550 ltre floats
Pump/Mixer with stand 3.5 x 2.4mtr

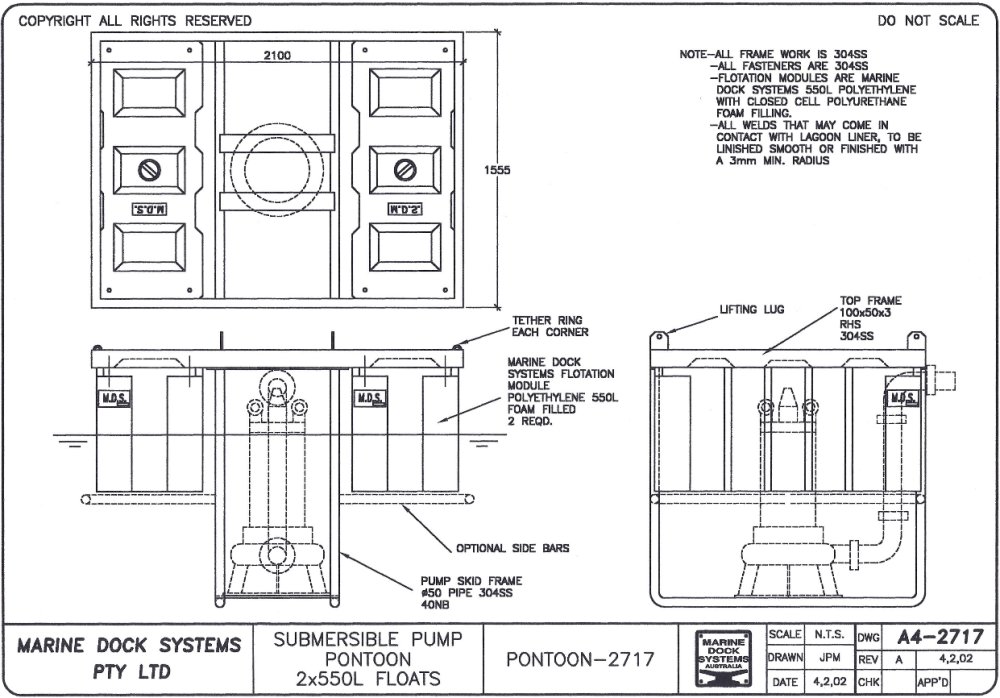

A4-2717 Sludge pontoon with support stand




Oyster Cultivation Pontoons
Here at Marine Dock Systems we have designed a seamless bolt together oyster cultivation pontoon. Manufactured from marine grade aluminium and polyethylene floats. With this design shipping can be reduced to pallet sizes for ease of transport and cost reduction. Any length of pontoon is possible. Examples below show our modular system.
Single Oyster Lease Modular Section

2 x 550 ltre floats Dwg # 7047-01
Mulitple Oyster Lease sections bolted together

8 x 550 ltre floats Dwg # 7047-02
