BUFFER 373 Large D Section Pontoon Fender Large D Section PVC Pontoon Fender
The BUFFER-373 Large D Section Marine Fender is a heavy-duty PVC pontoon buffer designed to protect boats, pontoons, floating docks, marinas and jetties from impact damage during docking and mooring operations. Manufactured from high-quality UV-stabilised extruded PVC, this marine fender provides long-term protection while maintaining an attractive appearance in harsh Australian marine environments.

Available in continuous lengths up to 25 metres per roll, the BUFFER-373 is widely used on commercial marinas, residential pontoons, floating walkways, yacht clubs, boat ramps and waterfront developments. The large D-section profile provides excellent impact absorption and helps protect vessel hulls, marina infrastructure and pontoon edges from everyday wear and accidental contact.

Manufactured in white non-marking PVC as standard, the BUFFER-373 helps prevent black scuff marks on boats and provides a clean professional finish. Black PVC versions may also be available for custom orders or special applications.

Features & Benefits
• Large D-section marine fender profile
• Manufactured from marine-grade extruded PVC
• UV stabilised for Australian conditions
• Non-marking white PVC standard stock item
• Available in lengths up to 25 metres per roll
• Excellent impact absorption properties
• Helps protect boats, pontoons and marina infrastructure
• Suitable for commercial and residential applications
• Saltwater and weather resistant
• Low maintenance and long service life

Typical Applications
• Marina Berths
• Floating Pontoons
• Floating Docks
• Boat Ramp Pontoons
• Residential Jetties
• Yacht Clubs
• Commercial Marinas
• Public Waterfront Facilities
• Industrial Marine Structures

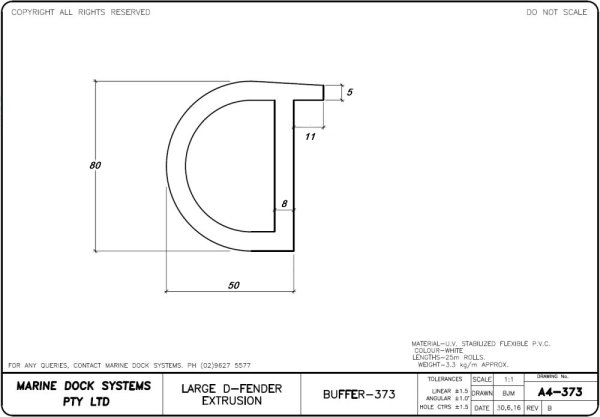

Specifications
Part Number: BUFFER-373
Profile: Large D Section Fender
Material: UV Stabilised PVC
Standard Colour: White (Non-Marking)
Optional Colour: Black (Subject to Availability)
Supply Length: Up to 25 Metres per Roll
Applications: Marinas, Pontoons, Jetties, Floating Docks and Boat Ramp Facilities


Marine Dock Systems has supplied pontoon hardware, marina components, floating dock accessories and marina fender systems throughout Australia since 1978. The BUFFER-373 remains one of the most popular pontoon fender profiles for protecting vessels and marine infrastructure while delivering excellent durability, impact resistance and professional appearance.
buffer, pontoons, marinas

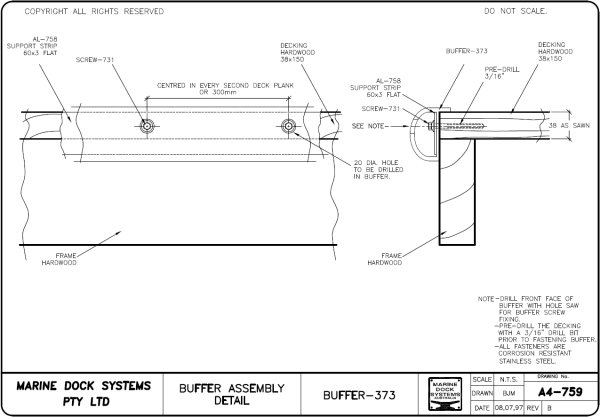

Fitting Instructions

1. Slide the correct piece of 60 x 3 flat bar into the buffer – it’s cut 20mm short each end to make it easier to manage the corners.
2. If it’s buffer on 3 sides – start with the short side – only attempt to attach one side at a time.
3. Place the buffer (with the alloy inserted) onto the pontoon and clamp.
4. Leave the rest of the buffer atop the pontoon to prevent damage.
5. Using a 20mm hole saw bit, drill a hole into the buffer about 50mm from the edge of the pontoon and screw through the flat bar to the pontoon using the screws provided.
6. Space the holes approx. 300mm apart and continue drilling the holes and screwing the buffer on as you go.
7. When you get to the corner, slide the next piece of 60 x 3 flat bar into the buffer and stop 20mm short from corner.

TIP: Using the hole saw bit, drill a hole on the back side of the buffer so you see when the flat bar is in the correct position

8. Cut a small V in the top of the buffer and bend the buffer around the corner. Clamp in a few places again.
9. Drill the first hole on this side about 50mm from the corner and continue with approx. 300mm spacings.
10. Repeat the corner procedure again and then finish with the final side of the buffer, trim it to the right length before fixing last screw.
11. Use Gumption to clean the buffer
pontoons, marinas, jetties, docks, barges MARINE DOCK SYSTEMS
45 Wellington Street Riverstone N.S.W 2765 Australia
Ph: +61 2 9627 5577
26 Corbould Rd Coolum Beach Qld 4573 Australia
Ph: +61 7 5324 1557
Marinas Home    Marinas Email    Marinas Enquiry   Marinas Links 		pontoons, marinas, jetties, docks, barges


Frequently Asked Questions - BUFFER-373 Large D Section Marine Fender

1. What is the BUFFER-373 Marine Fender?
The BUFFER-373 is a large D-section PVC marine fender designed to protect boats, pontoons, marinas, jetties and floating docks from impact damage during docking and mooring.

2. What is a D-section fender?
A D-section fender features a rounded impact surface with a flat mounting side, providing excellent shock absorption and vessel protection while remaining easy to install.

3. What is the BUFFER-373 made from?
The BUFFER-373 is manufactured from UV-stabilised extruded PVC, providing long-lasting durability and resistance to harsh marine environments.

4. Is the BUFFER-373 suitable for marinas?
Yes. The BUFFER-373 is commonly used on marina berths, floating pontoons, commercial docks and private jetties throughout Australia.

5. Can the BUFFER-373 protect boats from scratches?
Yes. The smooth white PVC construction is non-marking and helps prevent scratches, scuffs and impact damage to vessel hulls.

6. What colour is the BUFFER-373 available in?
White is the standard stocked colour. Black fendering may be available for special orders or custom projects.

7. How is the BUFFER-373 supplied?
The BUFFER-373 is supplied by the metre and is available in lengths of up to 25 metres per roll for easy installation on large projects.

8. What types of structures can use BUFFER-373?
The fender is suitable for floating pontoons, marinas, jetties, wharves, gangways, boat ramps and commercial marine facilities.

9. Is the BUFFER-373 UV resistant?
Yes. The PVC extrusion is UV protected to withstand prolonged exposure to Australian sunlight and weather conditions.

10. Can the BUFFER-373 be installed on timber pontoons?
Yes. It can be fitted to timber-framed pontoons and jetties using the recommended mounting method and fasteners.

11. Can it be installed on aluminium pontoons?
Yes. The BUFFER-373 can also be fitted to aluminium-framed pontoon systems and marina structures.

12. Why choose PVC marine fendering?
PVC marine fendering provides excellent impact resistance, durability, UV stability and low maintenance compared with many alternative materials.

13. What boats is the BUFFER-373 suitable for?
The BUFFER-373 is suitable for fishing boats, pontoon boats, cruisers, yachts, workboats, tenders and commercial vessels.

14. Can the BUFFER-373 be used on commercial marina projects?
Yes. The product is widely suited to commercial marinas, council projects, boat clubs, yacht clubs and waterfront developments.

15. Does Marine Dock Systems provide installation instructions?
Yes. Detailed fitting instructions and technical drawings are available to assist with correct installation and maintenance.

16. What are the advantages of a large D-section fender?
The larger profile provides greater impact absorption and hull protection, making it ideal for high-traffic marina and pontoon applications.

17. Can BUFFER-373 be installed around pontoon corners?
Yes. The flexible PVC profile can be shaped around corners using the recommended installation method outlined in the fitting instructions.

18. Is the BUFFER-373 suitable for saltwater environments?
Yes. The PVC material is resistant to corrosion, saltwater exposure and marine growth, making it ideal for coastal installations.

19. How long does PVC marine fendering last?
With proper installation and normal maintenance, PVC marine fendering can provide many years of reliable service in marine environments.

20. Why choose Marine Dock Systems BUFFER-373?
The BUFFER-373 combines excellent boat protection, UV resistance, non-marking performance and easy installation, making it a proven choice for pontoons, marinas and jetties throughout Australia.
