INDUSTRIAL
Any configuration at all can be manufactured, we can design, engineer and construct to your needs. We have manufactured sludge pontoons, aerating pontoons, hose floats, work platforms, specialised moving craft, pontoons, floating bridges, pump pontoons and more.
Floating Pontoons Floating Pontoons

Industrial Effluent Pontoon

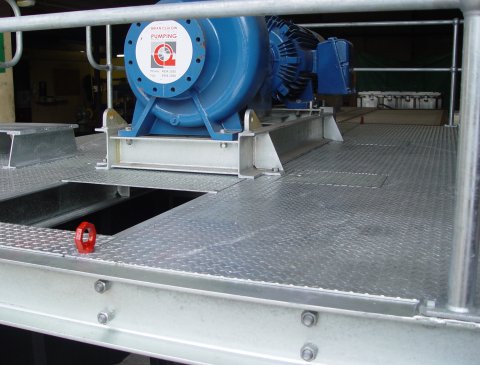

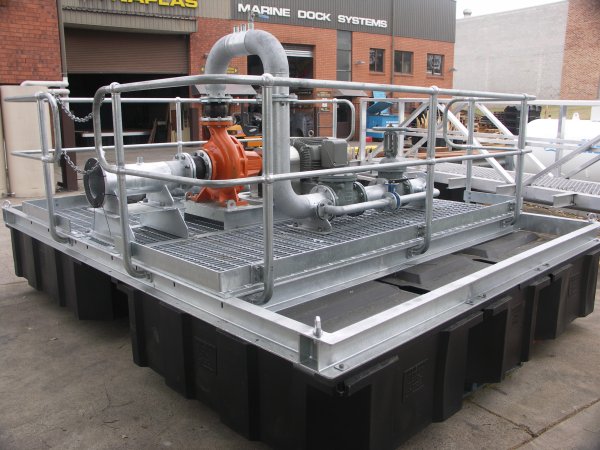

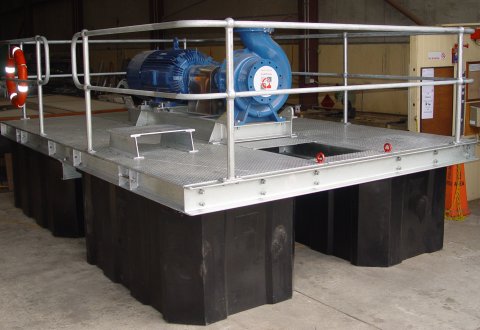

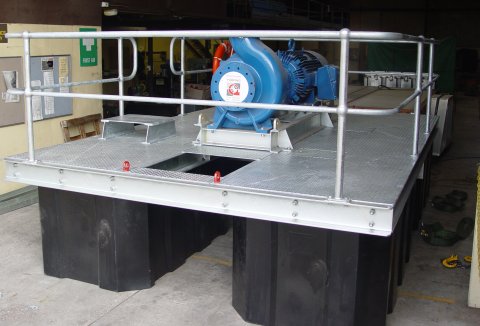

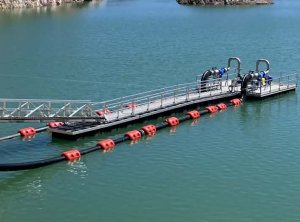

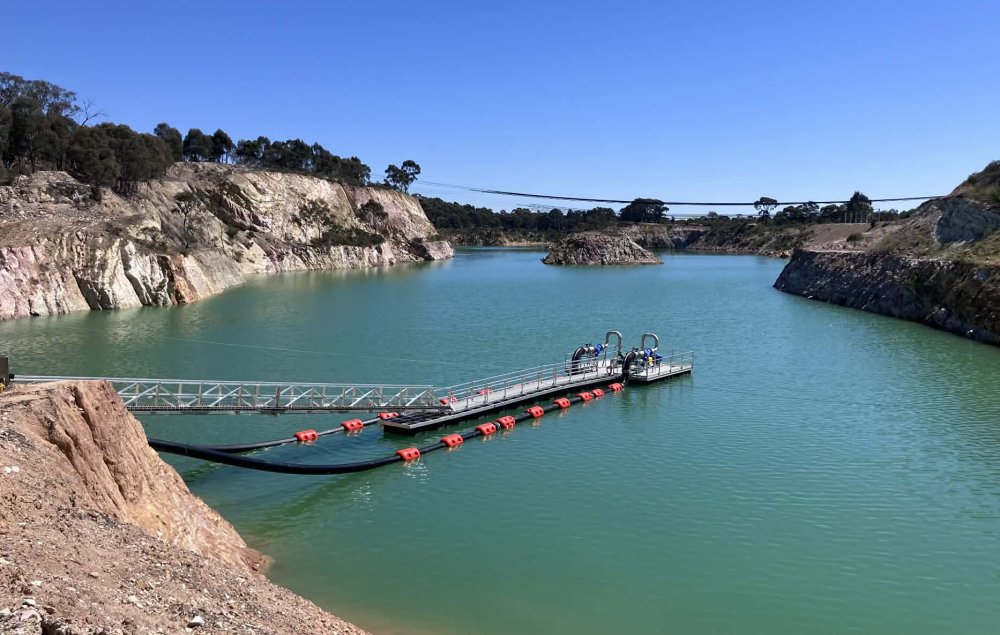

Industrial Pump Pontoons

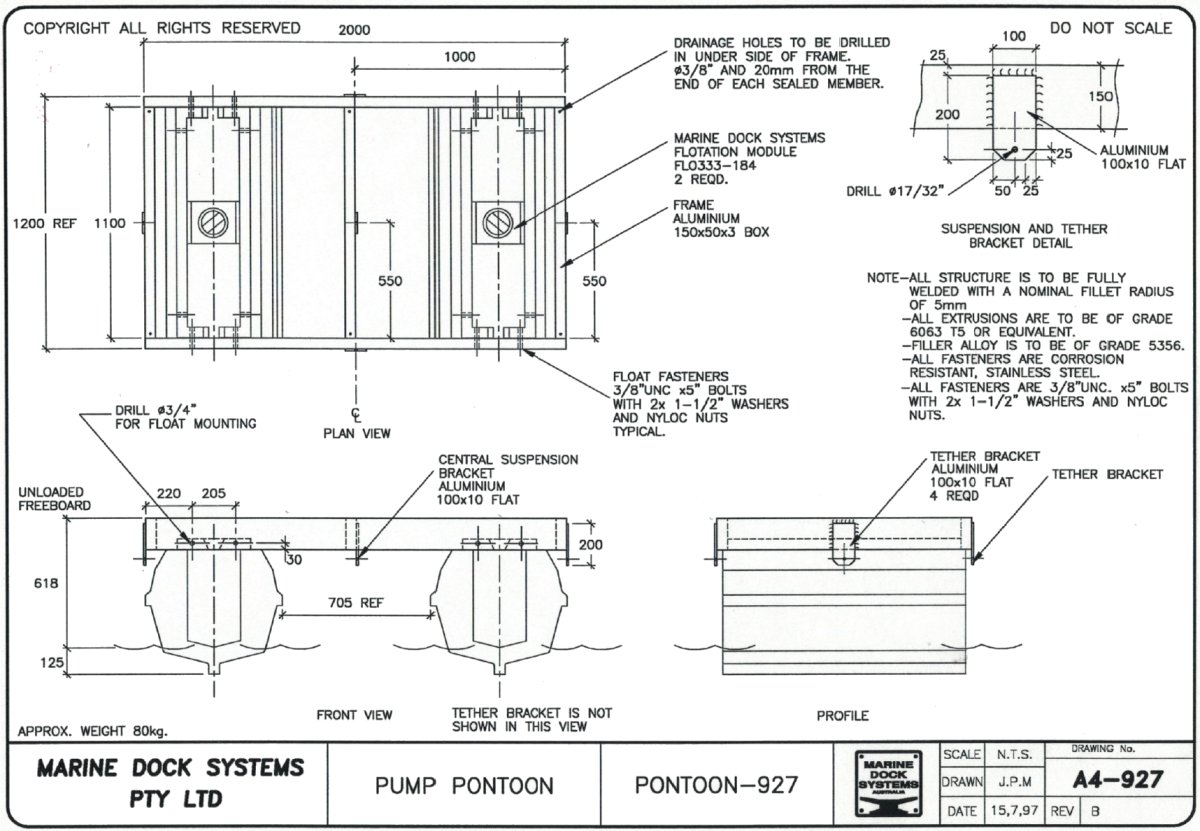

Drawing A4-0927 2 mtr x 1.2 - load capacity = 300kg to 500kg

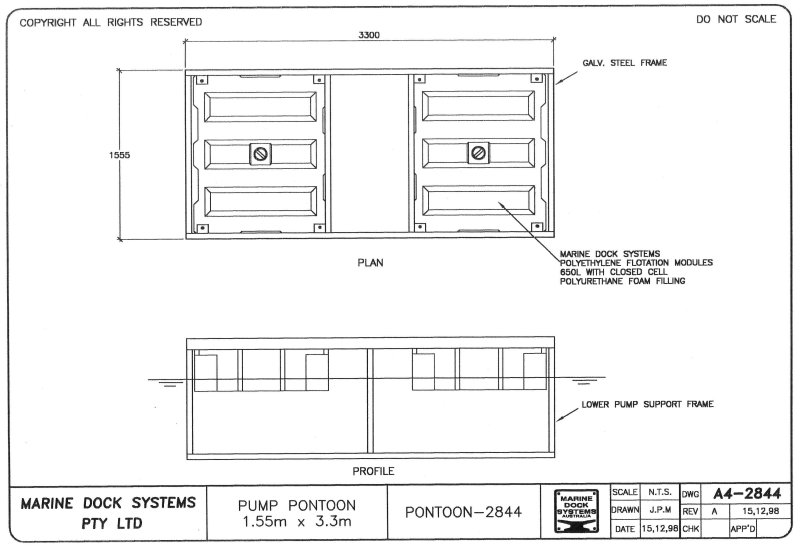

Drawing A4-2844 3.3 mtr x 1.5 - load capacity = 600kg to 1000kg
Drawing A4-1763 - 4.85 mtr x 4 load capacity = 6000kg to 10000kg

Industrial Pump 2400kg or 4000kg Foam Filled

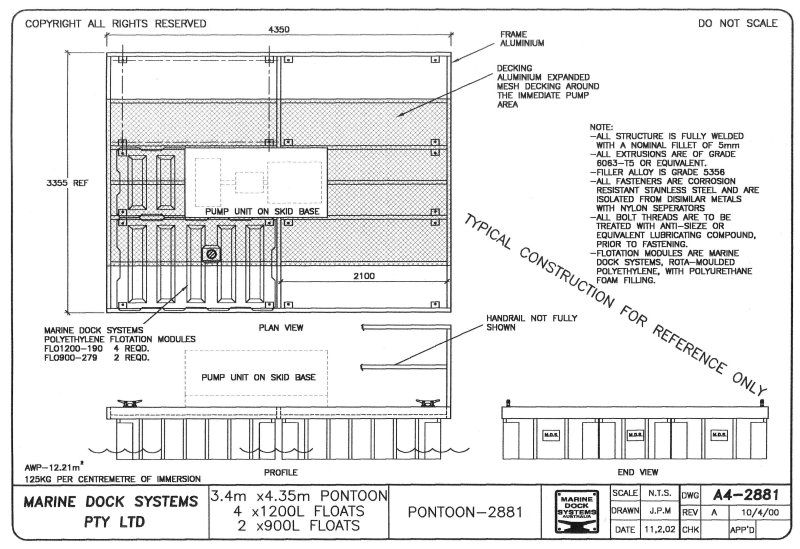

Drawing a4-2881 4.35 mtr x 3.4 - load capacity = 2900kg

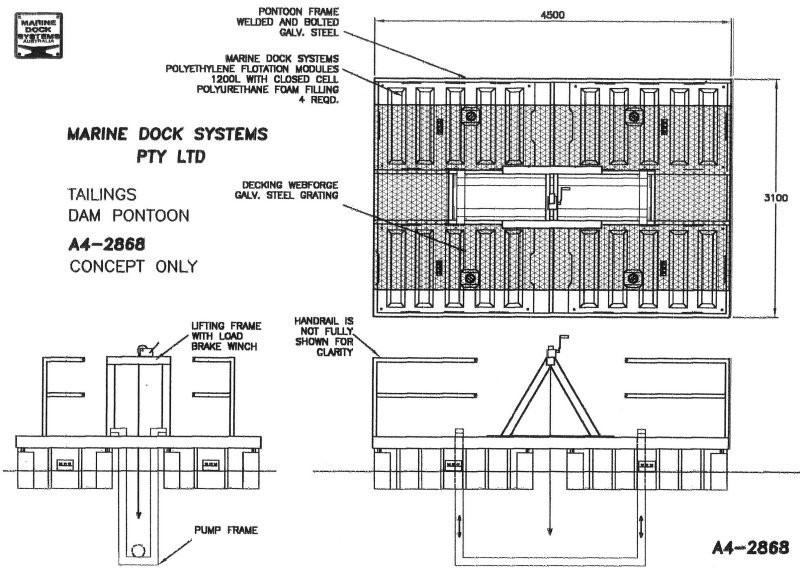

Drawing a4-2868 4.5 mtr x 3.1 - load capacity = 1900kg
a4-0919 4.2 mtr x 2.6 - Water supply pontoon

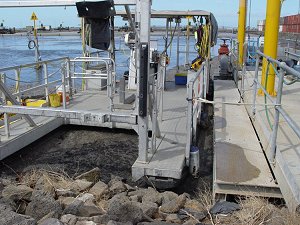

Sludge Pontoons

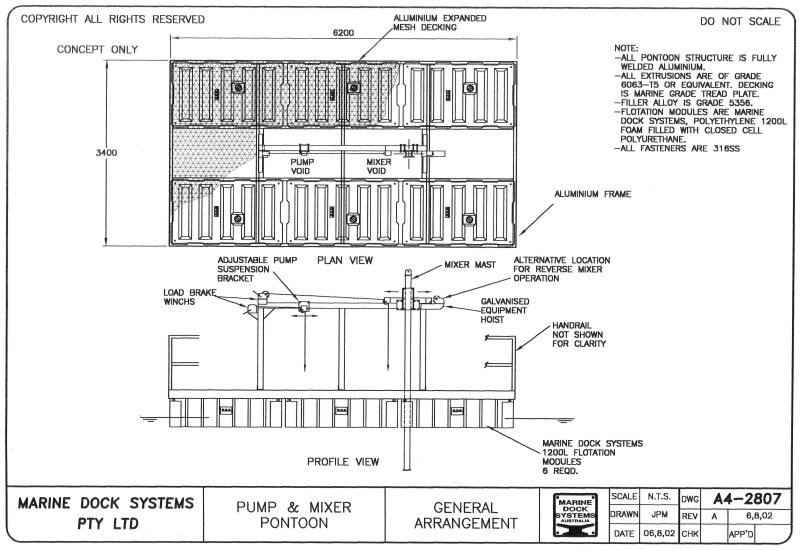

Drawing a4-2807 6.2 mtr x 3.4 - load capacity = 3000kg

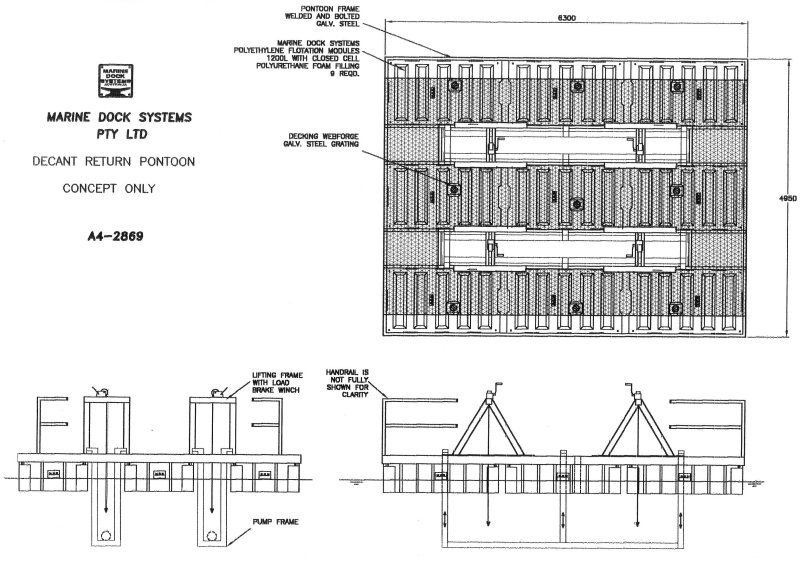

Drawing a4-2869 6.5 mtr x 4.9 - load capacity = 3600kg

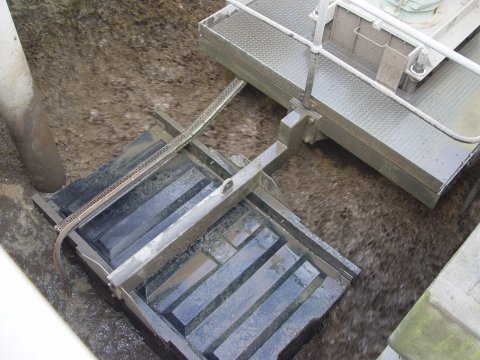

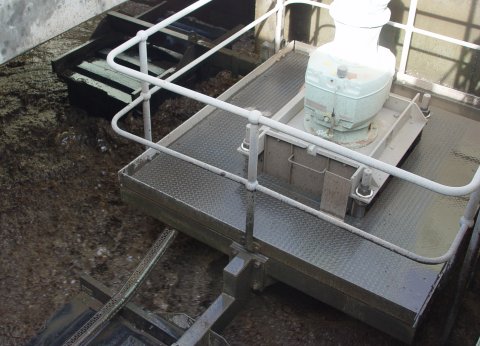

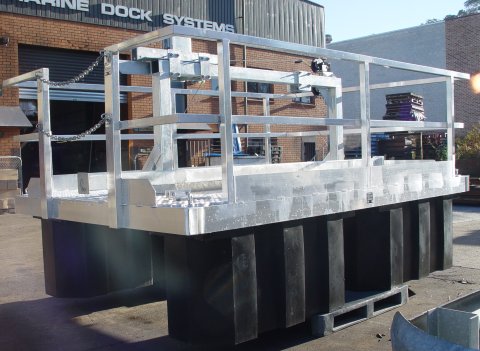

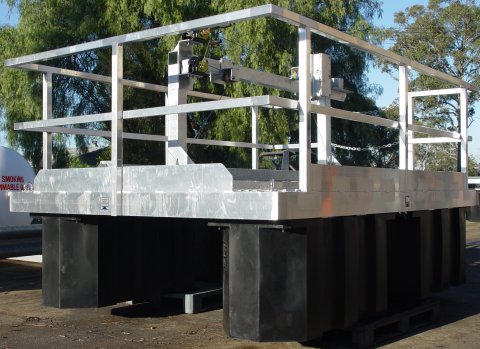

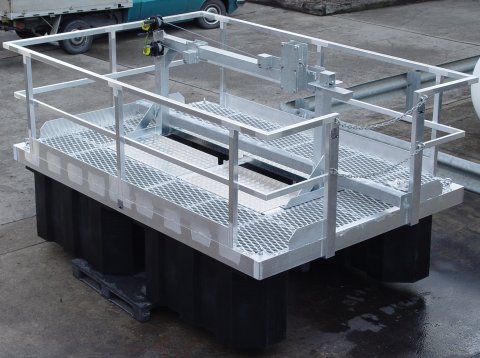

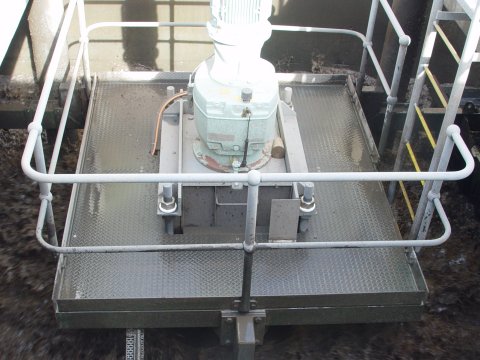

Mixer Pontoons

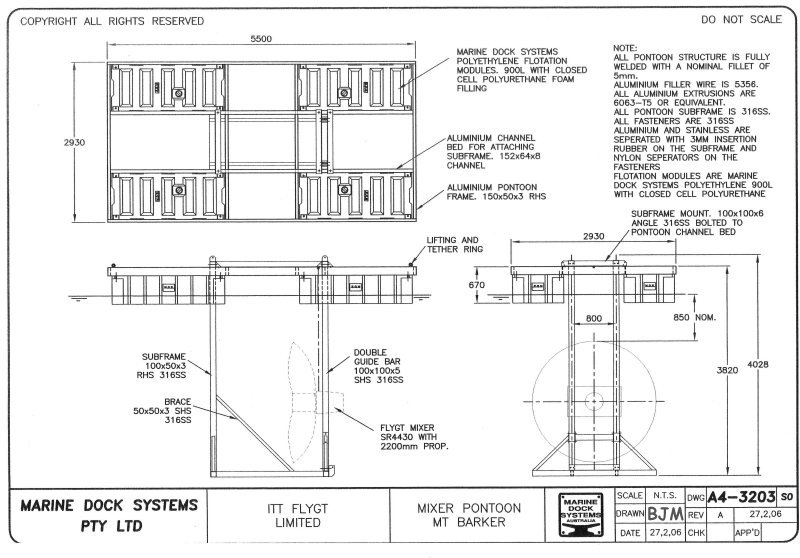

Drawing a4-3203 Special mixer pontoon

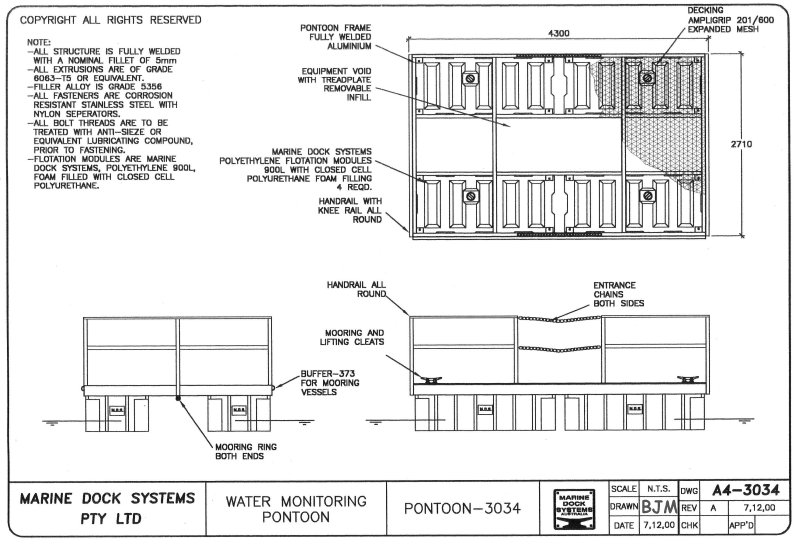

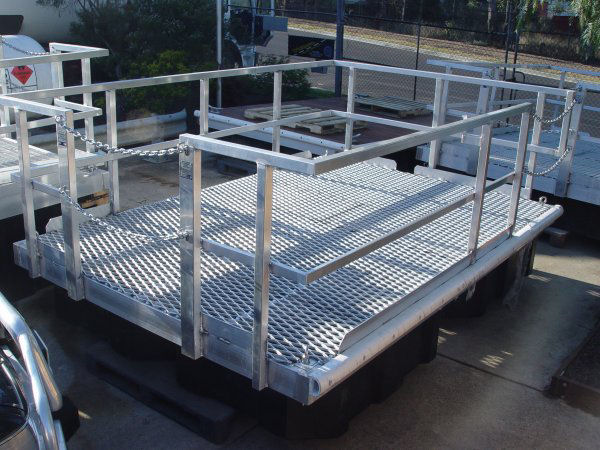

Drawing a4-3034 Work platform 4.5 mtr x 2.7 (with handrail)

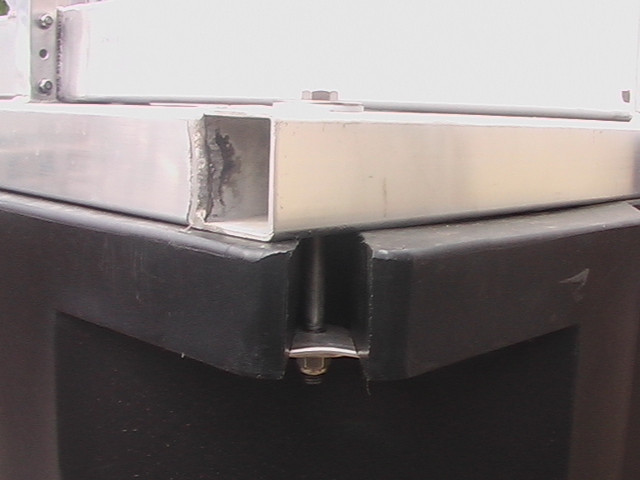

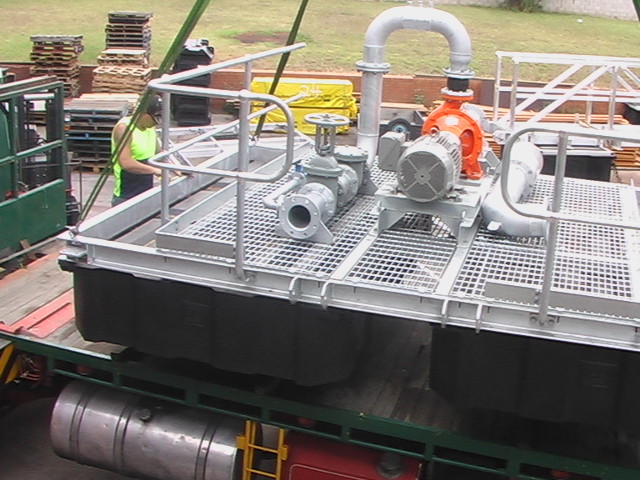

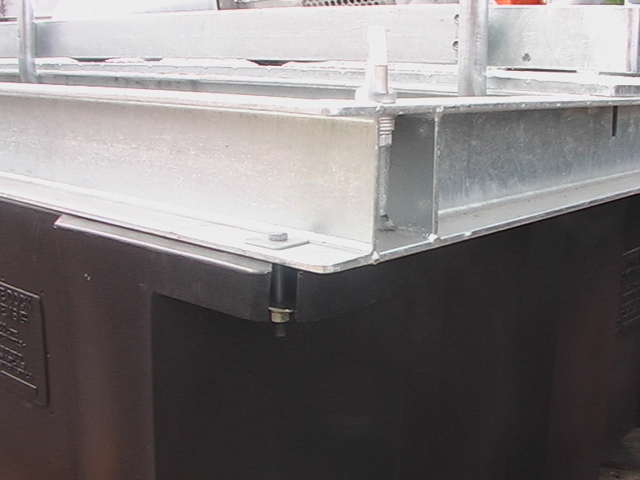

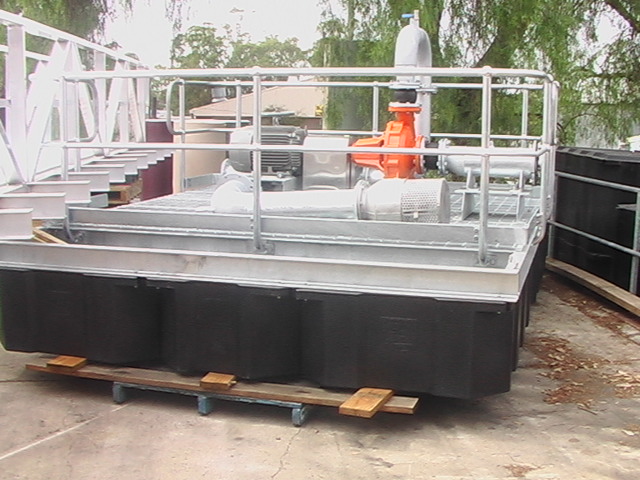

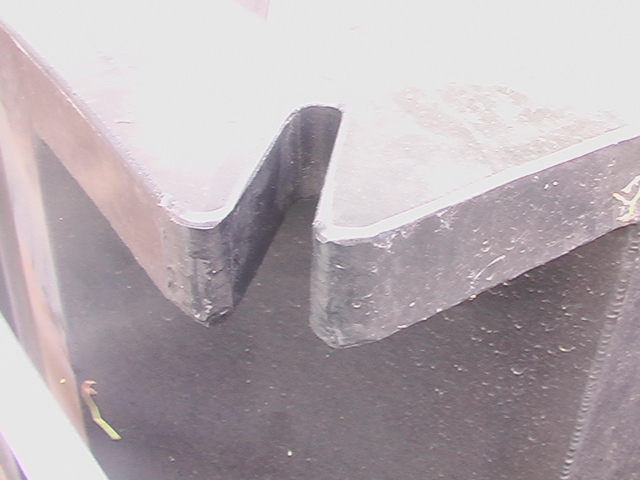

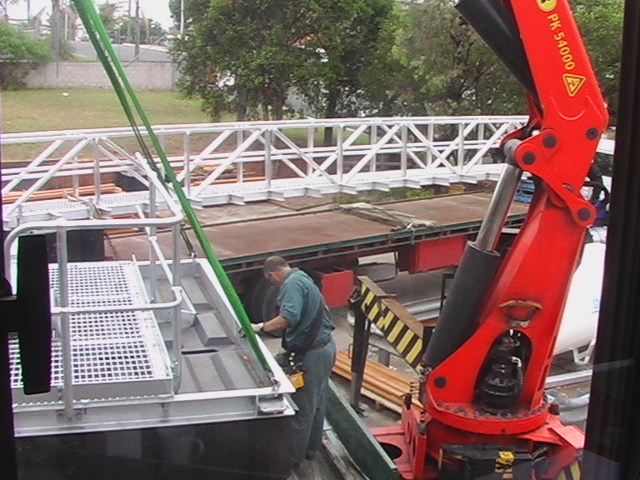

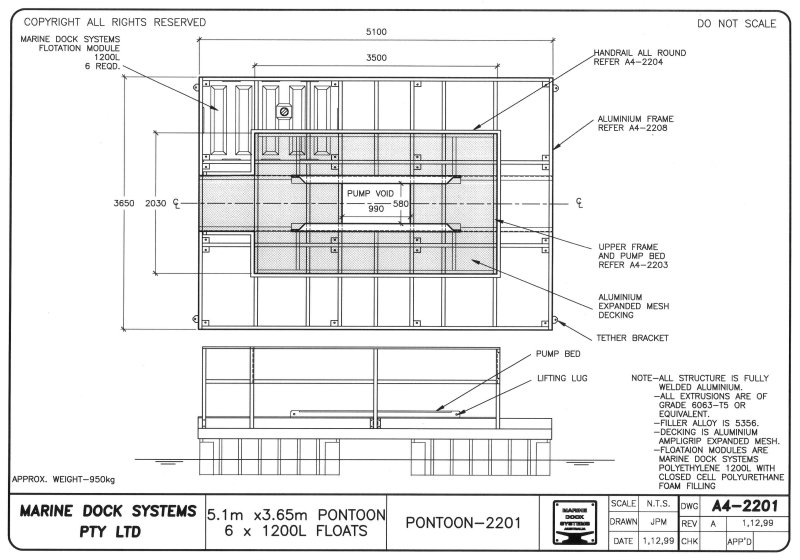

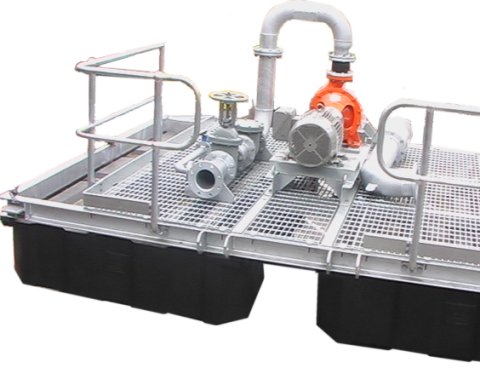

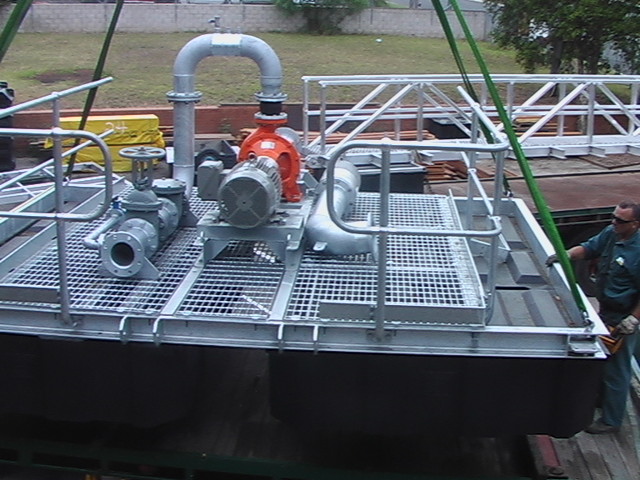

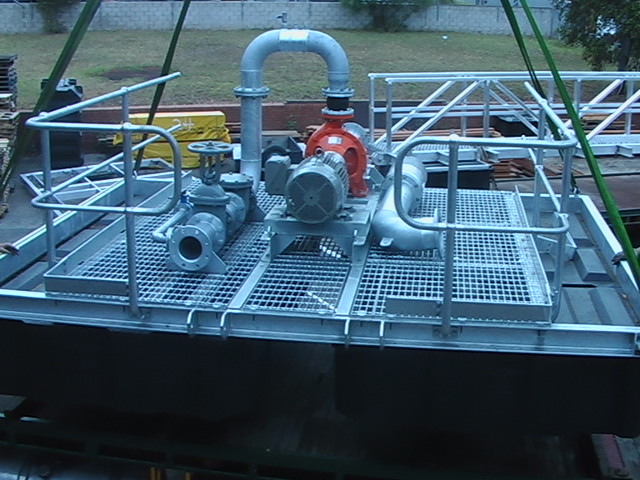

Photo's Pump Pontoon 2201
Photo # 1
Photo # 2
Photo # 3
Photo # 4
Photo # 5
Photo # 6
Photo # 7
Photo # 8
Photo # 9
  Industrial Pontoons
  Industrial Pontoons

Industrial Pontoons

Industrial Pontoons Industrial Pontoons Industrial Pontoons
Industrial Pontoons Industrial Pontoons Industrial Pontoons
Industrial Pontoons Industrial Pontoons Industrial Pontoons
Industrial Pontoons Industrial Pontoons Industrial Pontoons
Industrial Pontoons Industrial Pontoons Industrial Pontoons
Industrial Pontoons Industrial Pontoons Industrial Pontoons

a4-1810 Sludge Lagoon pontoon
a4-1810-2 Sludge pontoon with pump and mixer mast

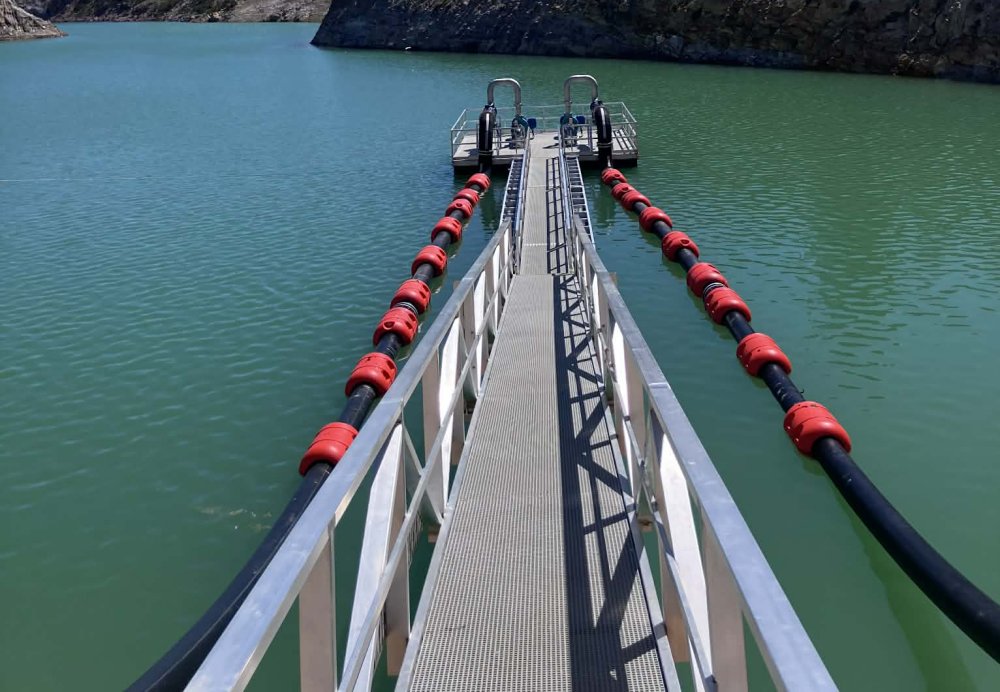

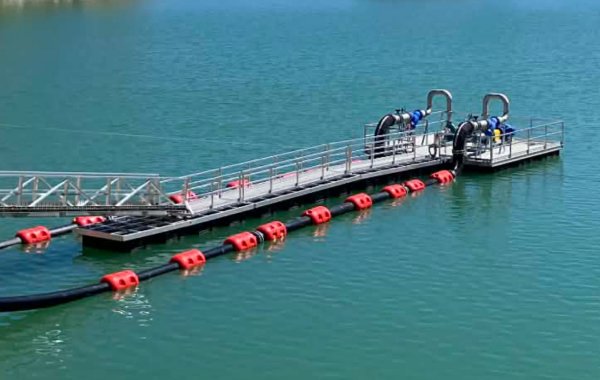

a4-2316 Hose Floats 100mm
Industrial Pump 3600kg or 7200kg Foam Filled

Industrial Mixer 3600kg or 7200kg Foam Filled


Industrial Pump 1200kg or 2400kg Foam Filled

Industrial Pump 1200kg or 2400kg Foam Filled


Floating Industrial Pontoon a4-2492 - Pump pontoon Arrangment Dairy Farmers
Floating Industrial Pontoon a4-2717 - Submersable Pump Pontoon - 2 x 550 Litre floats


Submersible Pump pontoon - 1 x 650

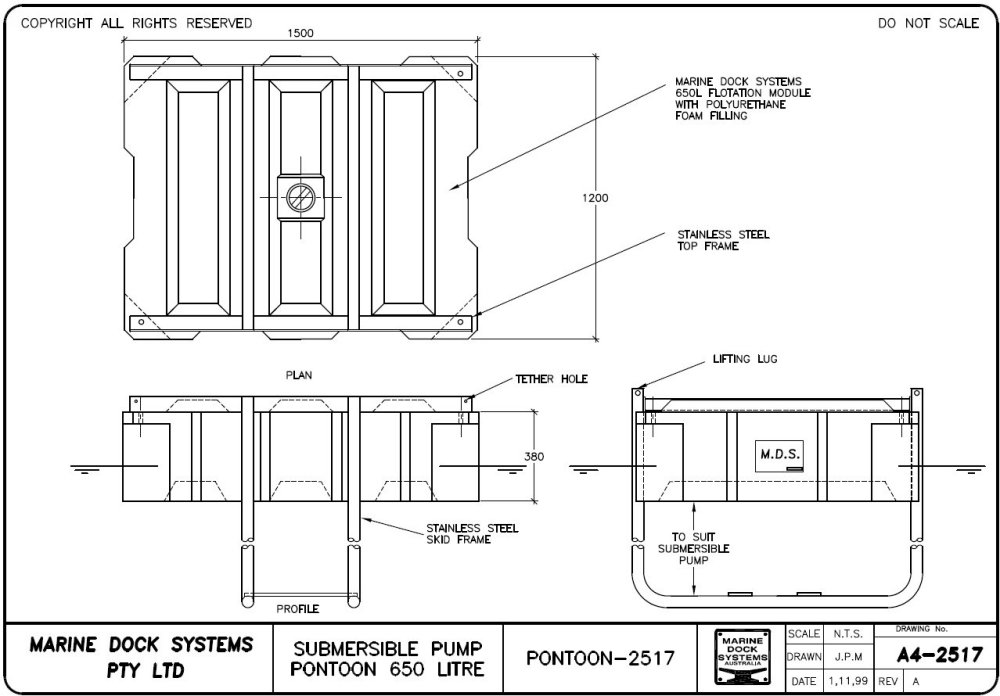

A4-2517 - Submersible Pump pontoon - 1 x 650
Submersible Pump pontoon - 2 x 650

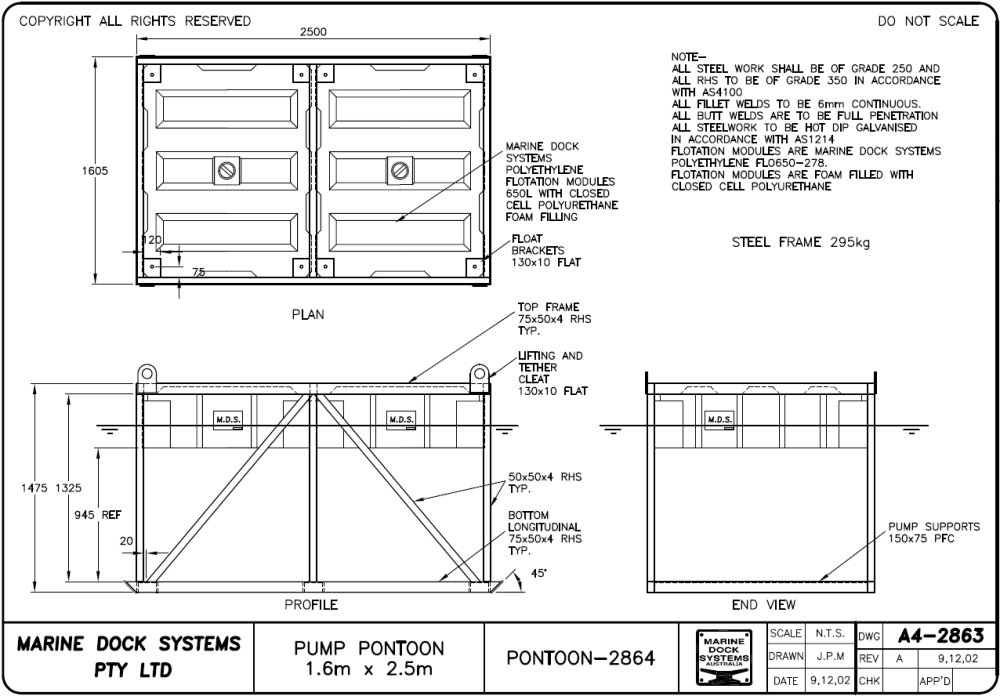

A4-2863 - Pump Pontoon (2 x 650 Litre Floats)

Submersible Pump pontoon - 2 x 650

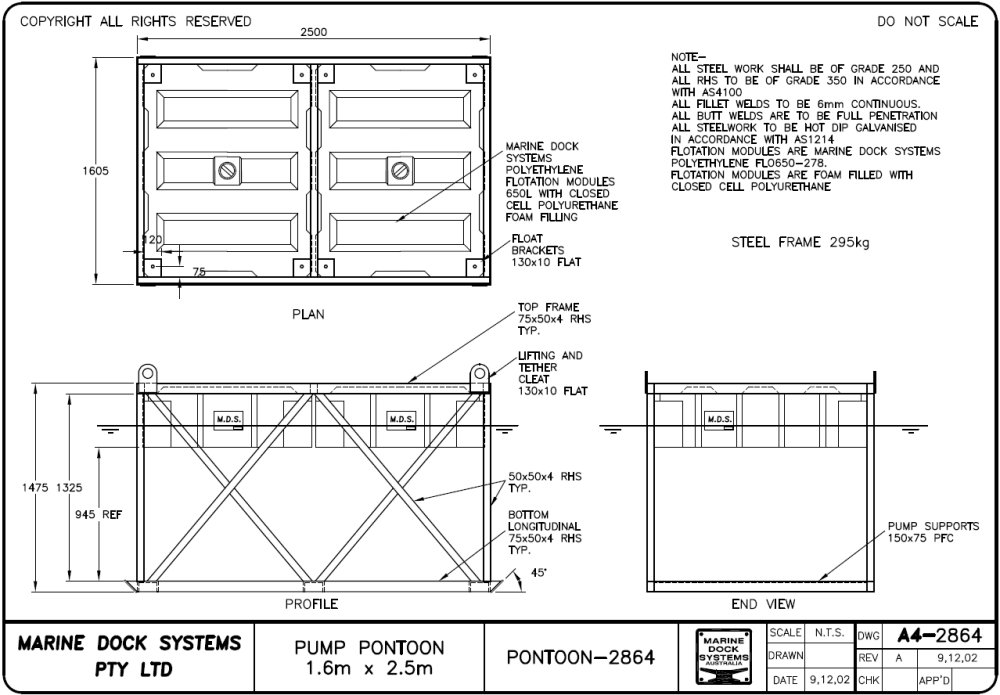

A4-2864 Braced Pump Pontoon (2 x 650 Litre Floats)

a4-2751 - Pump pontoon - Skid mounted 4.8m x 3.65m
Floating Industrial Pontoon a4-2931 - Sludge Pontoon Deck Plate Infills - Job number 229
Floating Industrial Pontoon a4-2932 - Sludge Pontoon Deck Plate Infills - Job number 235
Floating Industrial Pontoon a4-2933 - Sludge / Mixer and Pump Pontoon
Floating Industrial Pontoon a4-2959 - Pump Pontoon 5.1 mtrs x 3.35 wide, Industrial Pontoon
Floating Industrial Pontoon a4-2997 - Sludge / Mixer and Pump Pontoon with bottom support frame
Floating Industrial Pontoon a4-2998 - Industrial Submersible Pump Pontoon 3.7 mtrs x 2.1 wide, 2 x 2000 Litre
Floating Industrial Pontoon a4-3189 - Pump Pontoon 4.8 x 2.5 Industrial Pontoon
Floating Industrial Pontoon a4-3190 - 14 x 3 mtr Concrete Pontoon
Floating Industrial Pontoon a4-3190 - Extra Large Docking Buffer 90 x 120 x 16mm thick
Floating Industrial Pontoon a4-3203 - Mixer Pontoon 5.5 mtr x 3 mtrs Industrial Pontoon
Tailings Dam Pontoon
Overflow Screening Pontoon 2 x 550 ltre floats

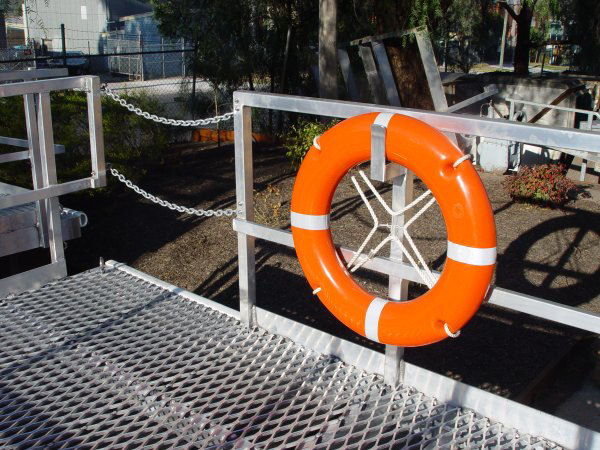

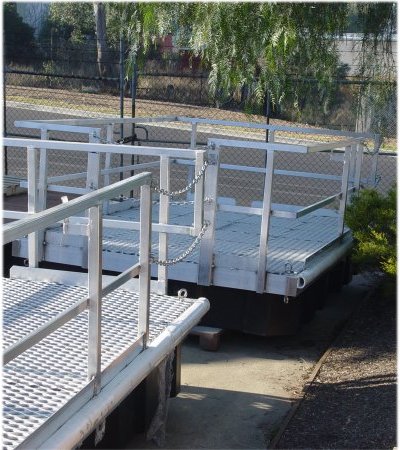

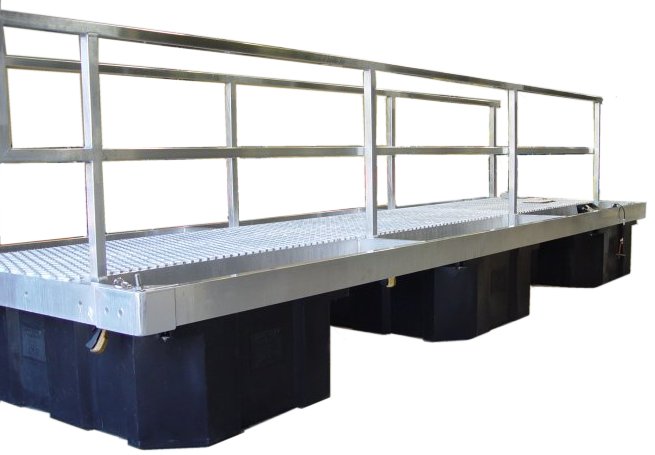

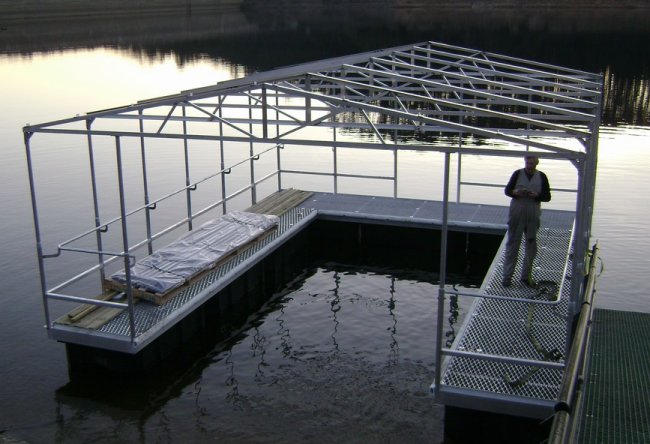

Floating Work Platforms Pontoon Floating Work Platforms Pontoon Floating Work Platforms Pontoon
Floating Work Platforms Pontoon Floating Work Platforms Pontoon Floating Work Platforms Pontoon
Floating Work Platforms Pontoon Floating Work Platforms Pontoon Industrial Pontoons

Pump pontoon

A4-0927 - Pump pontoon
Light Ramp

A4-2900 - Floating ramp
a4-2900 - Aluminium Ramp 6mtr x 0.6 with 333 litre float attached
