RAMPS and GANGWAYS.

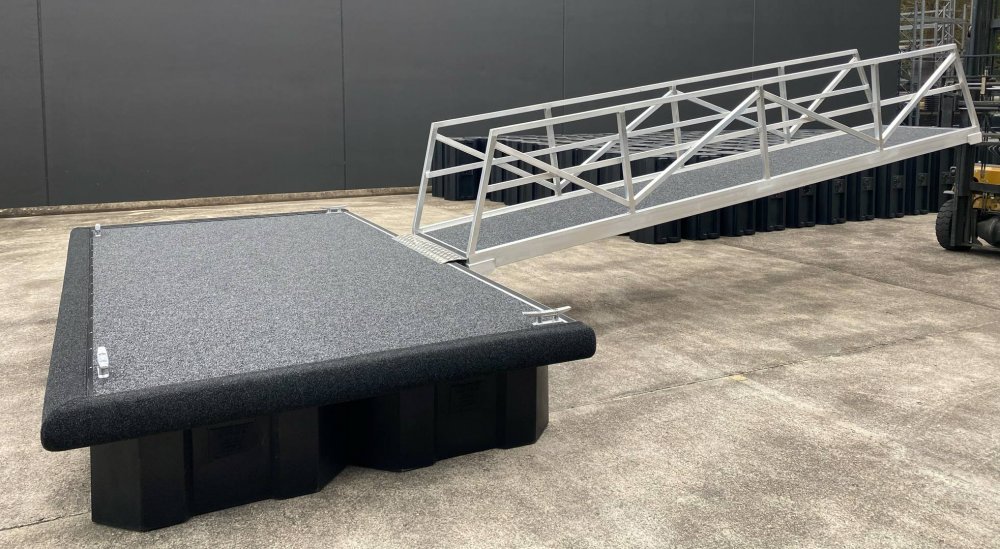

Marine Dock Systems can design and manufacture your ramp or gangway for your floating pontoon or marina. Fully welded aluminium frames, can be decked with aluminium, marine carpet, timber or expanded aluminium mesh.
Floats
Enquiry

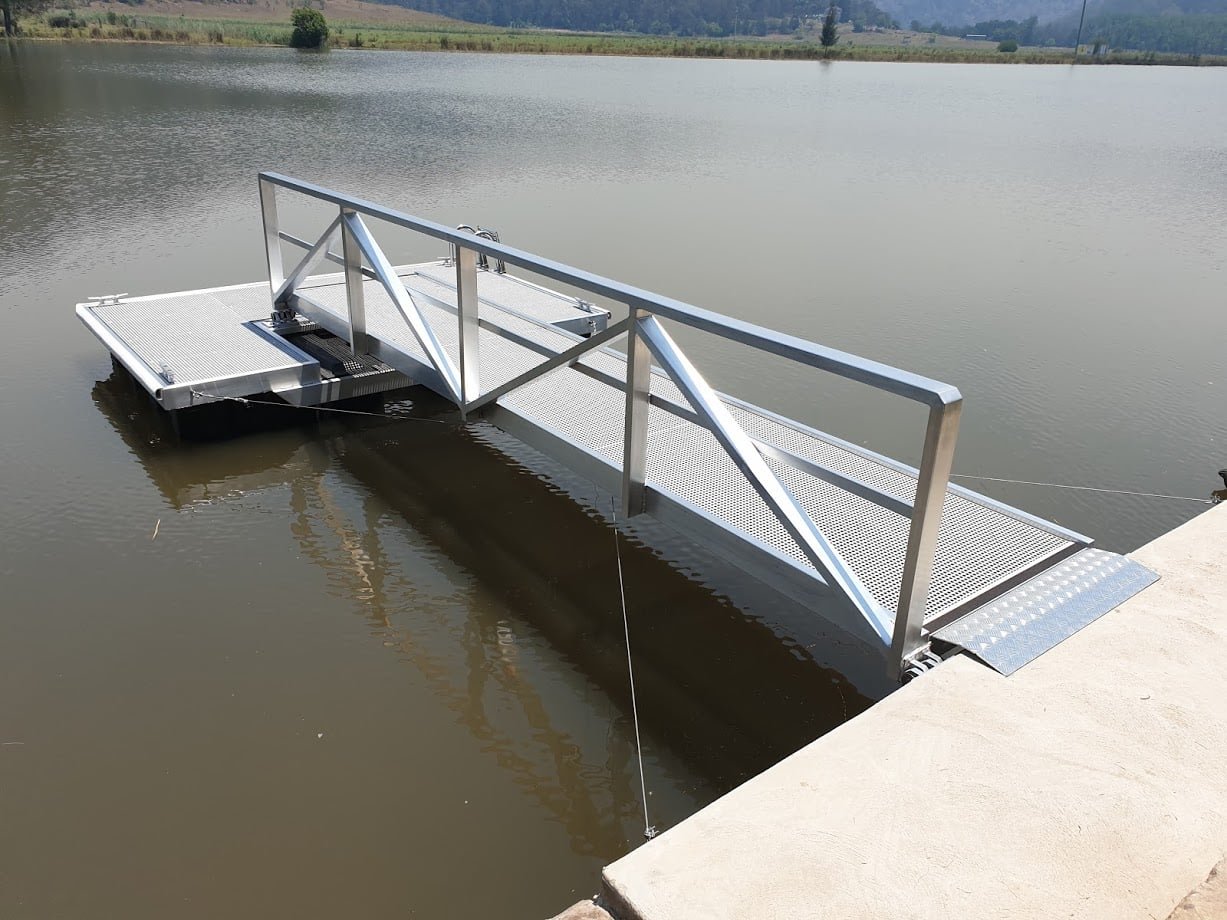

WARRAGAMBA DAM Moveable ramp
Sydney Catchment Authority

6 mtr x 1.2 mtr Mini mesh decking
Mini mesh decking no handrails
150 x 50 RHS Aluminium main beams

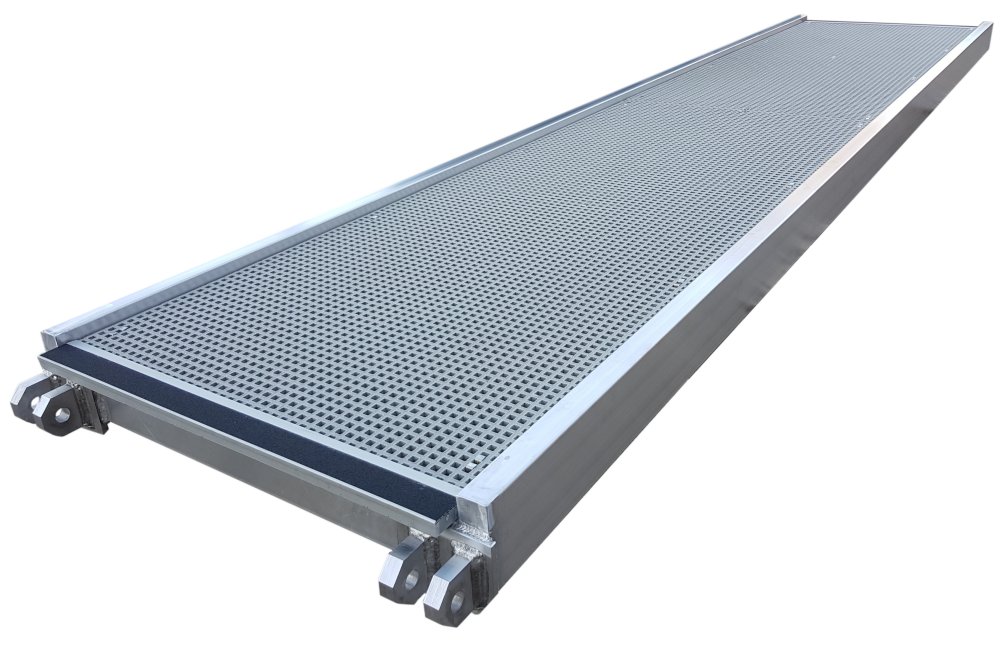

Fiberglass mini mesh decking
All stainless steel and aluminium hardware.

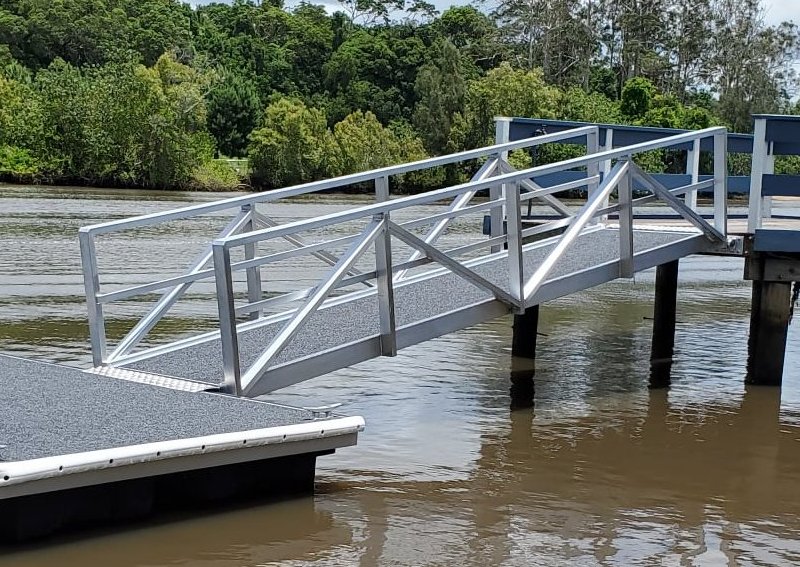

Fully welded aluminium gangway with fiberglass mini mesh, great for sea grass also has very good anti slip properties.

6 x 1.2 Mtr Drawing with handrails
6 x 1.2 Mtr with handrails Tech Drawing #7008

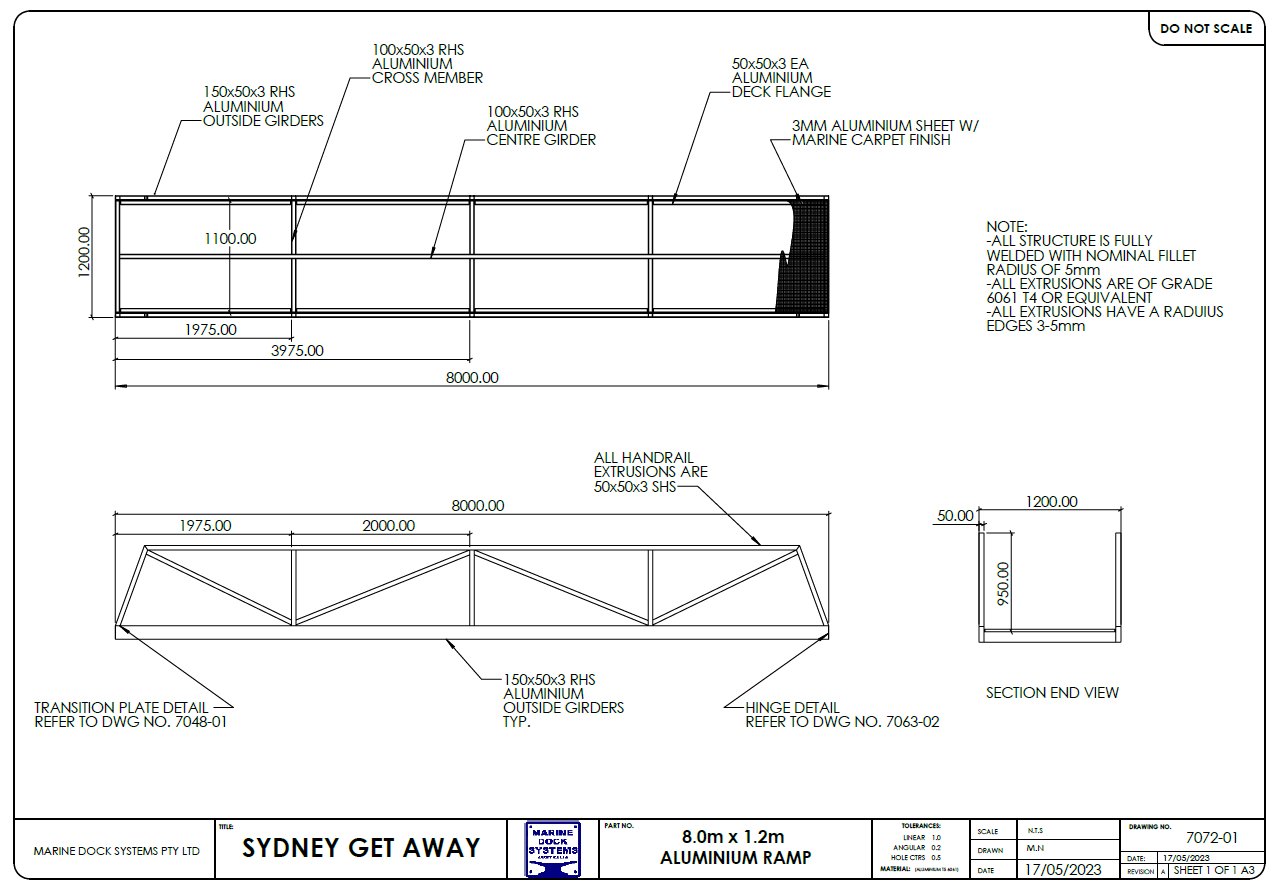

8 x 1.2 Mtr Drawing with handrails
8 x 1.2 Mtr with handrails Tech Drawing #7005

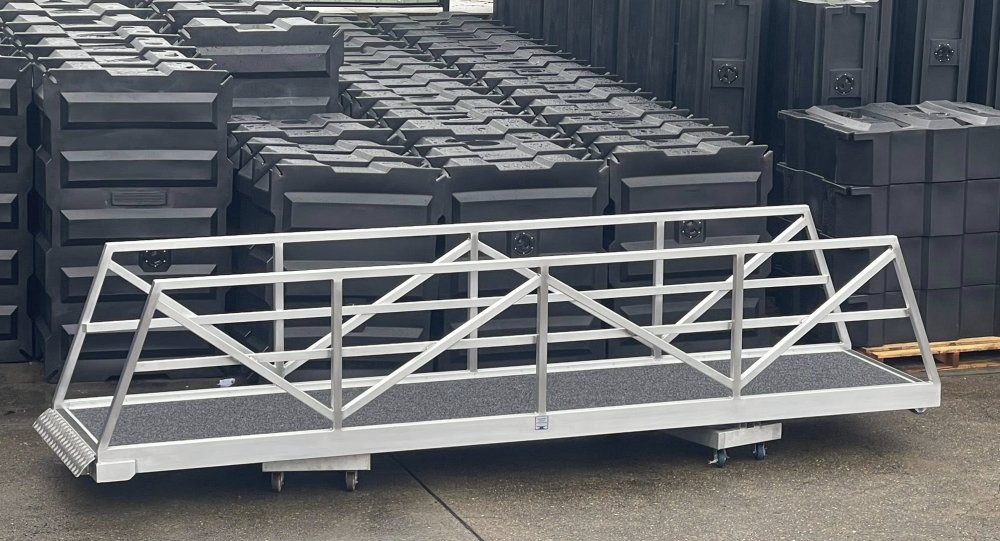

6 mtr x 1.2 mtr alloy plate decking

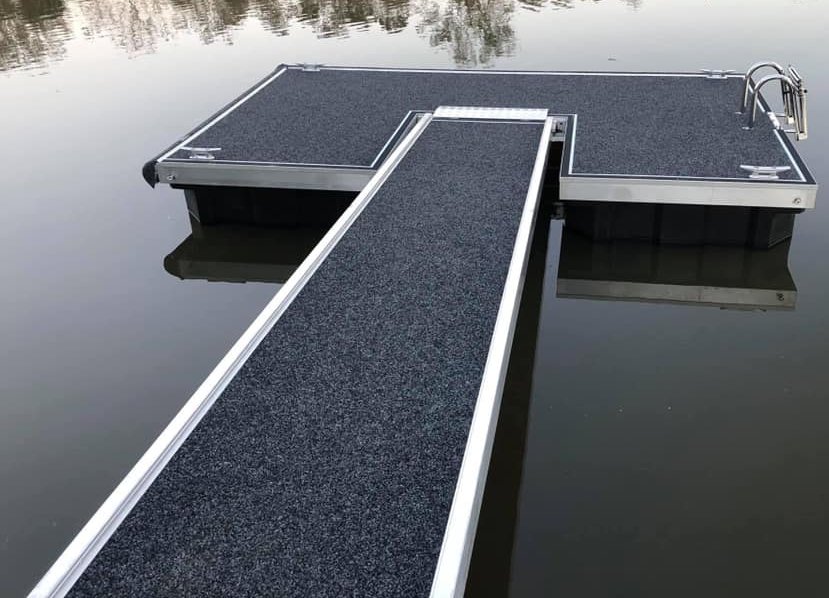

Alloy plate decking with marine carpet no handrails
150 x 50 RHS Aluminium main beams
Alloy plate decking with marine carpet
All stainless steel and aluminium hardware.

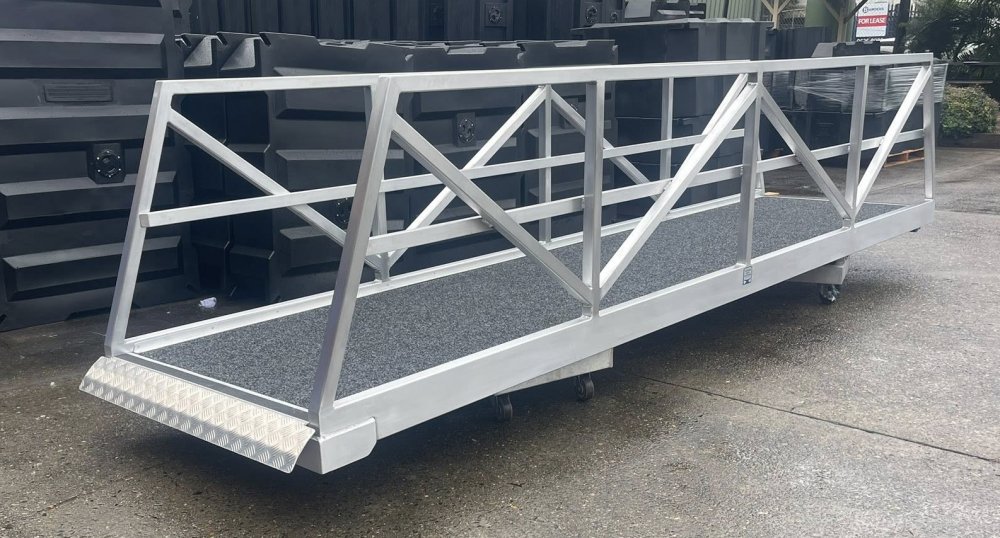

Fully welded aluminium gangway with aluminium plate decking finished with marine carpet, looks great and feels good under foot.

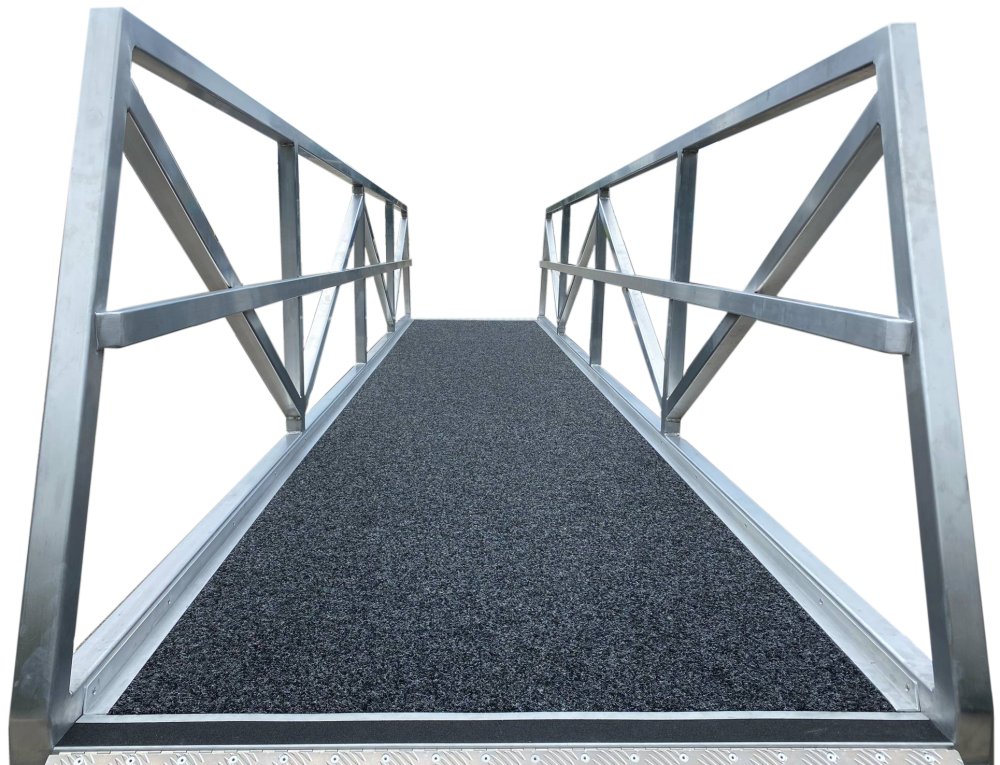

6 mtr x 1.2 mtr alloy plate decking

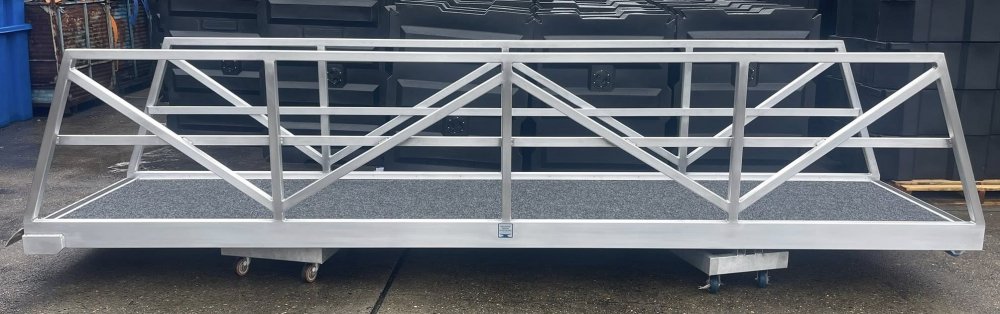

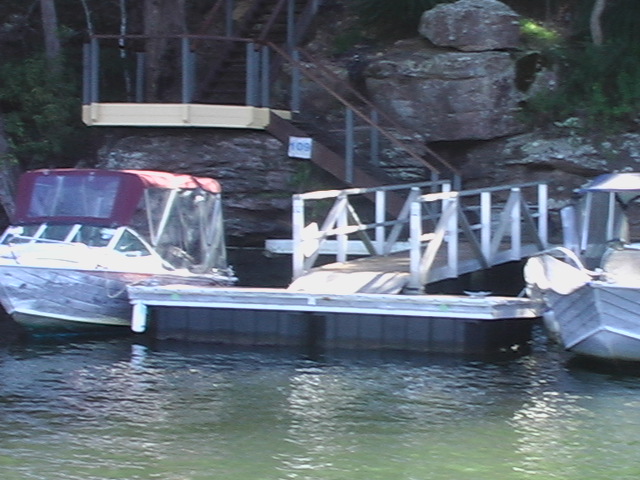

Alloy plate decking with marine carpet with handrails
150 x 50 RHS Aluminium main beams
Trussed 50mm handrails both sides
Alloy plate decking with marine carpet
All stainless steel and aluminium hardware.
Fully welded aluminium gangway with aluminium plate decking finished with mrine carpet, looks great and feels good under foot. This one fitted with extras. Kayak storage racks and self closing security gate.

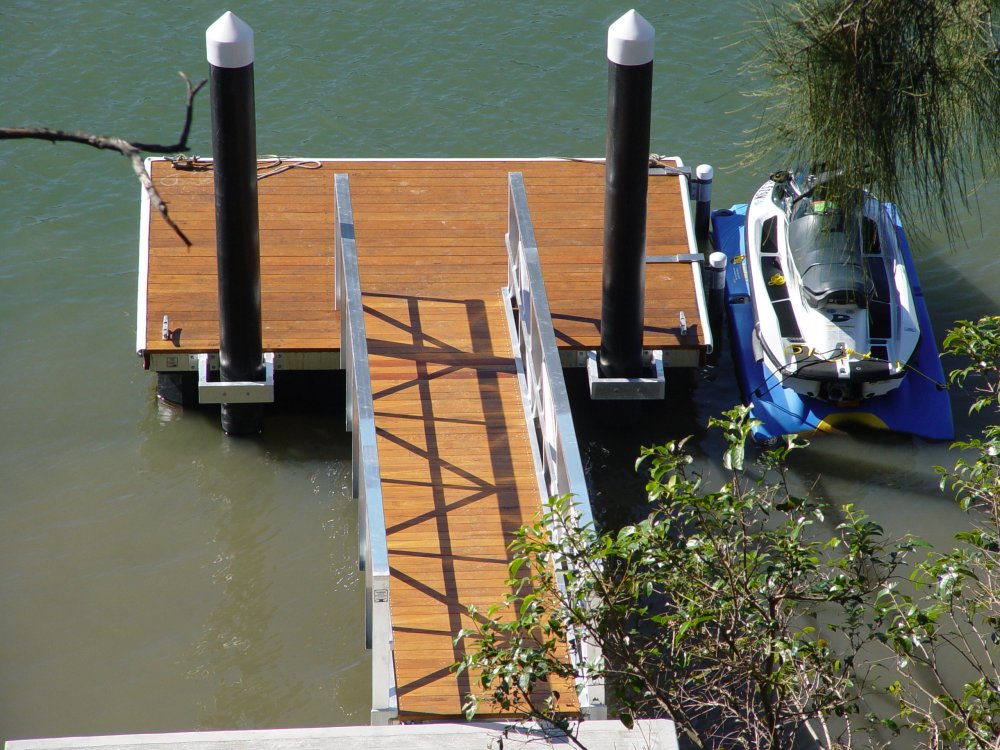

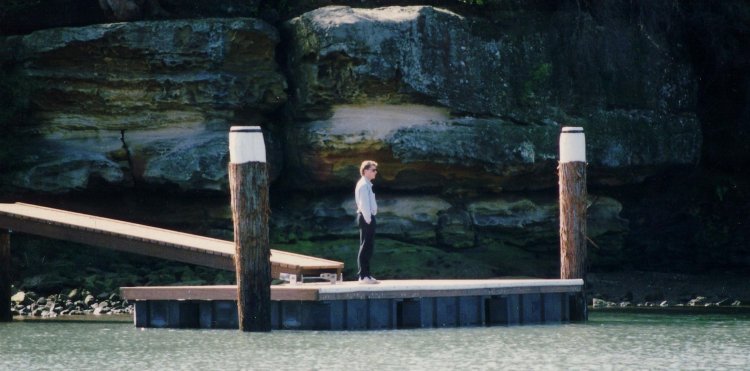

Standard Domestic Ramp 6 mtr x 1.2 mtr
Part # RAMP-0527
F27 kiln dried 150 x 50 Hardwood frame
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware.
Including aluminium hinges both ends.
The hardwood timber we normally use is F27 Queensland Blackbutt, kiln dried with penciled edeges.

Available in stages
Build it yourself kit
Hinges and hardware only (no timber)
More info and material list
Fully Built

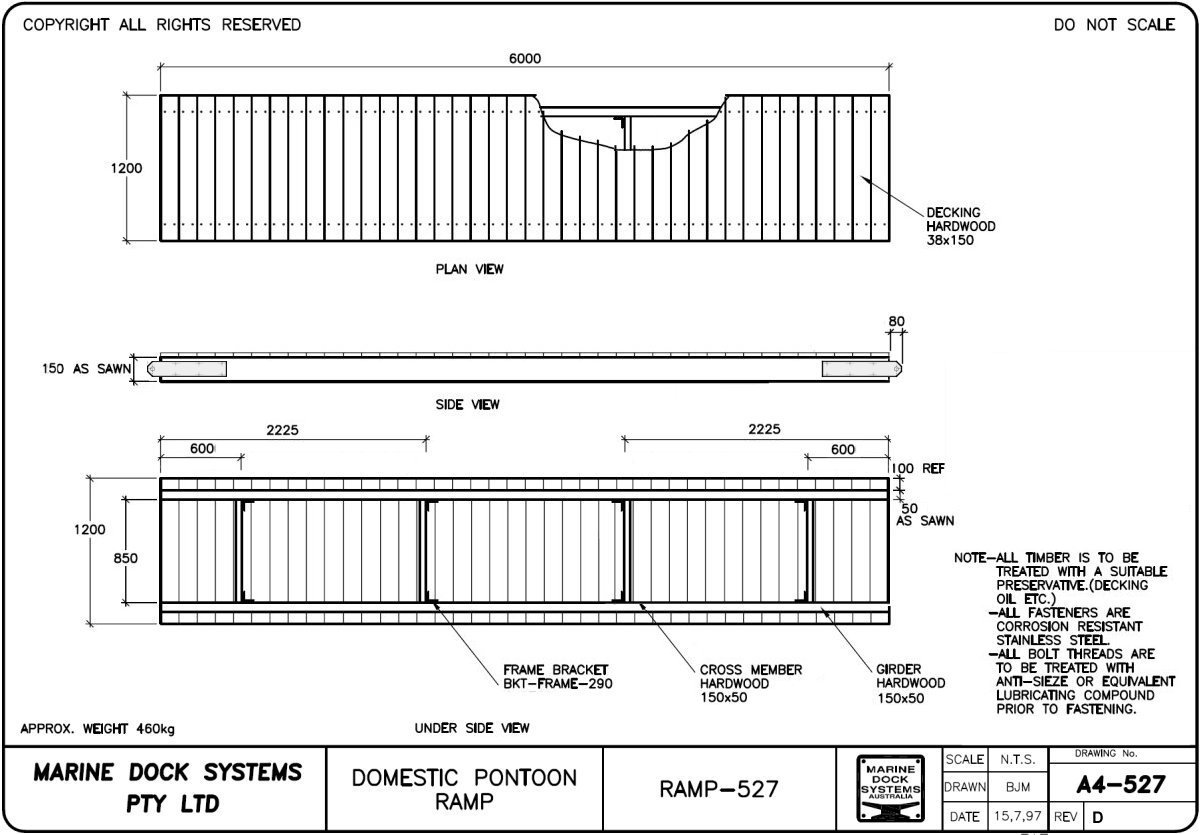

A4-0527d Timber ramp 6 mtr x 1.2

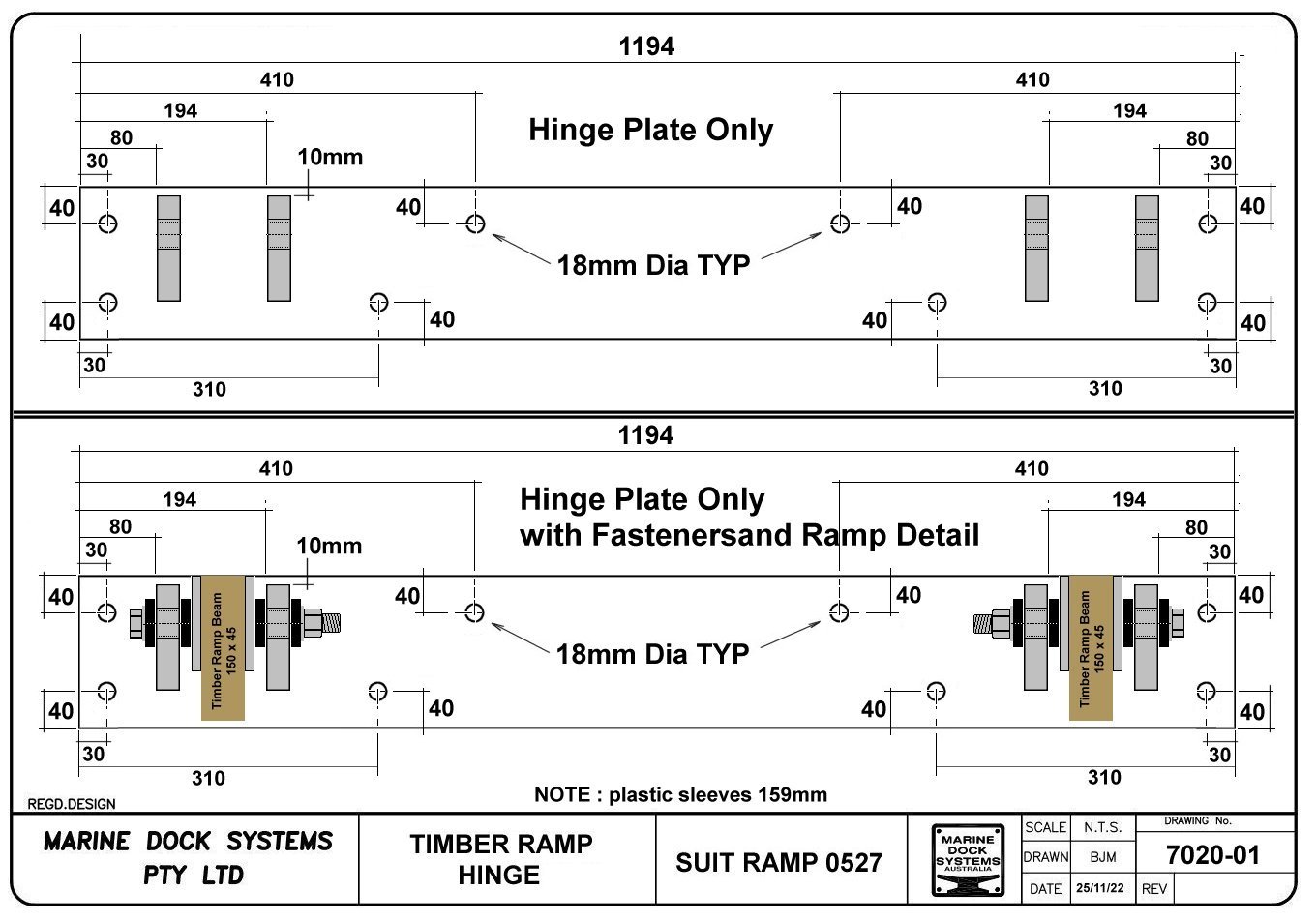

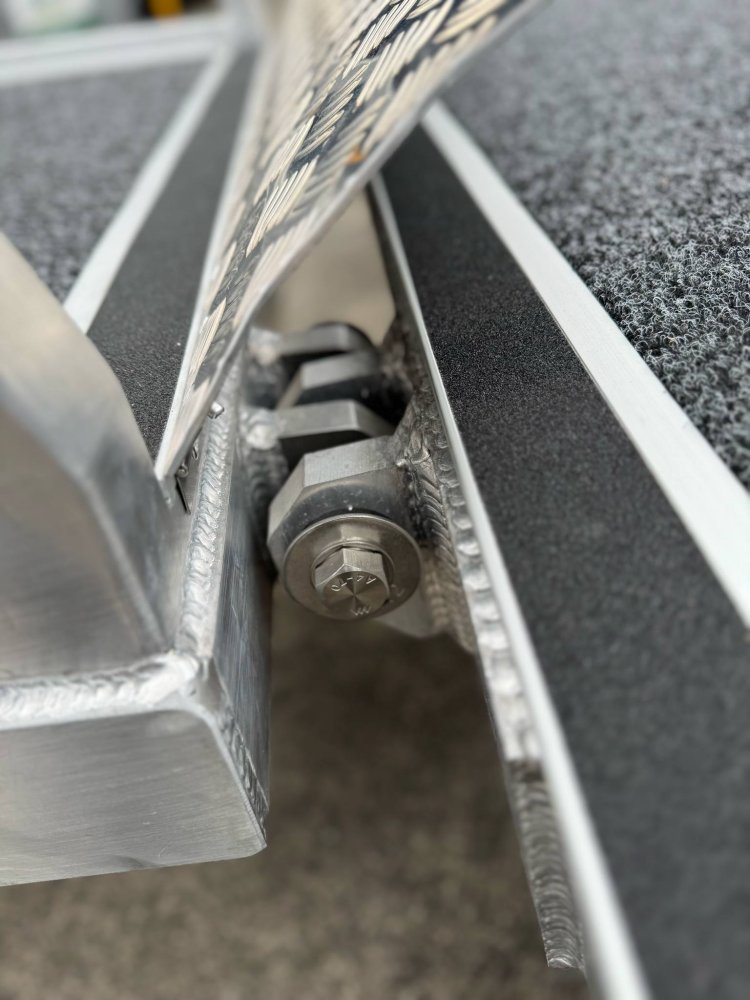

# 7020 Hinge detail shore and pontoon end

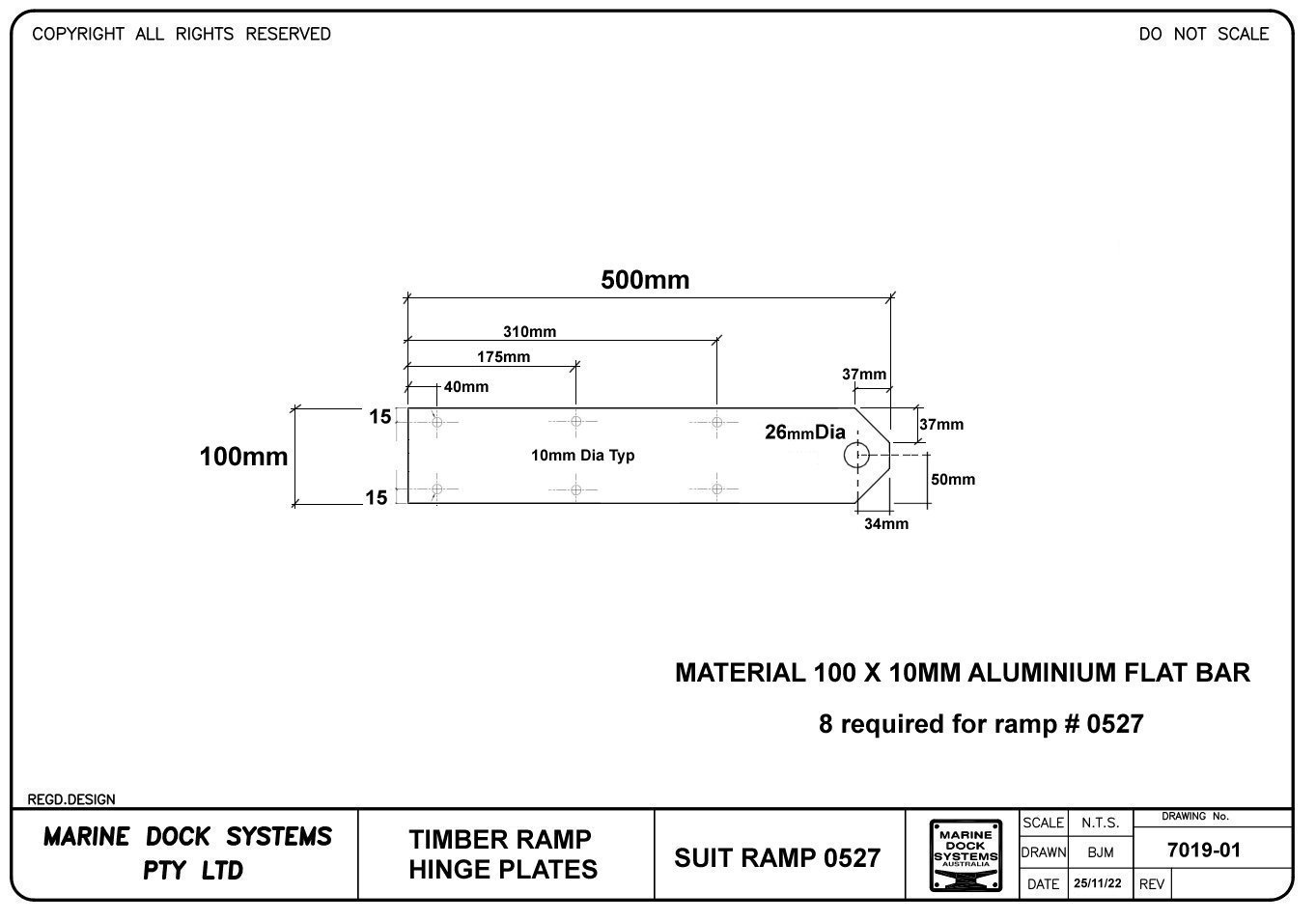

# 7019 Ramp hinge plate detail<

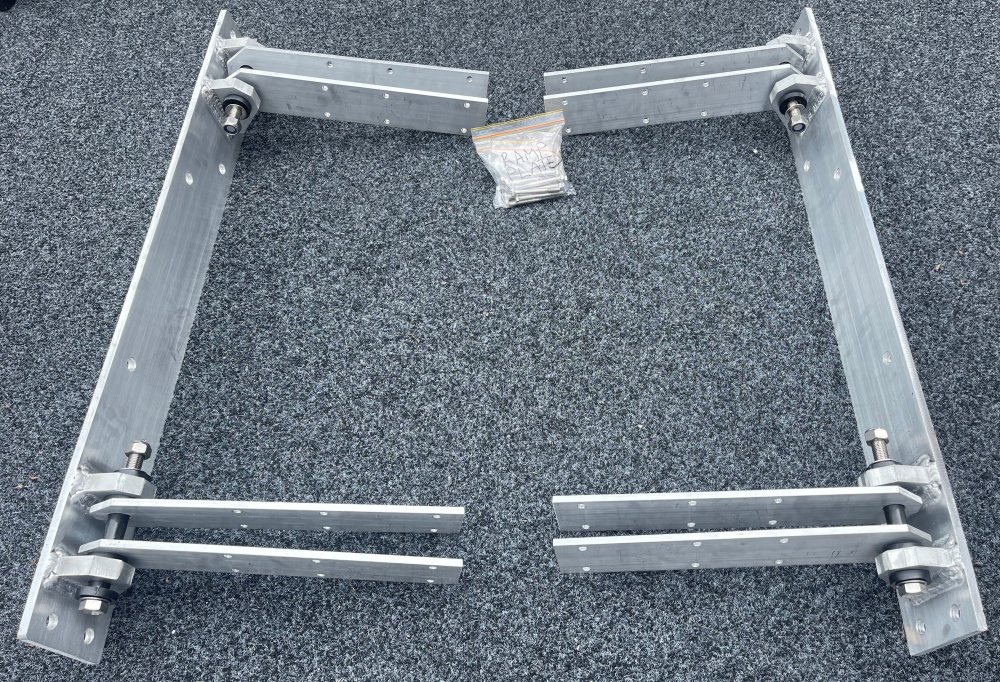

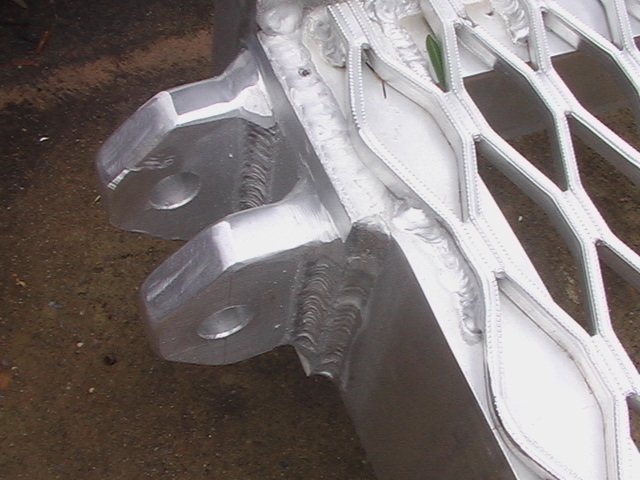

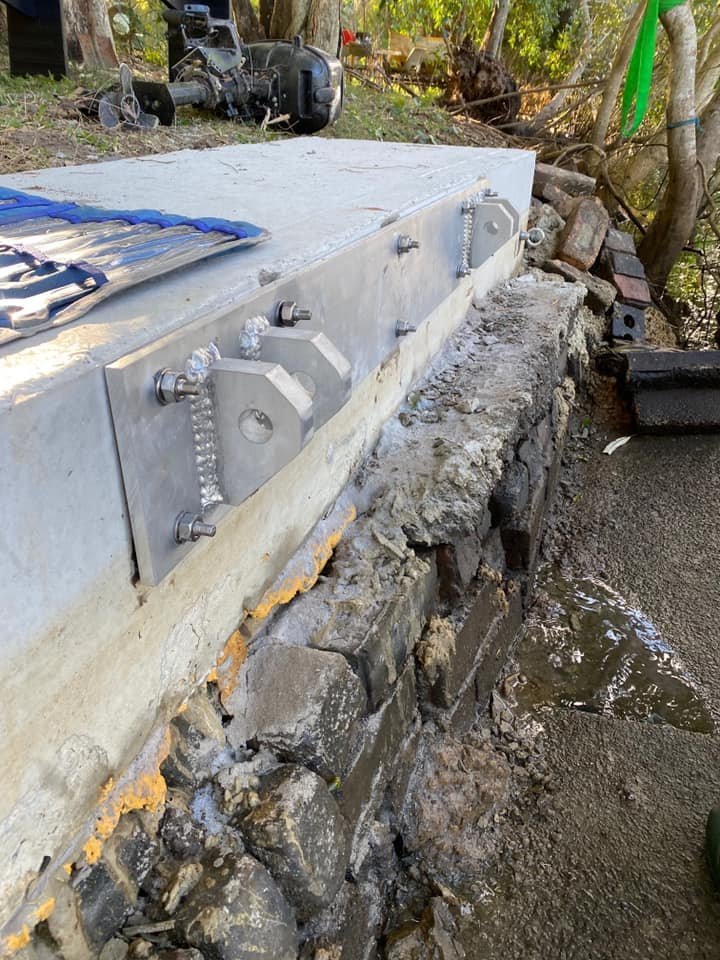

Aluminium hinge bracket<

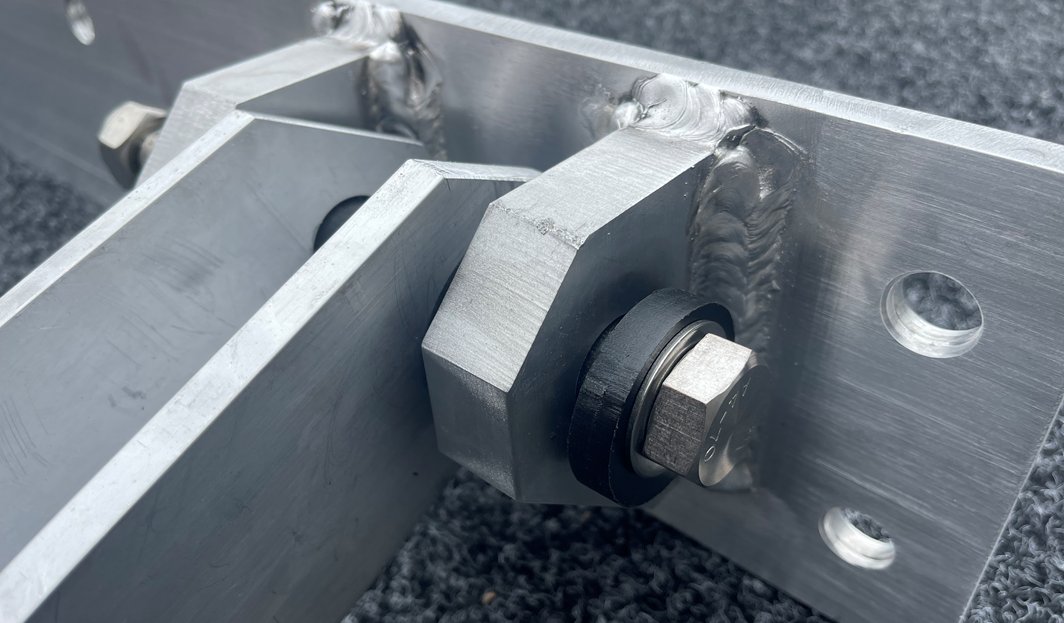

Aluminium hinge ramp plate detail<

Superseeded drawings
A4-2949 - Shore End Hinge Detail
A4-2724 - Ramp Hinge Detail Stainless



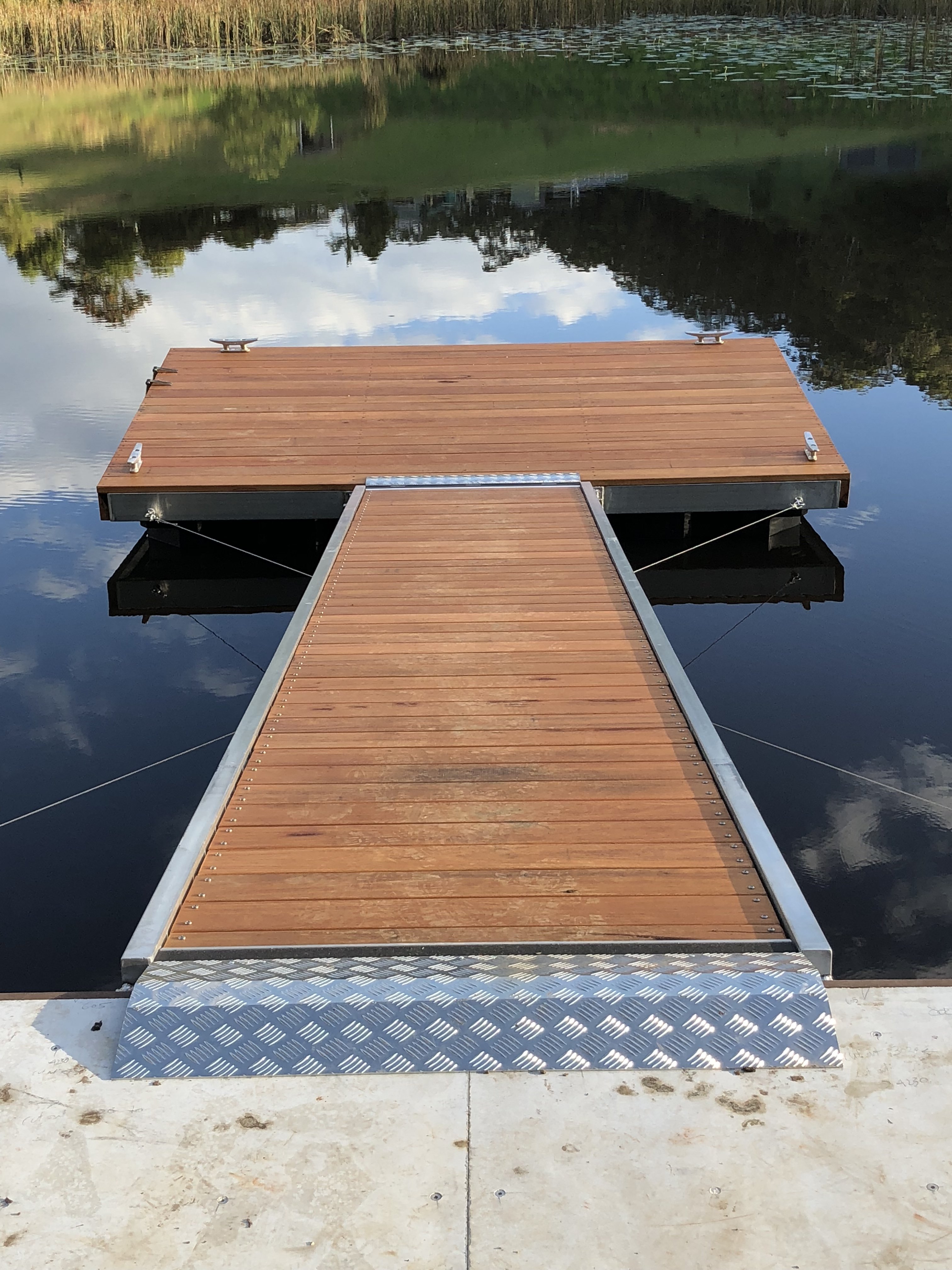

Aluminium Domestic Ramp 6 mtr x 1.2 mtr
Part # RAMP-2577
200 x 50 RHS Aluminium
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware.
Including aluminium / stainless hinges.

Available in stages
Build it yourself
Hinges and hardware only (no timber)
or Fully Built

Fully welded aluminium frame decked with hardwood timber, Queensland Blackbut, it is kiln dried and has pencilled edges for a nice walking surface. Engineered to withstand rough conditions. Can be supplied with nylon rollers or hinge on the pontoon end.

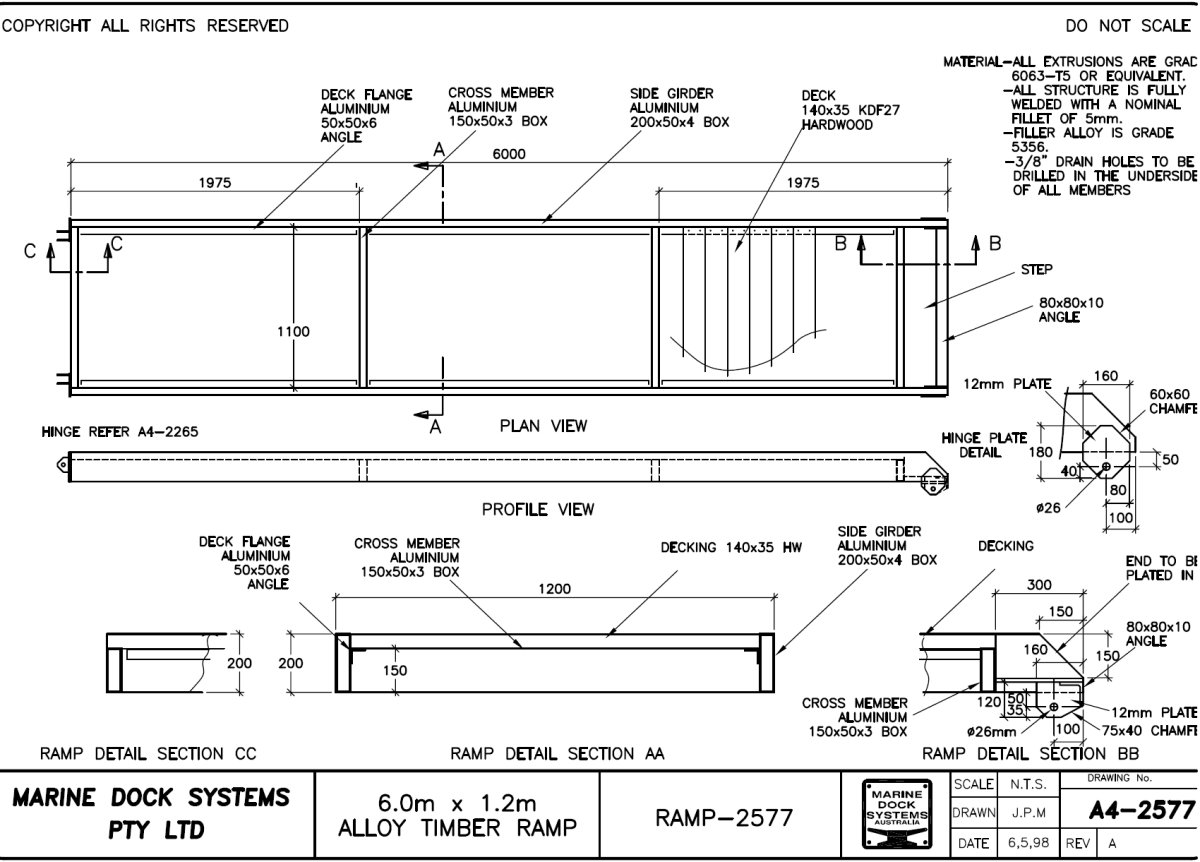

a4-2577 Aluminium Ramp 6 mtr x 1.2 mtr

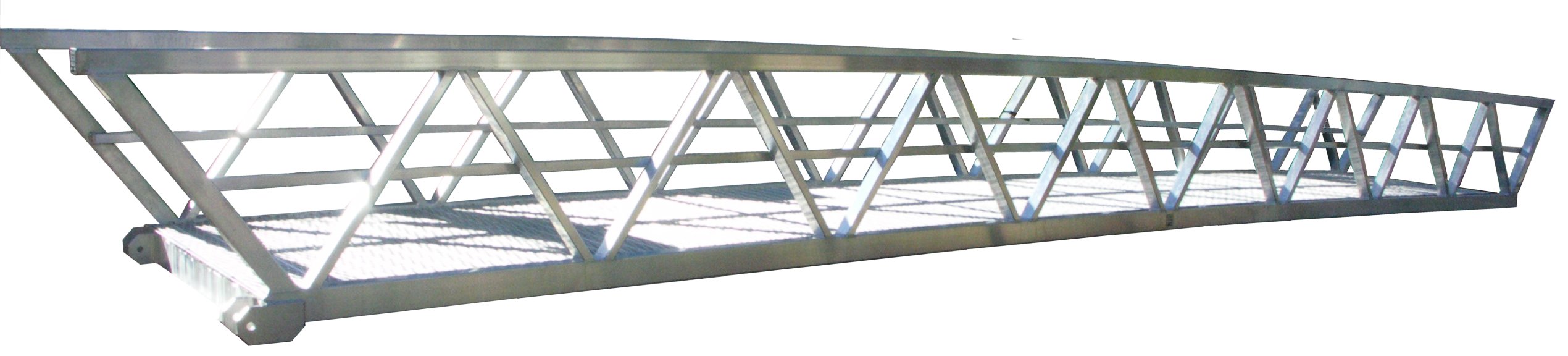

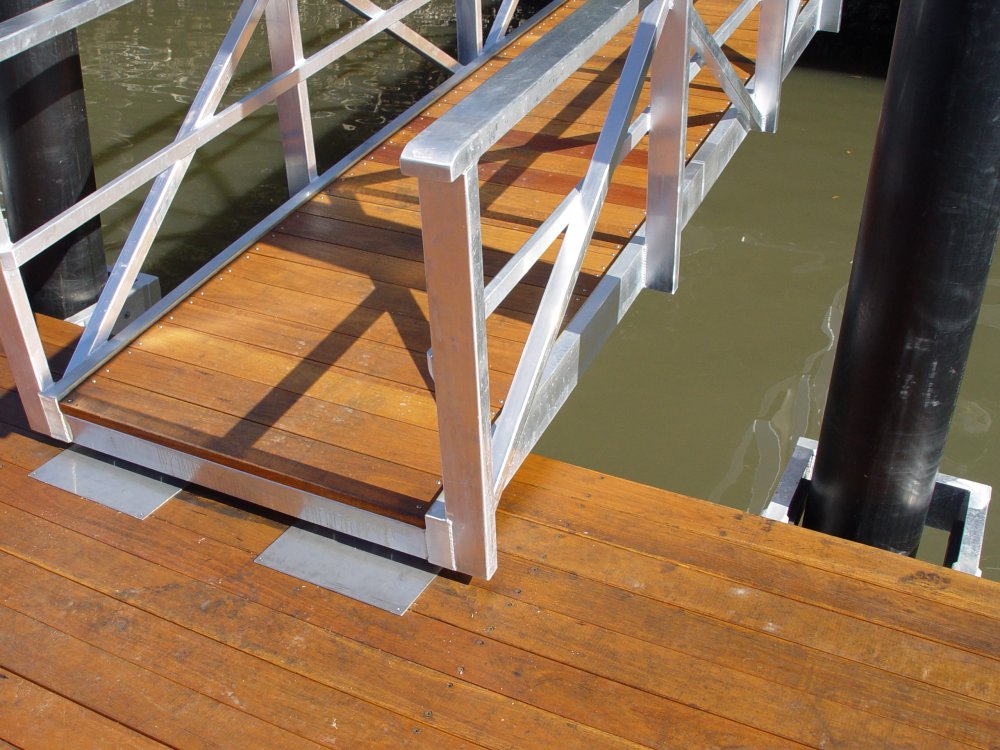

Trussed Aluminium Ramp 6 mtr x 1.2 mtr
Part # RAMP-1940
150 x 50 RHS Aluminium mains trussed
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware.
Including aluminium / stainless hinges.
Fully welded trussed aluminium gangway with timber decking.

Available in stages
Frame, Hinges and hardware only (no timber)
Build it yourself kit inc timber
Fully Built

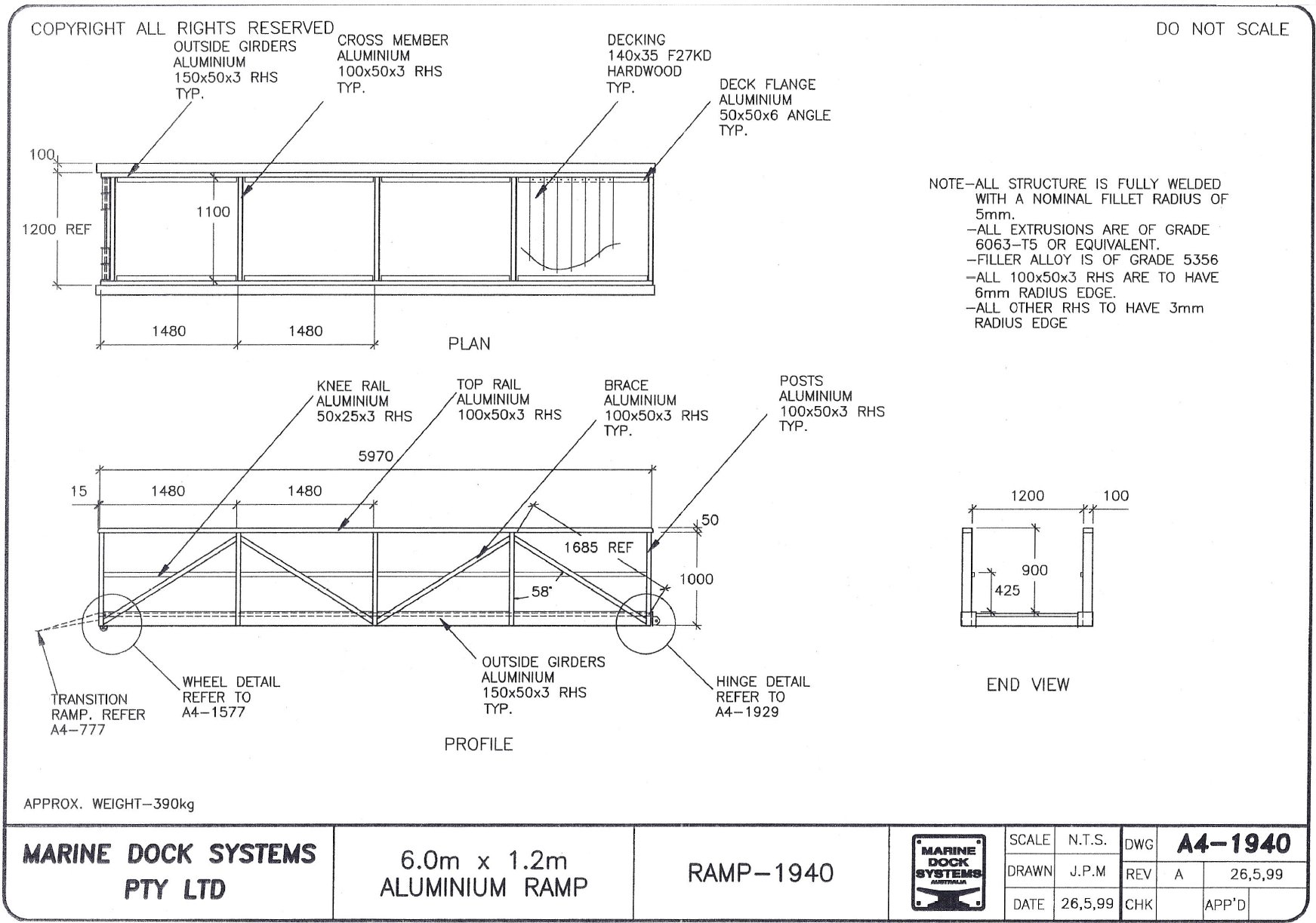

a4-1940 - Trussed alloy timber ramp - 6mtr X 1.2mtr
a4-1929 - Ramp Hinge Detail / Trussed alloy timber decking.
a4-1577 - Wheel Detail Trussed alloy timber ramp




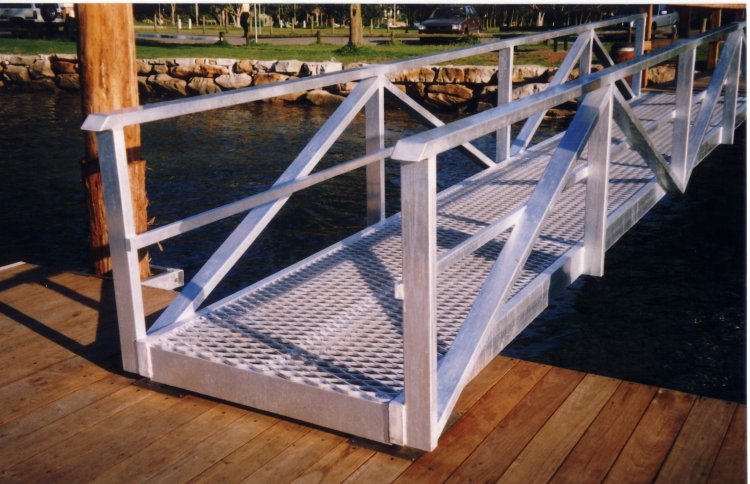

Trussed Aluminium
Sea Grass Ramp 6 mtr x 1.2 mtr
Part # RAMP-1940X
150 x 50 RHS Aluminium mains trussed
Aluminium mesh decking
All stainless steel and aluminium hardware.
Including aluminium / stainless hinges. Engineered to withstand rough conditions. Can be supplied with nylon rollers or hinge on the pontoon end.

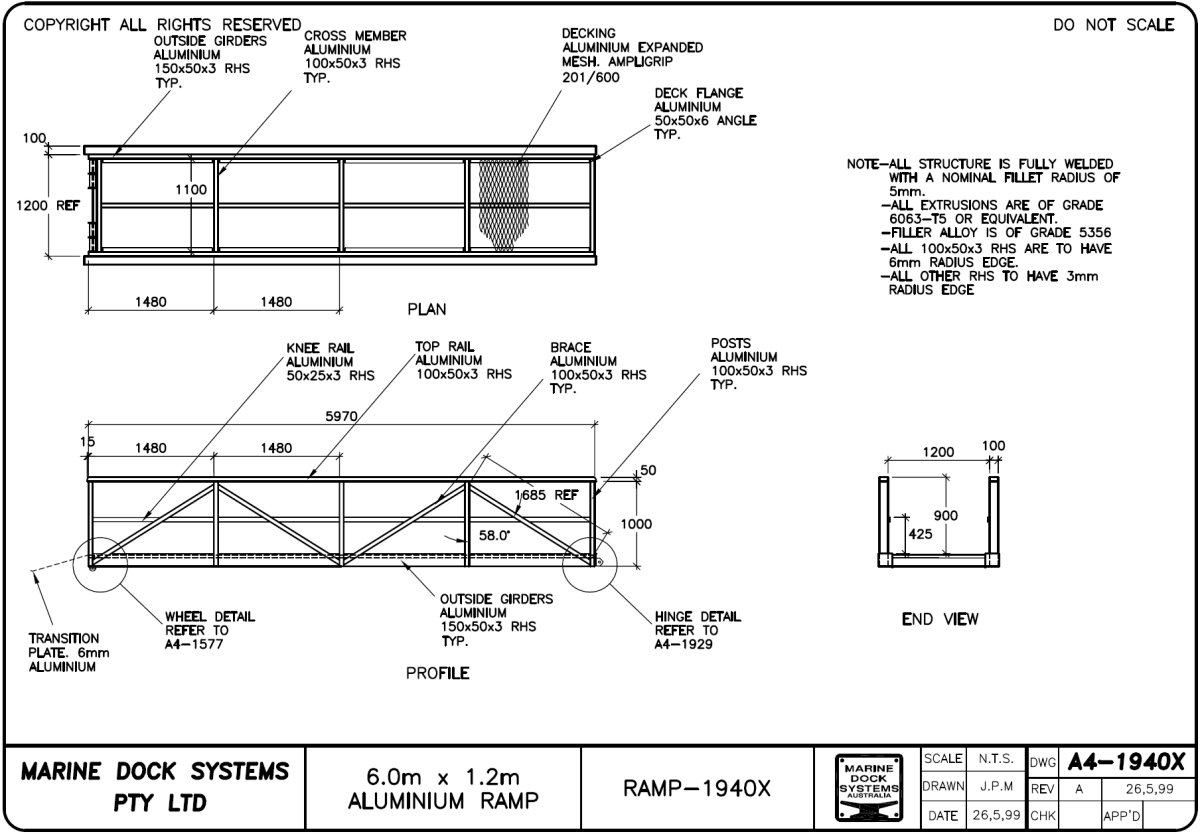

a4-1940X Trussed Aluminium - 6mtr X 1.2mtr




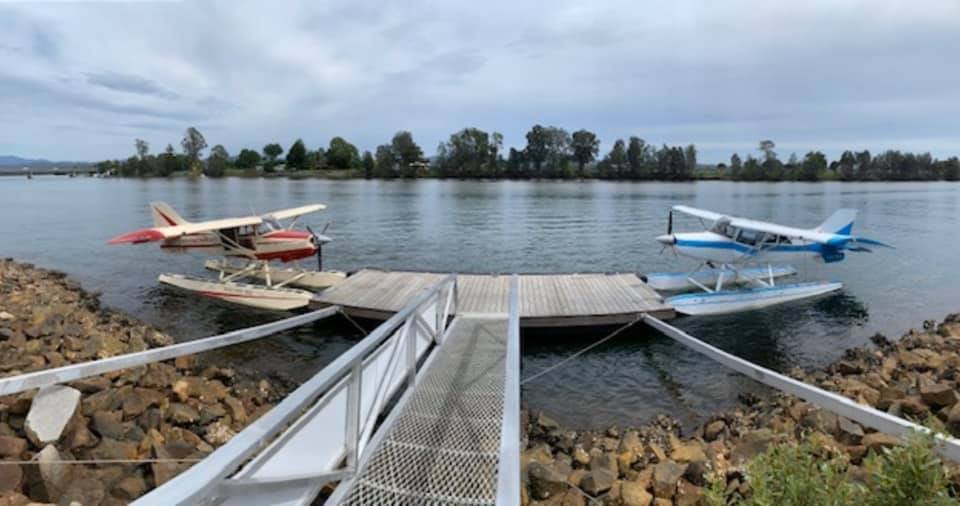

Residential Sea Grass Ramp 6 mtr x 1.2 mtr
Part # RAMP-1864
200 x 50 RHS Aluminium main beams
Expanded aluminium mesh decking
All stainless steel and aluminium hardware.
Fully welded aluminium gangway with expanded aluminium mesh, great for sea grass also has very good anti slip properties.


Ramp 1864 with hand rail one side

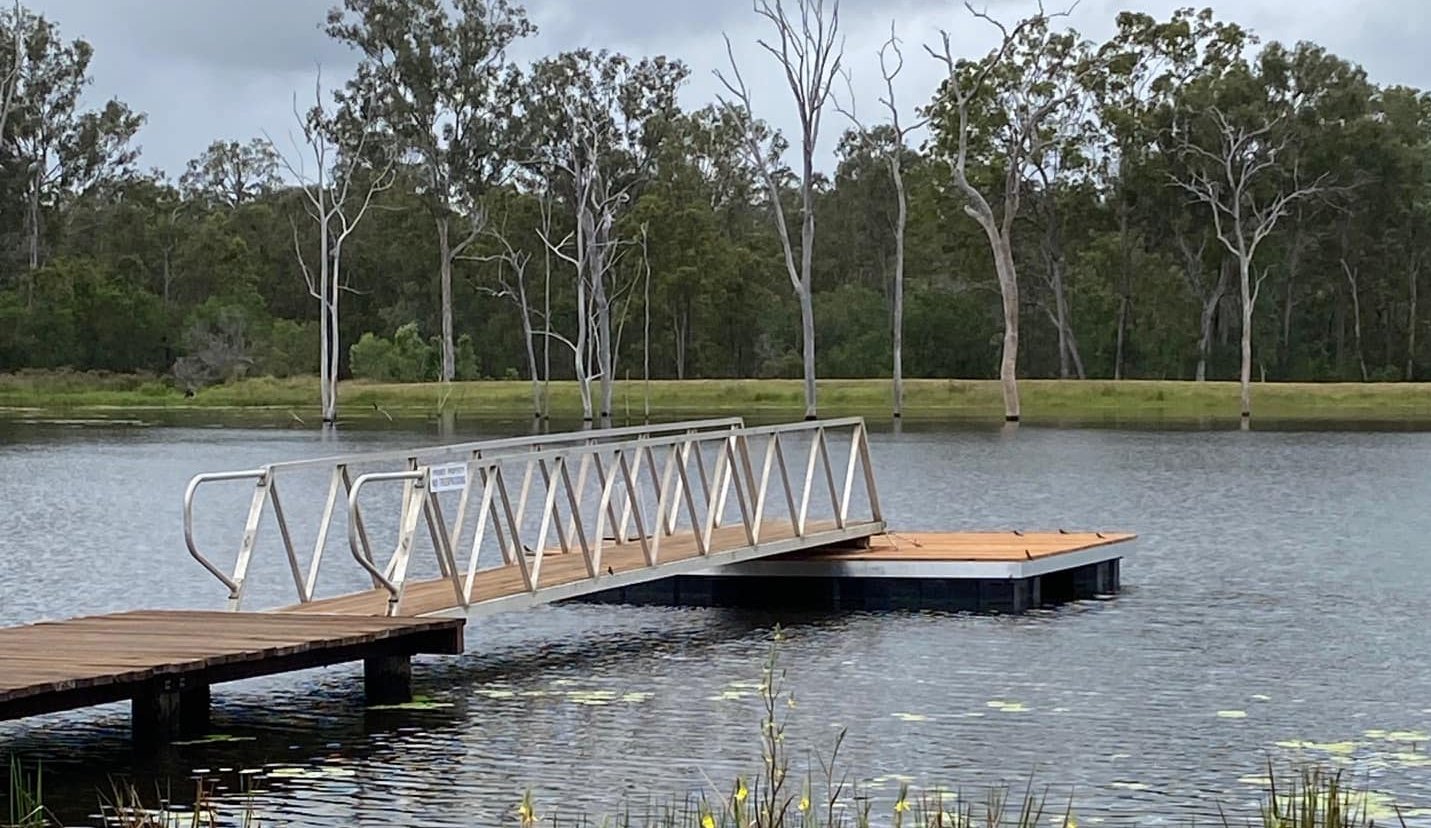

Many other sizes available
CLICK ON IMAGES FOR ENLARGEMENTS






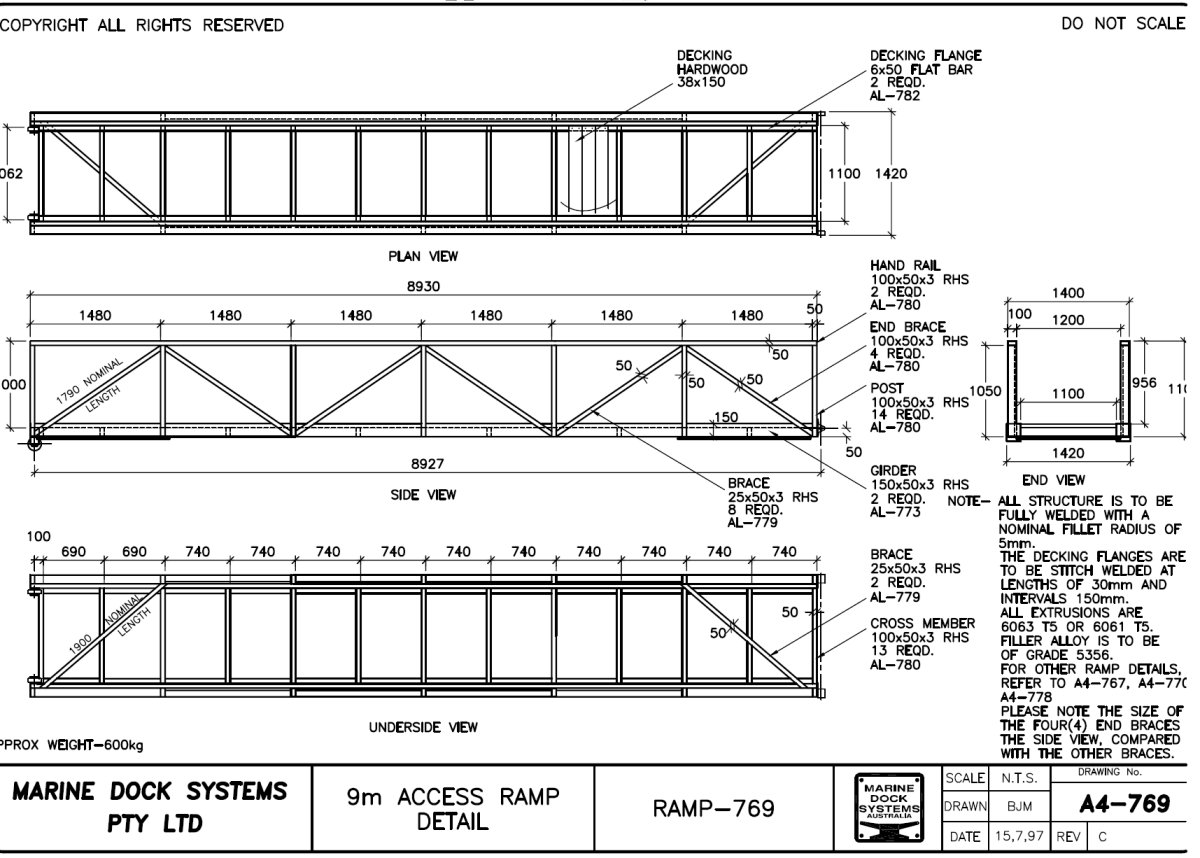

9m x 1.4m Trussed alloy timber ramp

A4-0719 - 9m x 1.4m Trussed alloy timber ramp
8.5m x 1.25m Trussed alloy timber ram

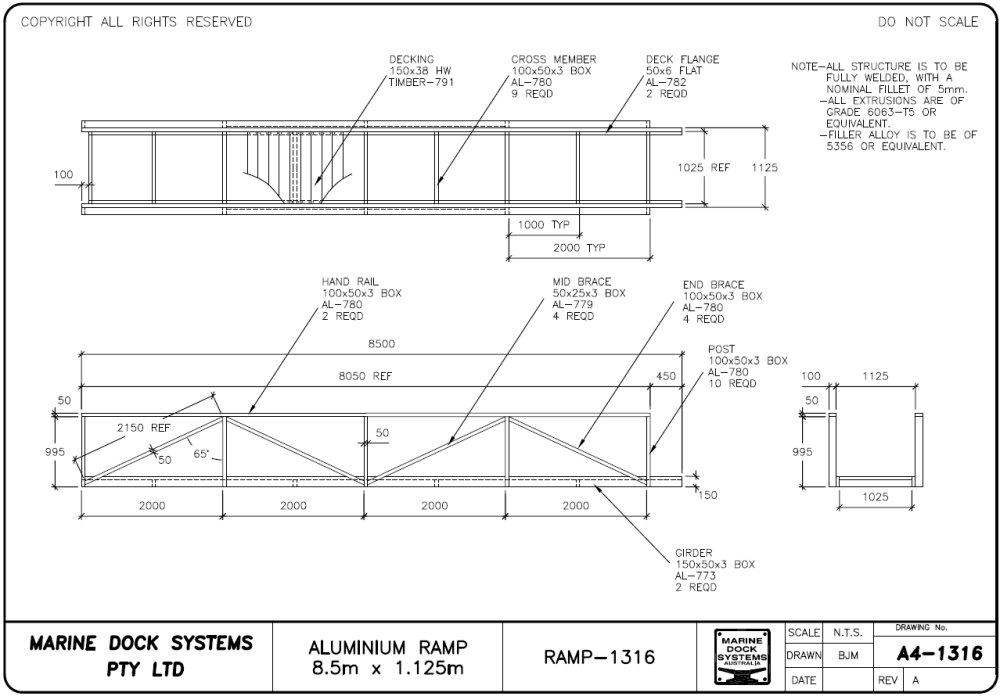

A4-1316 8.5m x 1.25m Trussed alloy timber ramp

Seagrass jetty section 6m x 1.2m

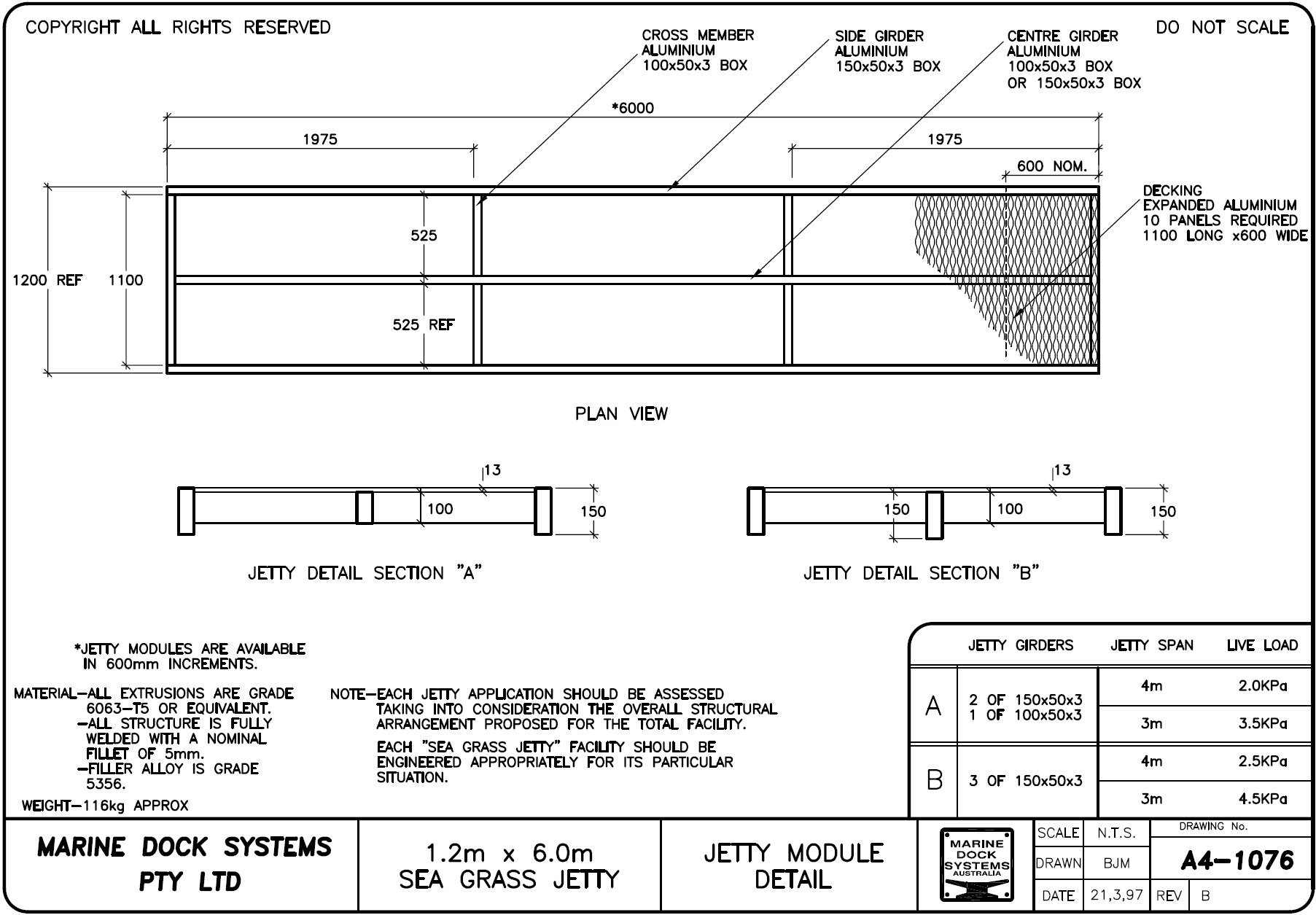

a4-1076 - Seagrass jetty section 6m x 1.2m
Floating Ramp 6 x 1.25 mtr

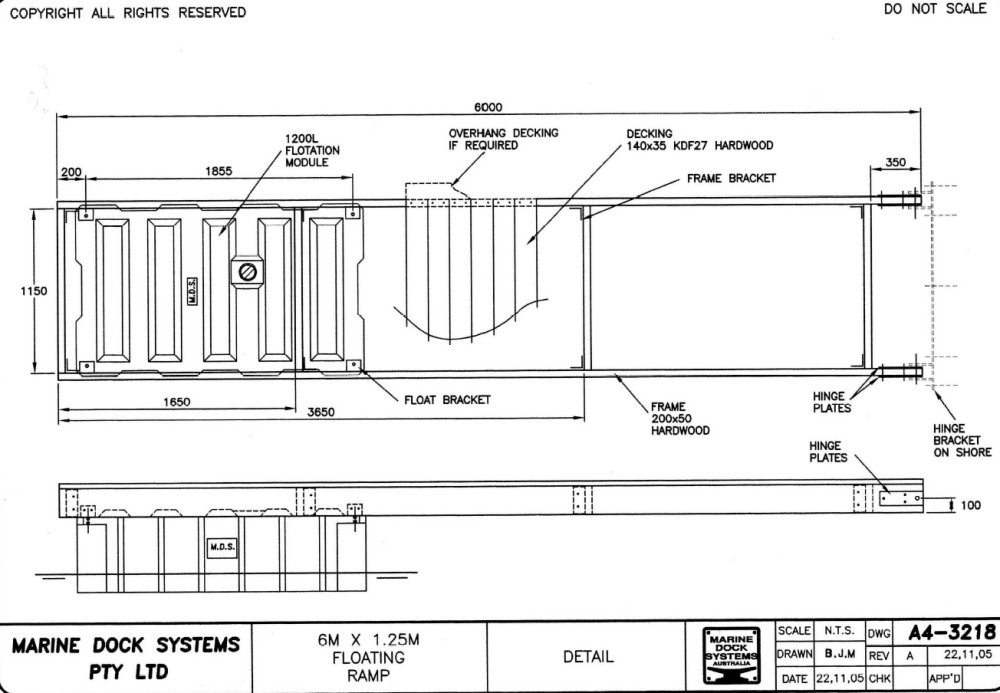

A4-3218 - Floating Ramp 6 x 1.25 mtr - 1 x 1200 litre float

8m x 1.4m Trussed alloy mesh ramp

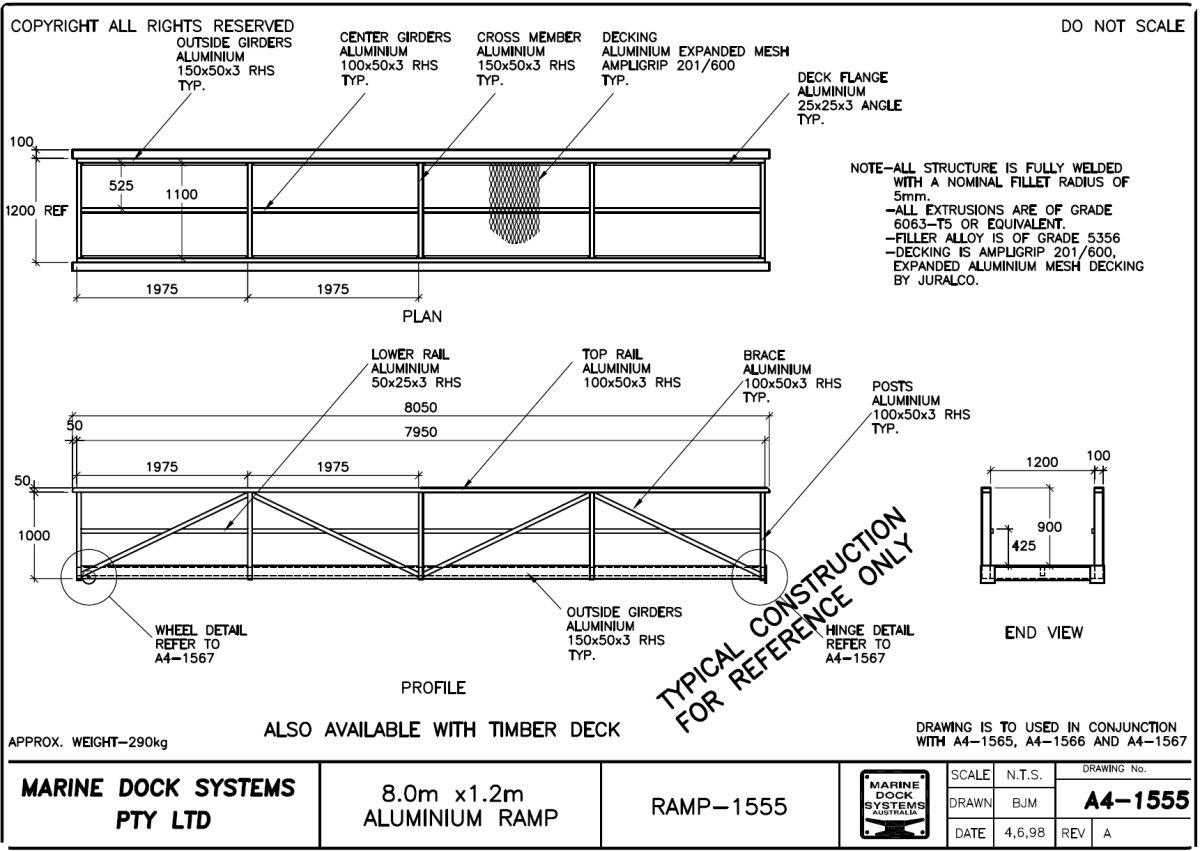

a4-1555 8m x 1.4m Trussed alloy mesh ramp

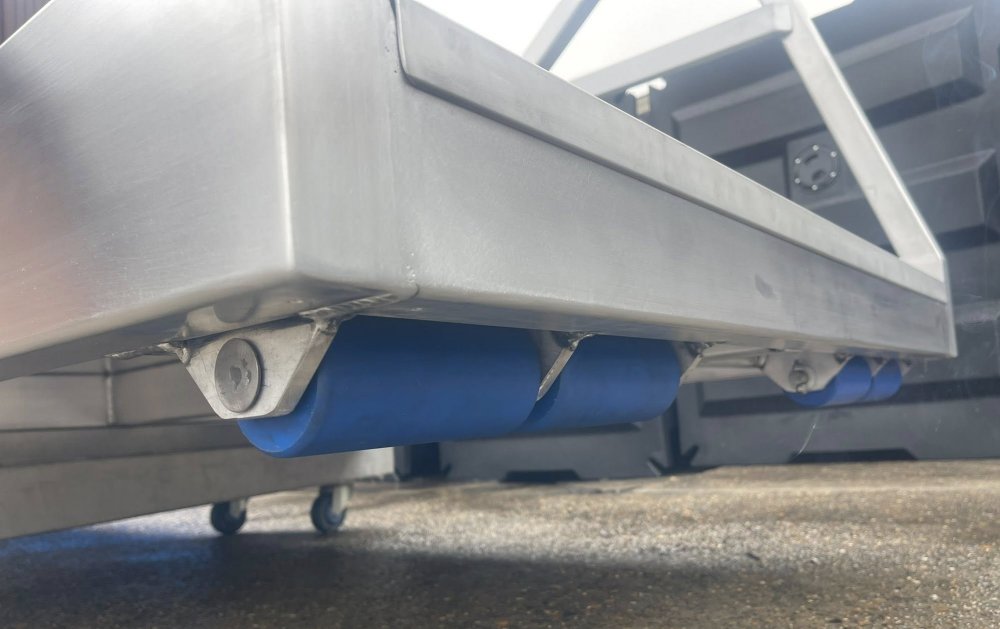

Wheel Detail pontoon end.

A4-1577 - Wheel Detail Trussed alloy timber ramp

4m x 1.5m Trussed alloy timber ramp

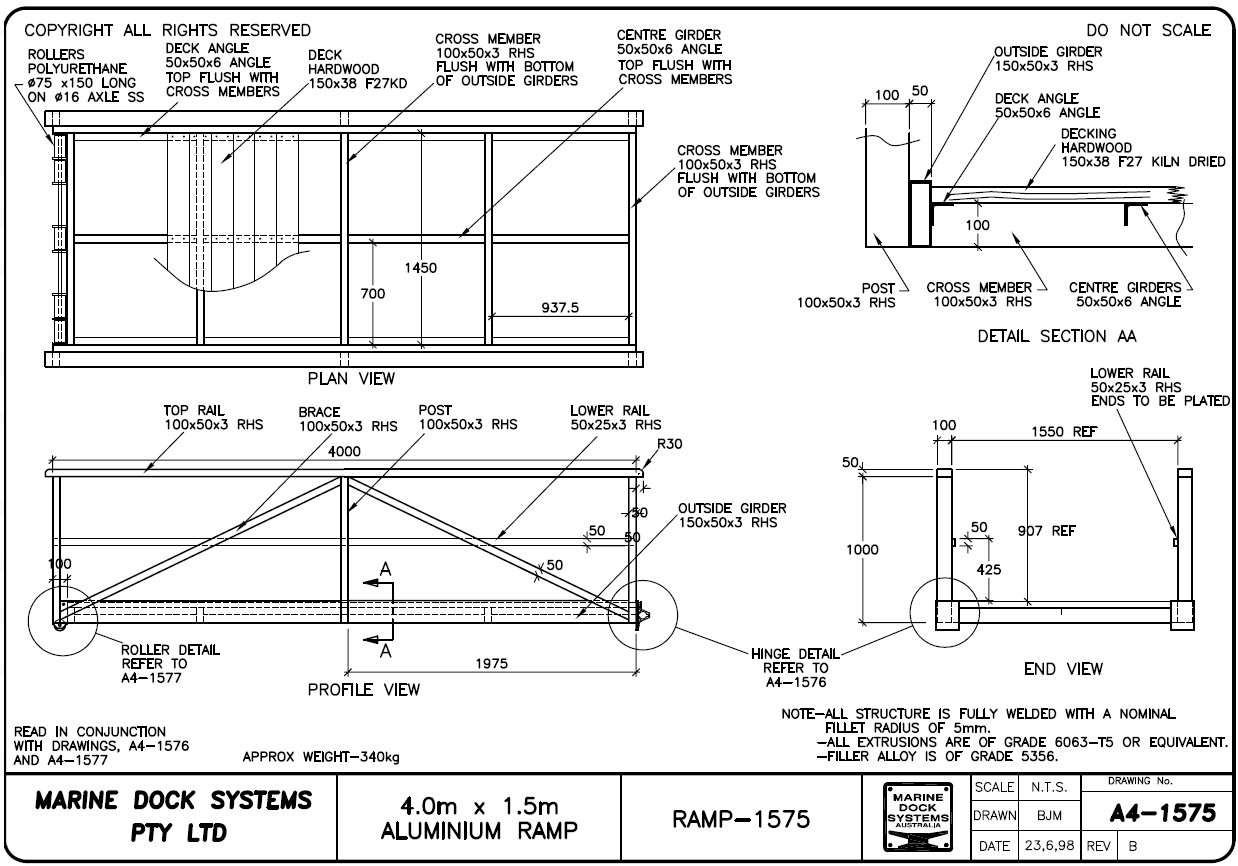

A4-1575 4m x 1.5m Trussed alloy timber ramp
8m x 1.2m Trussed alloy mesh ramp

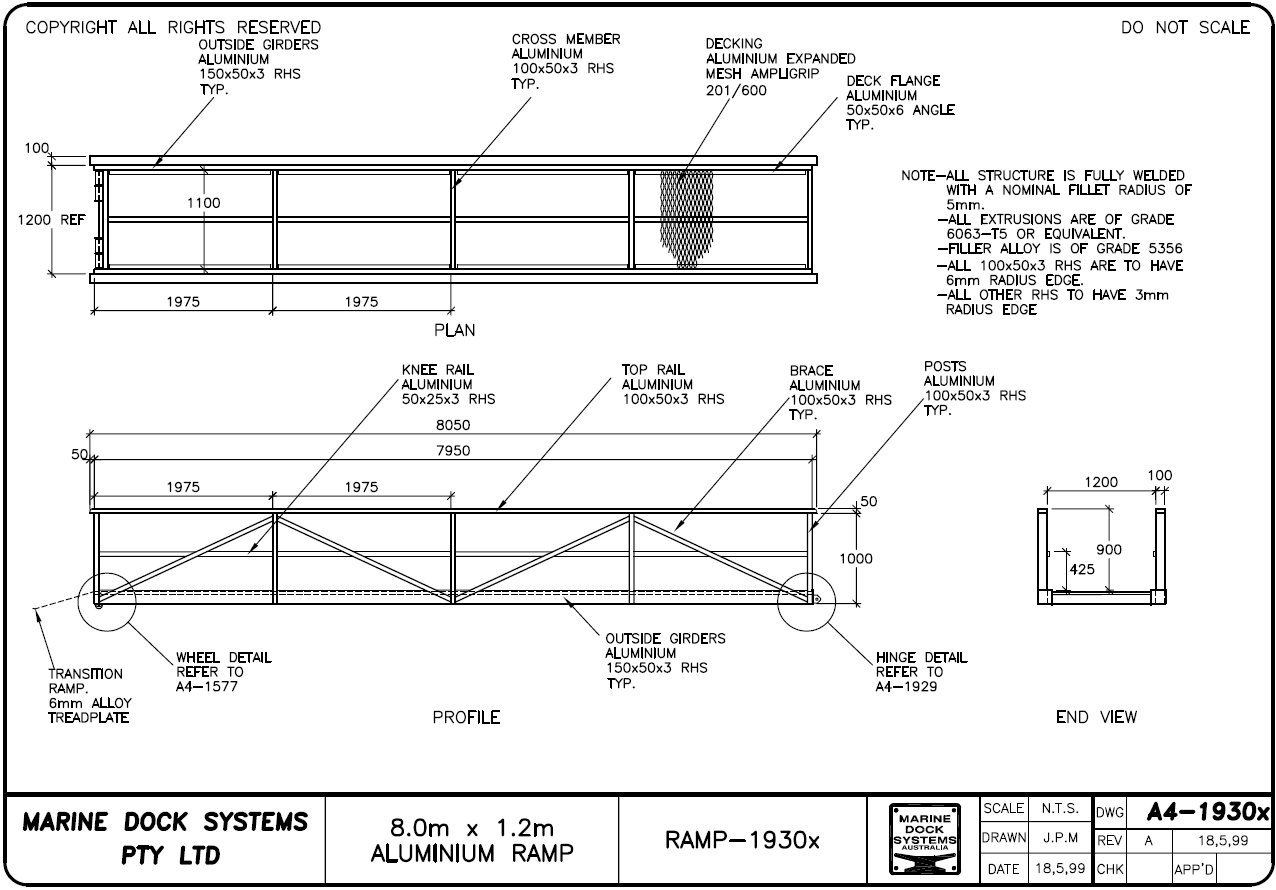

A4-1930x 8m x 1.2m Trussed alloy mesh ramp

6 x 1.4m with transition plate

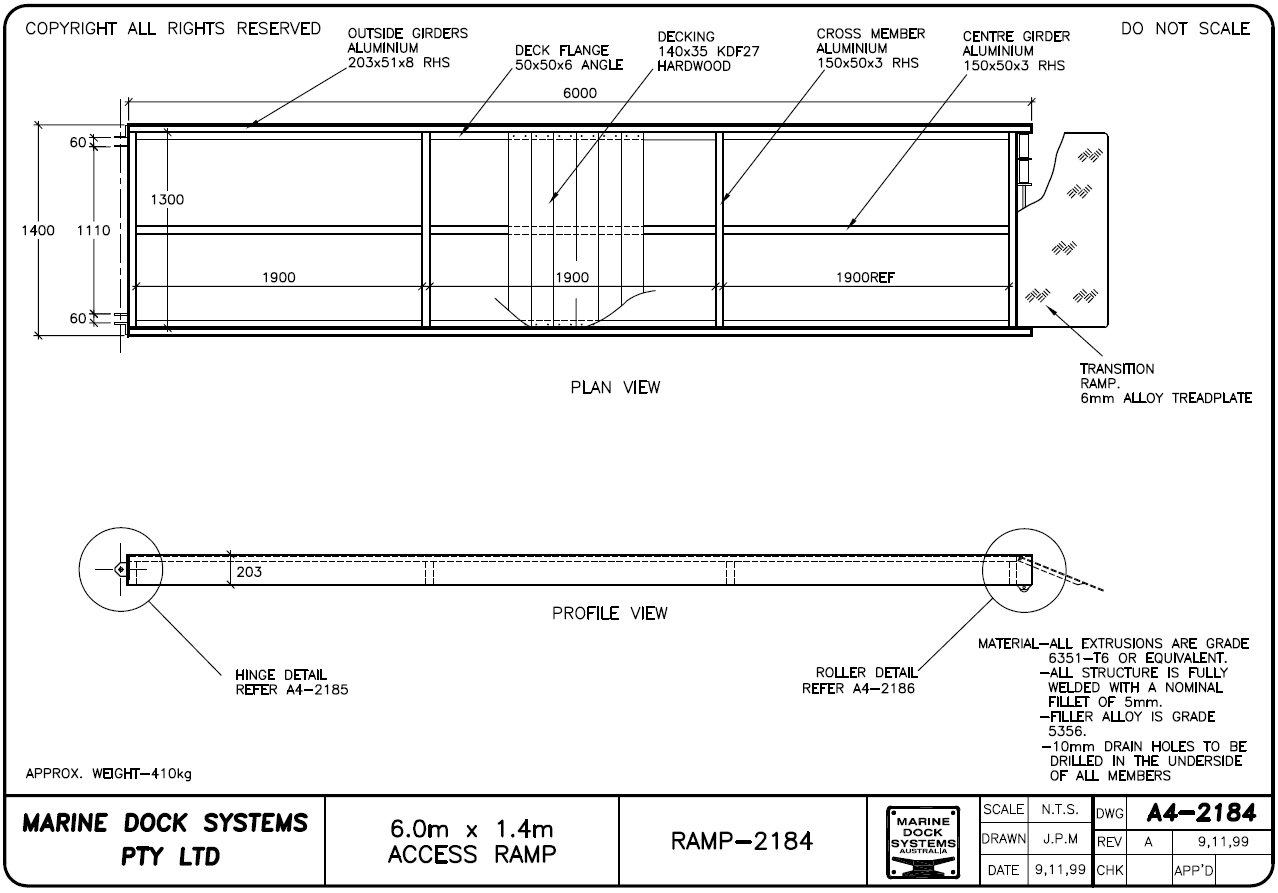

A4-2184 6 x 1.4m ALLOY TIMBER RAMP HINGE-ROLL
6 x 1.4m with step

A4-2982 6M X 1.4M ALLOY RAMP-NO HANDRAIL

6 x 1.4m Seagrass

A4-2982x-SEAGRASS RAMP
Floating Aluminium Walkway Ramp

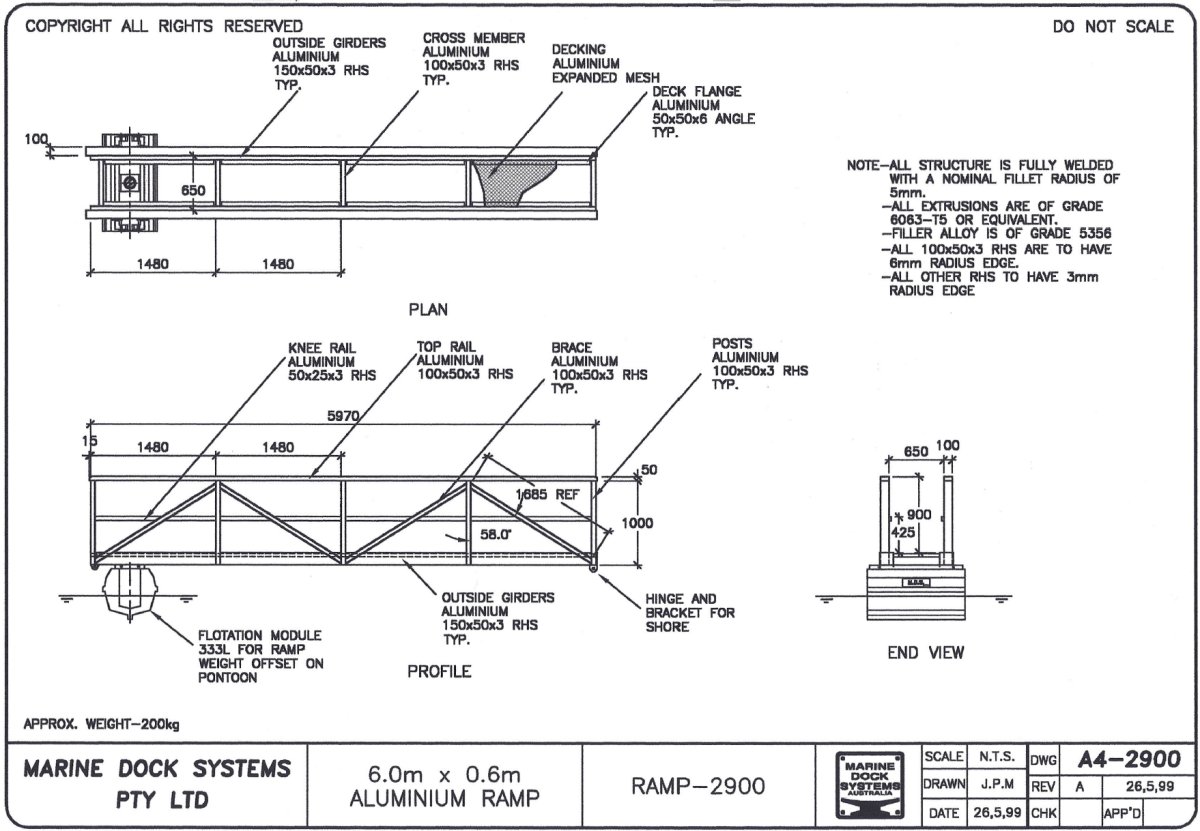

A4-2900 - 6mtr x 0.6 with 333 litre float attached

Bracket to suit 900 wide ramp

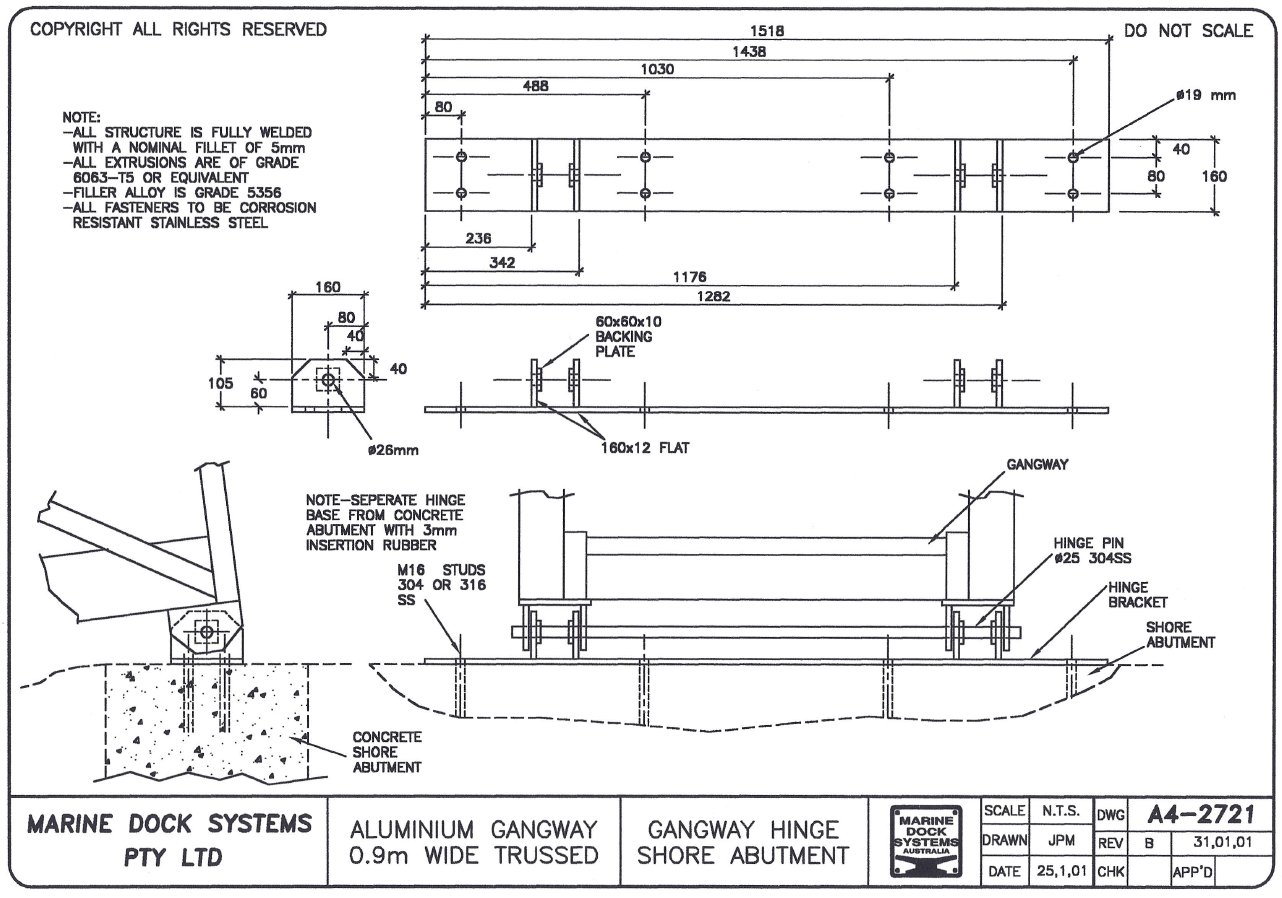

A4-2721 - Bracket to suit - 20 mtr x 0.9 wide
16 mtr x 0.9 wide Gangway

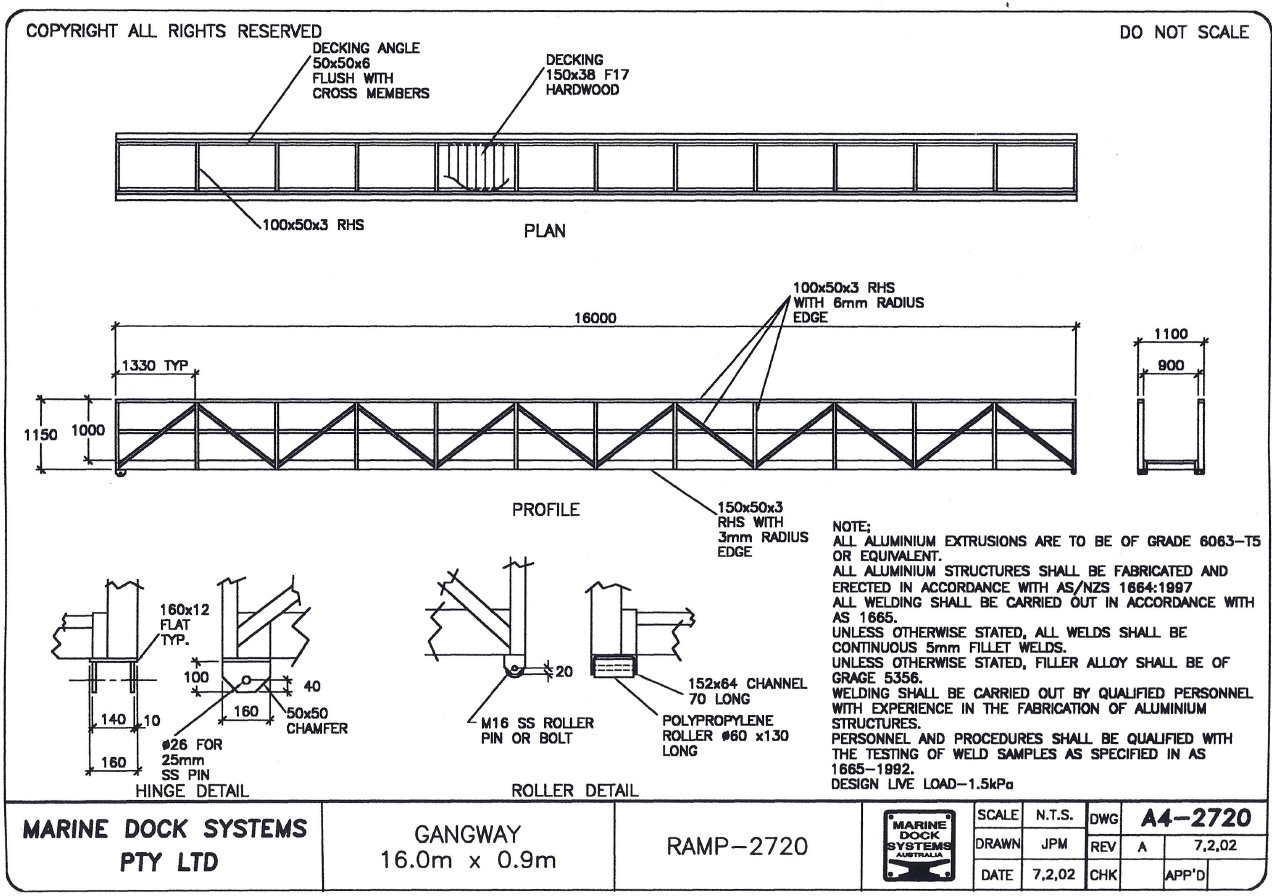

A4-2720 - Aluminium Ramp 16 mtr x 0.9 wide

Cambered Aluminium Ramp 6mtr x 1.2

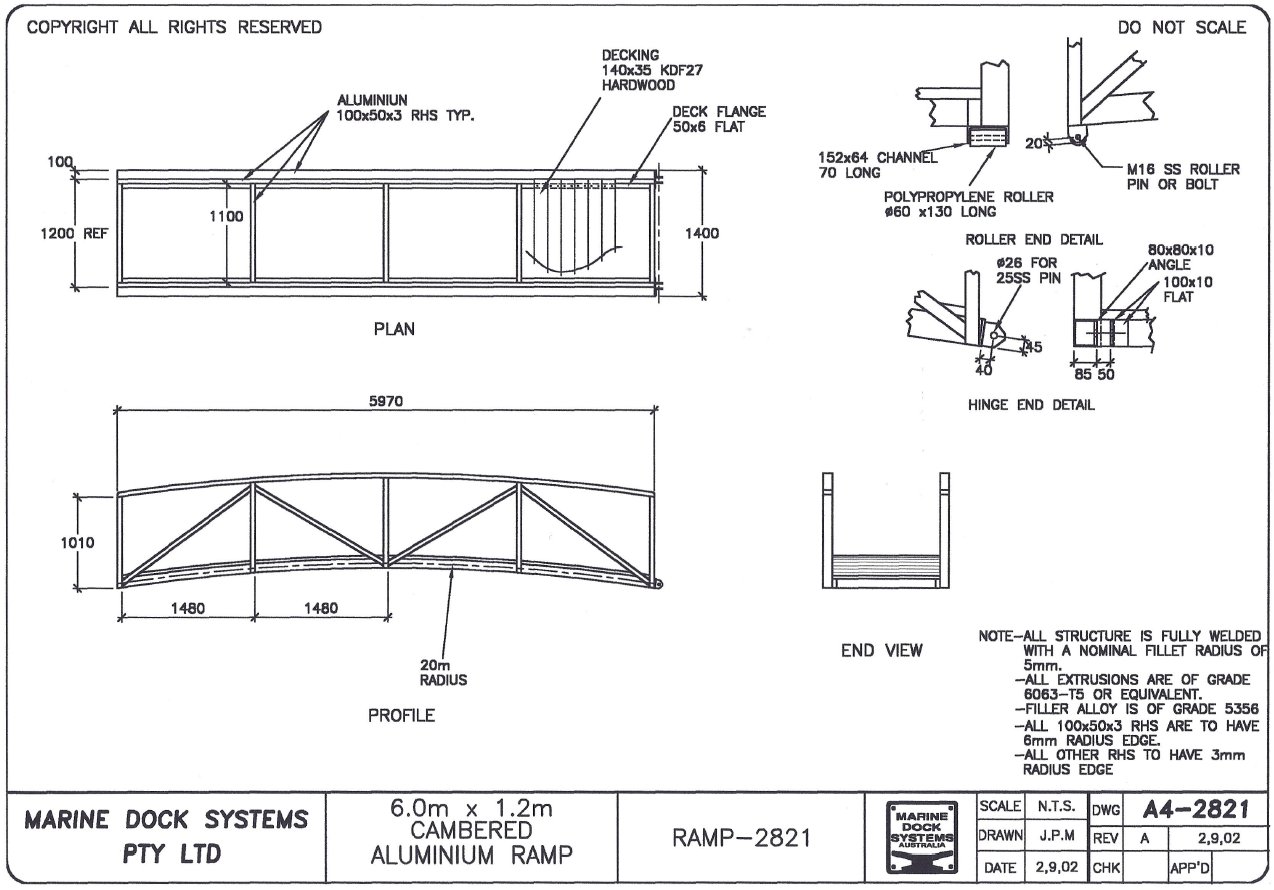

a4-2821 - Cambered Aluminium Ramp 6mtr x 1.2
Trussed 12 x 0.9mtr

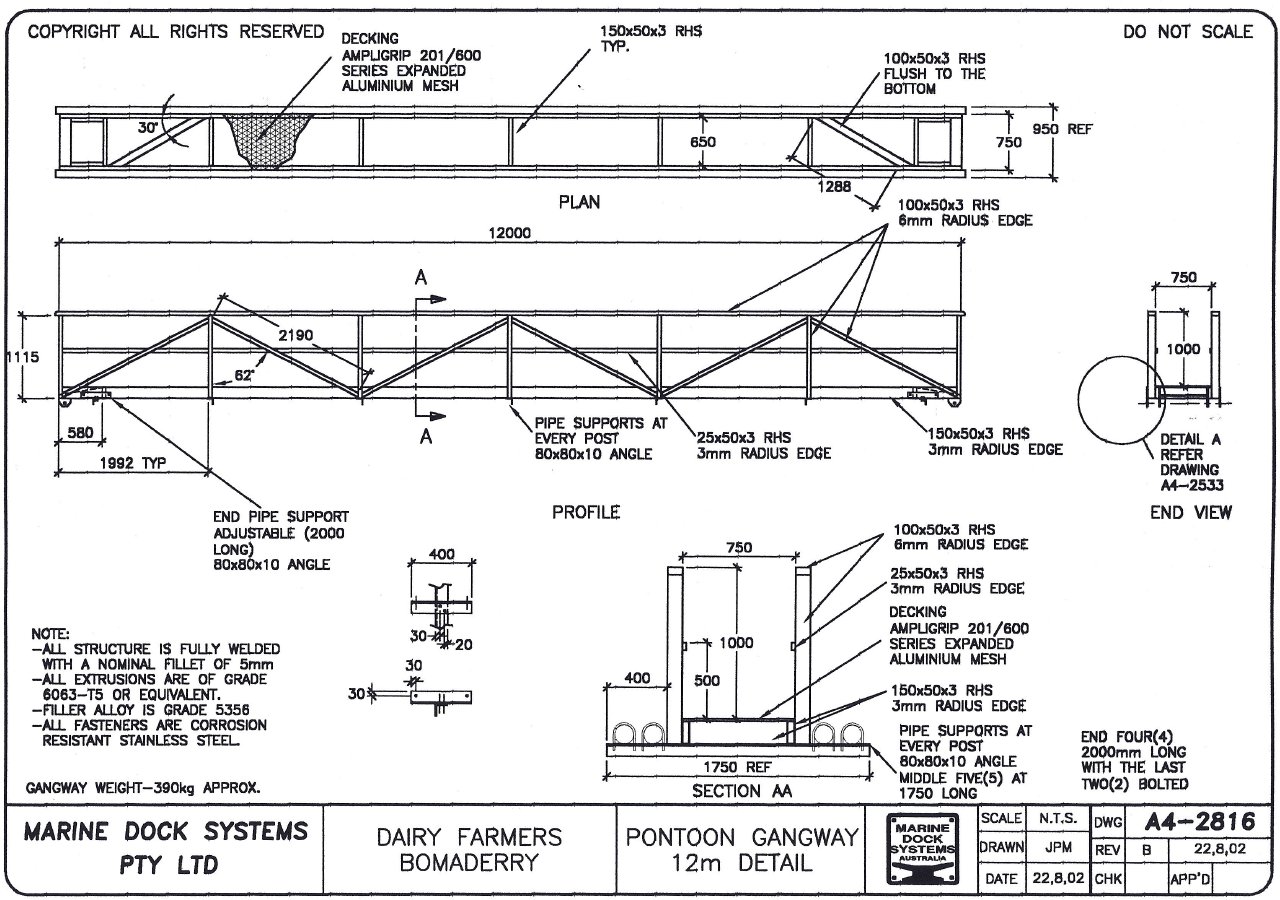

A4-2816 - Aluminium Ramp 12mtr x 0.9 Industrial

Aluminium Walkway Ramp

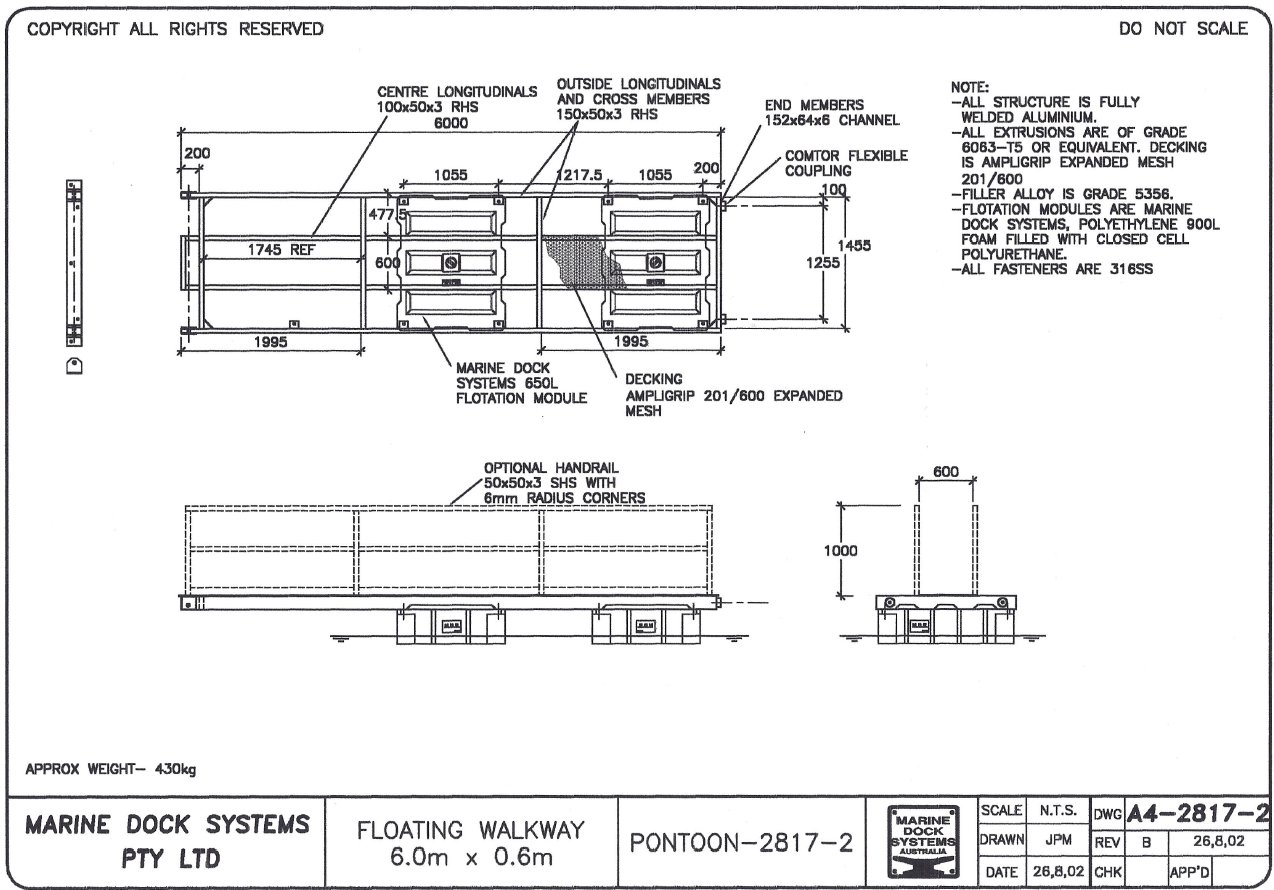

A4-2817-2 - Aluminium Walkway Ramp - 2 x 650 Litr
Floating Walkway - 3 x 650 Litre

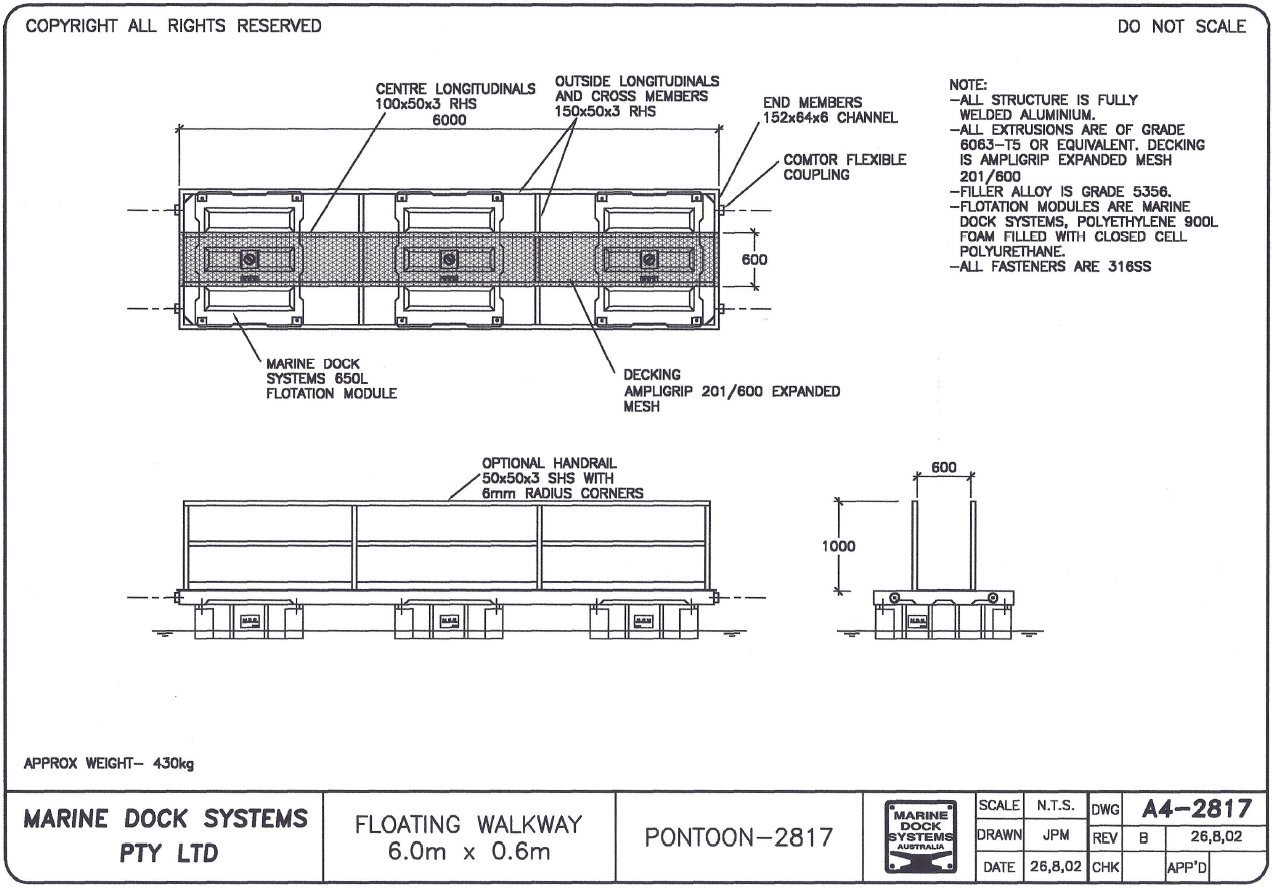

A4-2817 - Aluminium Walkway - 3 x 650 Litre

6mtr x 1.2 with trussed handrails

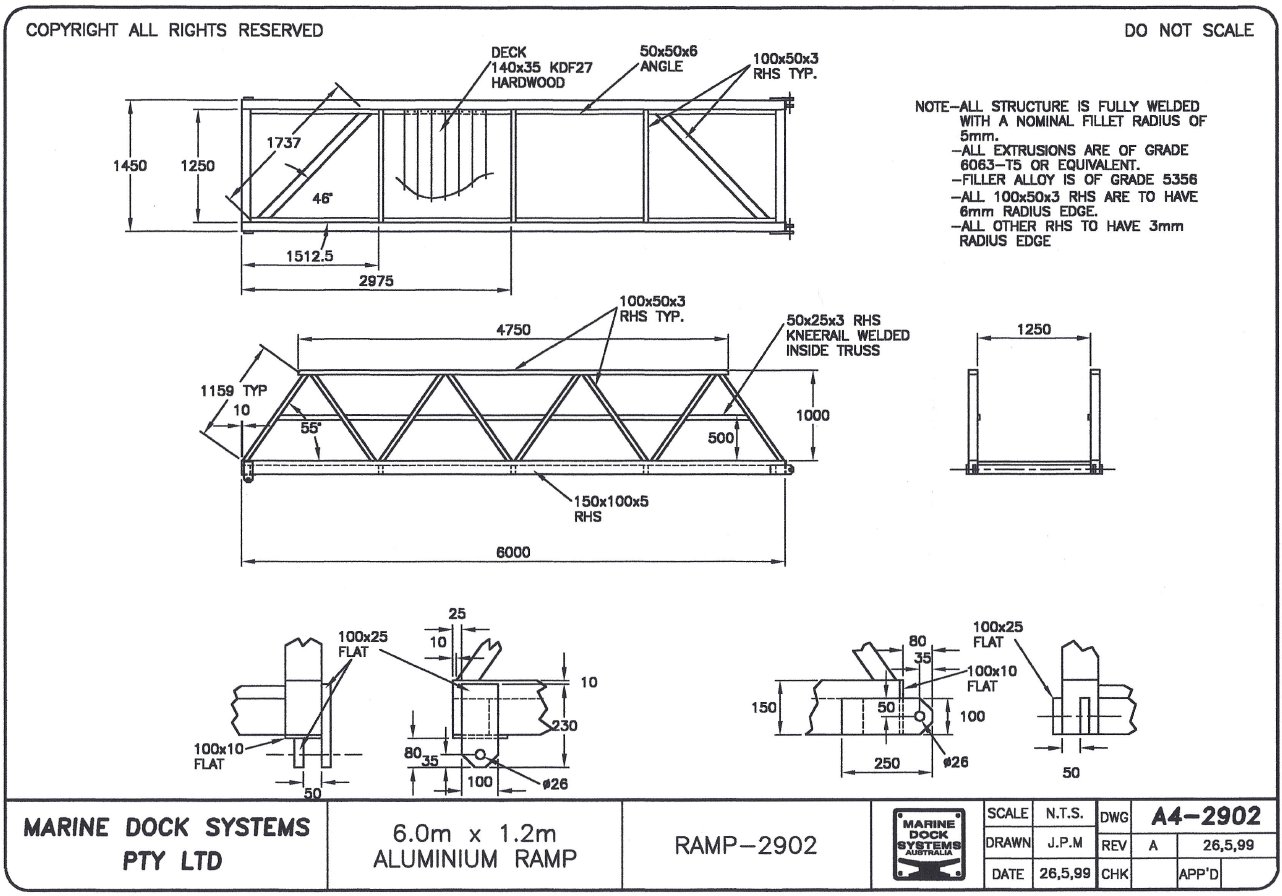

A4-2902 - Aluminium Ramp 6mtr x 1.2 with trussed handrails
Bracket suit ramp 2902

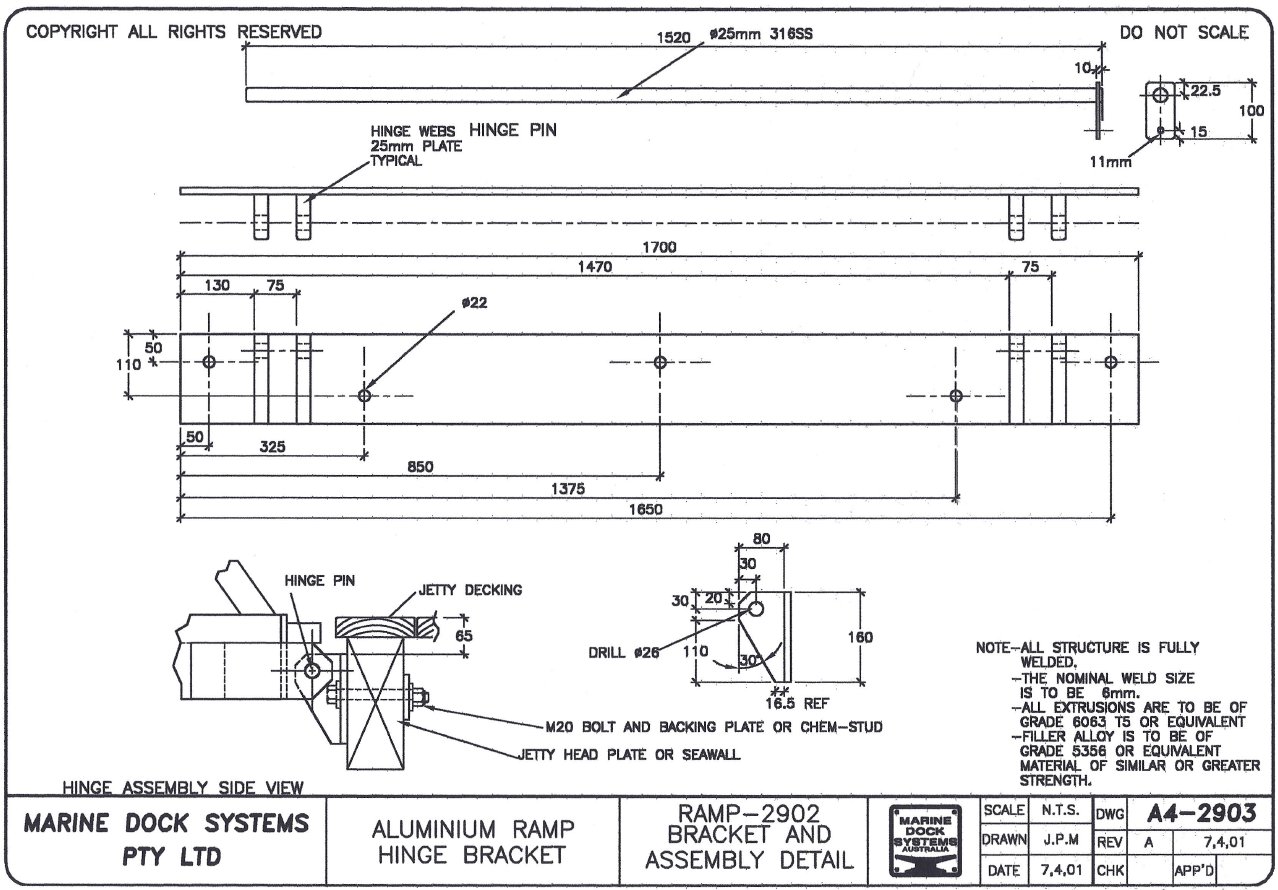

A4-2903 - Ramp Hinge Bracket suit ramp 2902

a4-2907 - Portable Folding Aluminium Ramp 3.5 mtrs x 0.6
a4-2910 - Boat Ramp Pontoon 20 mtrs x 2.15 wide
a4-2943 - Aluminium Timber Ramp 6mtr x 1.2 with optional handrail
a4-2949 - Ramp Hinge Detail suit Tiber Ramp 1.2 mtrs wide
a4-2954 - Cambered Aluminium Timber Ramp 5.1 mtr x 1.3 with Trussed handrails
a4-2957 - Ramp Hinge Detail suit Alloy Ramp 1.8 mtrs wide
a4-2961 - Ramp Aluminium Framed Timber 6mtr x 1.2 with transition plate
a4-2962 - Ramp Trussed Aluminium Framed Timber 9 mtr x 1.2 with transition plate
a4-2970 - Bridge Trussed Aluminium Framed Timber Deck 12 mtr x 2.25
a4-2971 - Bridge Abutment Details

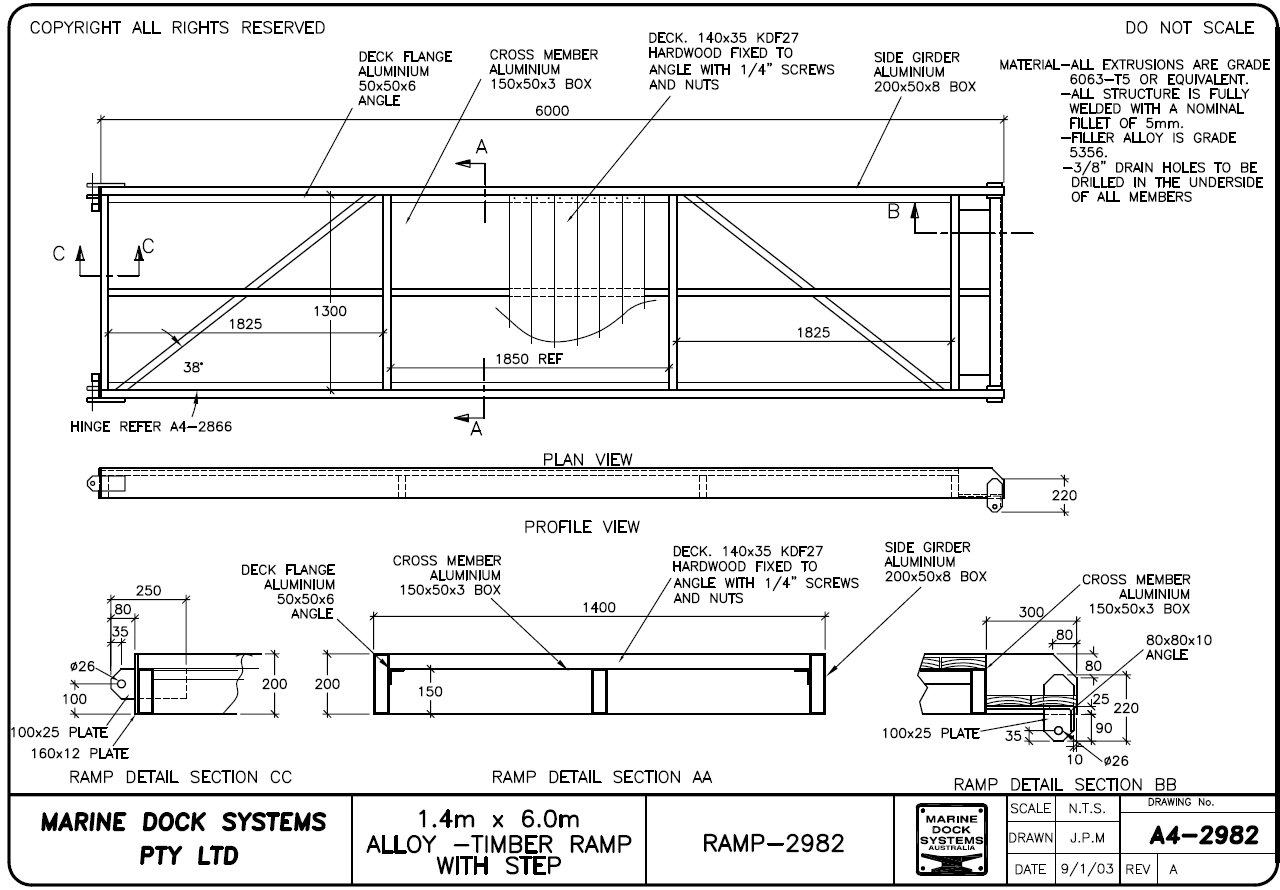

a4-2982 - Ramp Aluminium Framed Timber Decking 6mtr x 1.4 with step hinged both ends

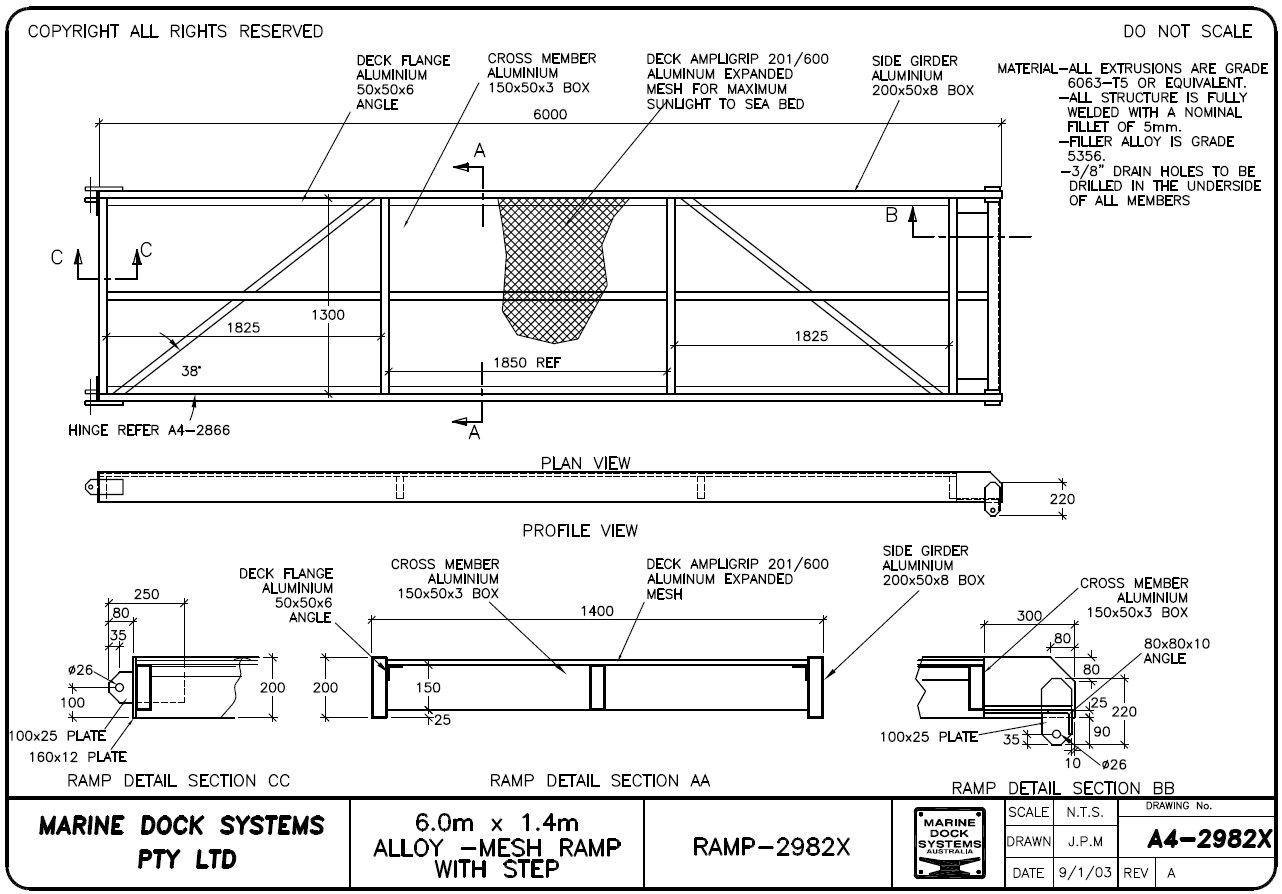

a4-2982x - Ramp Aluminium Framed Expanded Alloy Decking 6mtr x 1.4 with step hinged both ends
a4-2983 - Ramp Aluminium Hinge Detail suit 1.4 wide
a4-2983-2 - Ramp Aluminium Hinge Detail suit 1.4 wide
a4-3145 - Aluminium Trussed Ramp 4.3 mtrs x 0.9 wide
a4-3159 - Aluminium Trussed Ramp 2.5 mtrs x 1.2 wide

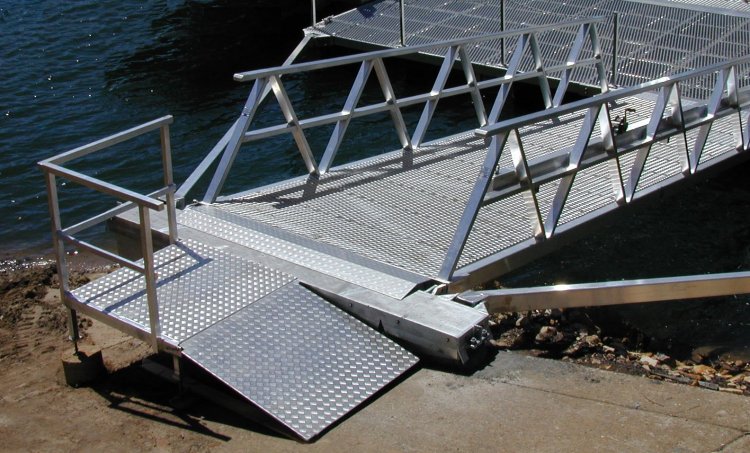

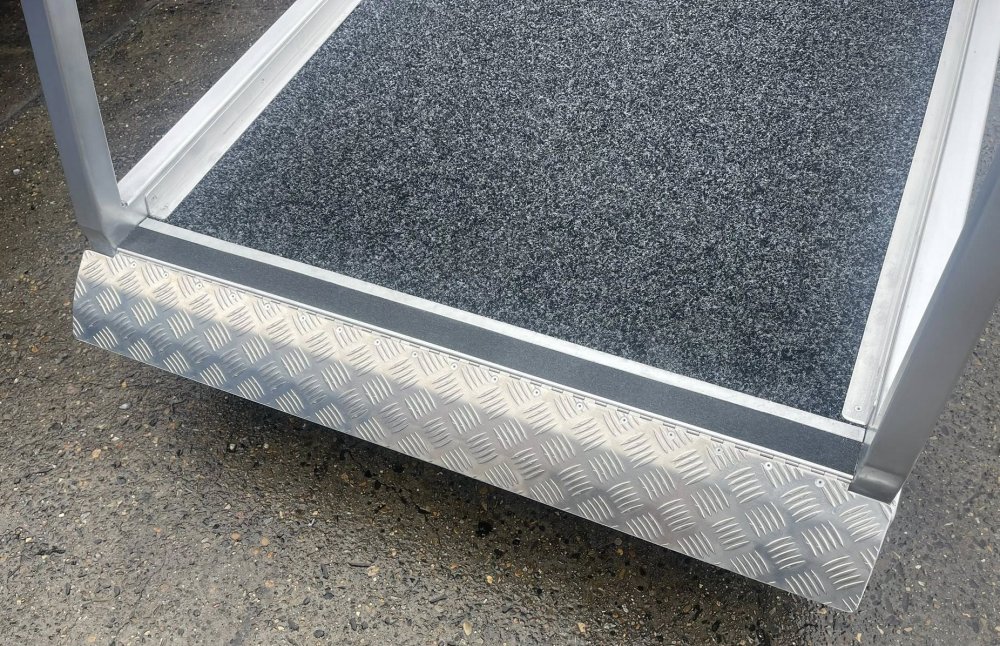

Transition Plate
