Pontoon Boats, House Boats and Moving Craft
Marine Dock Systems has designed many moving craft using
our 333 Litre floats and nose cones. The 333 Litre floats
support 150kgs each.
Moulded in one piece from tough, high stress crack-resistant,
thermoplastic polyethylene resin. In built mounting lugs
allow direct connection of the modules to the frame work
system. Floats can be used for drinking water or waste.
Contact us and let us know what size boat you are after
with accessories. Such as motor brackets, hand rails, carpet,
cleats, steering wheel console or even a roof. Floats are
also available separately
We have made boats used as BBQ Pontoon Boats, Passanger Transfer, Work Barges, Work Platforms, Docks, Moving Craft, Mooring Lifts, Transport Barges, Oyster Barge, Croc Boat, Cattle Transport, ATV Transport, Tiny house boats and Fishing!
 PDF Price List
 YouTube Channel
|
New! Pontoon boat lounges
Click here!
|

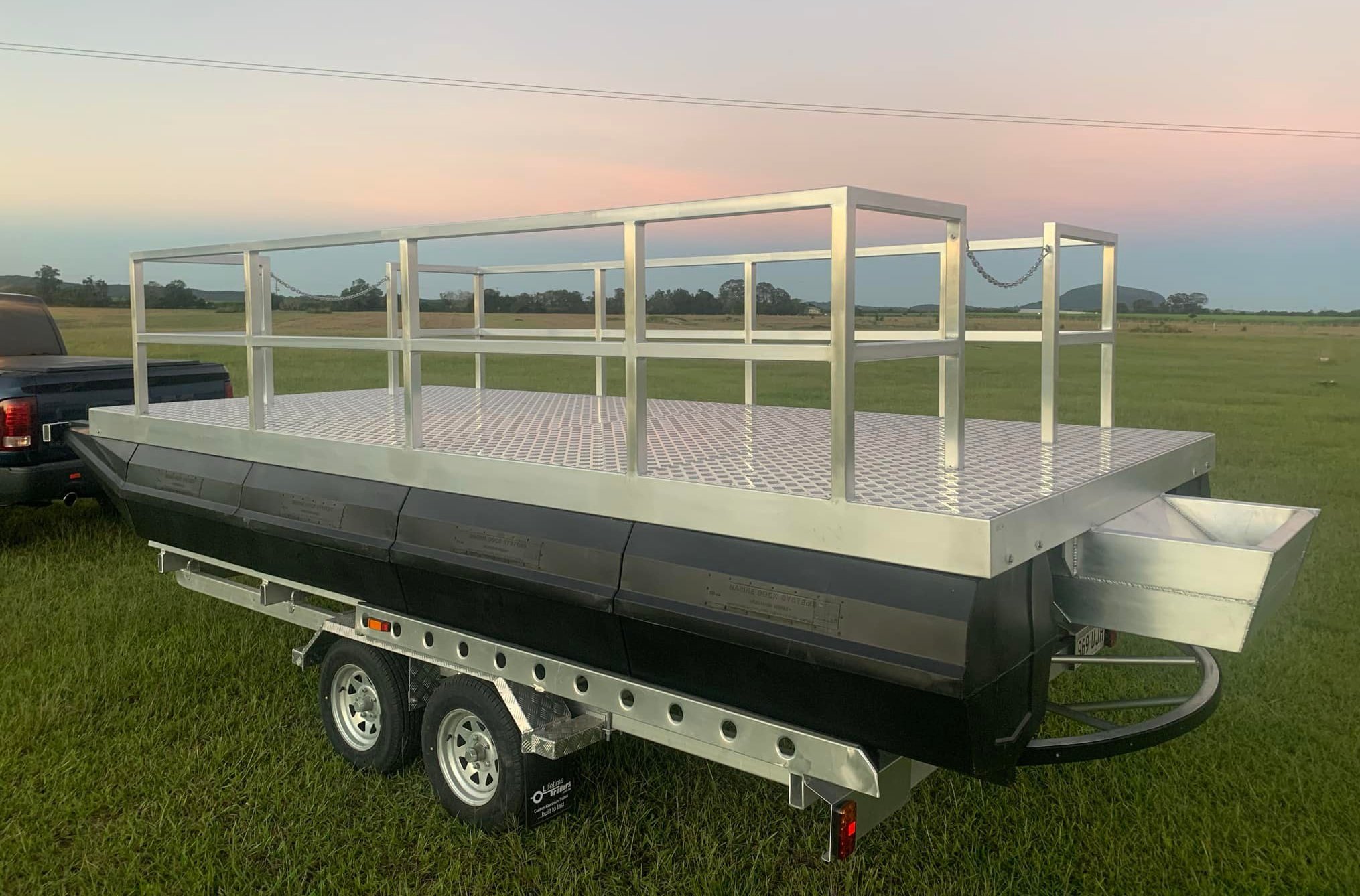

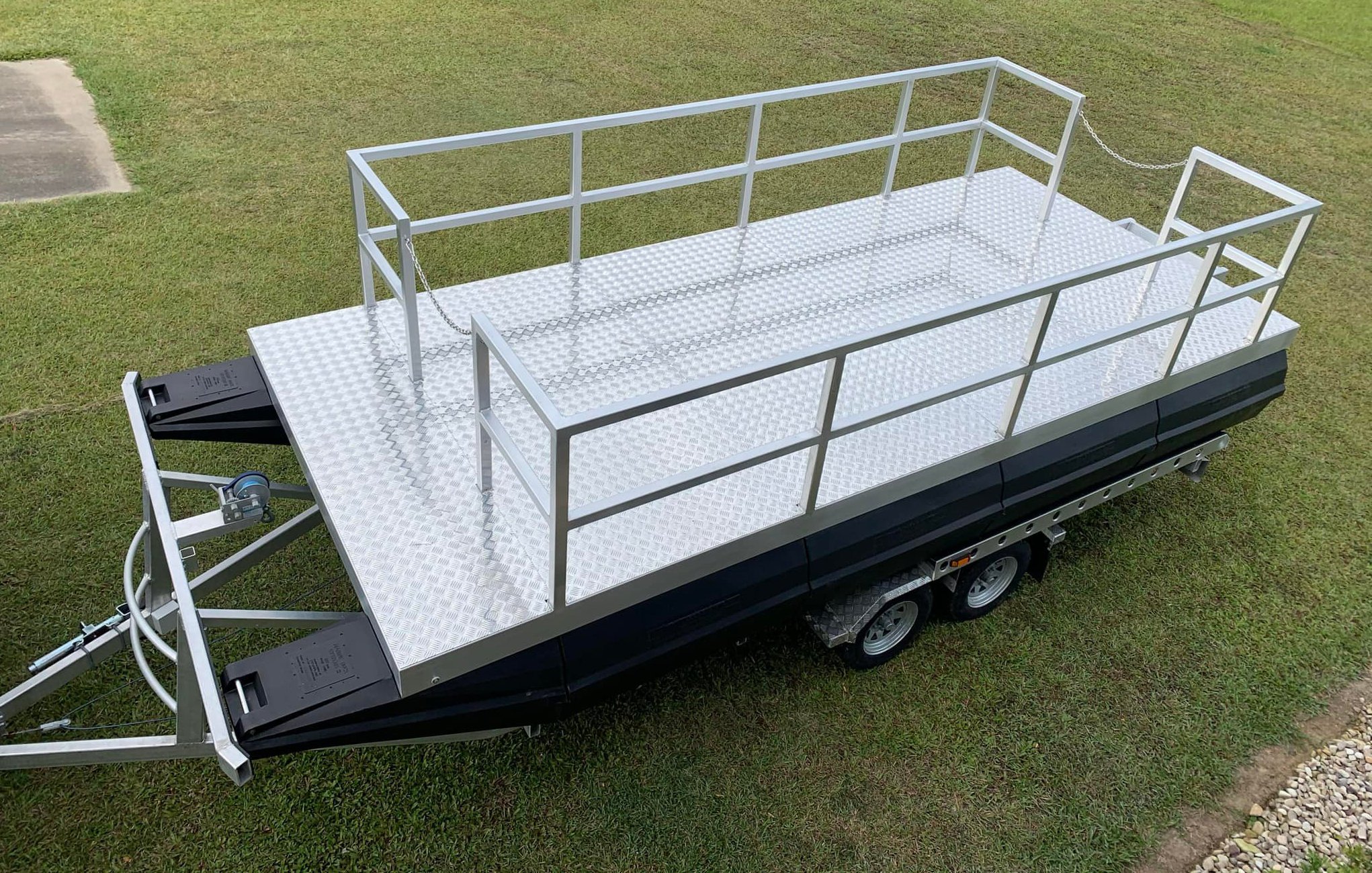

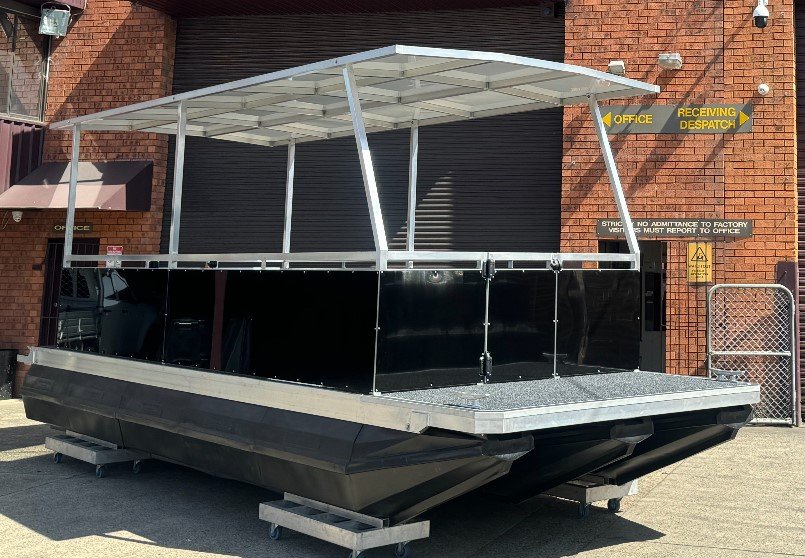

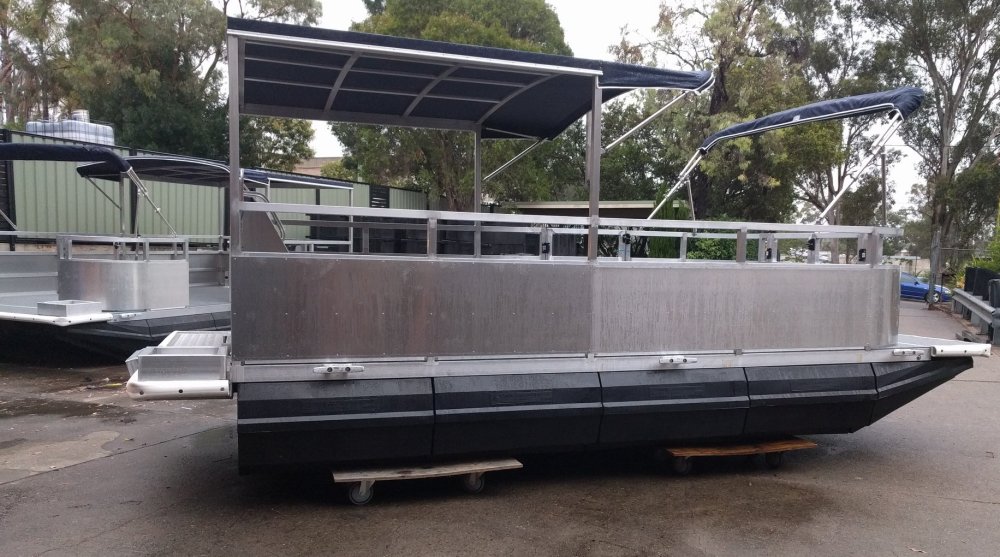

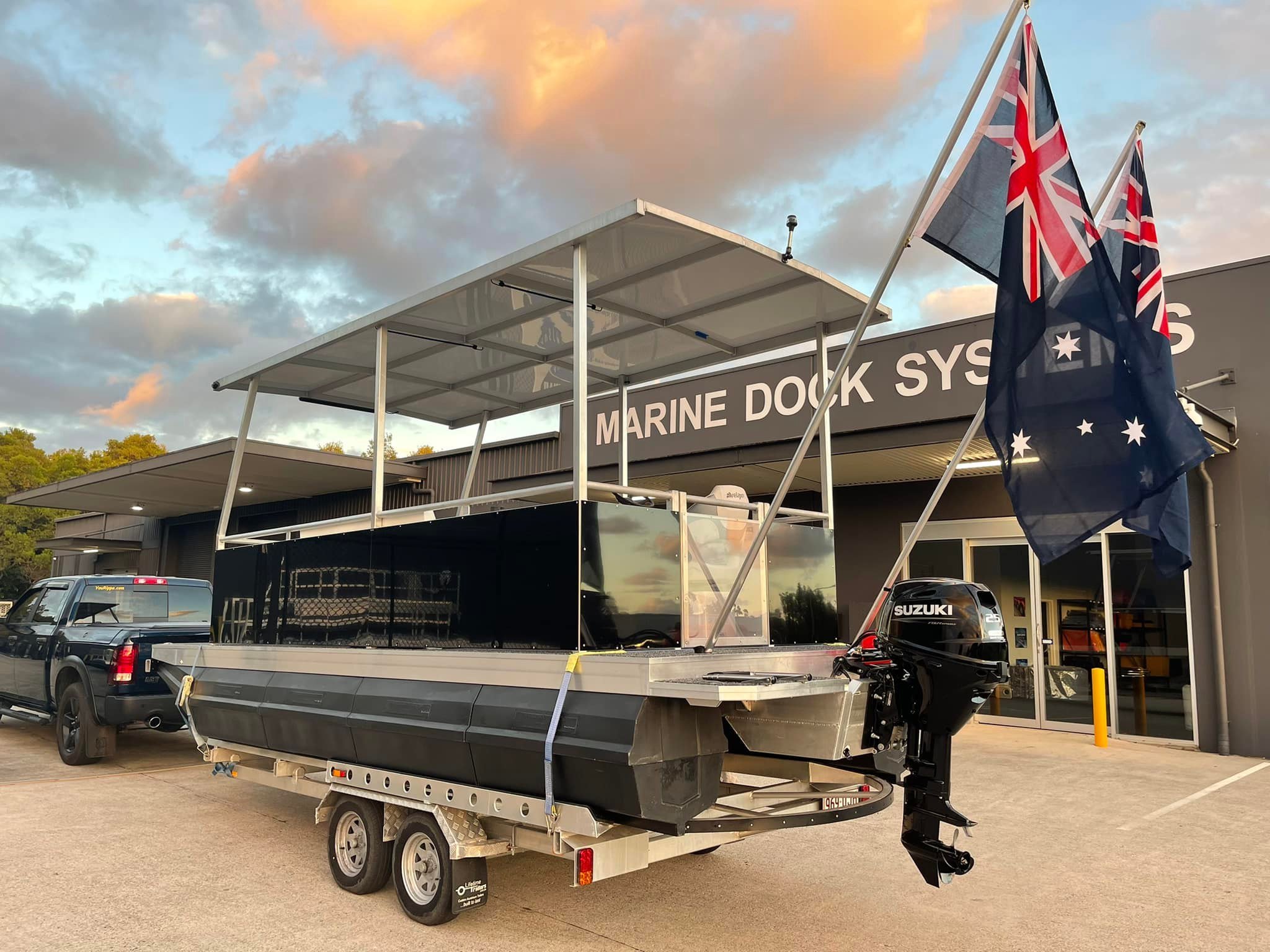

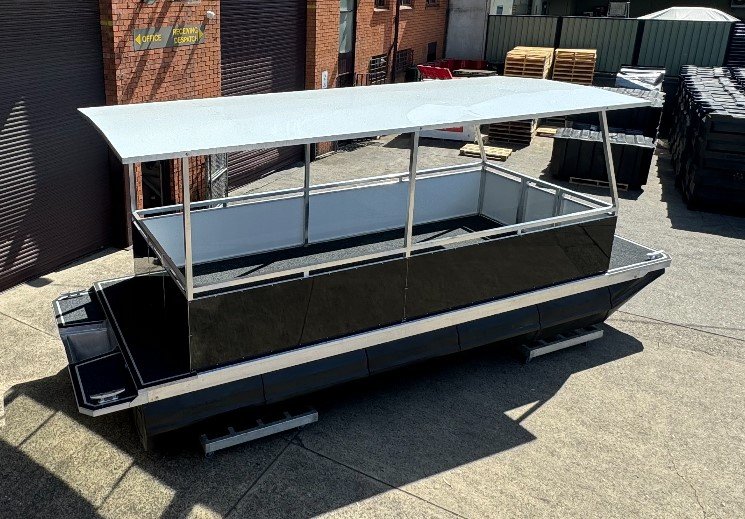

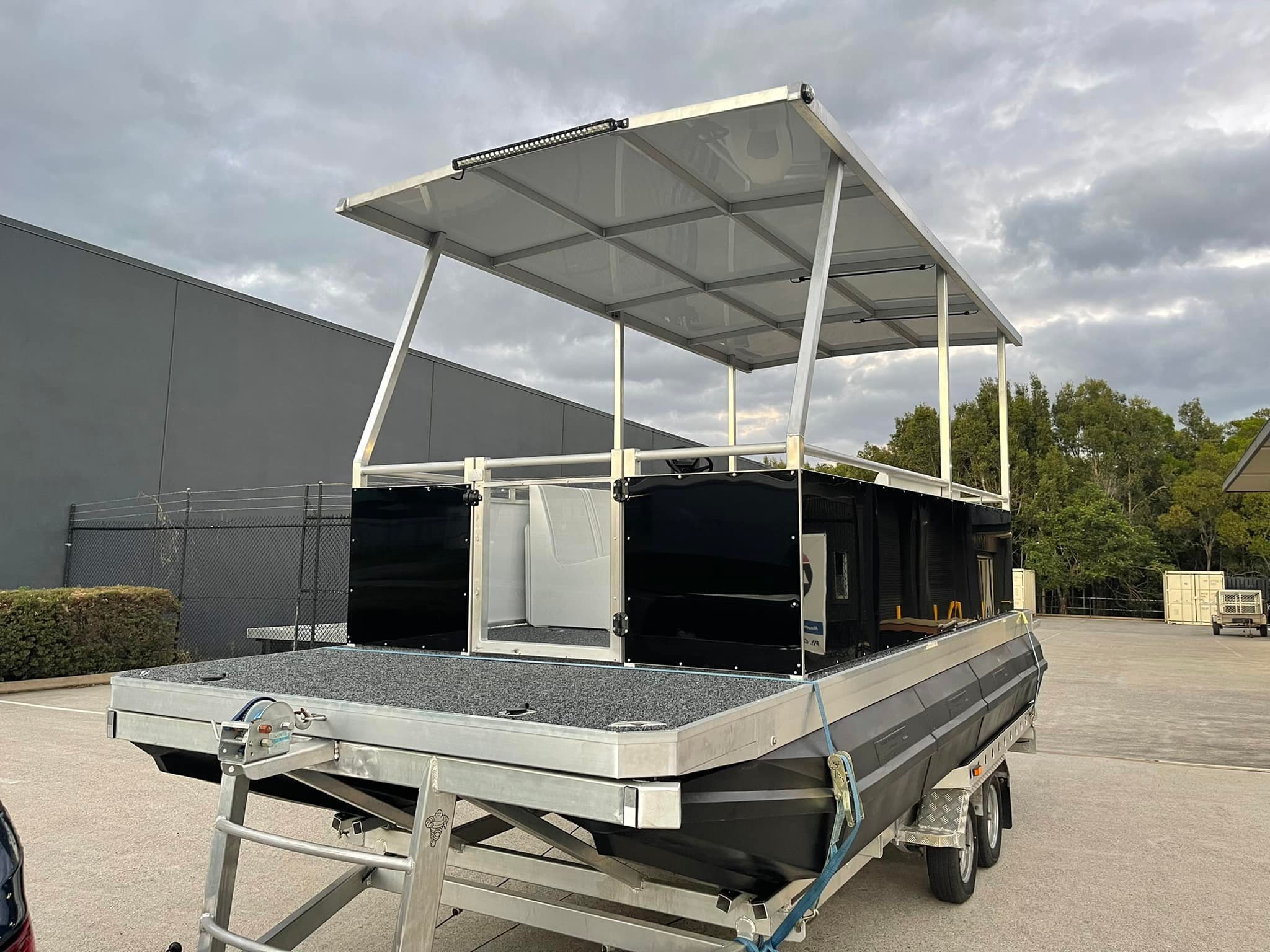

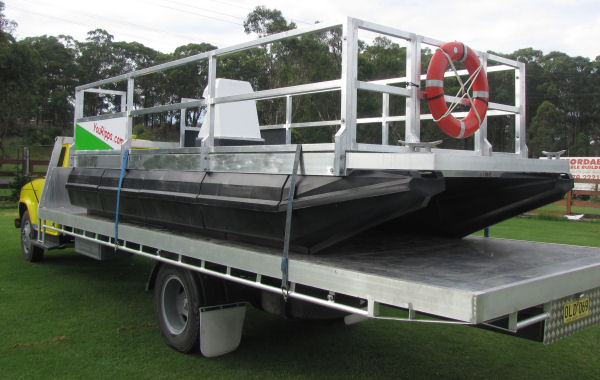

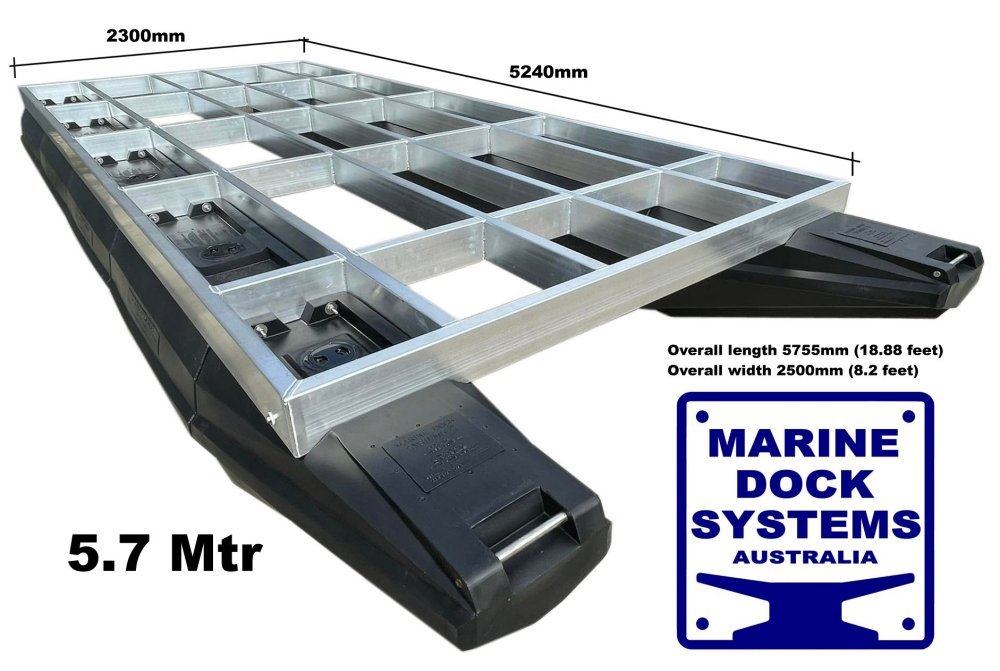

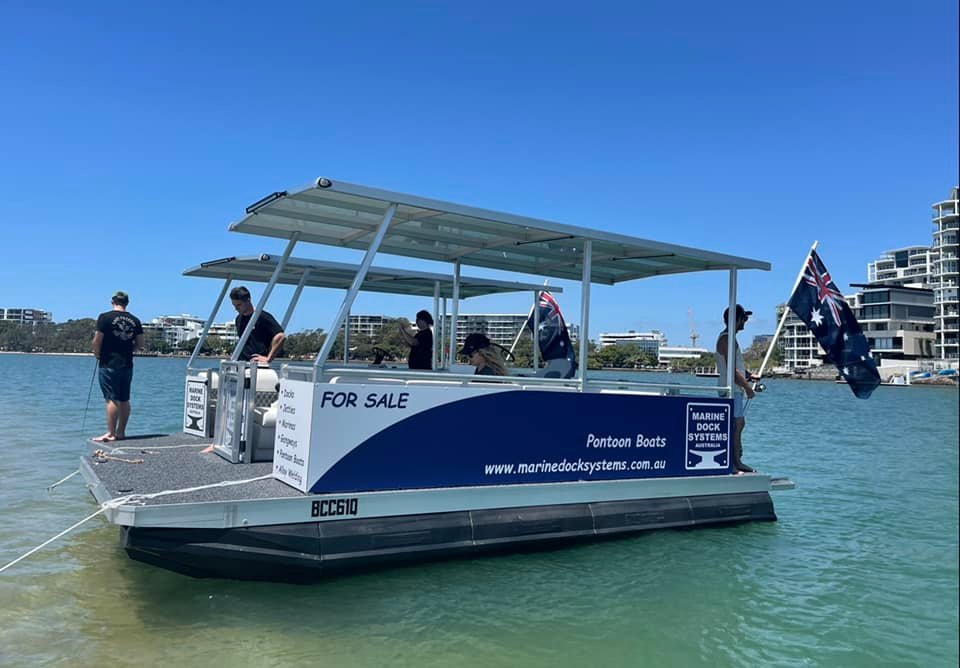

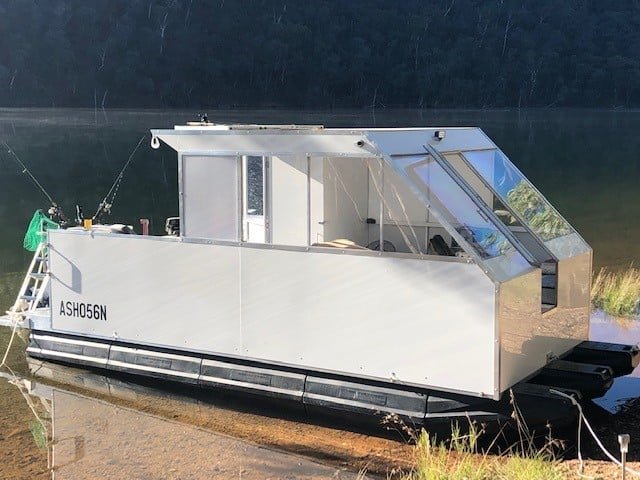

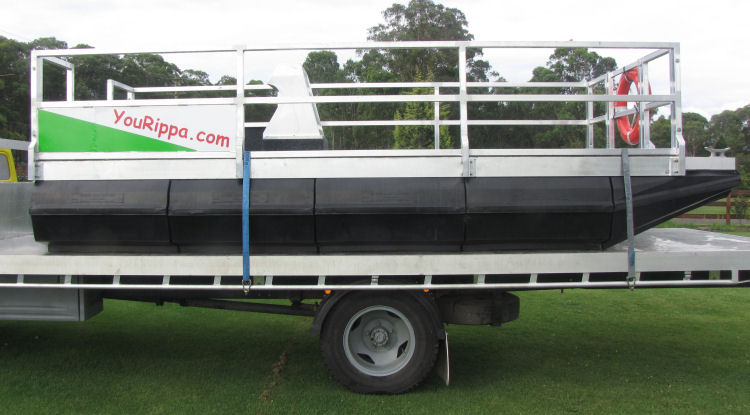

PONTOON BOAT
5.7 Mrs Long
2.5mtr wide
Available in many stages
Floats only
Frame and Floats

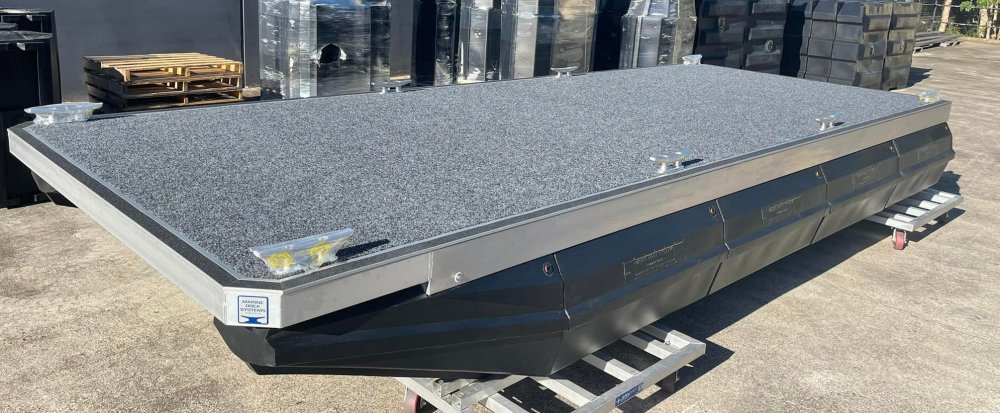

Decking / Carpet
Motor bracket
Rear steps
Nose extension
Handrails with gates

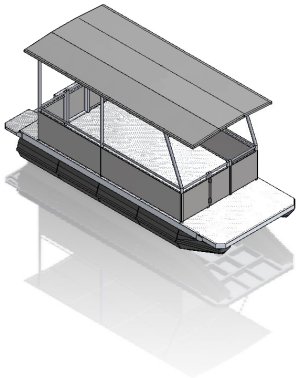

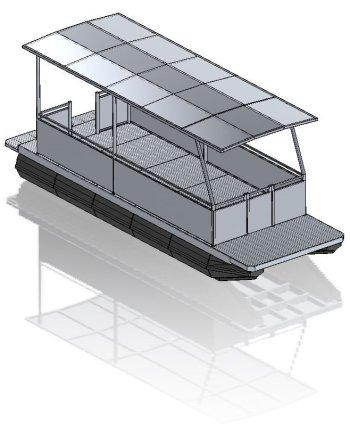

Full hardtop roof
etc. etc.

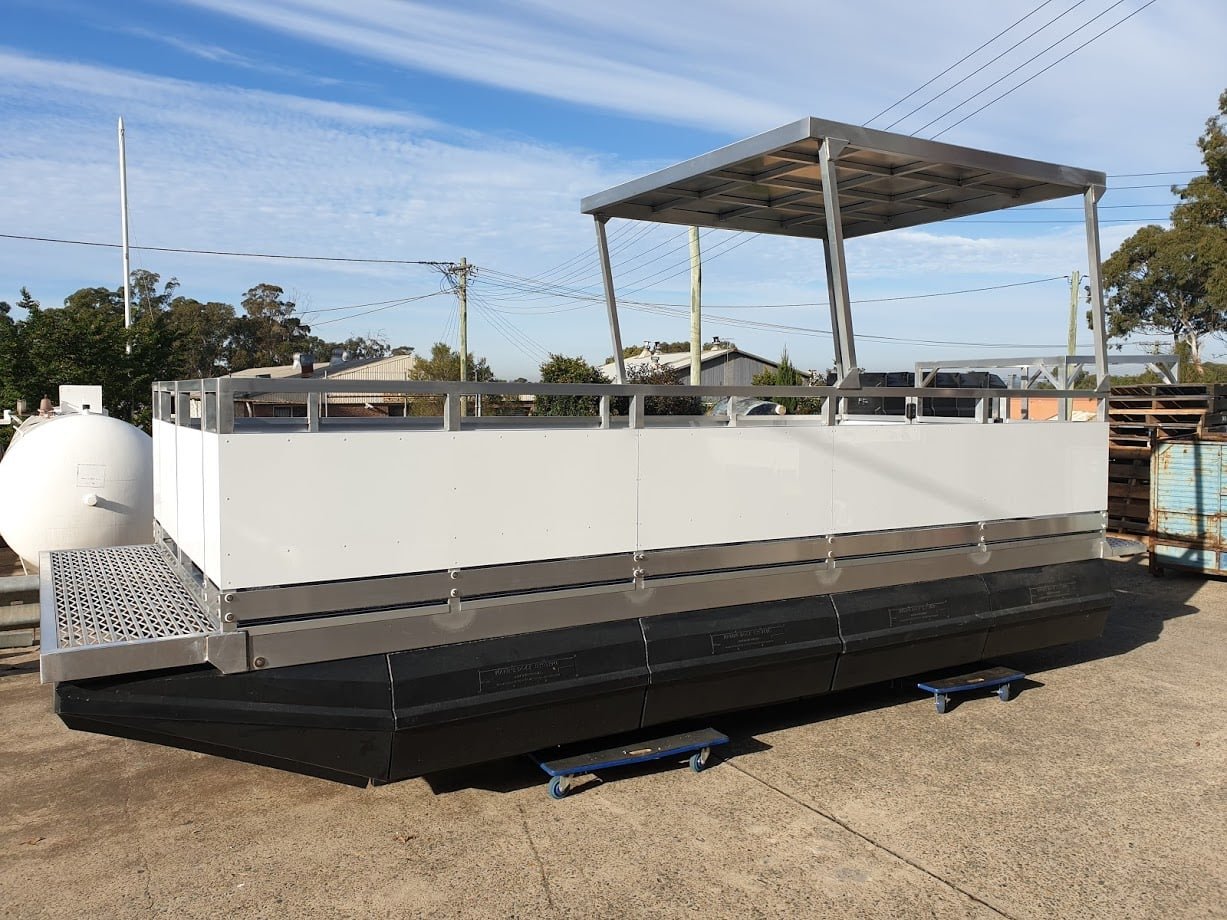

Full custom build
click here! for more designs this size
|

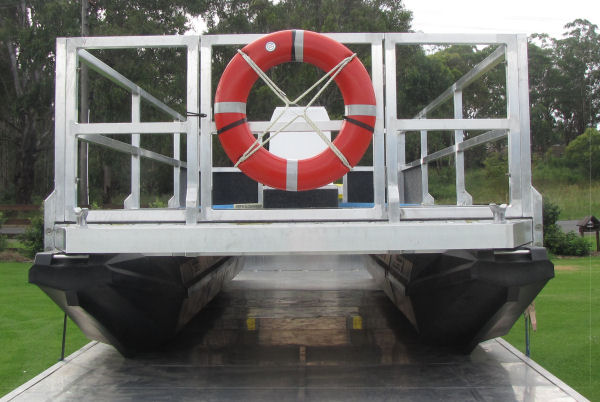

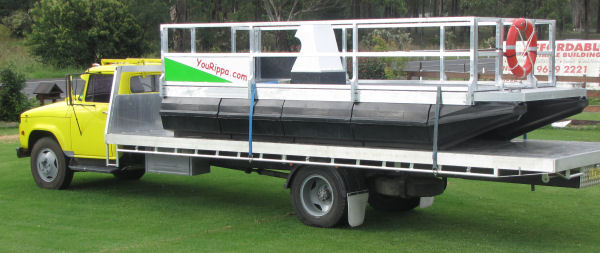

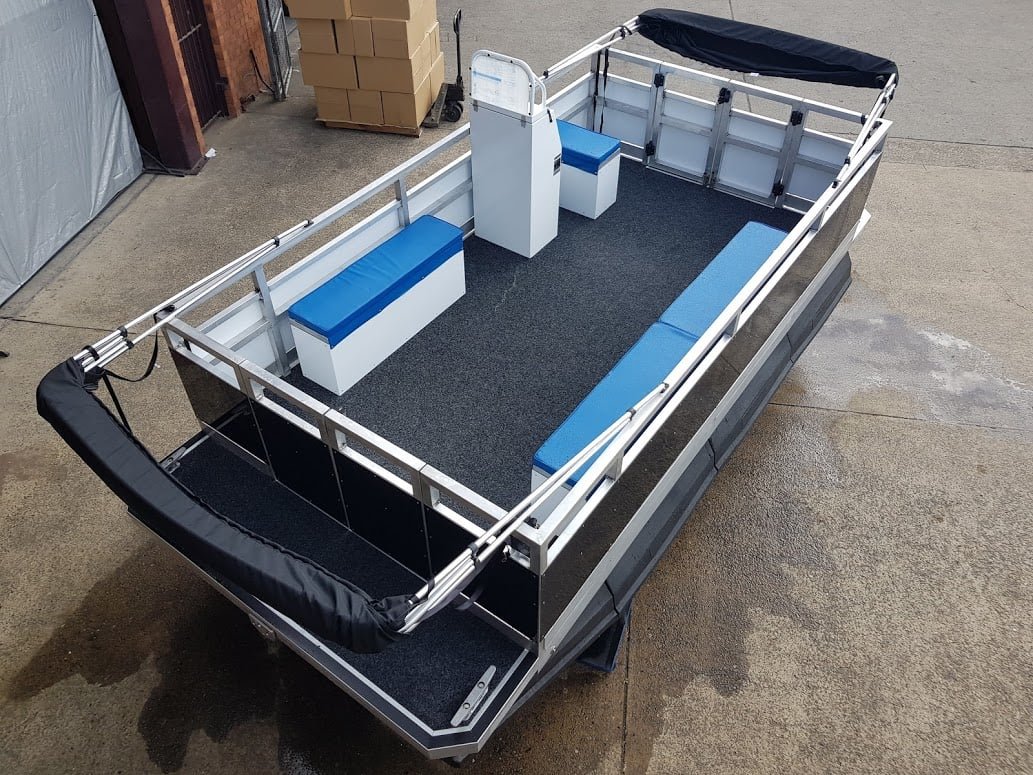

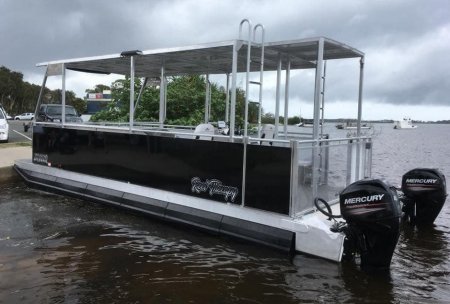

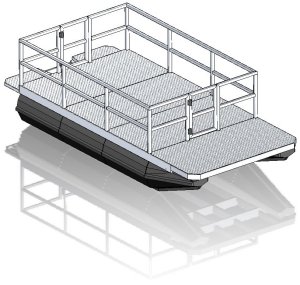

Shown here with handrails gates and outboard motor bracket. POA |  |
Pontoon Boat Price List
|
|

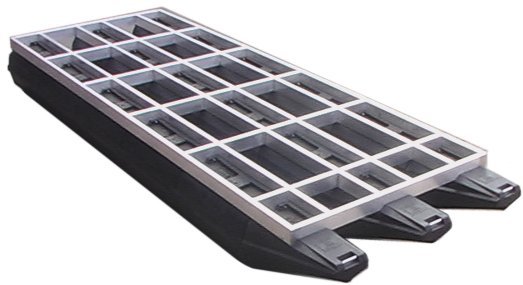

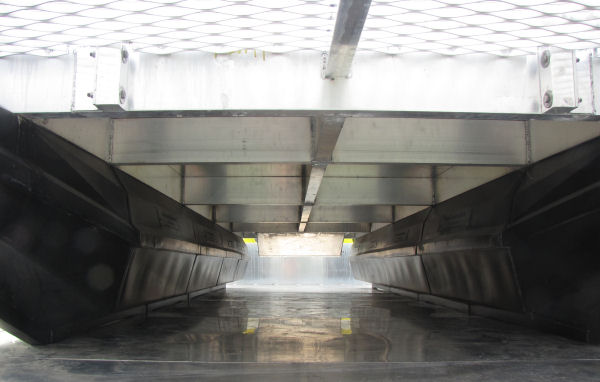

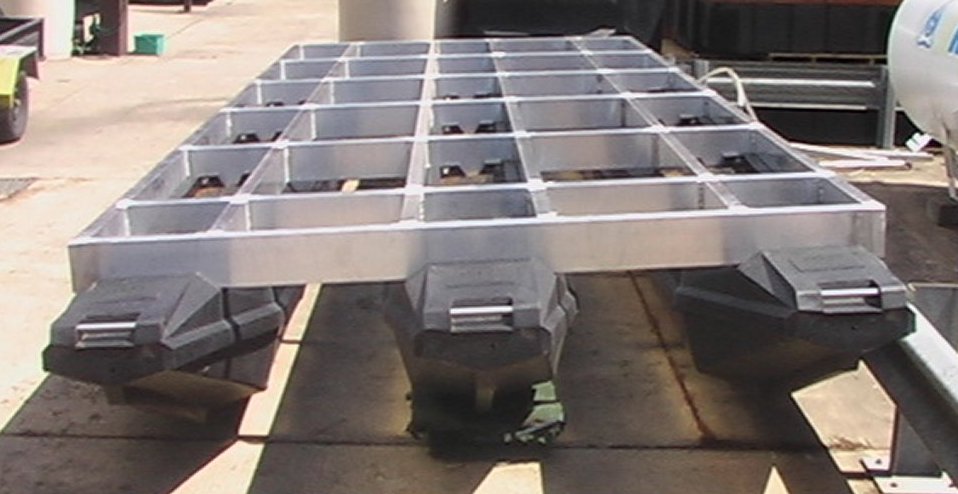

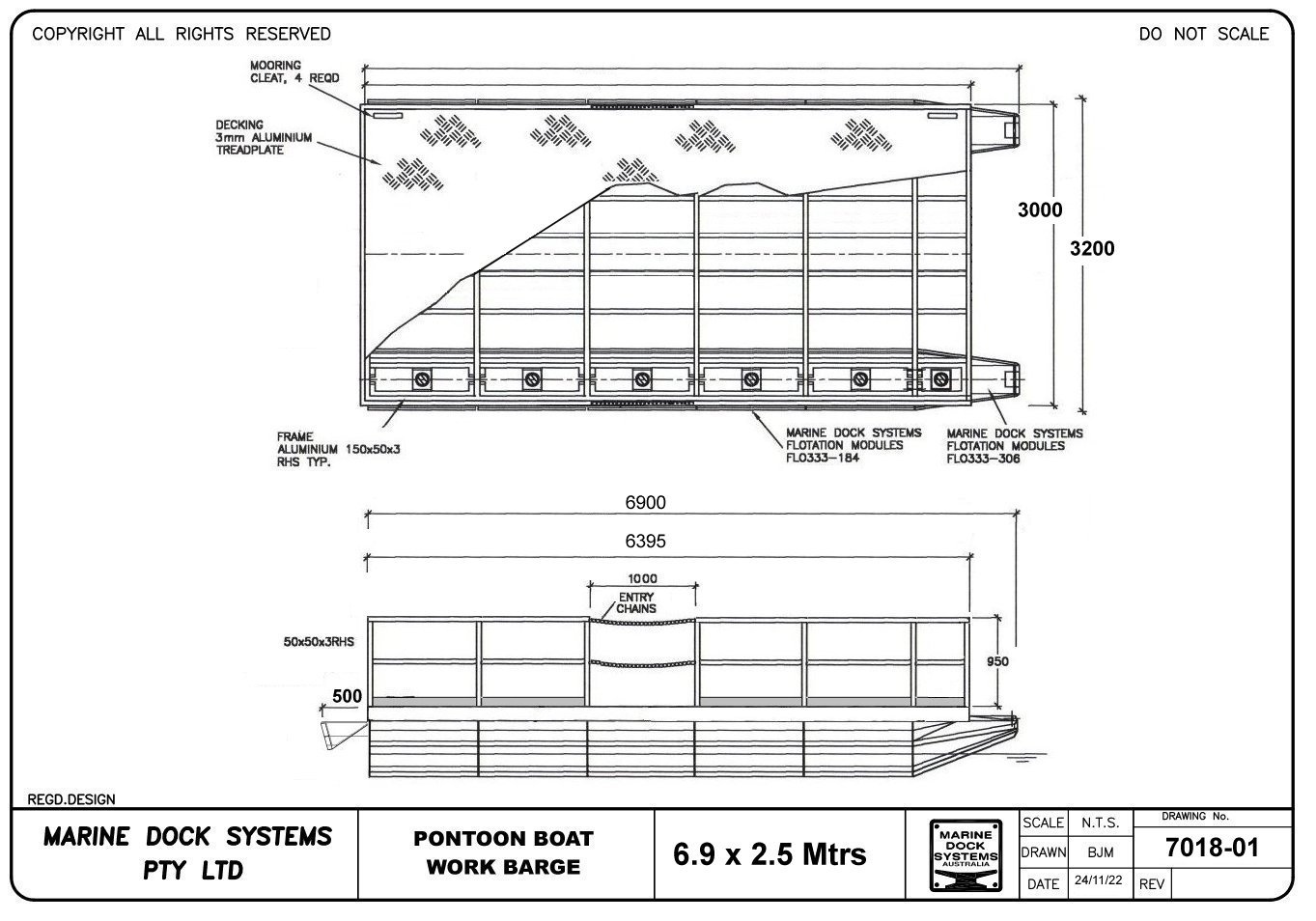

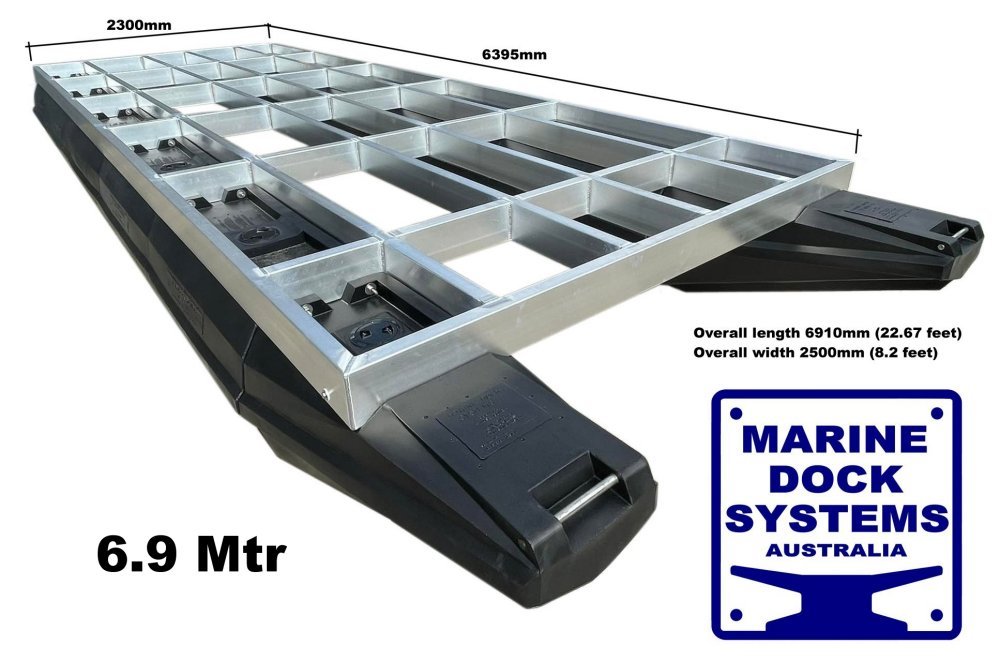

This boat has three rows of floats for extra flotation. This boat can take 2250kg. as is.

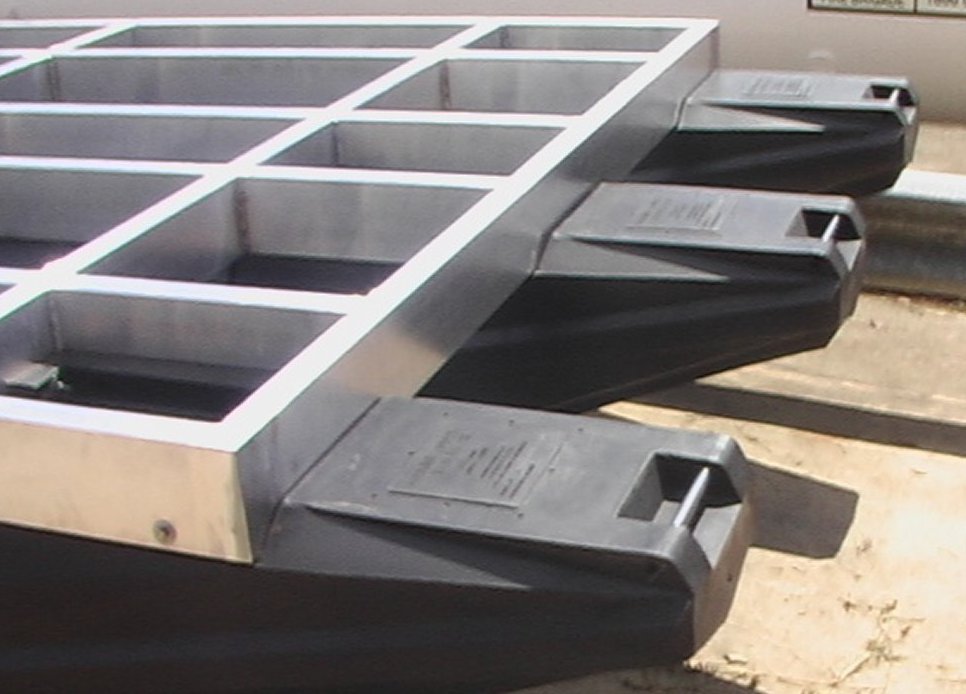

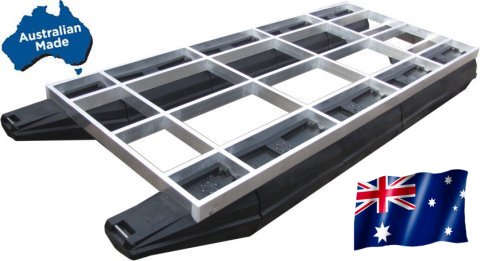

Consisting of 15 x 333 Litre Floatation modules and 3 x Nose cones

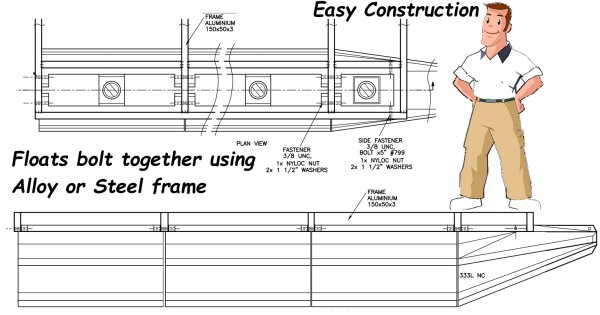

Frame is made from 150 x 50 x 3mm aluminium RHS and is fully welded,
304 Stainless steel bolts have been used to attach the floats to the frame
Frame platform size 2400mm wide x 6400 mm long.
Total length including nose cones 6910mm.

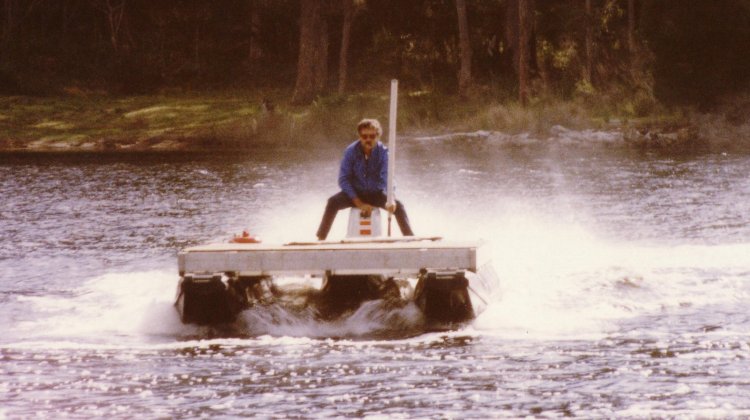

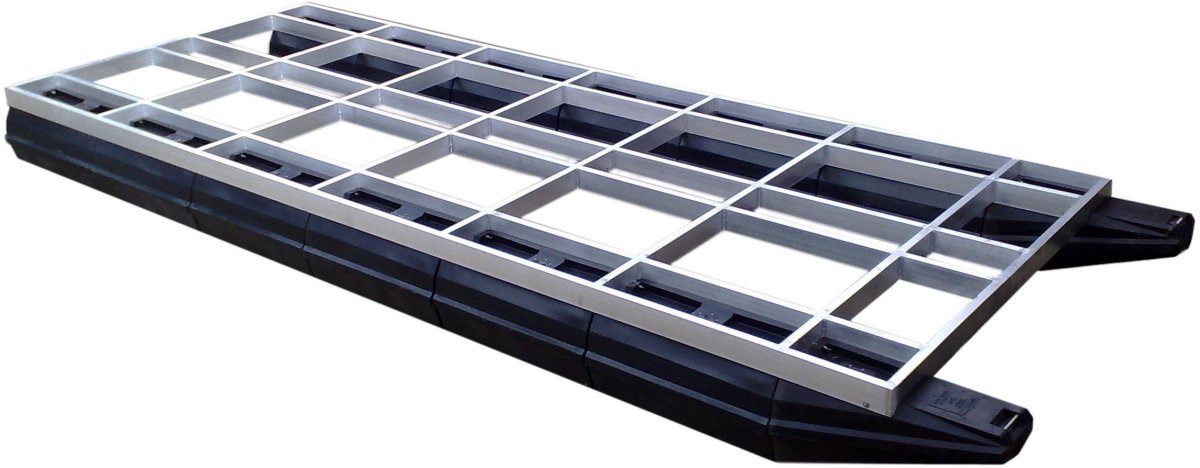

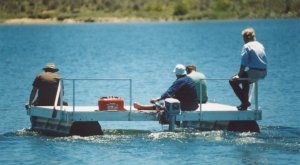

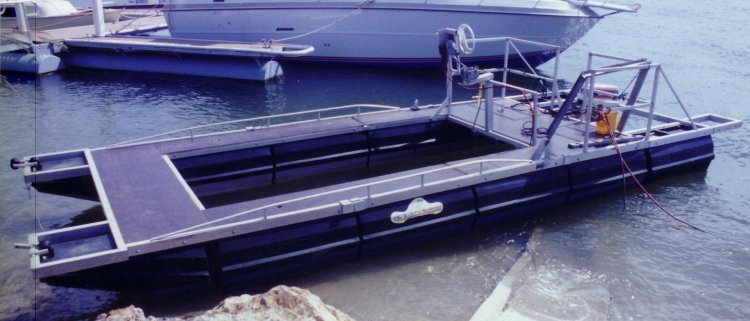

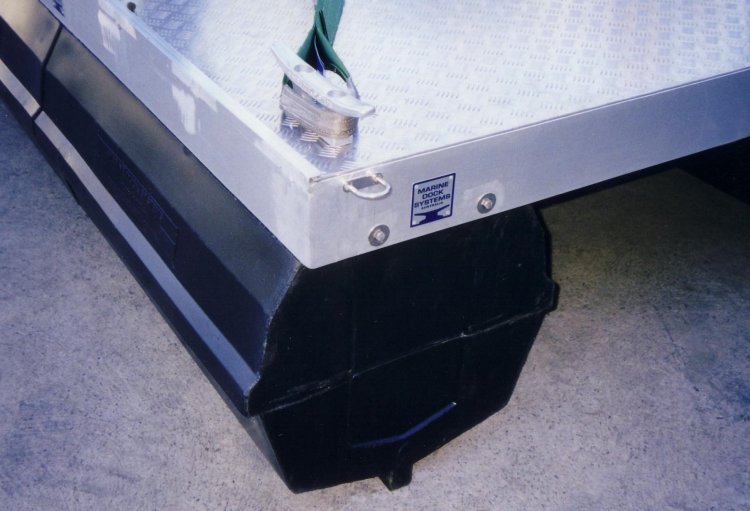

MOVING CRAFT
3 Rows of floats
8.1 Mrs Long
3.2mtr wide
Available in stages
Floats only
Frame and Floats
Full custom build
Floats 501 kg
Frame 275 kg
Total weight 776 kg
Max Load 2700 kg
| |

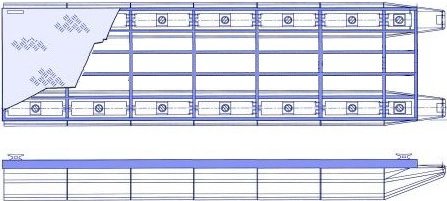

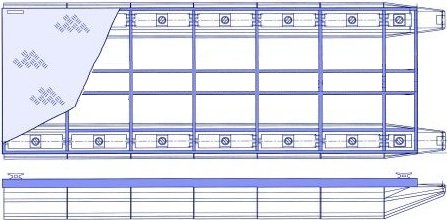

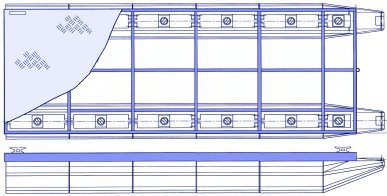

 a4-0949 - Moving craft Frame detail 8.1m x 3.2m wide
Extra wide
|
Four Rows of floats
Floats 800 kg
Frame 300 kg
3mm Ally Decking 210kg
Total weight 1310 kg
Max Load 3390 kg

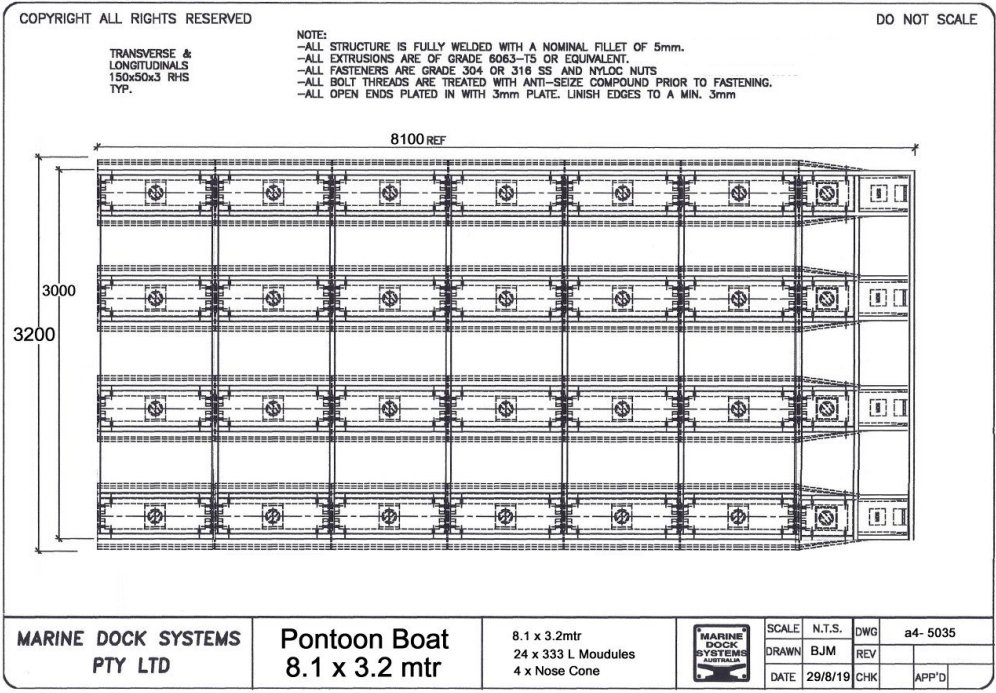

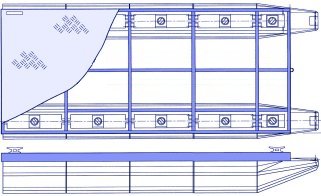

Drawing 4 rows
Available in
Floats only
Frame and Floats
Full custom build
add 138kg Max Load 3250kg
Pontoon Boat Price List
|

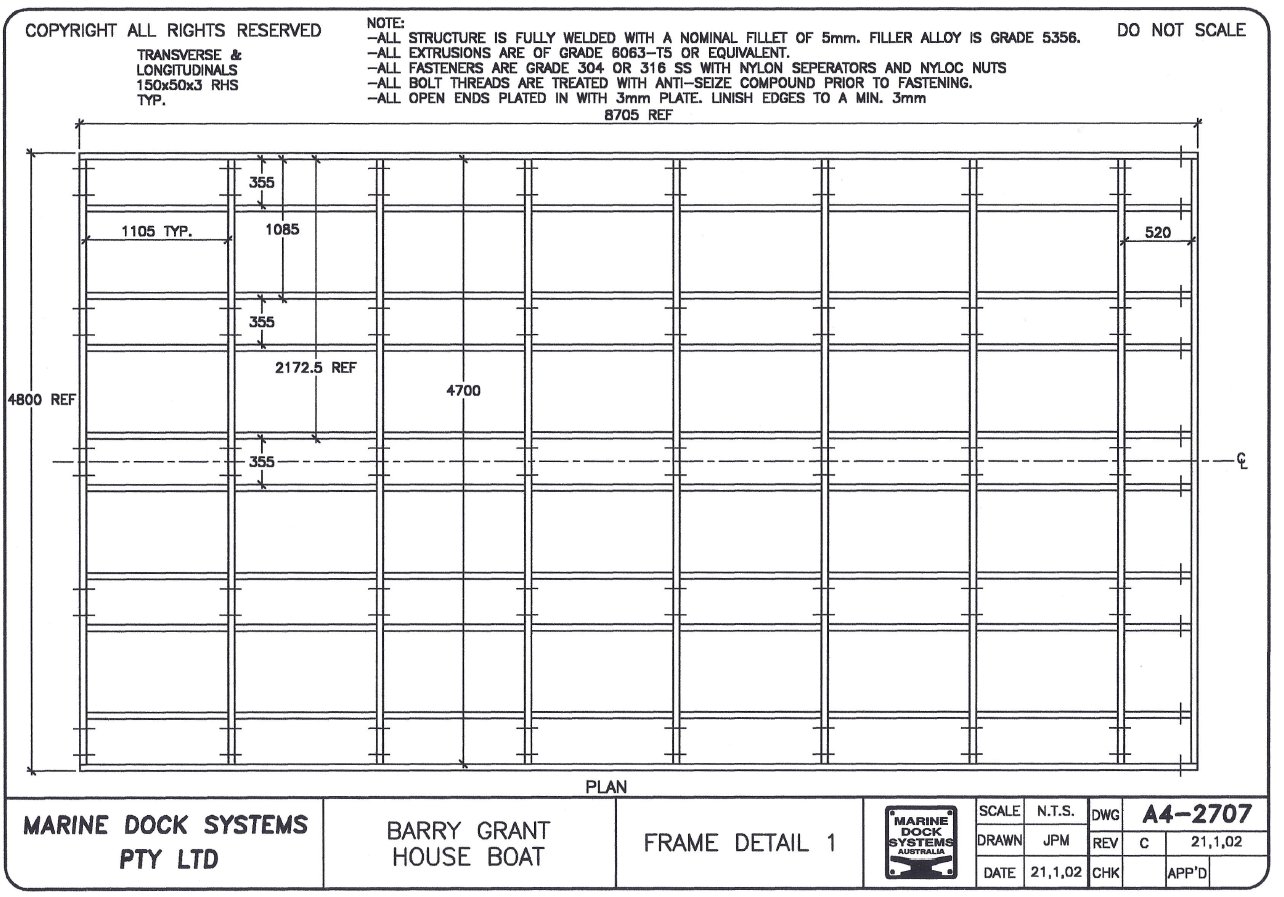

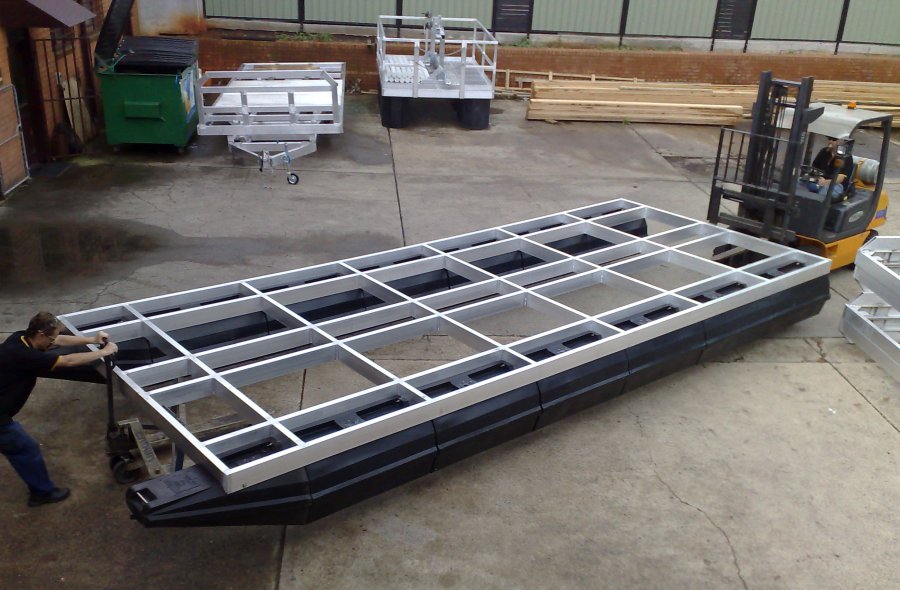

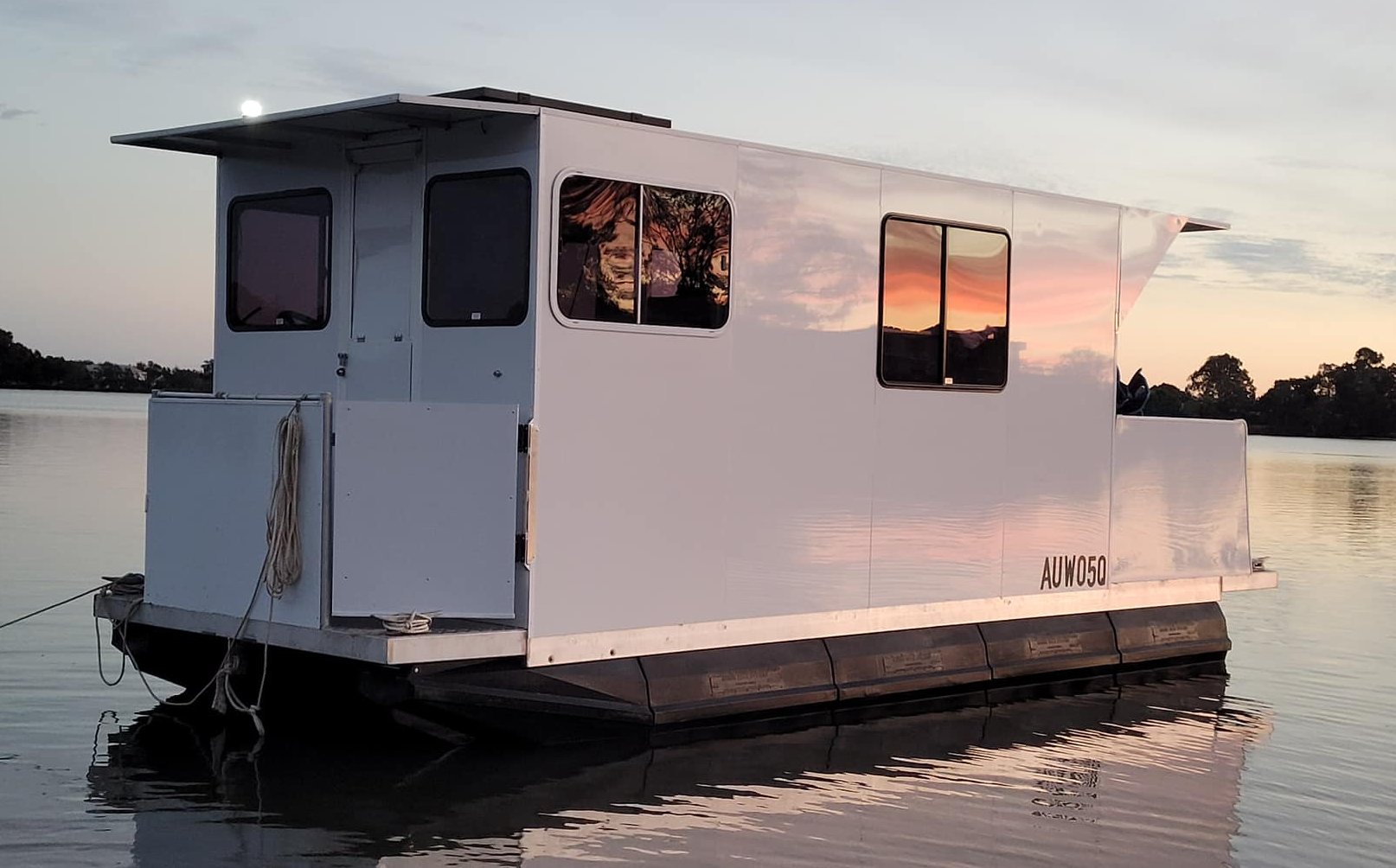

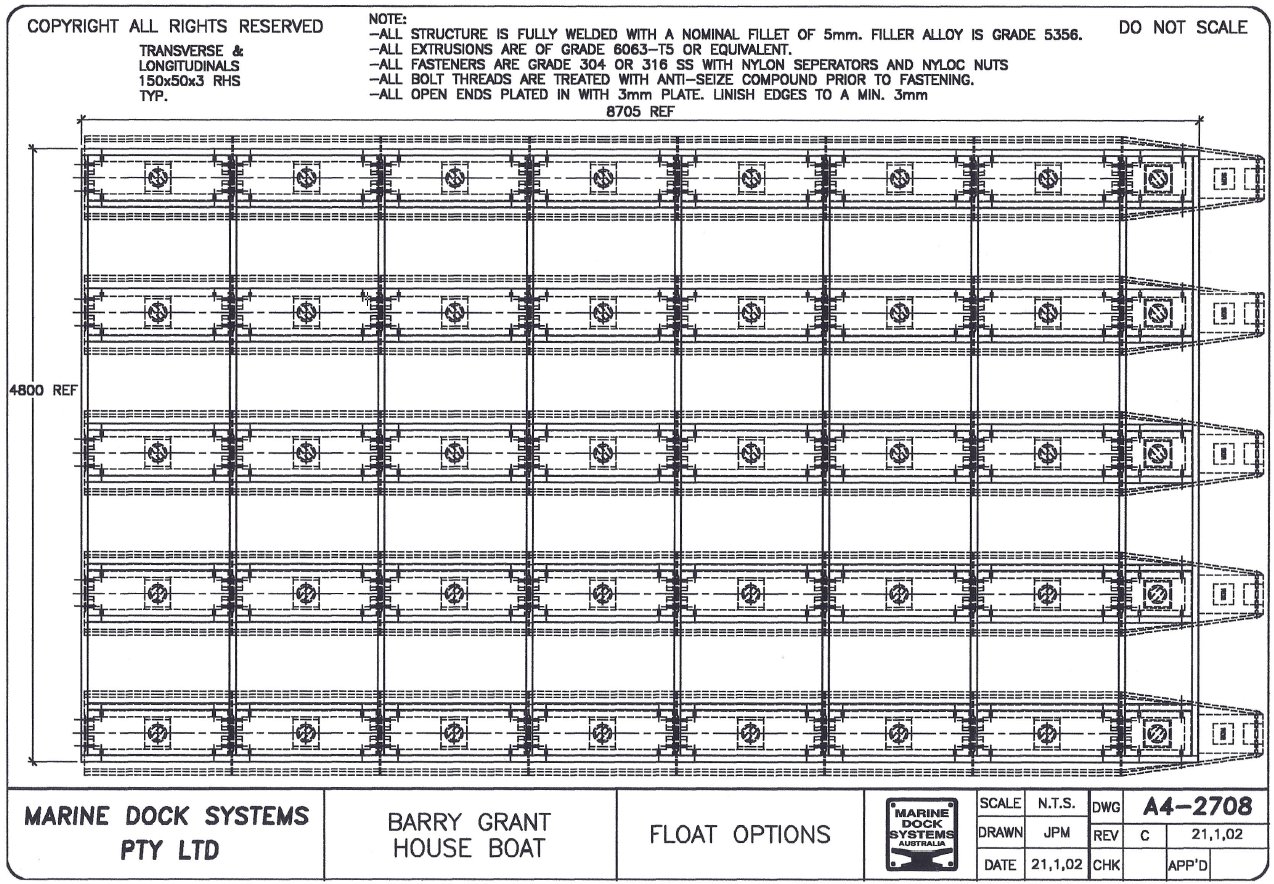

House boats
9.2 x 4.5 mt
House boat frame and floats
Floats 1000 kg
Frame 460 kg
Total weight 1460 kg
Max Load 6000 kg
Available in stages
Floats only
Frame and Floats
Full custom build
|
|
 |
|
 |
House boat base

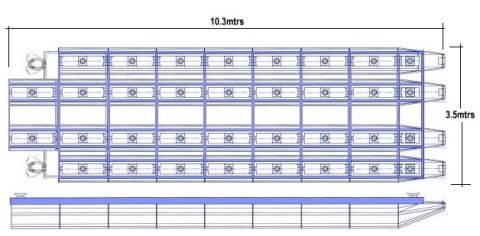

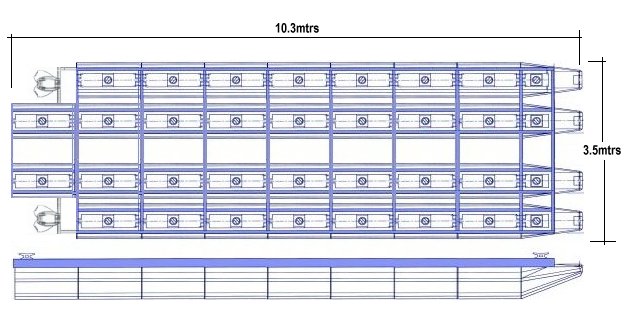

10.3 x 3.5 mt
House boat frame and floats
Floats 850 kg
Frame 480kg
Total weight 1330 kg
Max Load 4500 kg
Available in stages
Floats only
Frame and Floats
Full custom build
|
|
 |

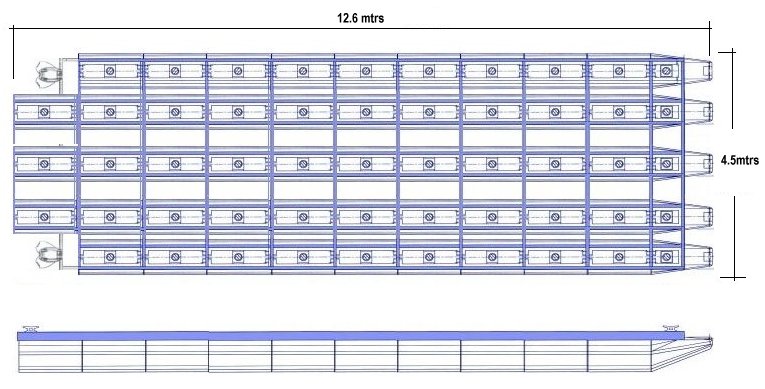

House boat base
12.6 x 4.5 mt
House boat frame and floats
Floats 1350 kg
Frame 1200kg
Total weight 2550 kg
Max Load 7200 kg
Available in stages
Floats only
Frame and Floats
Full custom build
|
|
 |

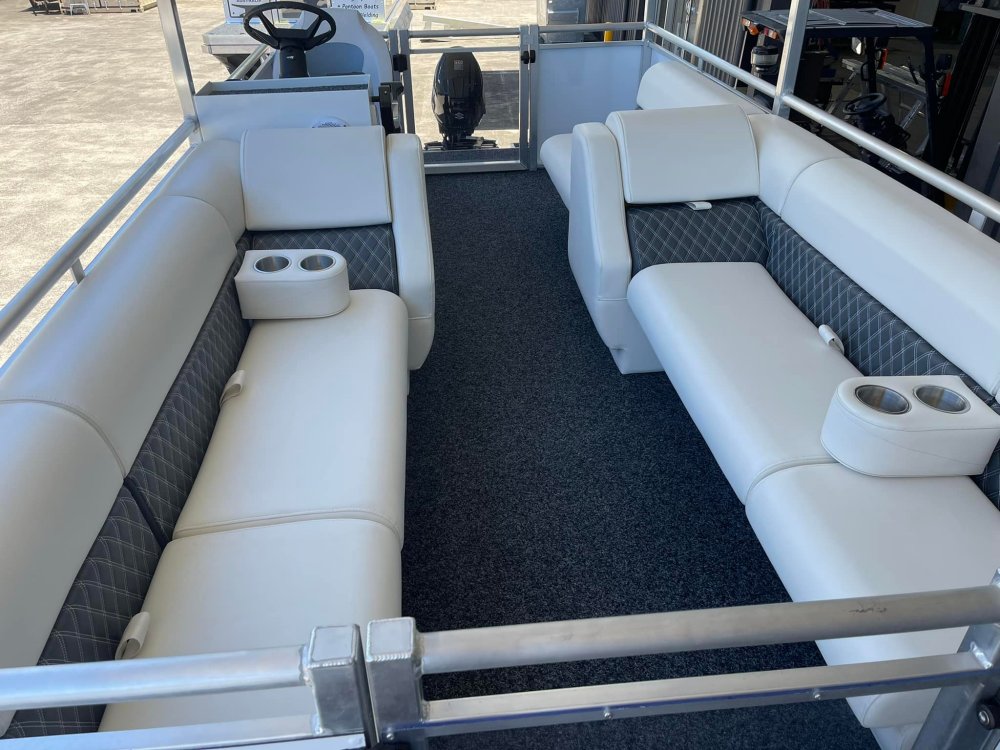

Pontoon Boat Furniture
Upholstered pontoon boat lounges. Our extra comfortable range includes Large straight lounge, meduim and small. Our pontoon seating is manufactured using polyethylene roto moulded bases which can handle extreme outdoor conditions, upholstered in heavy duty vynil. Lounges have lift up seats for storage, great for stowing away life jackets and more.
Click Here for details
|
|
 |

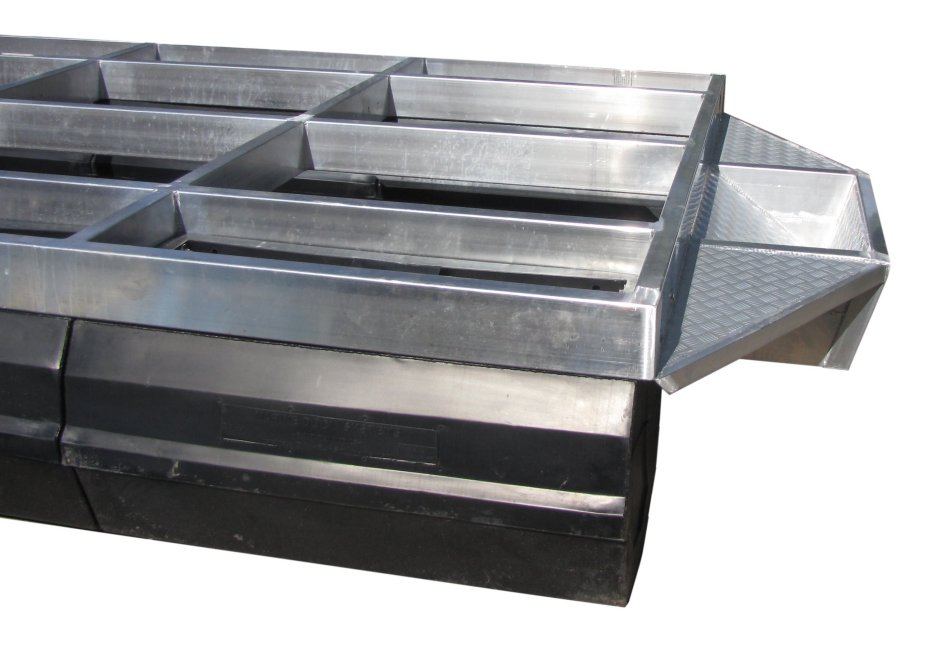

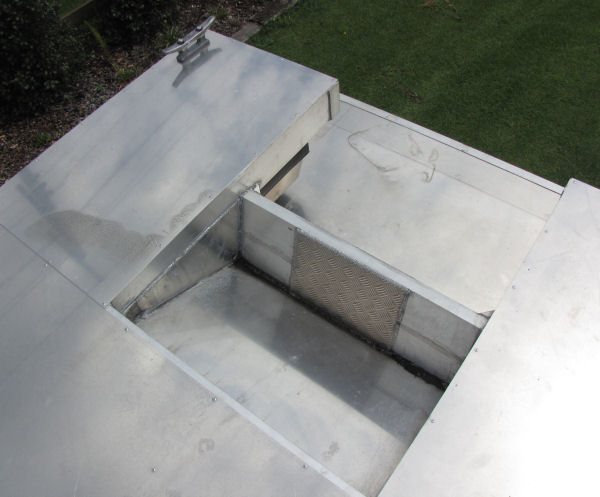

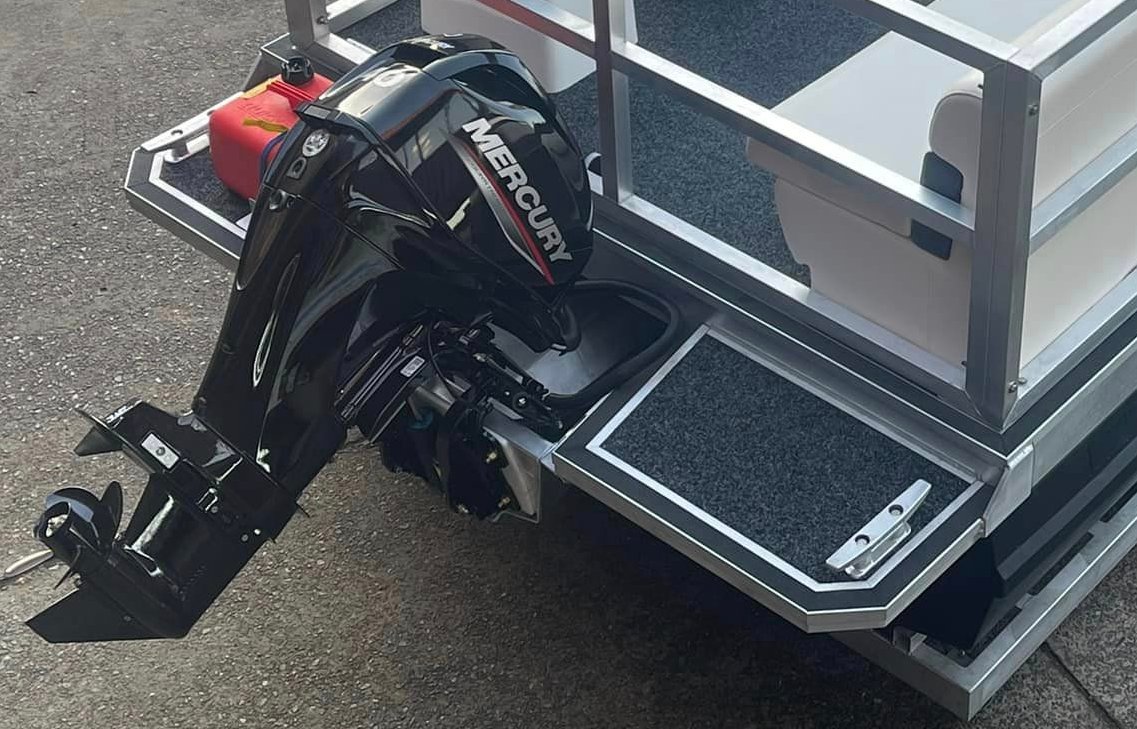

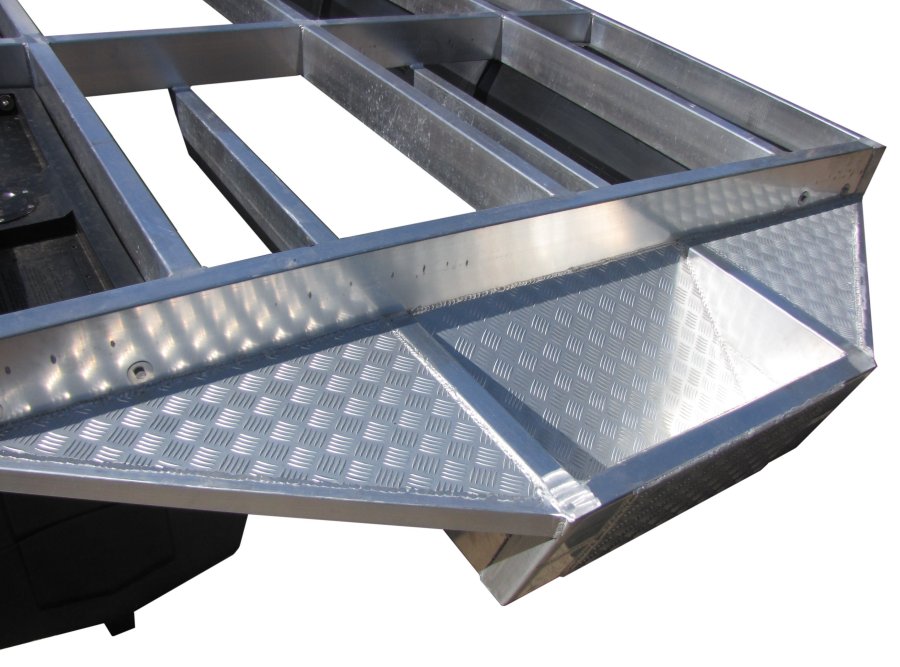

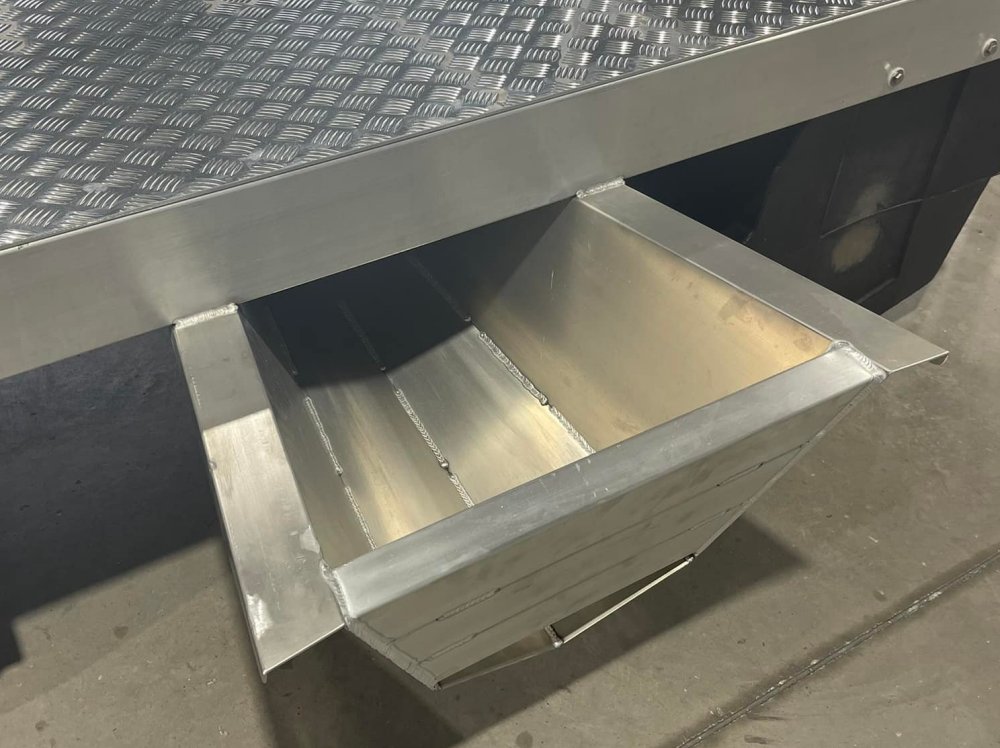

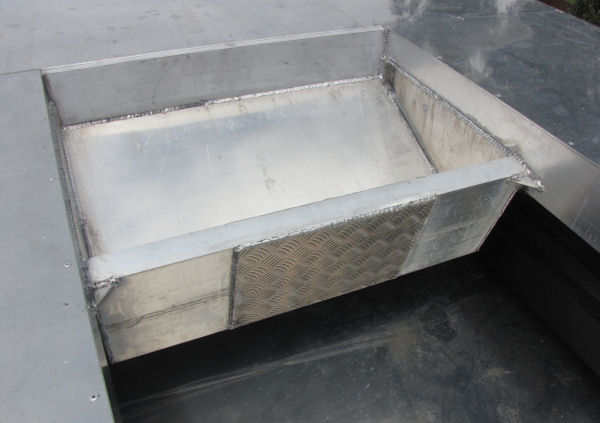

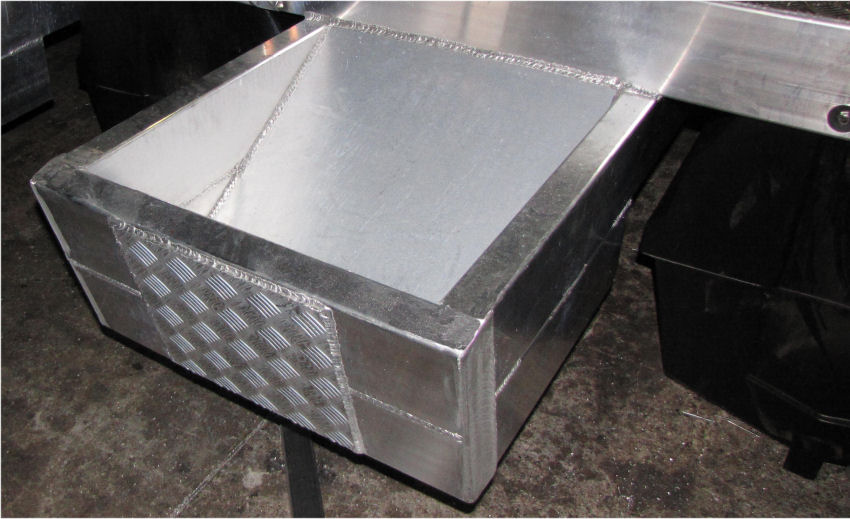

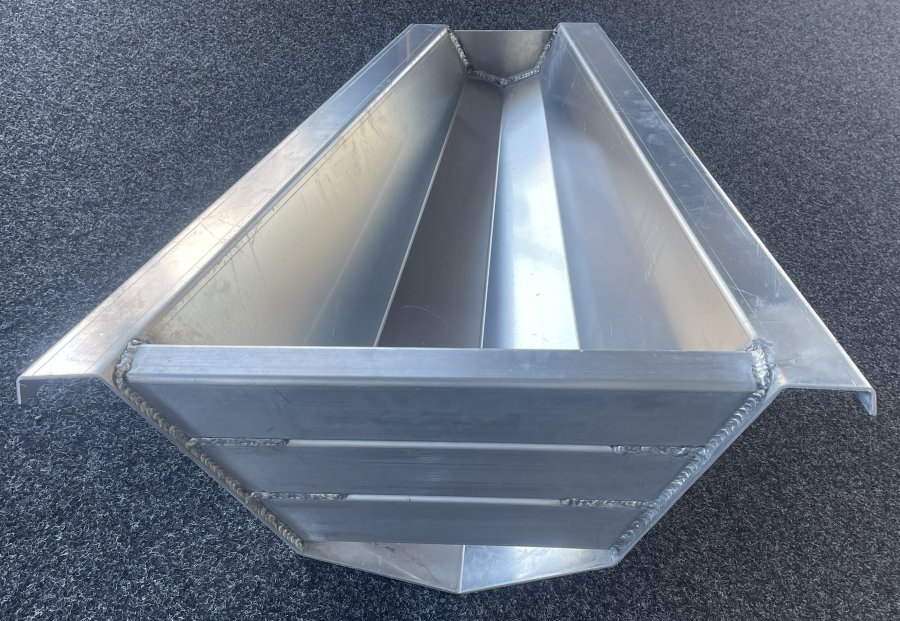

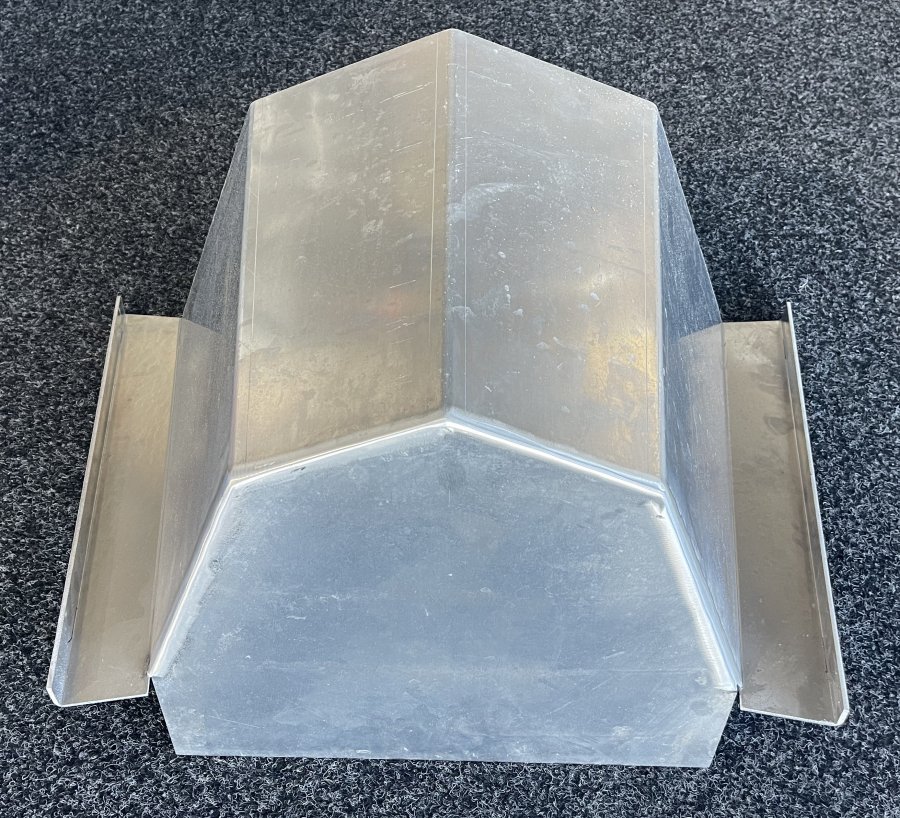

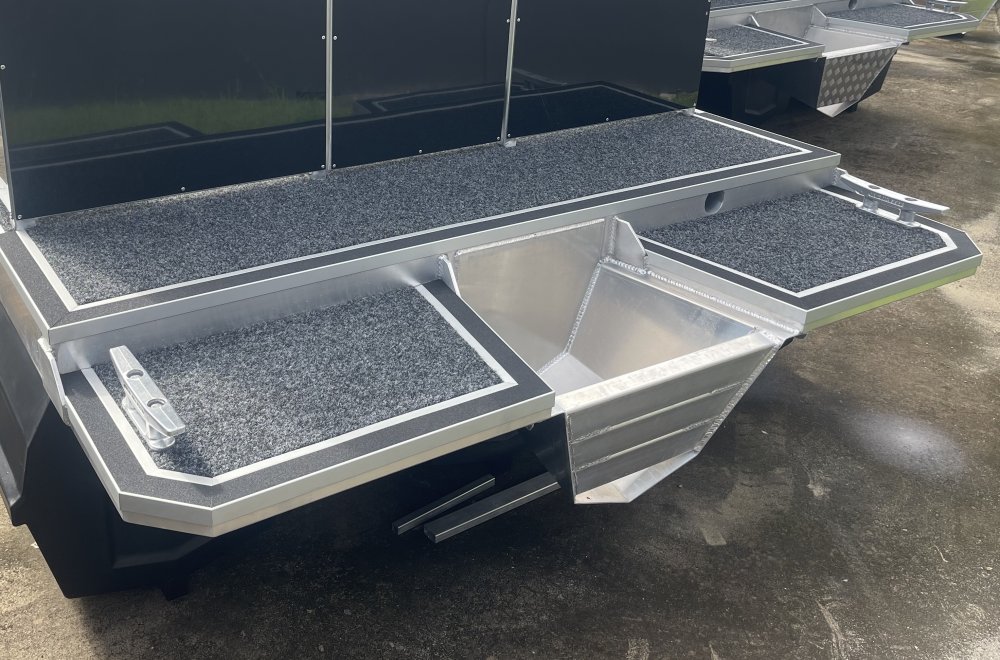

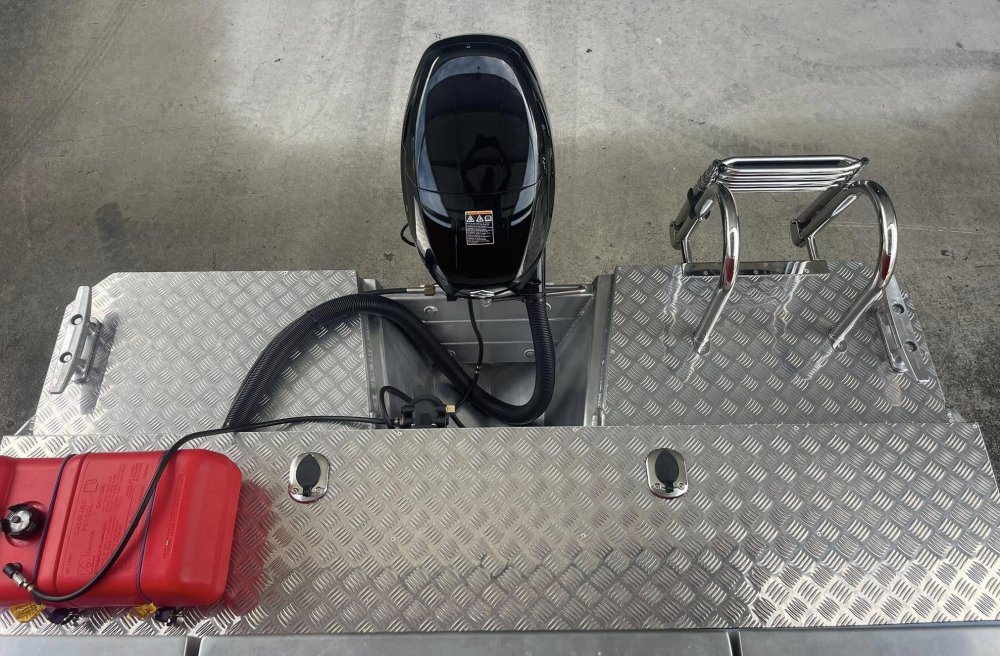

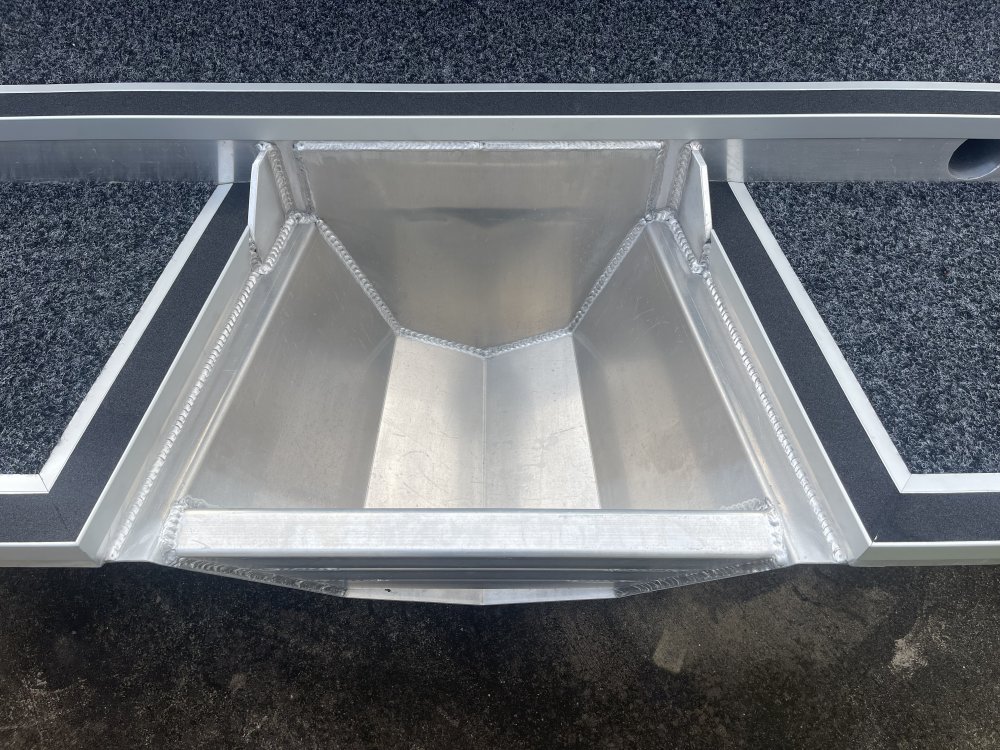

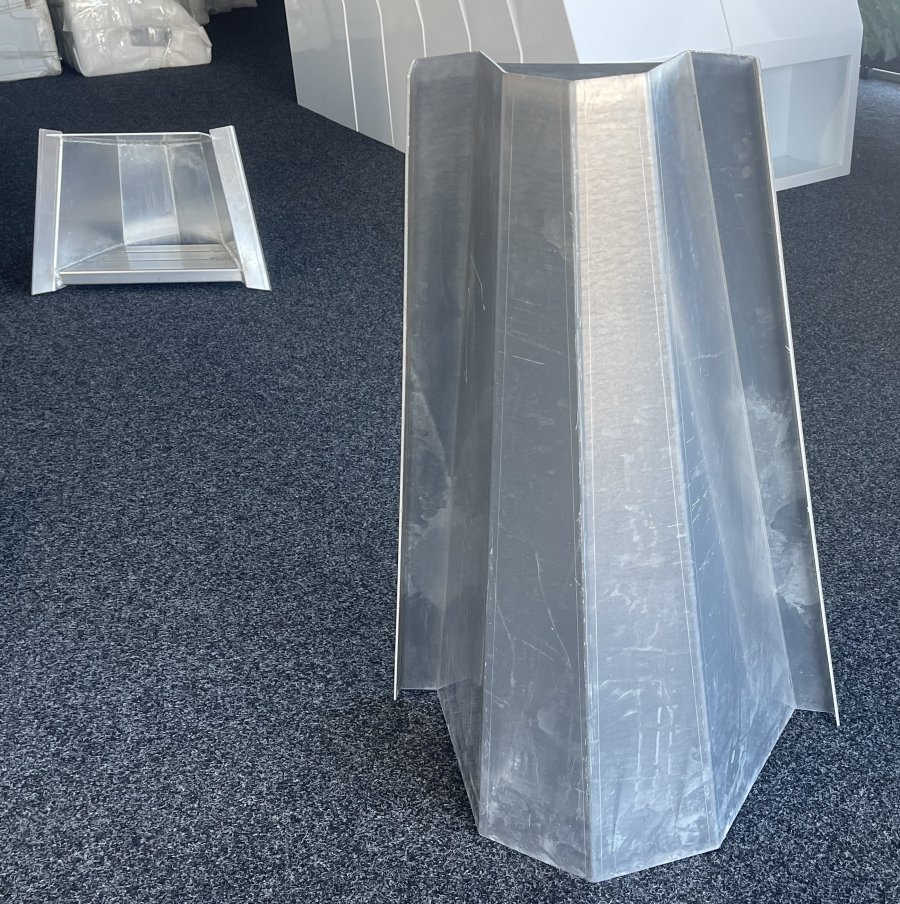

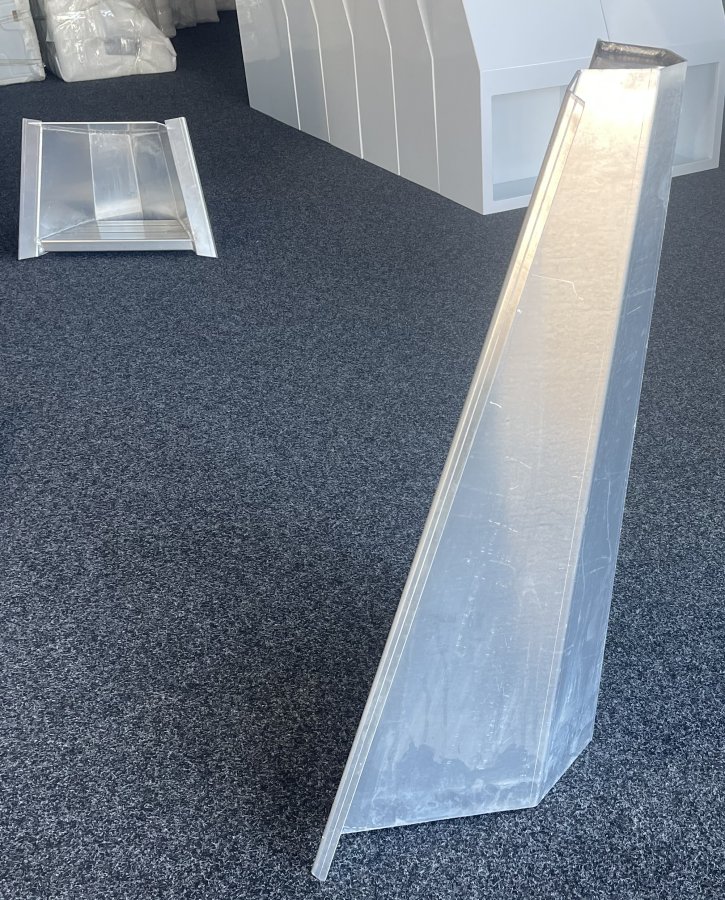

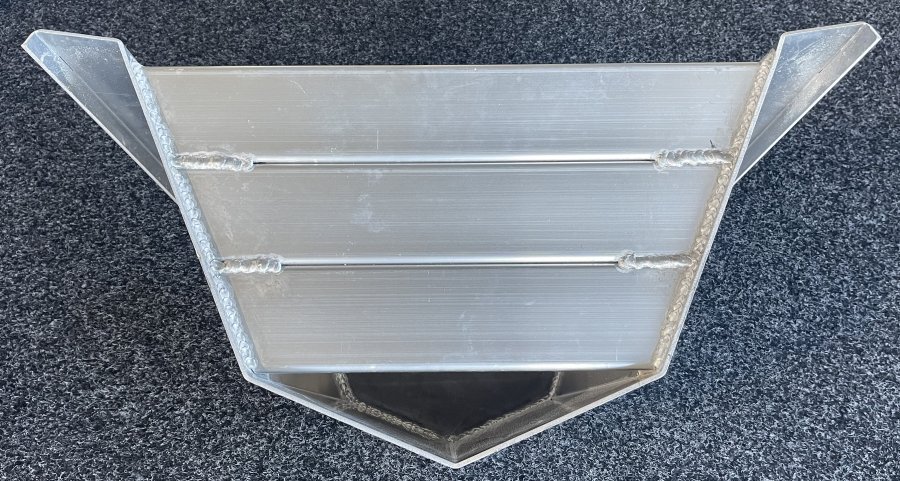

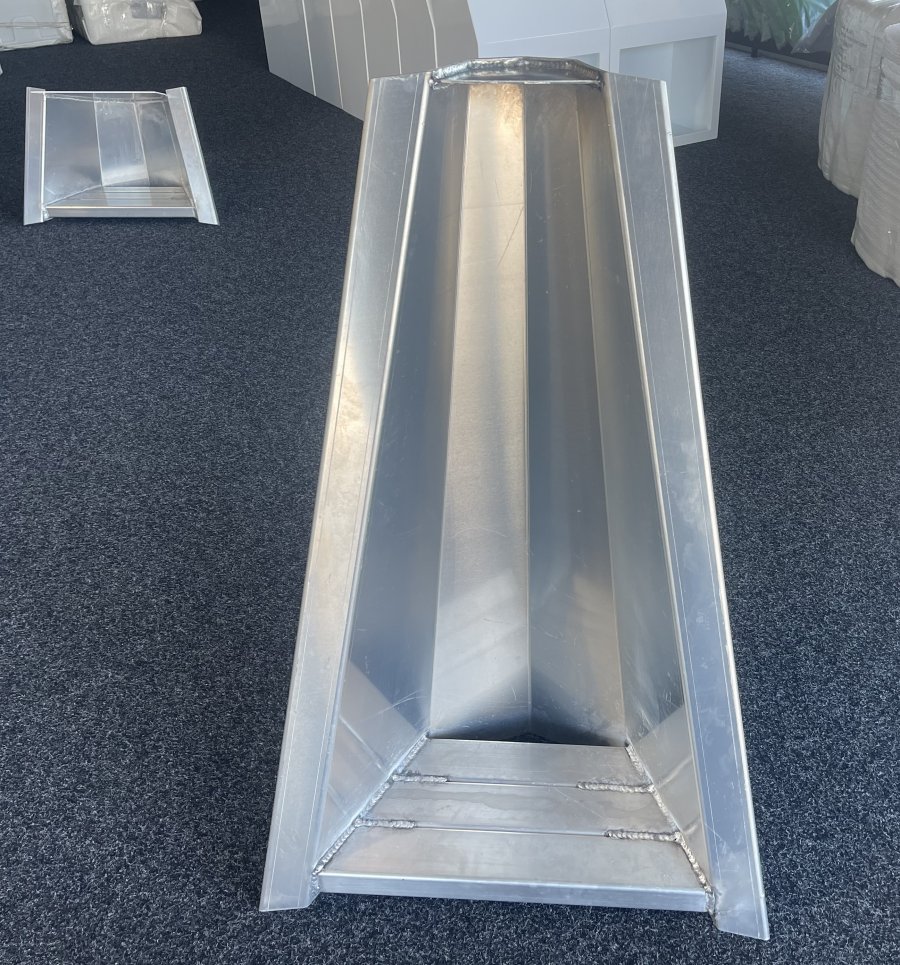

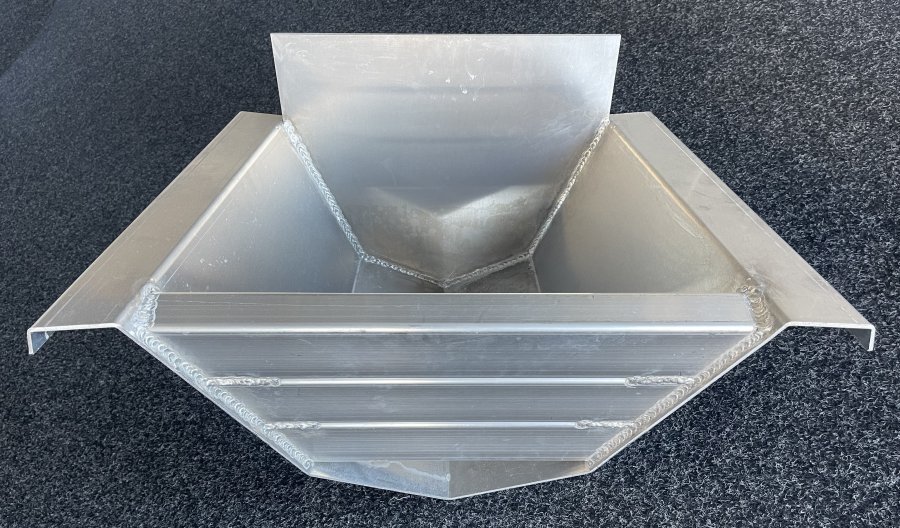

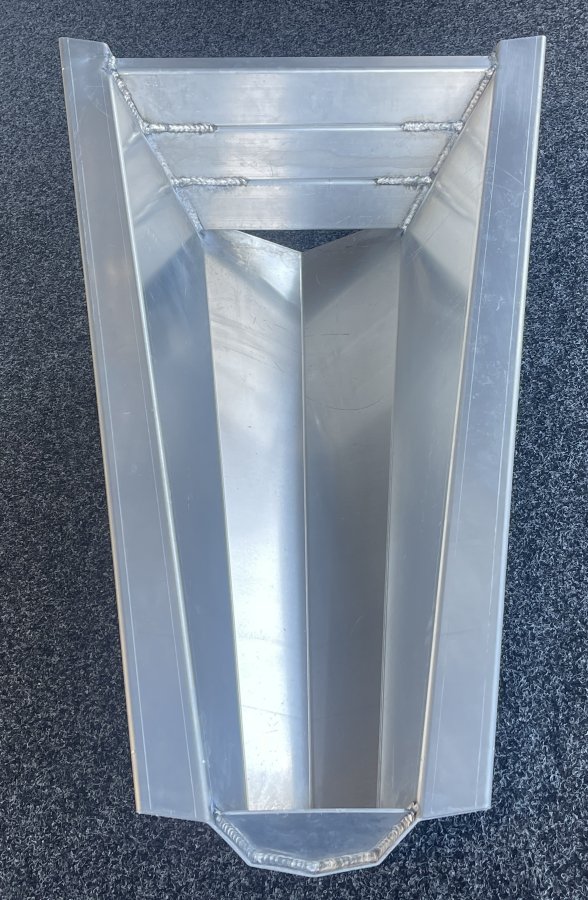

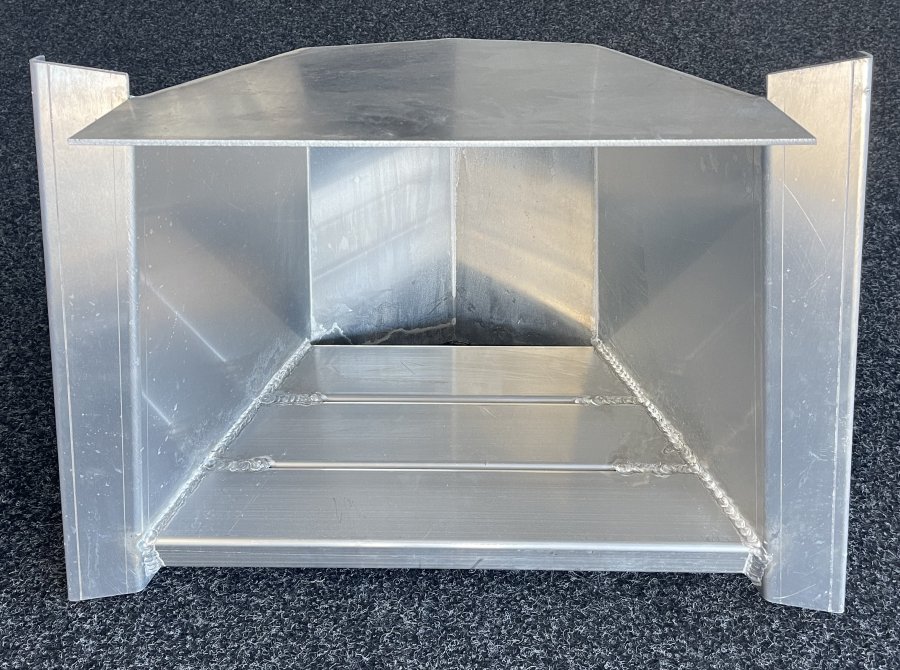

Outboard Motor Bracket
More pics. Click to enlarge

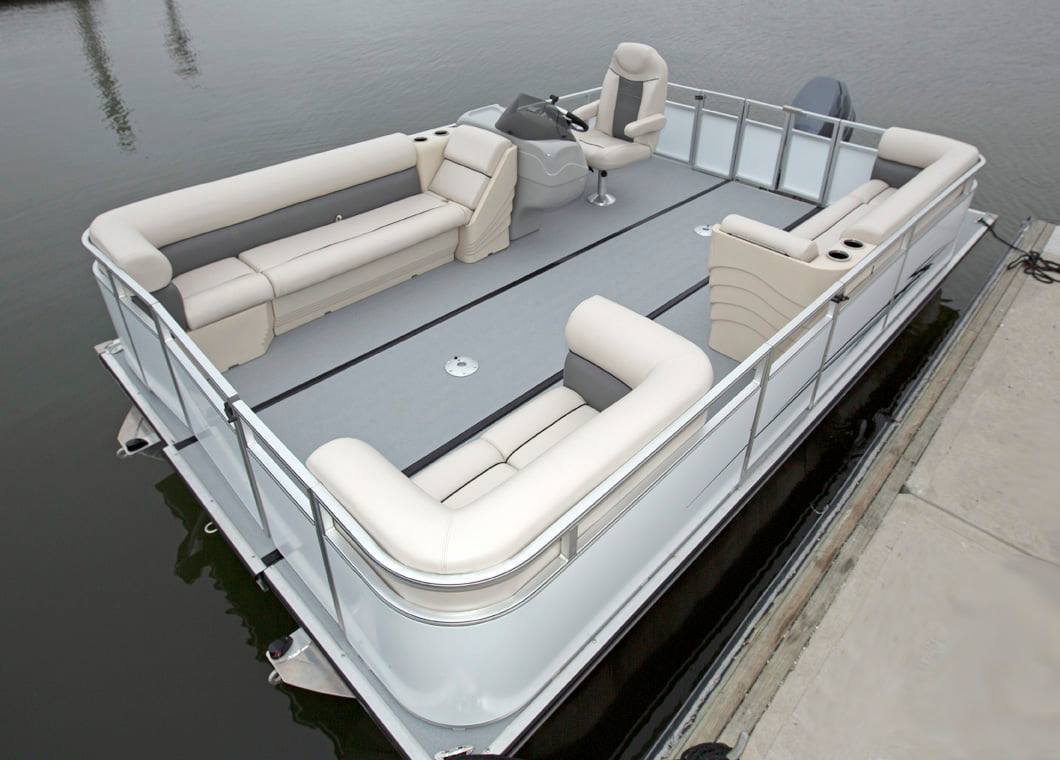

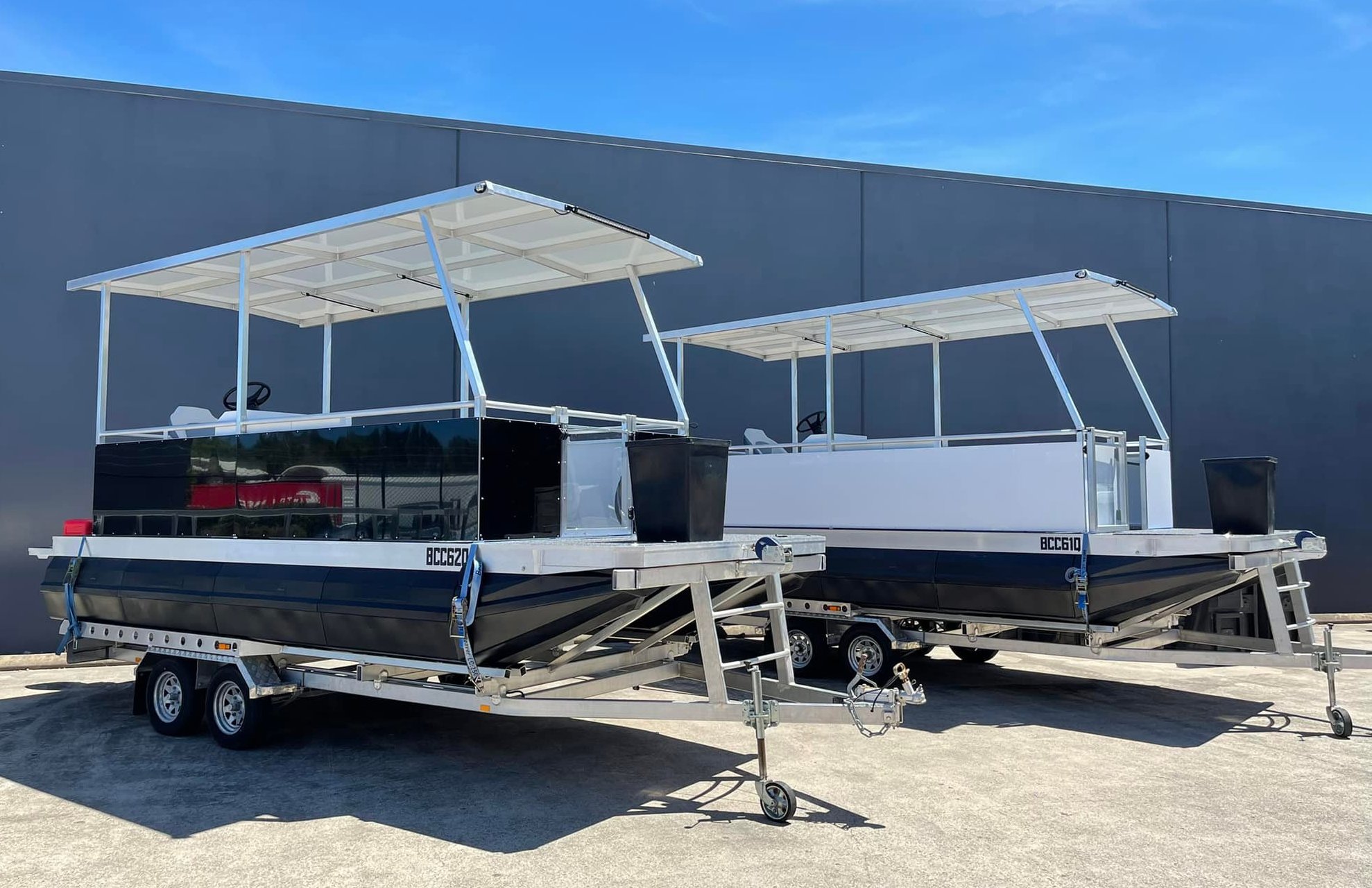

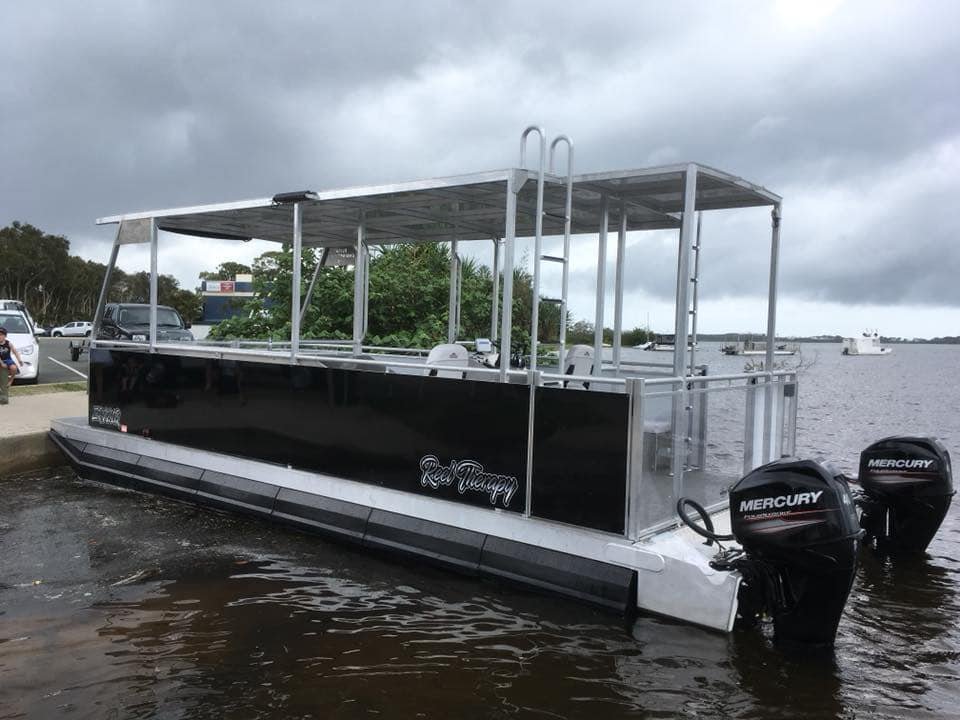

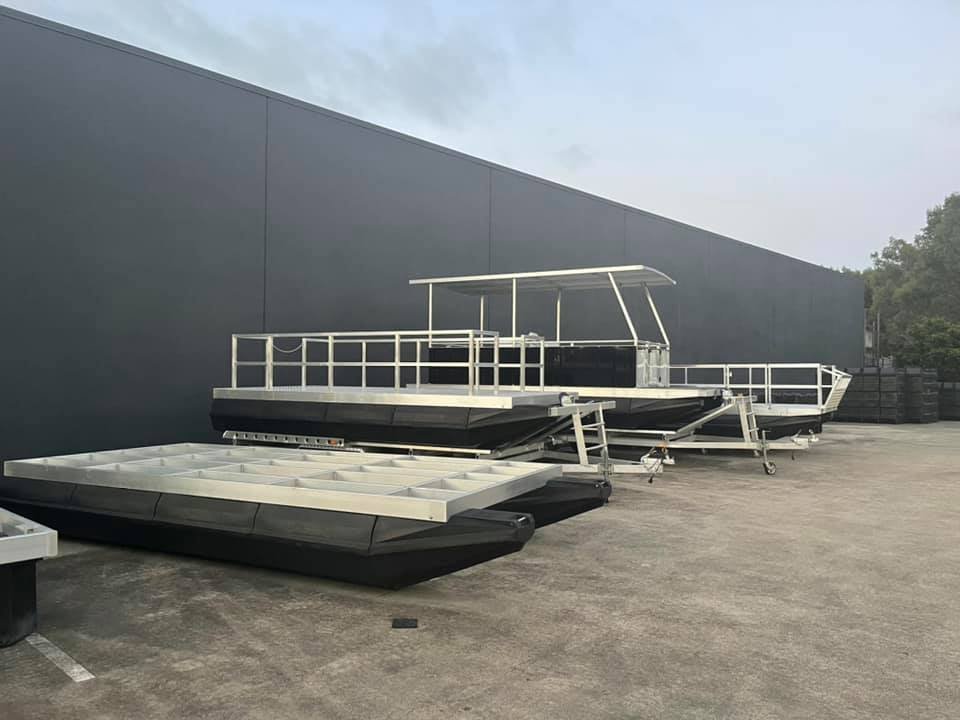

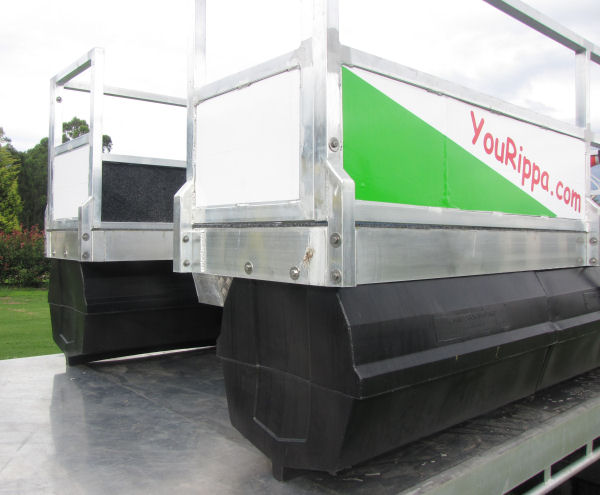

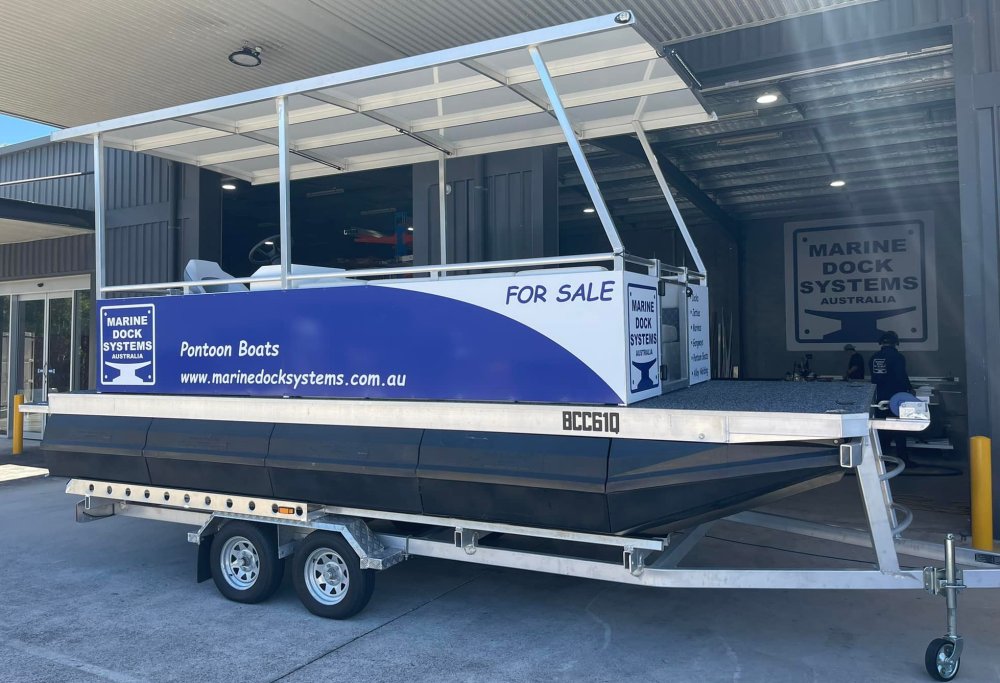

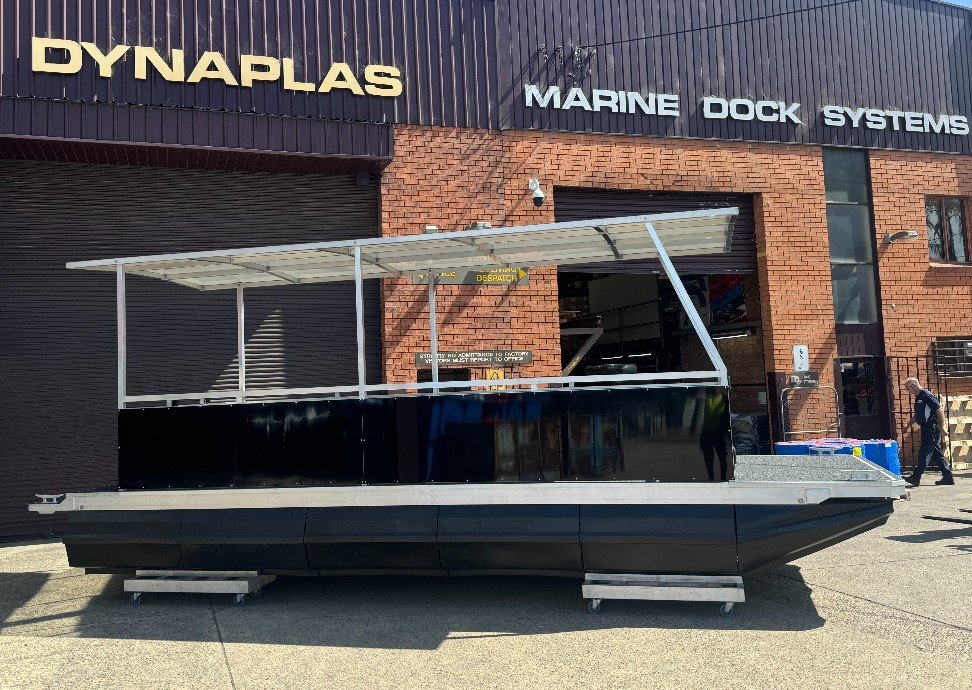

Boat Manufacturers
We are able to offer discounts for resellers and original
equipment manufacturers. Here is a great are example of our customers
boat build that were well welcomed in the Australian market
place reducing American and overseas imports. We are able
to back up our resellers with good discounts and product support.

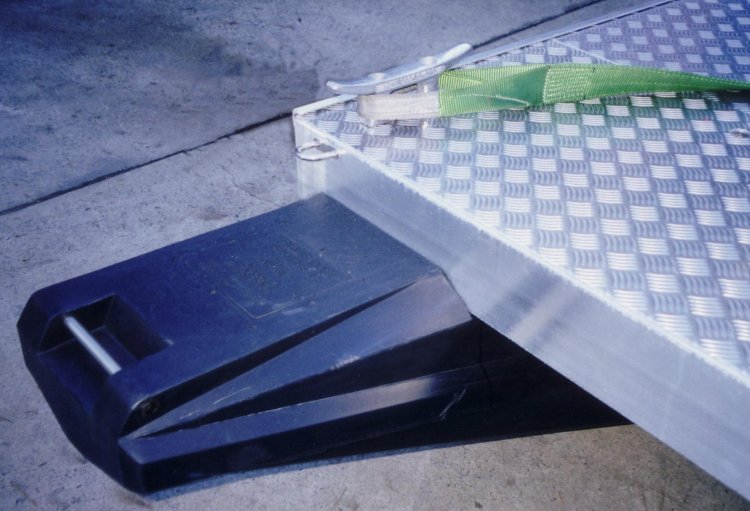

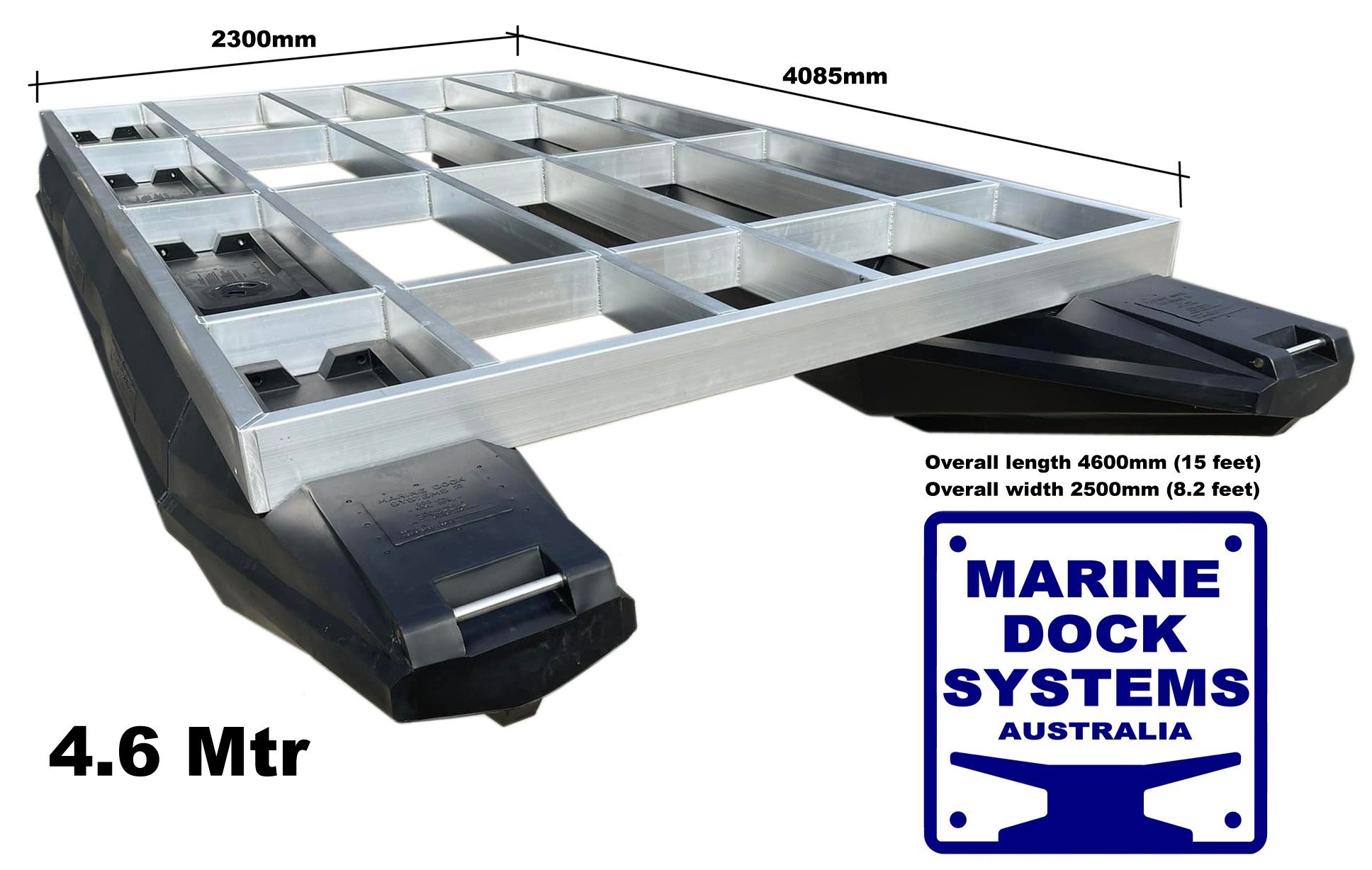

Floats and nose cone can be sold separately if replacement
is ever required. Float also pack and ship well fitting 8
units to slightly oversized pallet. Please contact us for
a freight quote to your area. Pick up welcome from our factory
at Riverstone NSW or Cuolum QLD.
|
|
|

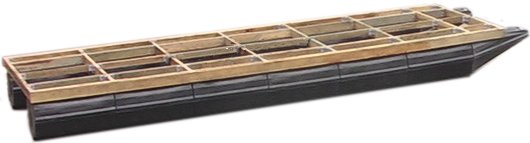

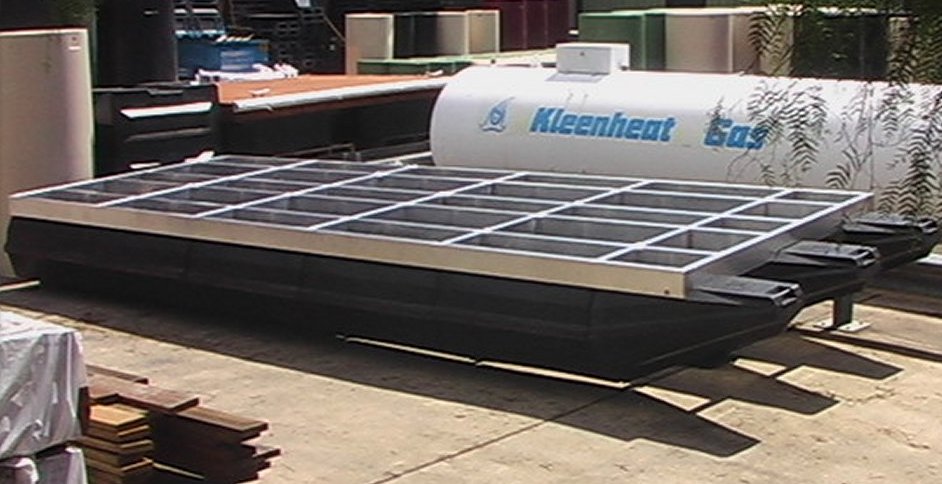

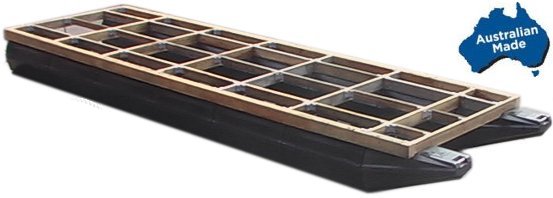

Timber Frame Boat
Timber framed pontoon boats are an option if you would like to build your own. No need for welding and is an inexpensive way to manufacture your party boat. Timber can bolt straight through the moulded holes in the float. We are happy if you use our drawings and or ides to build your own dream BBQ Boat or even a house boat. We do recommend a fully welded aluminium frame although timber finds its place in the right application. Floats are manufactured in Sydney Australia by Dynaplas |
|
|
Industrial Boats
This pontoon boat was manufactured to service a fresh water
dam. It is used to gain access to overflow screens for cleaning.
With customers such as Sydney Water, SA Water, The Australian
Submarine corporation, Australian Defense Force and many
local Australian councils. These pontoons are made to last,
we have been manufacturing these since the early 1980's
and have already proved themselves time and time again.
|
|
|
 |
|

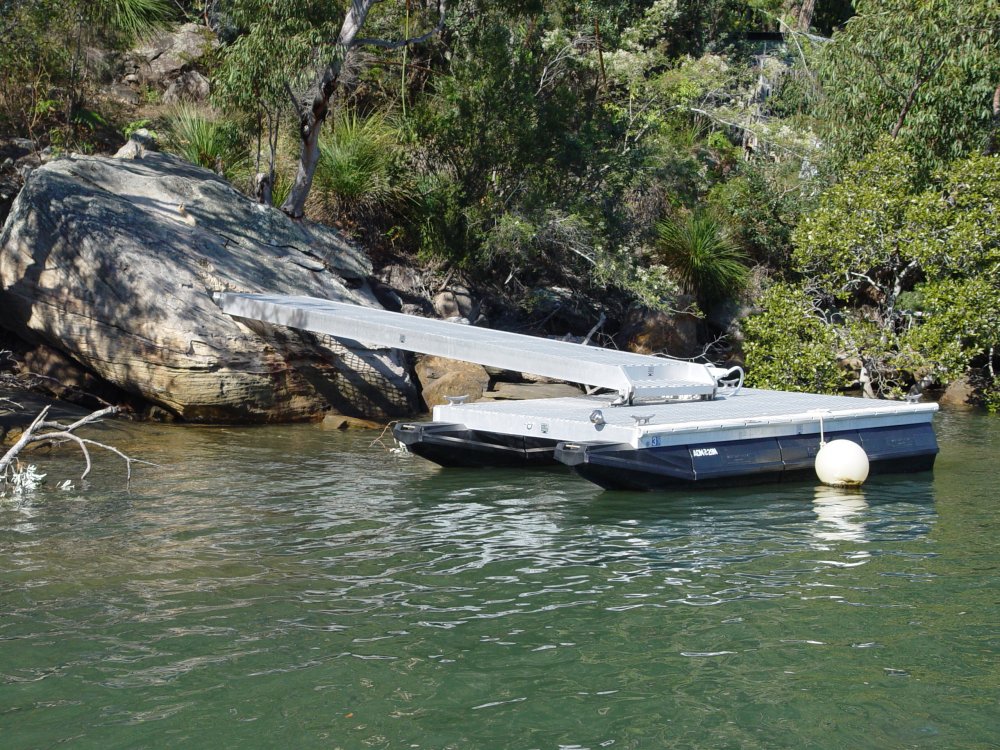

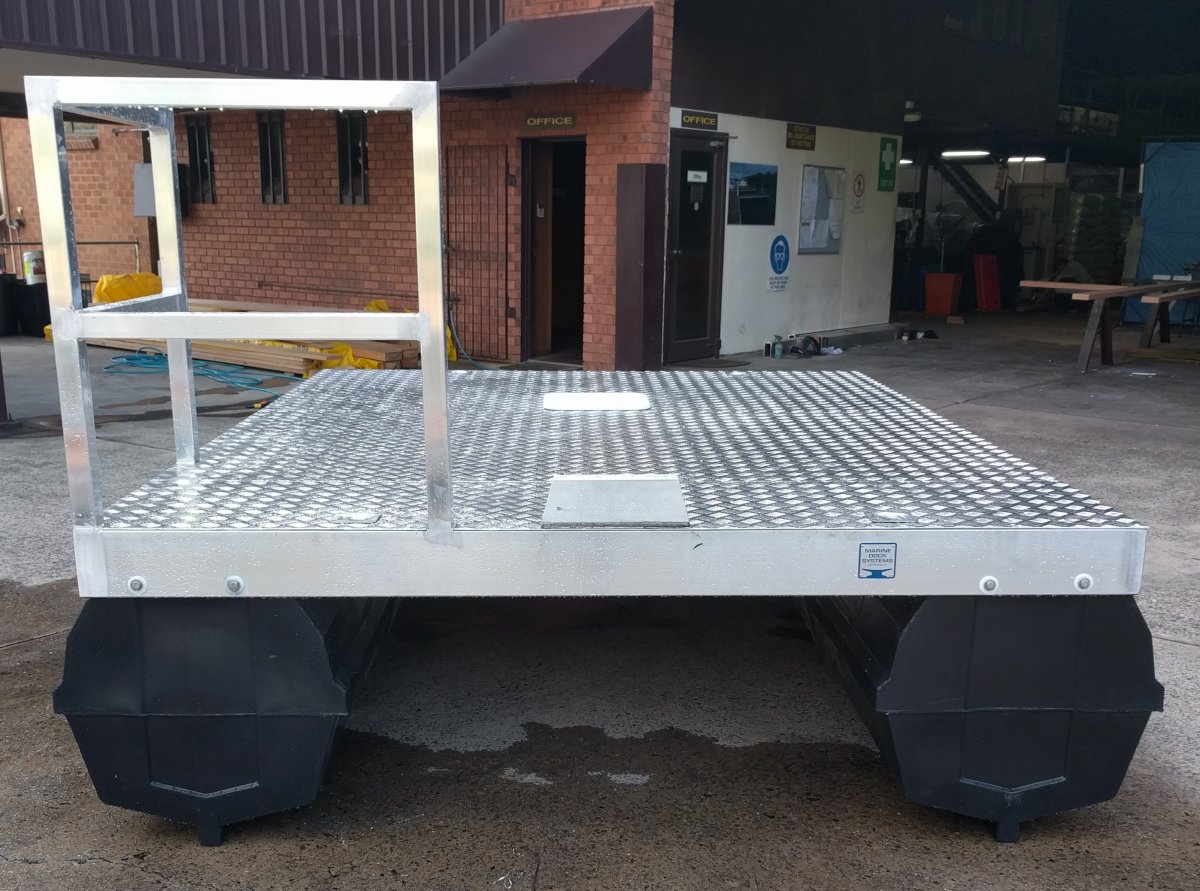

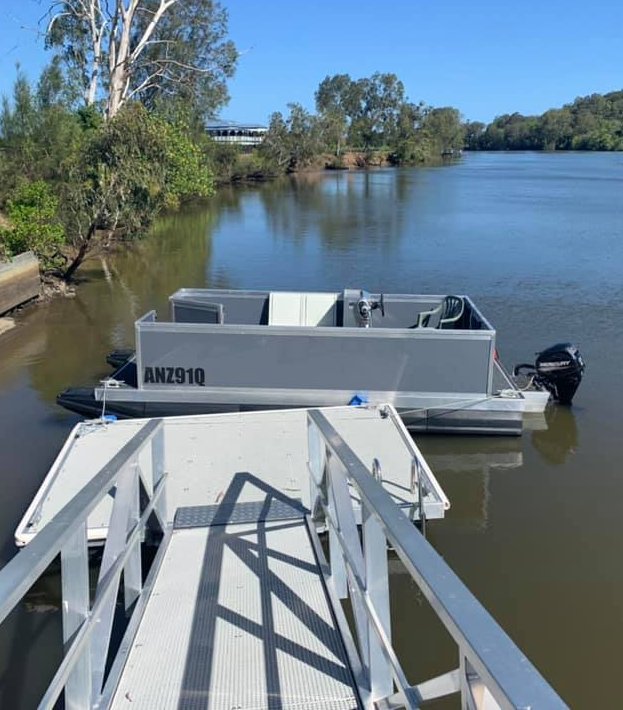

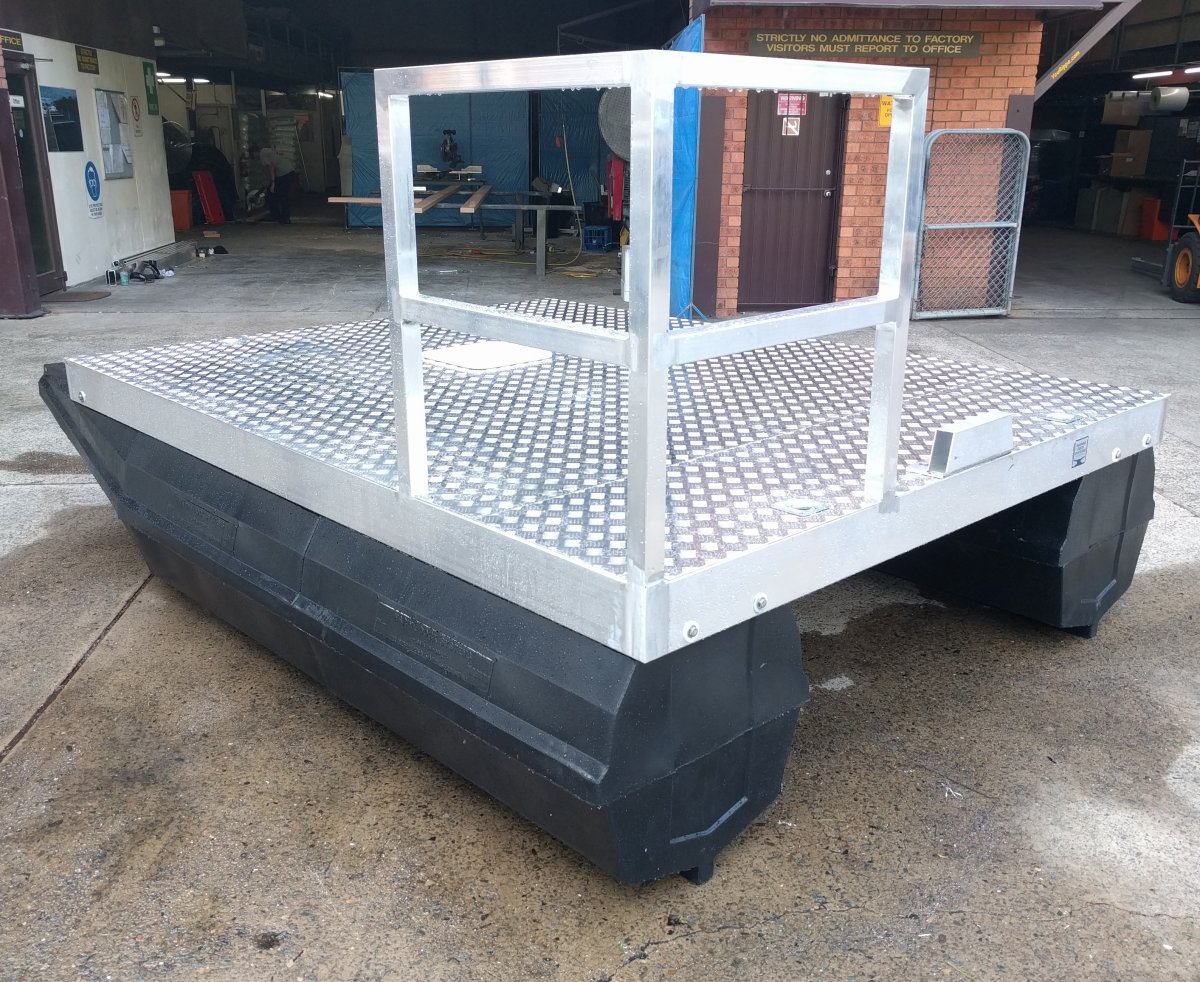

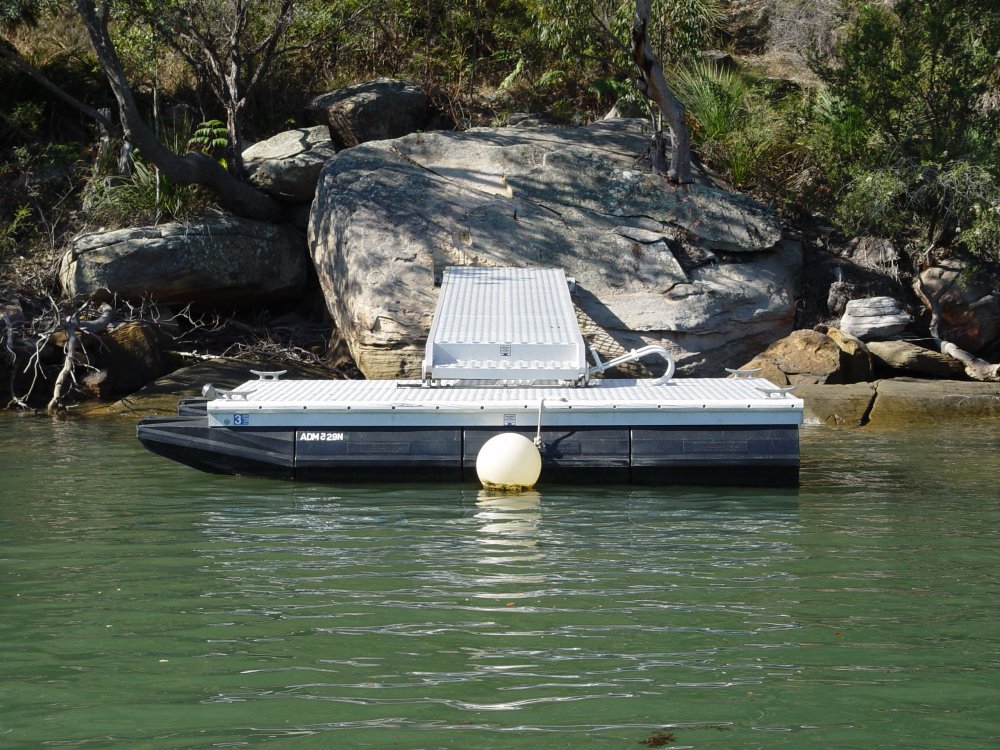

Boat Pontoon Dock
This boat is used as a standard access pontoon when not in use. Supplied with hinge lugs on the side for a six meter ramp to be attached. |
|
 |

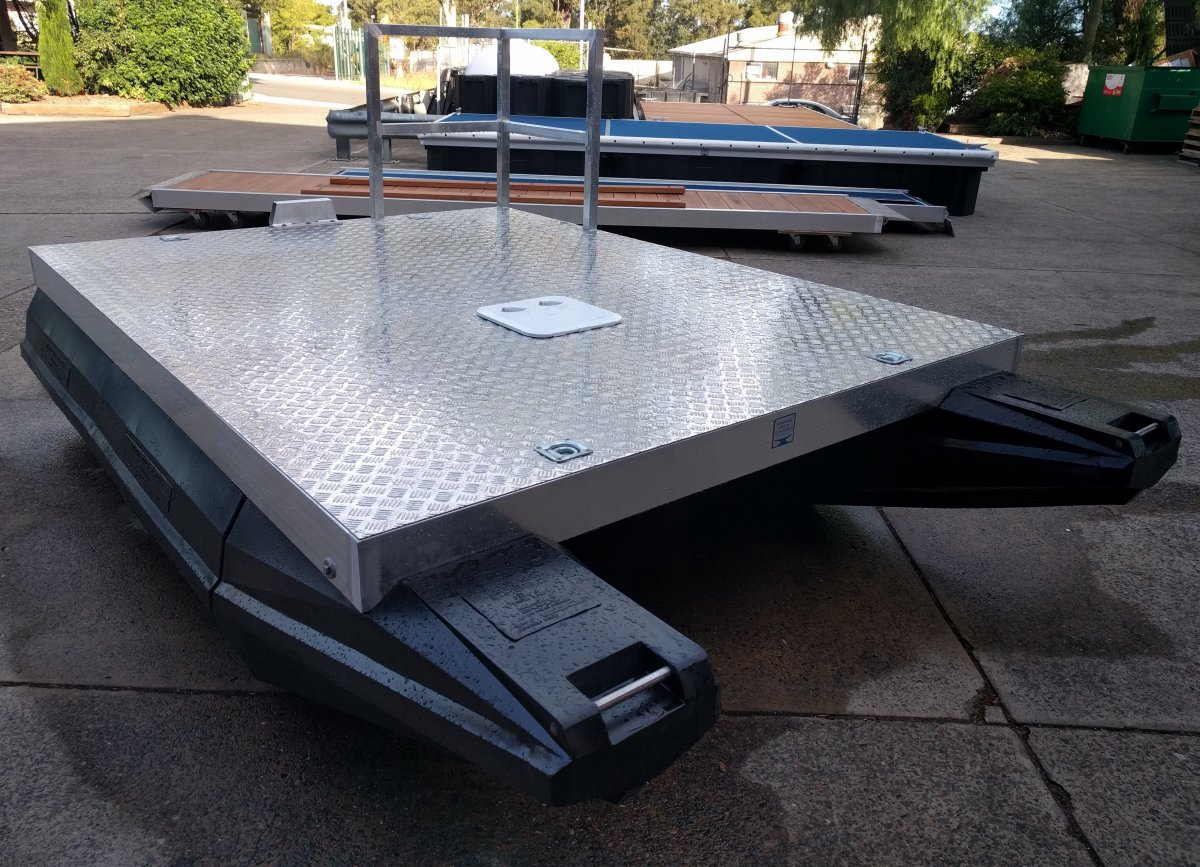

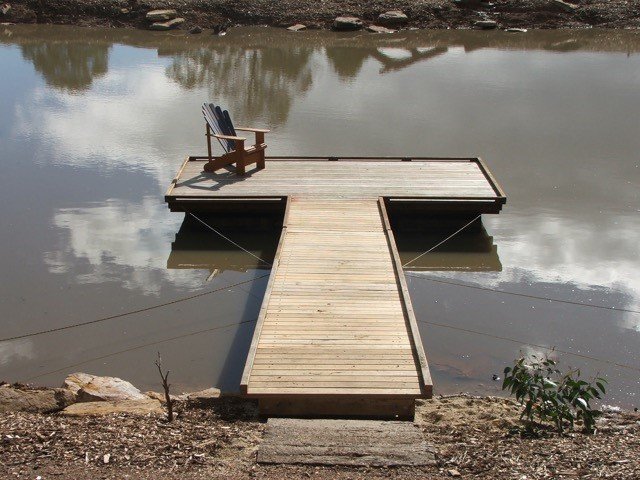

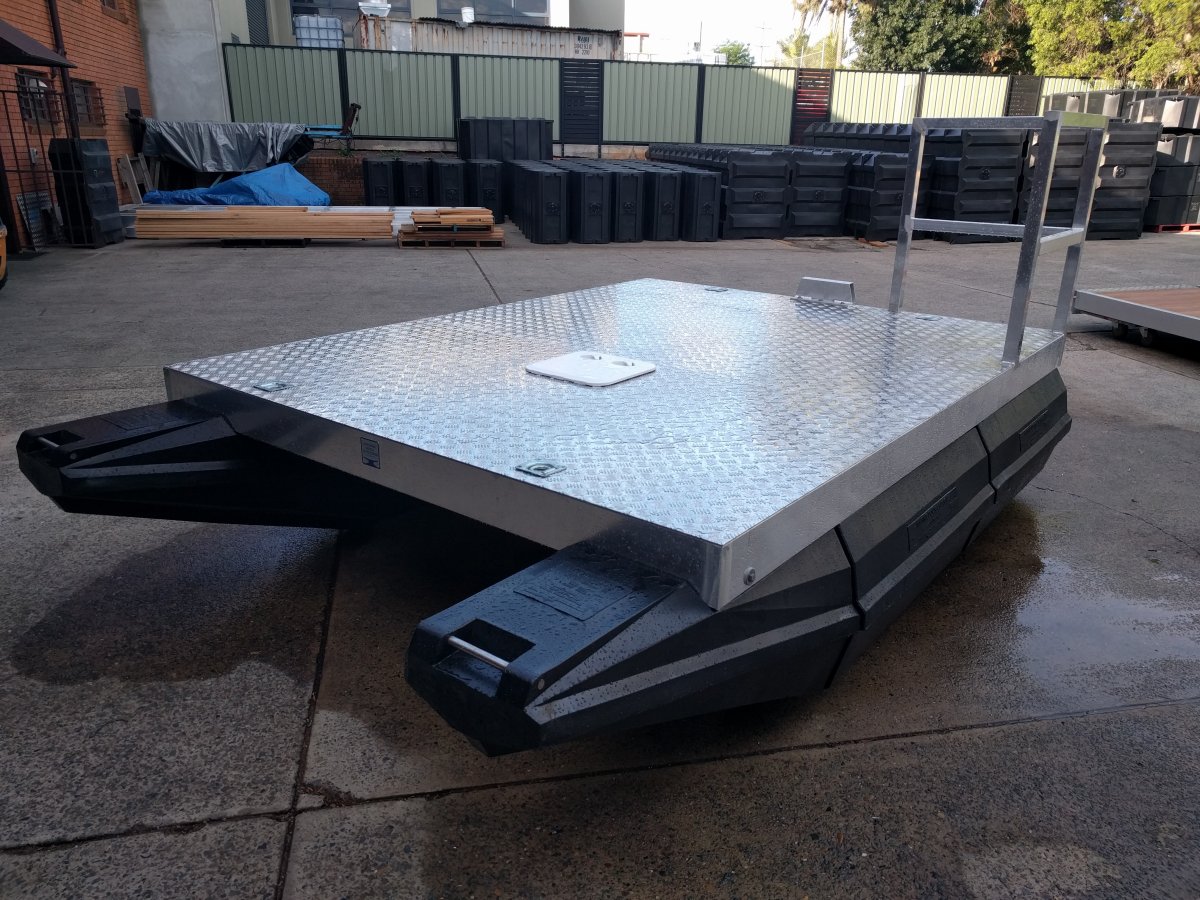

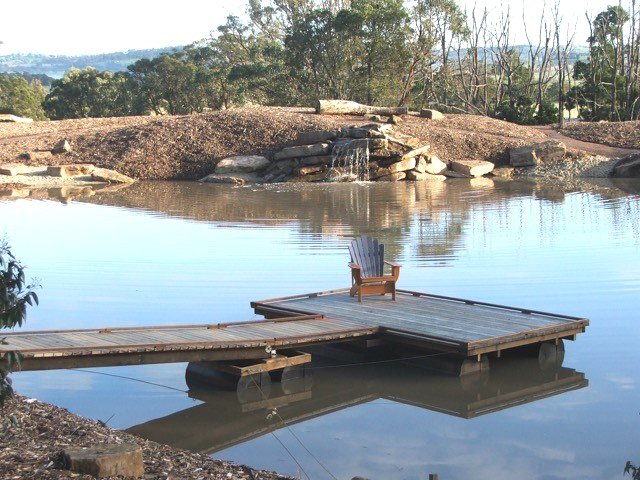

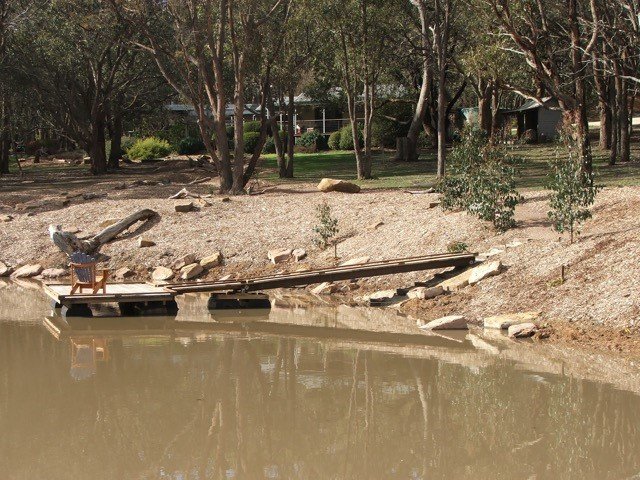

333 Litre floats can be used for small residential, swimming and
pump pontoons. Here is a example of a great little pontoon one of
our customers put together. Great work!

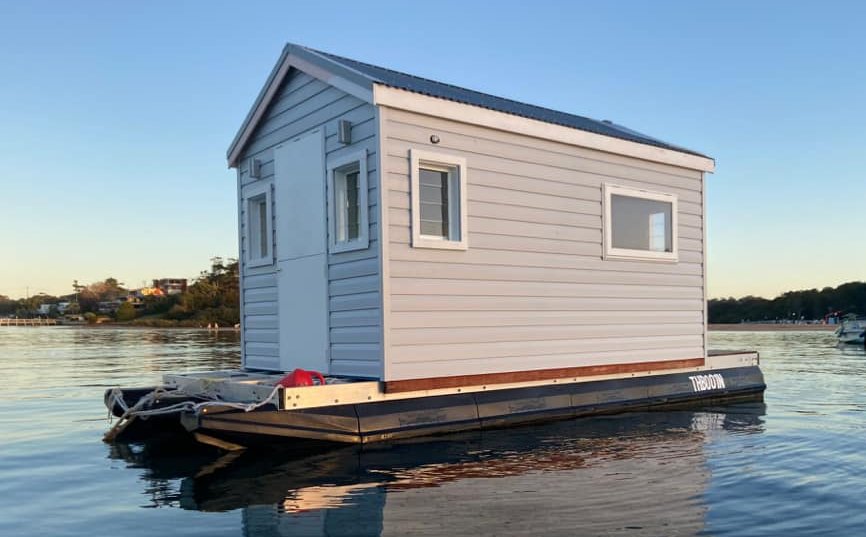

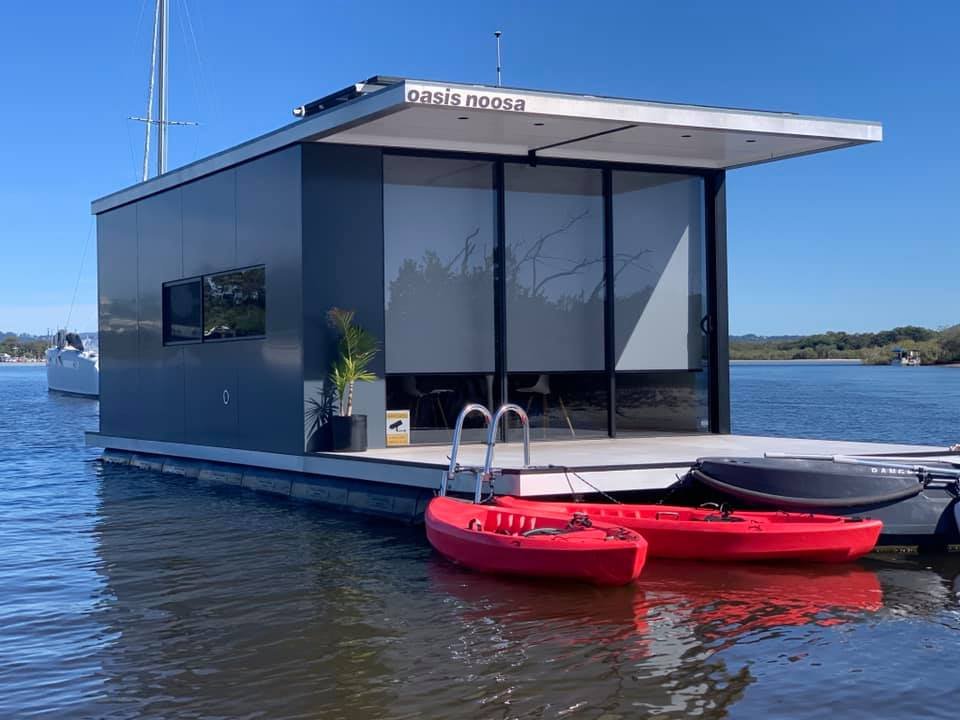

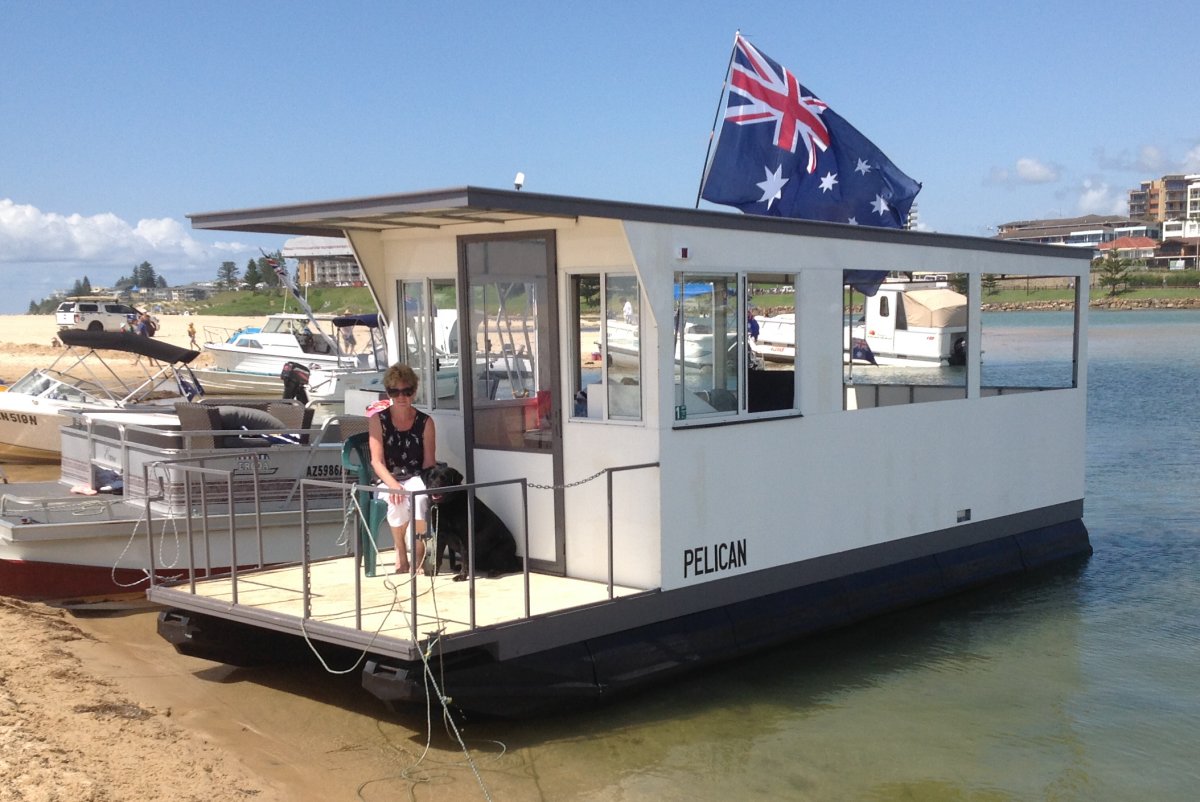

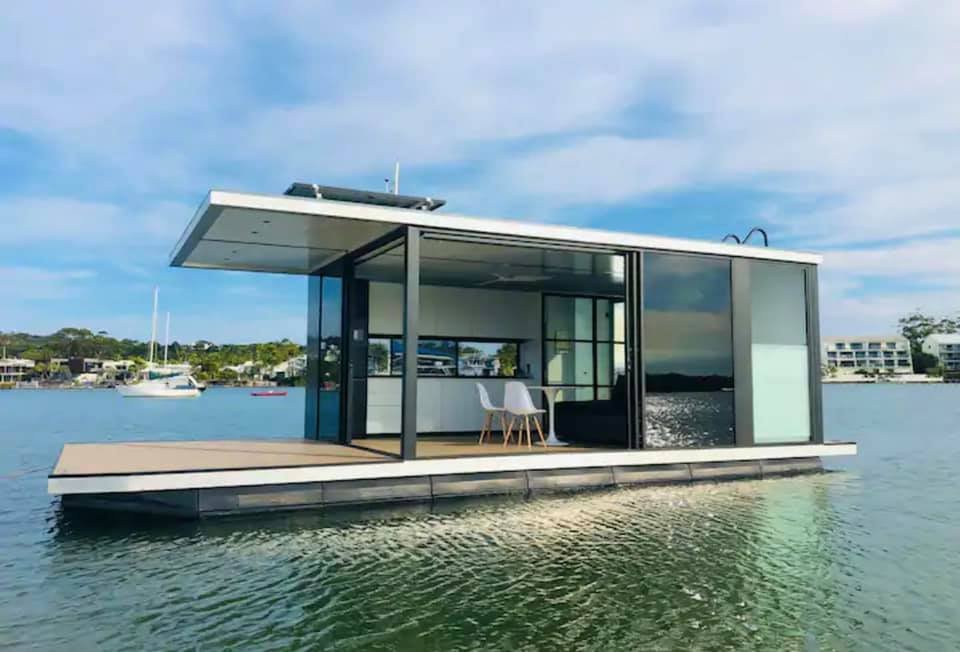

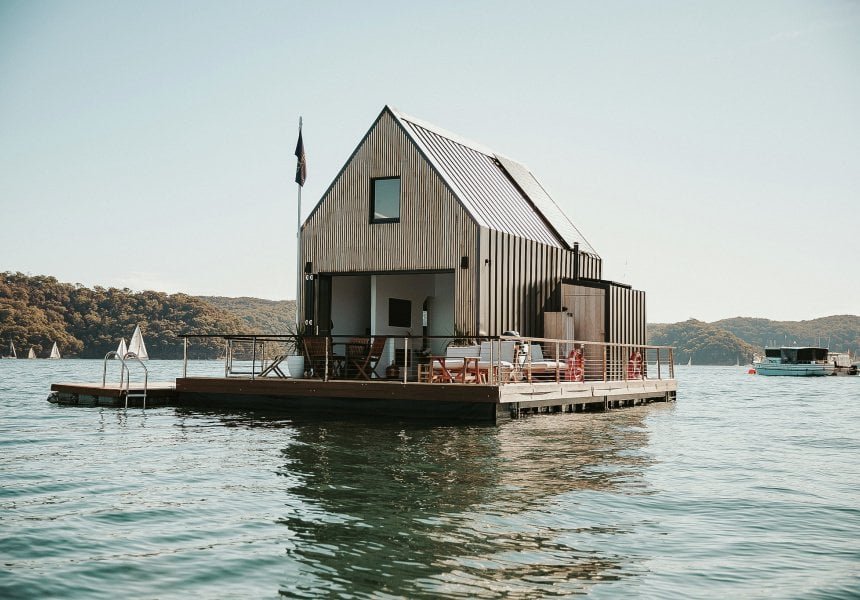

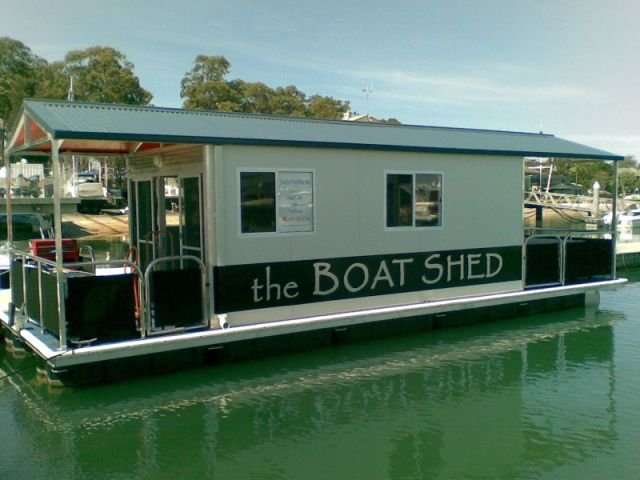

Shown here our Marine Dock Systems floats to make floating office and a great little house boat. Both of these were owner builders and used our polyethylene flotation modules.
Superceeded drawings

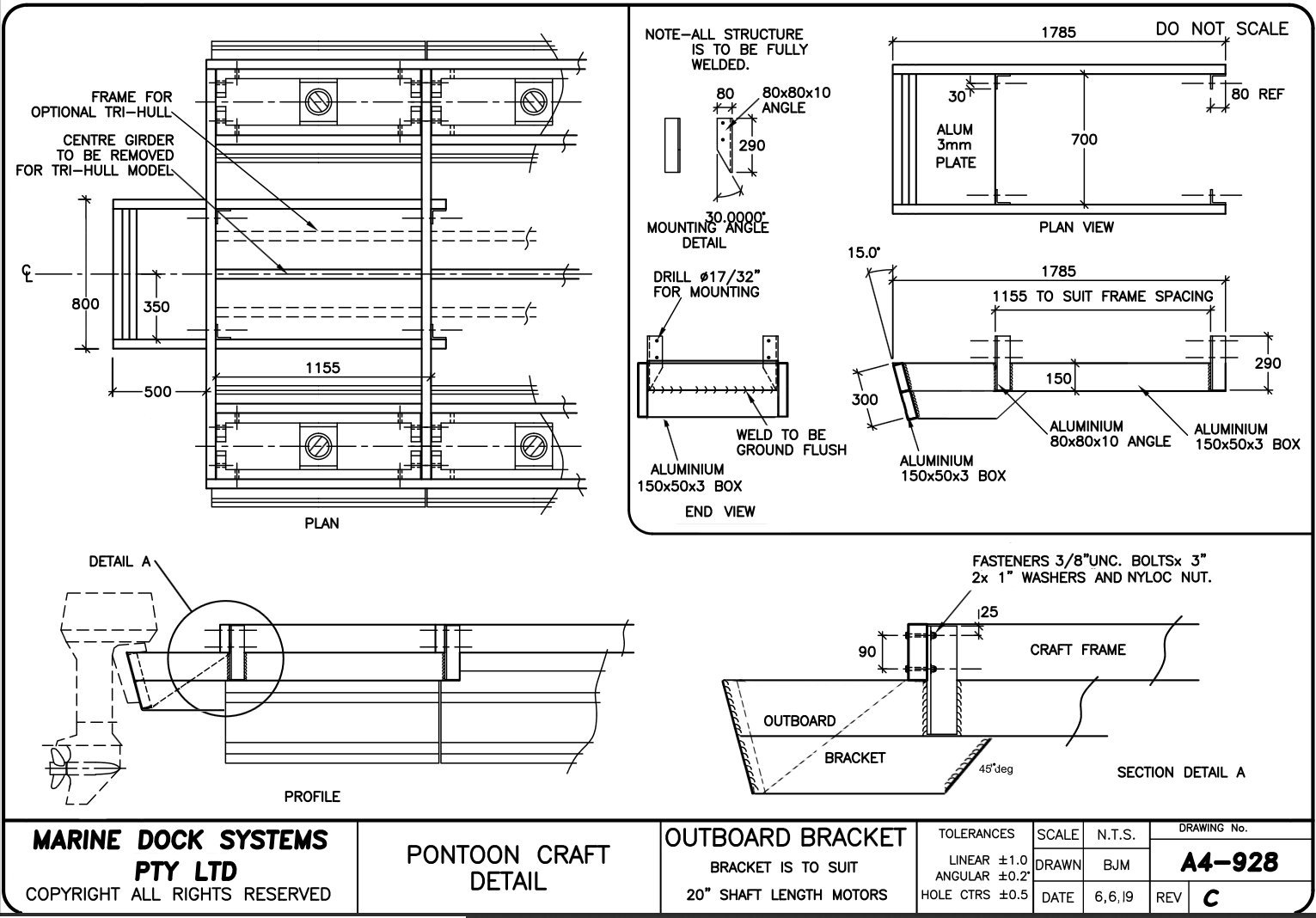

a4-0928 - Outboard Motor Bracket
- Drawing a4-0928c
|
|
|
| |
