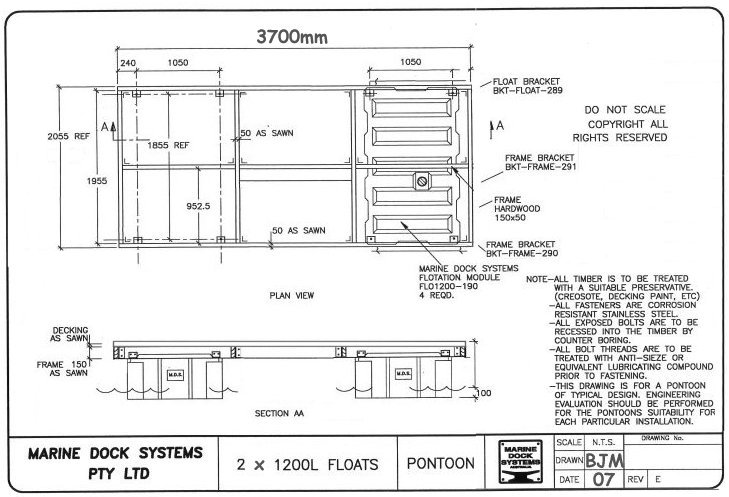

Pontoon 3.7m x 2.1m Timber Frame Pontoon 3.7m x 2.1m Timber Frame and deck

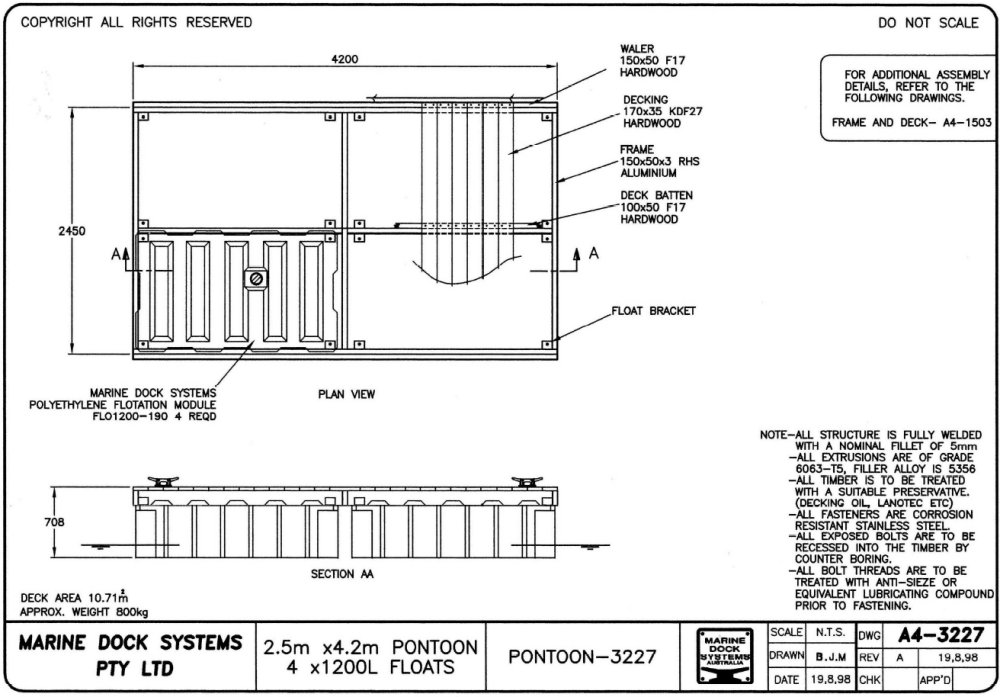

Pontoon 4.2 x 2.4 mtr Alloy Frame A4-3227 - Pontoon alloy frame 4.2 x 2.4 mtr, 4 x 1200 Litre Floats

---

Pontoon 4.5 x 2.5 mtr Timber Frame A4-2719 - Pontoon 4.5 mtr x 2.45 Timber Frame and Deck

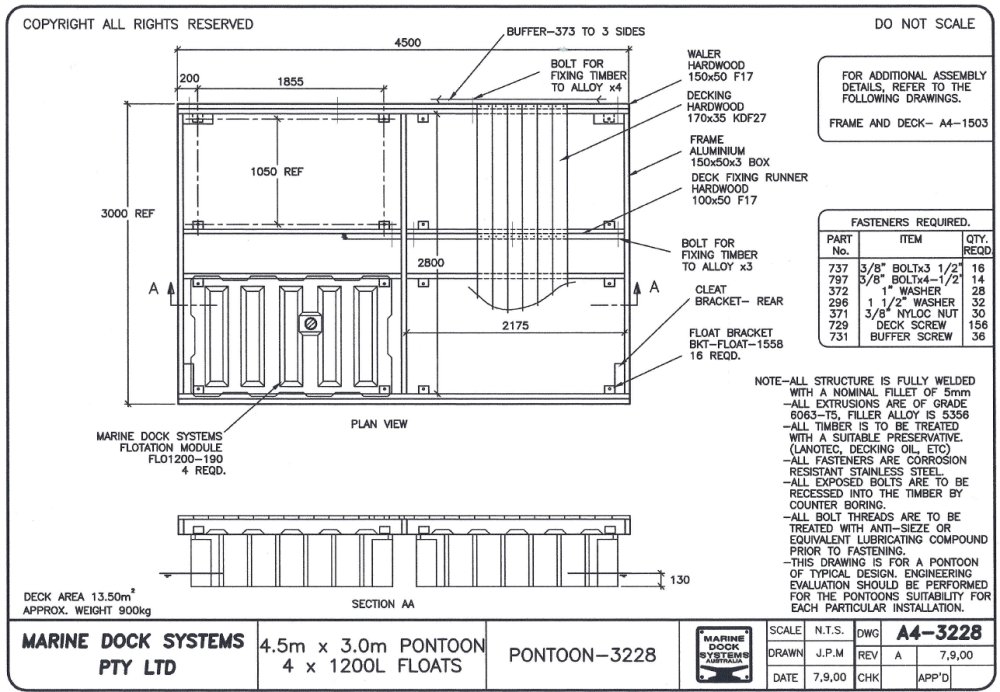

Pontoon 4.5m x 3 mtr Alloy Frame A4-3228 - Pontoon 4.5m x 3m alloy frame timber deck - 4 x 1200 Floats

---

Pontoon 6 x 2 mtr Timber Frame A4-0311 - Pontoon 6m x 2m Timber main walkway

Pontoon 6 x 2.05 mtr Alloy Frame A4-1489 Pontoon 6m x 2.05m alloy frame timber deck

---

Pontoon 4.5 x 3.1 mtr Timber Frame A4-0719 - Pontoon 4.5 mtr 3.1 mtr ramp cut out

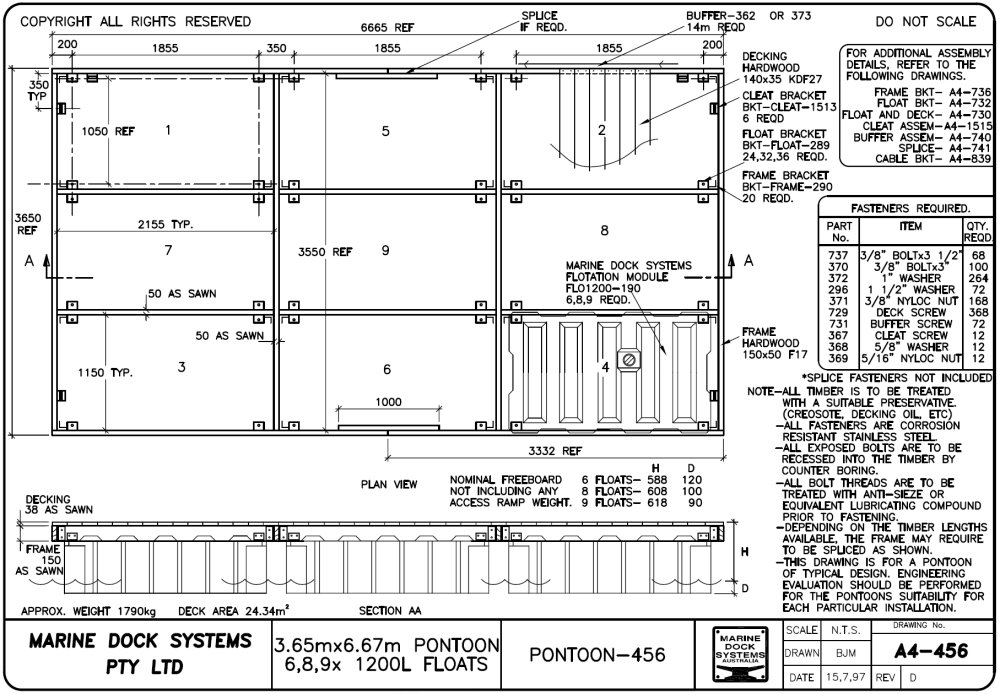

Pontoon 6.7 x 3.6 mtr Alloy Frame A4-0456 Pontoon 6.7m x 3.6m alloy frame timber deck

---

Industrial Pump Work Platform A4-2881 - Work platform

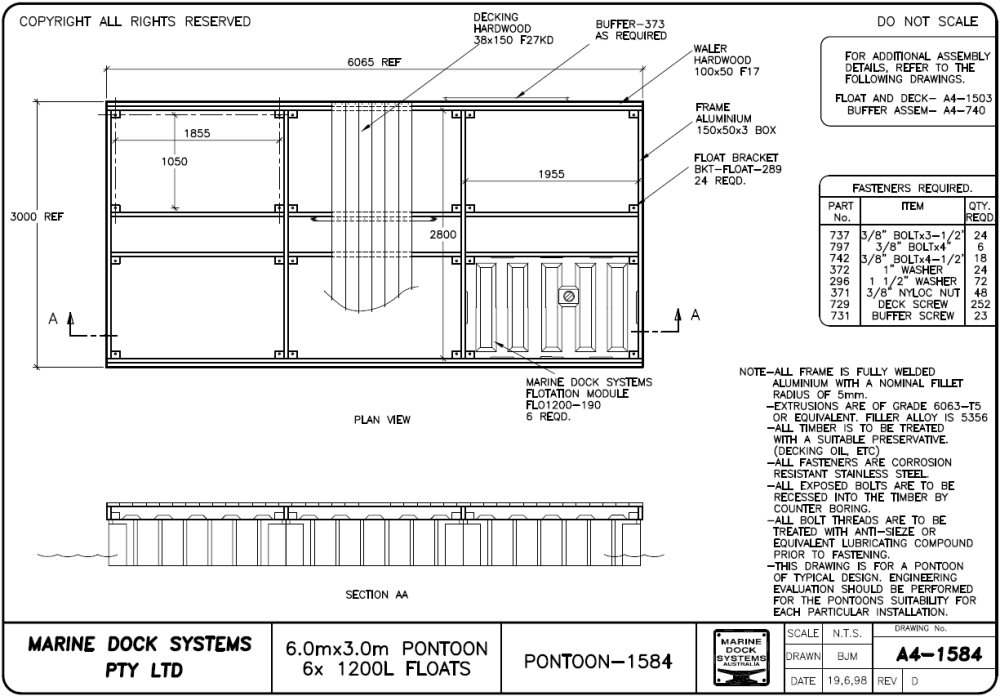

Pontoon 6 x 3mtr mtr Alloy Frame a4-1584 Pontoon 6m x 3m alloy frame timber deck

---

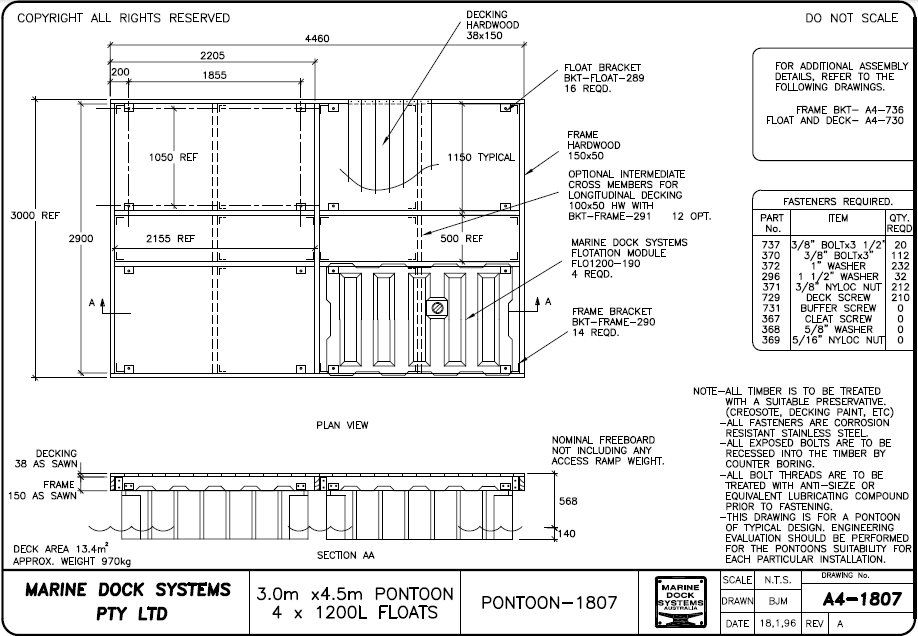

Pontoon 4.45 x 3 mtr Timber Frame a4-1807 Pontoon 4.45m x 3m Timber frame timber deck (4 x 1200 ltre floats)

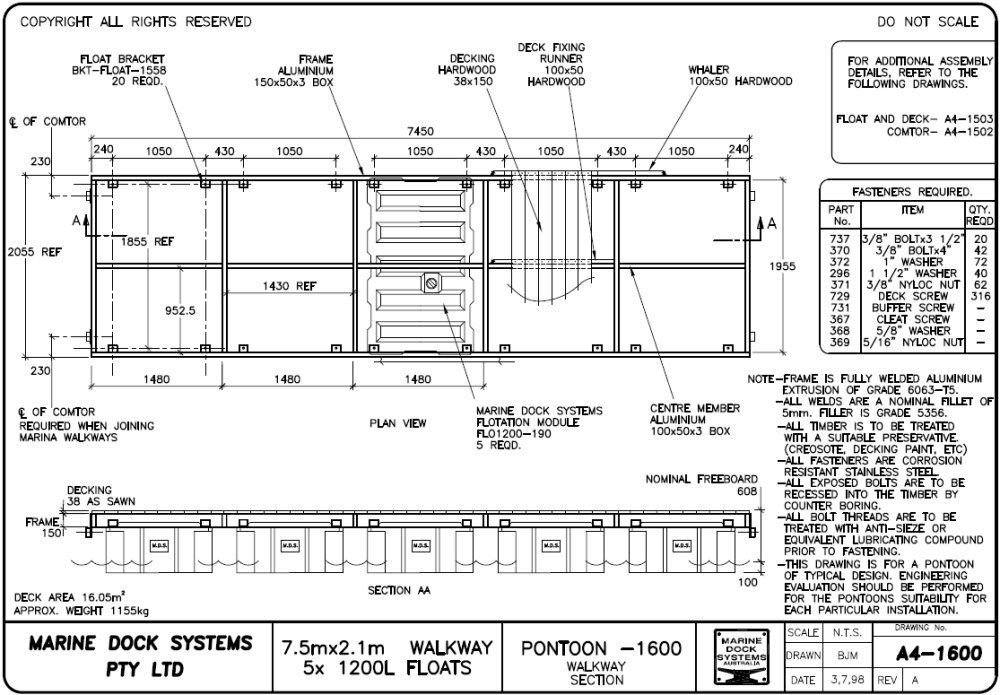

Pontoon 7.45 x 2 mtr Alloy Frame a4-1600 Pontoon 7.45m x 2.05m Timber frame timber deck (6 x 1200 ltre floats)

---

Pontoon 4.45m x 3 mtr Timber Frame a4-1807 Pontoon 4.45m x 3m Timber frame timber deck (4 x 1200 ltre floats)

Pontoon 7.45 x 2.05 mtr Alloy Frame a4-1600 Pontoon 7.45m x 2.05m alloy frame timber deck (6 x 1200 ltre floats

---

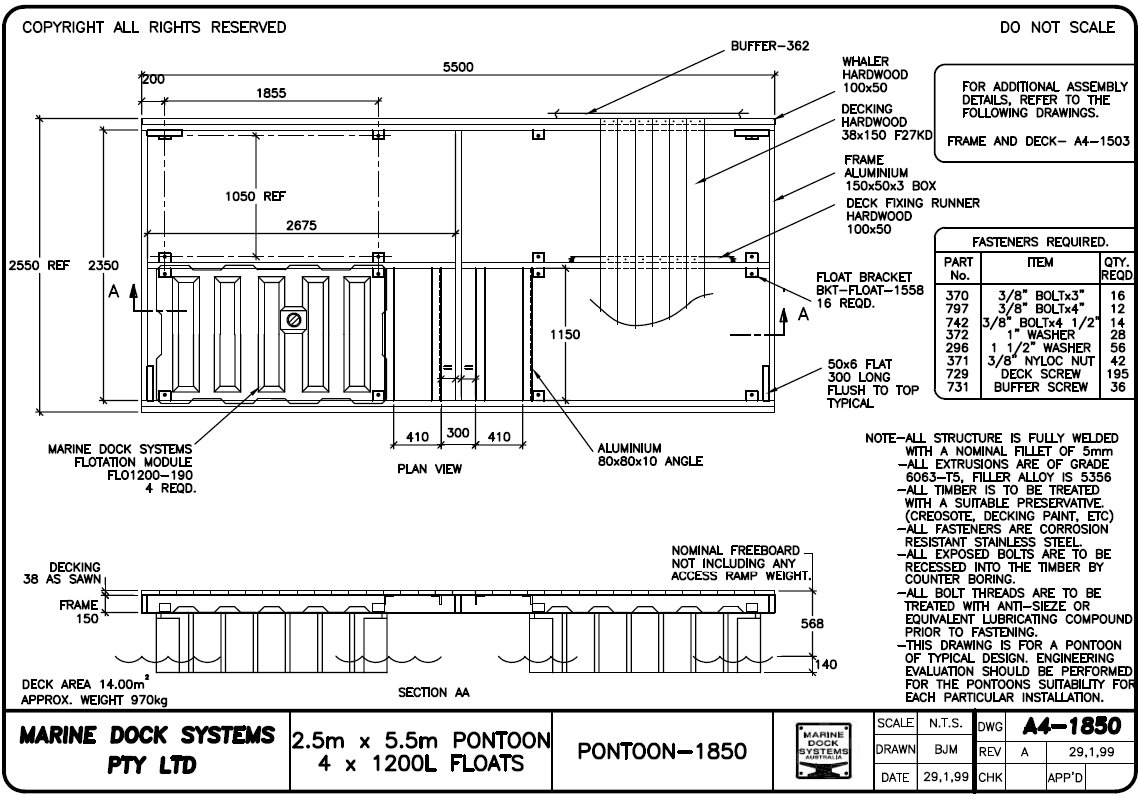

Pontoon 5.5m x 2.5 mtr Alloy Frame a4-1850 Pontoon 5.5m x 2.5m alloy frame timber deck (4 x 1200 ltre floats)

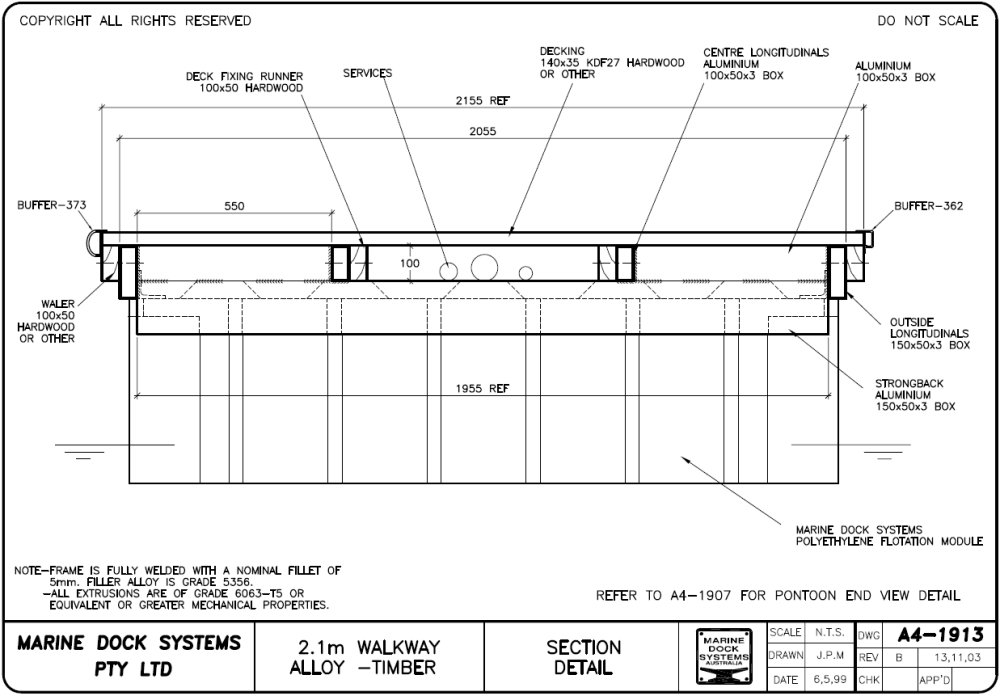

Pontoon Main Walkway 2.1 wide a4-1913 main walkway 2.1M PONTOON SECTION

---

Pontoon 8.9 x 2 mtr Alloy Frame a4-1916 - Pontoon 8.9m x 2.05m alloy frame timber deck - services

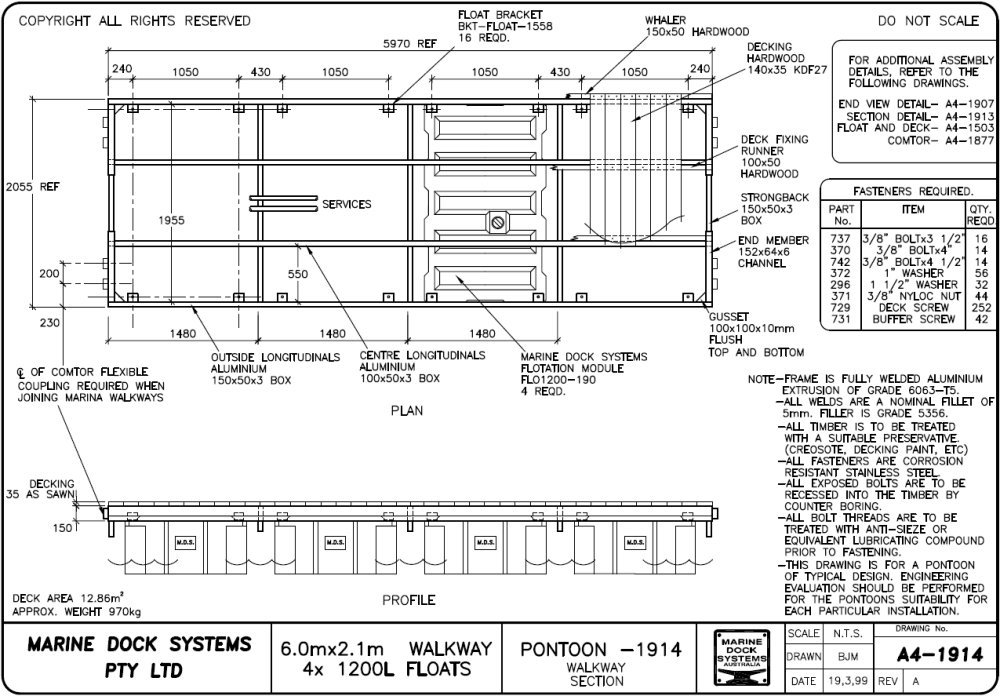

Pontoon 6m x 2 mtr Alloy Frame a4-1914 - Pontoon 6m x 2.05m alloy frame timber deck - services

---

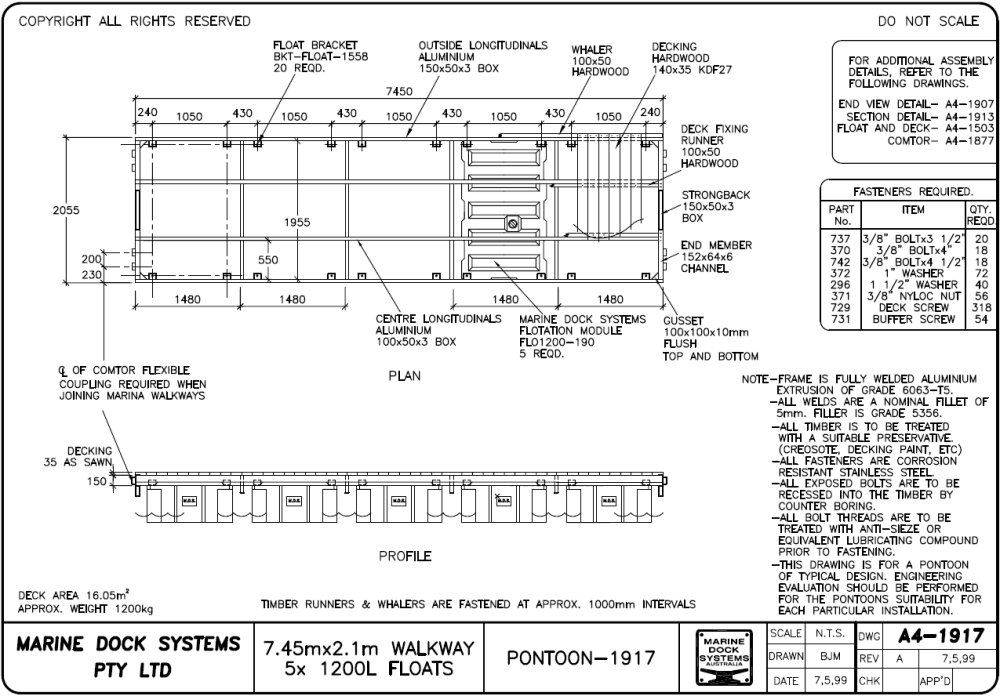

Pontoon 7.45m x 2 mtr Alloy Frame a4-1917 - Pontoon 7.45m x 2.05m alloy frame timber deck - services

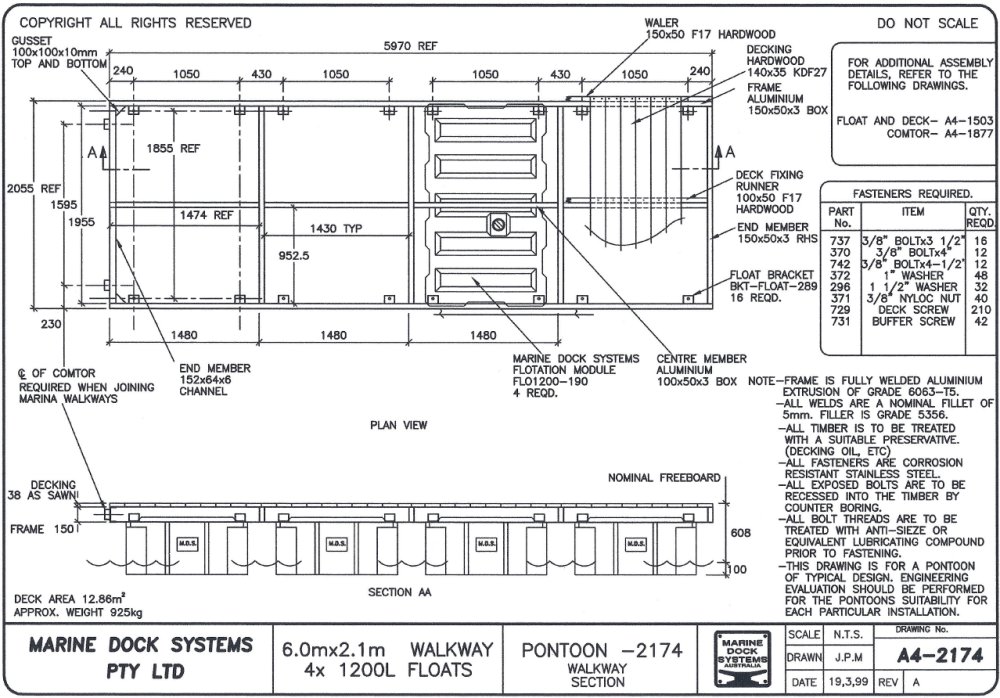

Pontoon 6 x 2 mtr Alloy Frame a4-2174 - Pontoon 6m x 2.05m alloy frame timber deck (4 x 1200 ltre floats)

---

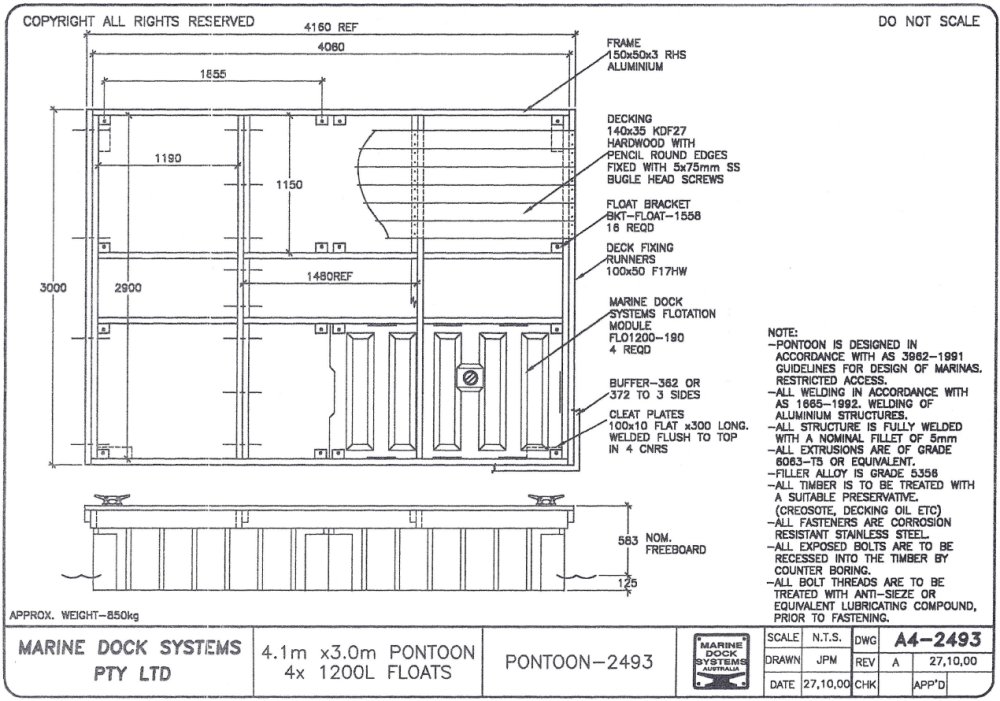

Pontoon 4.1m x 3 mtr Alloy Frame a4-2493 - Pontoon 4.1m x 3m alloy frame timber deck - 4 x 1200 Floats

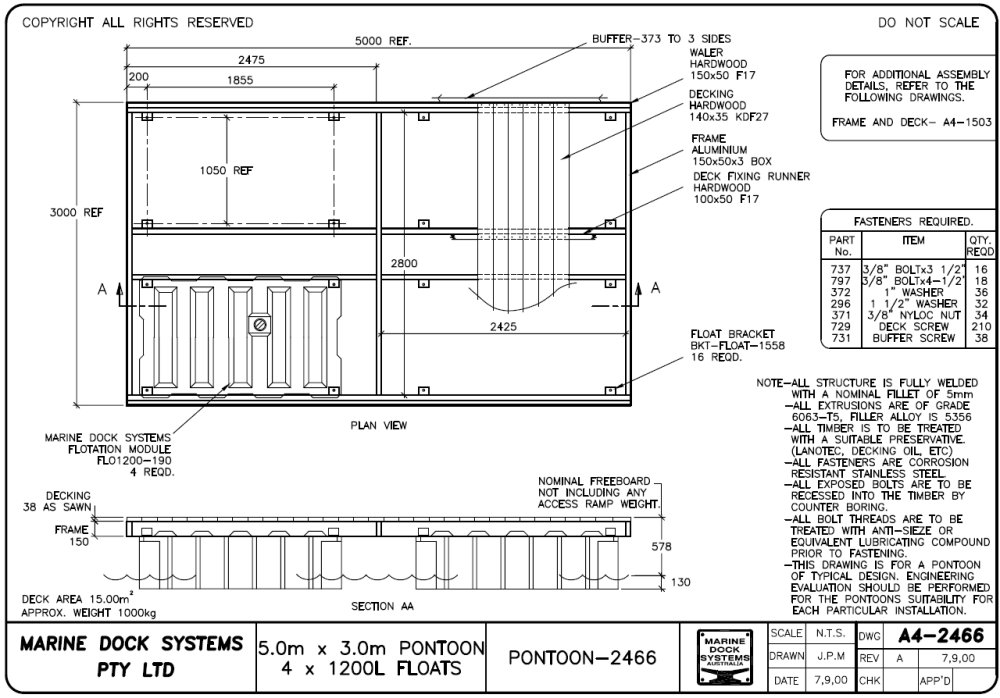

Pontoon 5m x 3 mtr Alloy Frame a4-2466 5m x 3m alloy frame timber deck

---

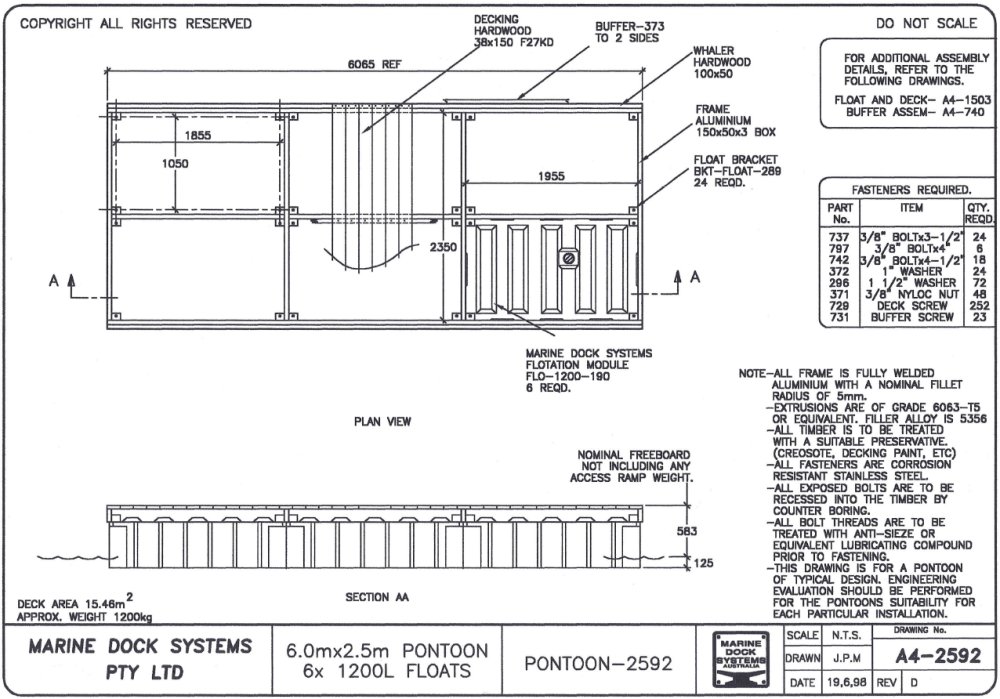

Pontoon 6m x 2.5 mtr Alloy Frame a4-2592 - Pontoon 6m x 2.5m alloy frame timber deck - 6 x 1200 Floats

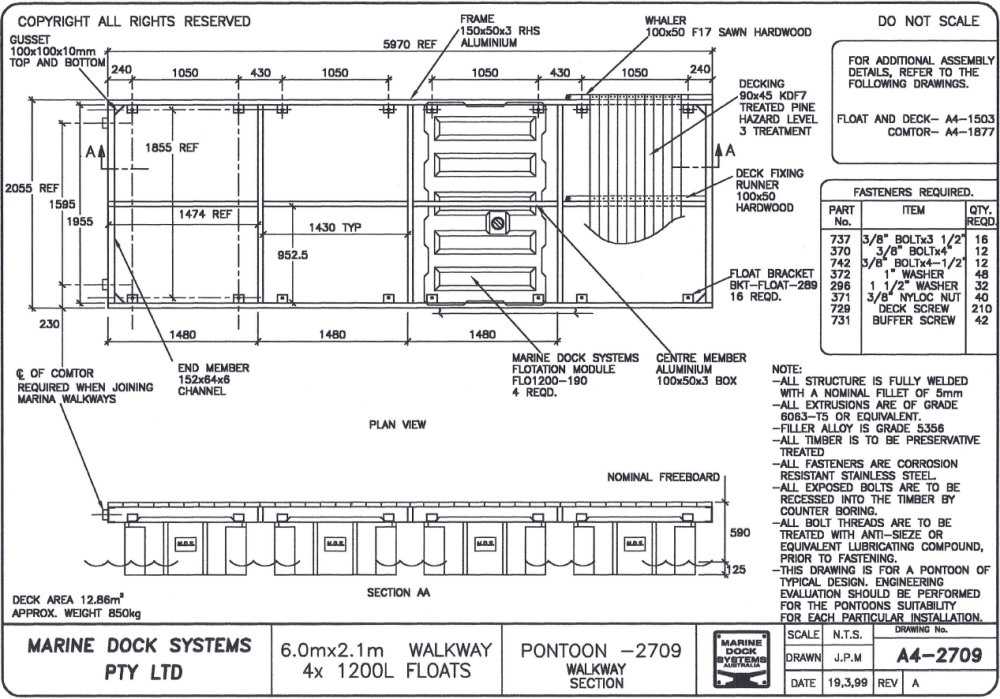

Pontoon 6m x 2 mtr Alloy Frame a4-2709 - Pontoon Aluminium frame timber decking 6 mtr x 2 mtr - 4 x 1200 litre

---

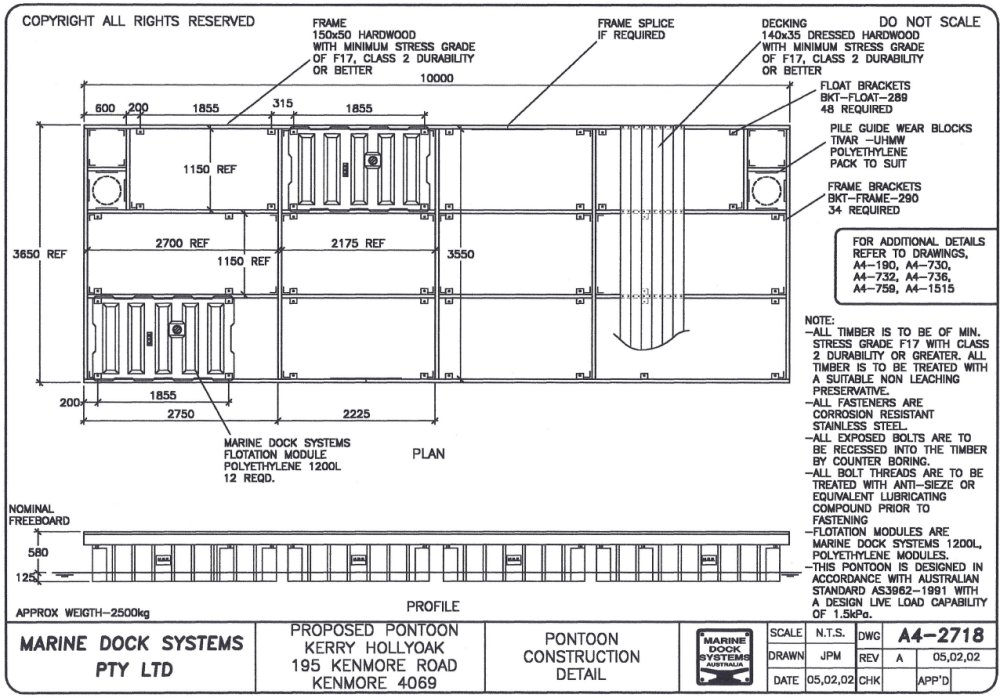

Pontoon 10 x 3.7 Timber Frame a4-2718 - Pontoon 10 x 3.7 mtrs Timber Frame Timber Deck - 12 x 1200 litre Floats

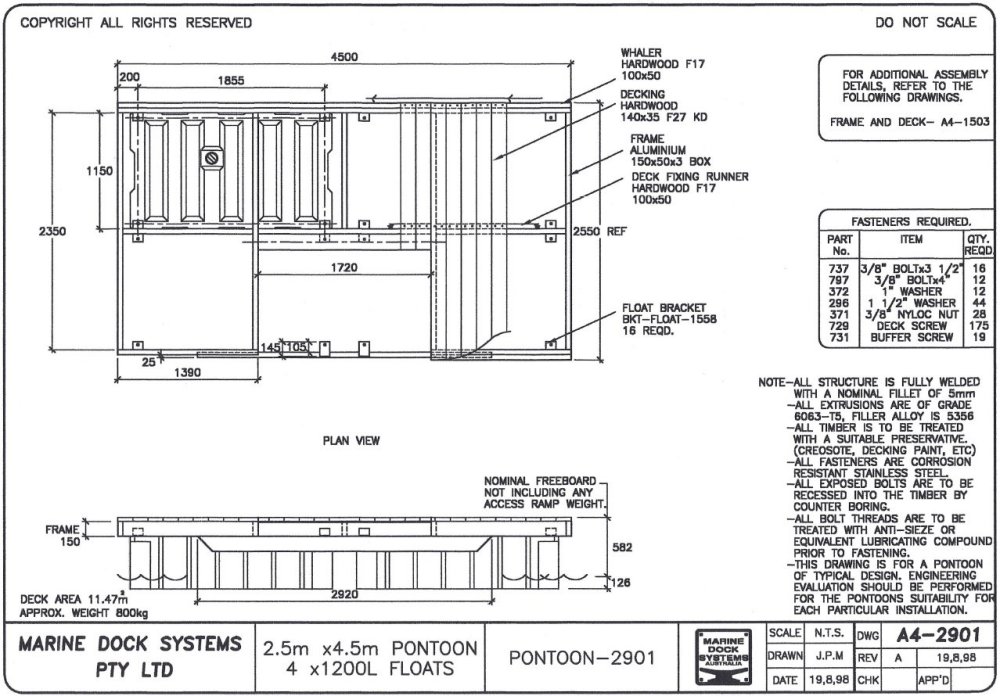

Pontoon 4.5 x 2.5 mtr Alloy Frame a4-2901 4.5m x 2.5m pontoon with cutout alloy frame timber deck

---

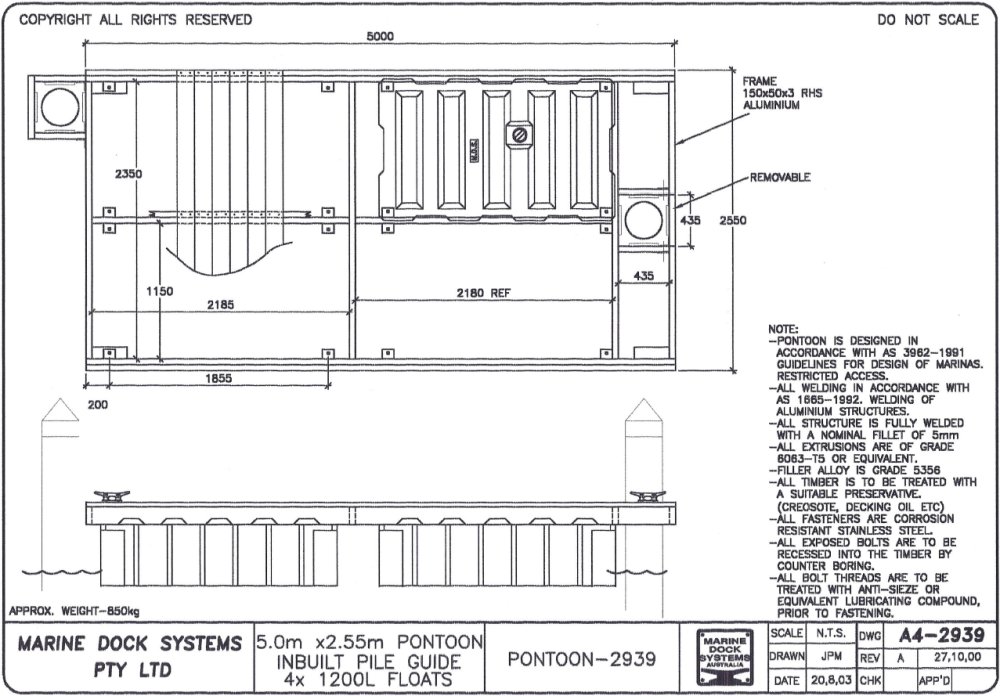

Pontoon 5 x 2.55 mtr Alloy Frame a4-2939 - Pontoon 5m x 2.55m alloy frame timber deck - 4 x 1200 Floats

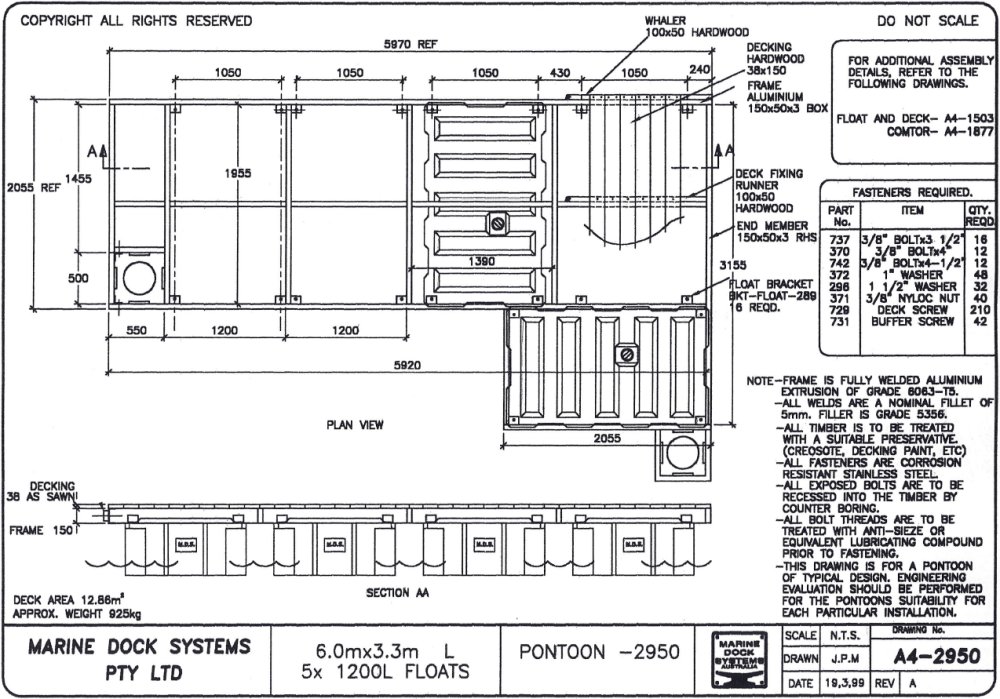

Pontoon 6 x 3.3 mtr Alloy Frame a4-2950 - Aluminium Framed Timber deck Pontoon 6 mtrs x 3.3 L shape

---

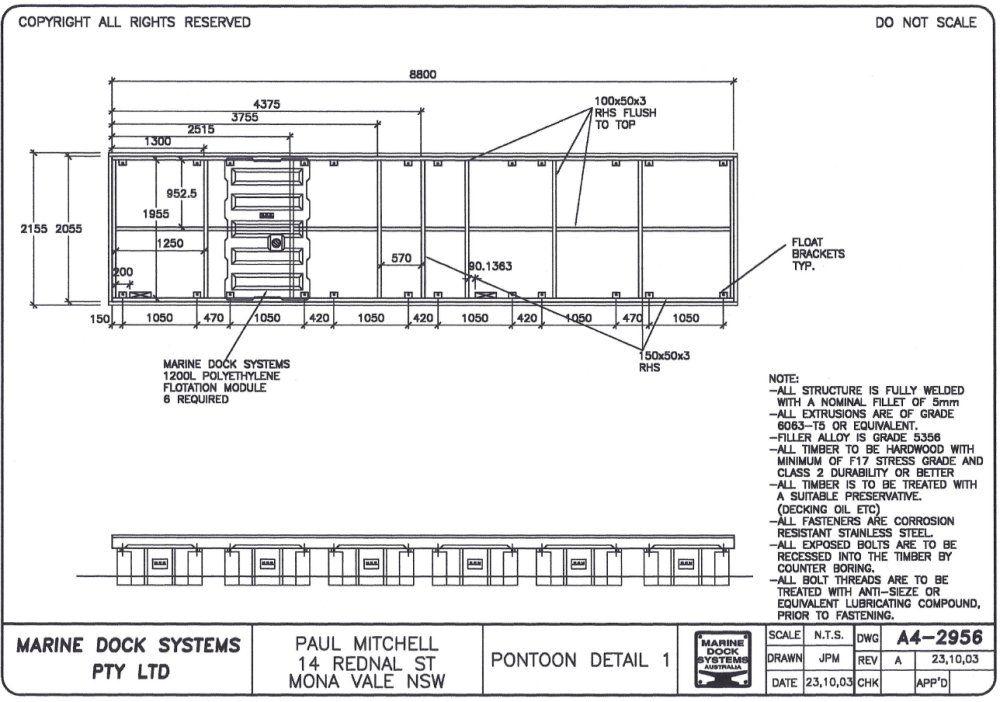

Pontoon 8.8 x 2.2 mtr Alloy Frame a4-2956 - Pontoon 8.8m x 2.2m alloy frame timber deck - 6 x 1200 Floats

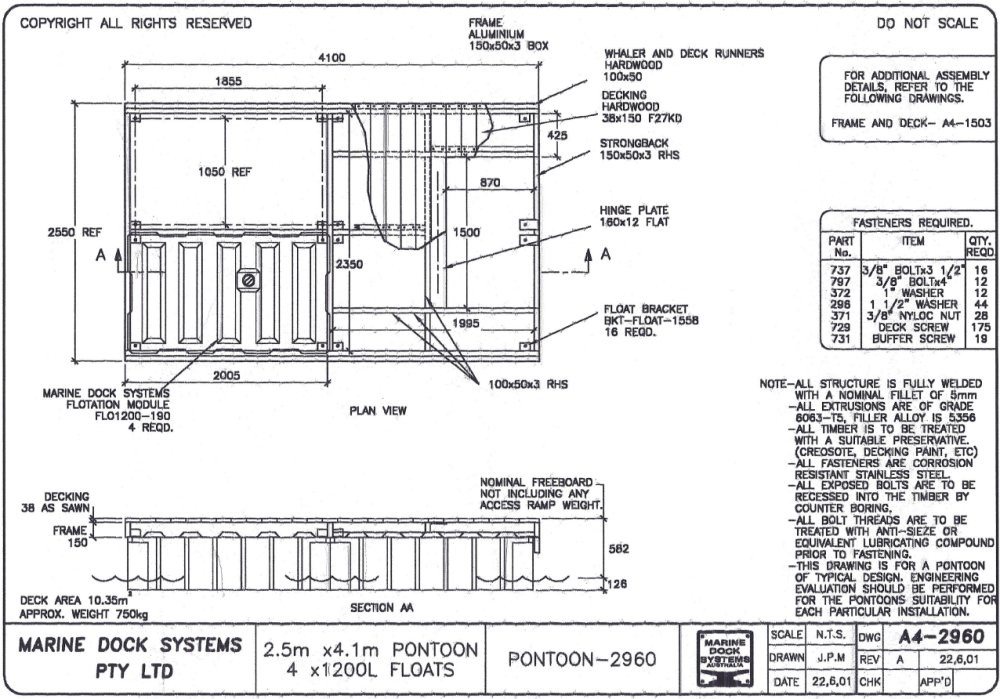

Pontoon 4.1m x 2.55 mtr Alloy Frame a4-2960 - Pontoon 4.1m x 2.55m alloy frame timber deck with cut out - 4 x 1200 Floats

---

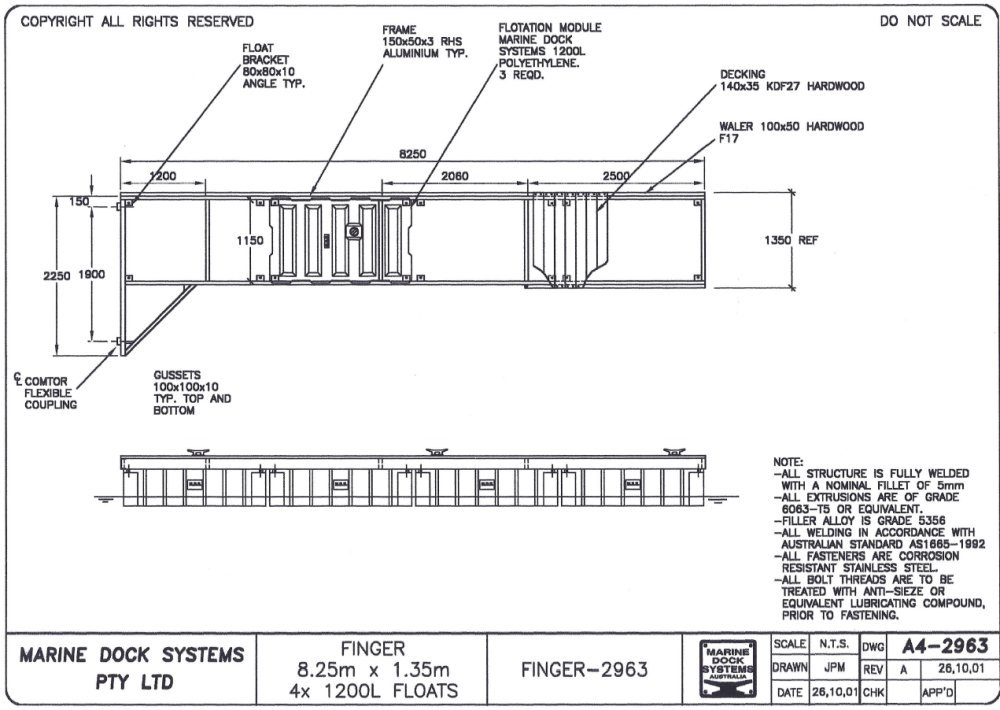

Pontoon 8.25 x 1.35 mtr Alloy Frame a4-2963 - Pontoon Finger 8.25 x 1.35 alloy frame timber deck - 4 x 1200 Floats

Pontoon 6 x 1.25 mtr Alloy Frame a4-3218 - Floating Ramp 6 x 1.25 mtr - 1 x 1200 litre float

---

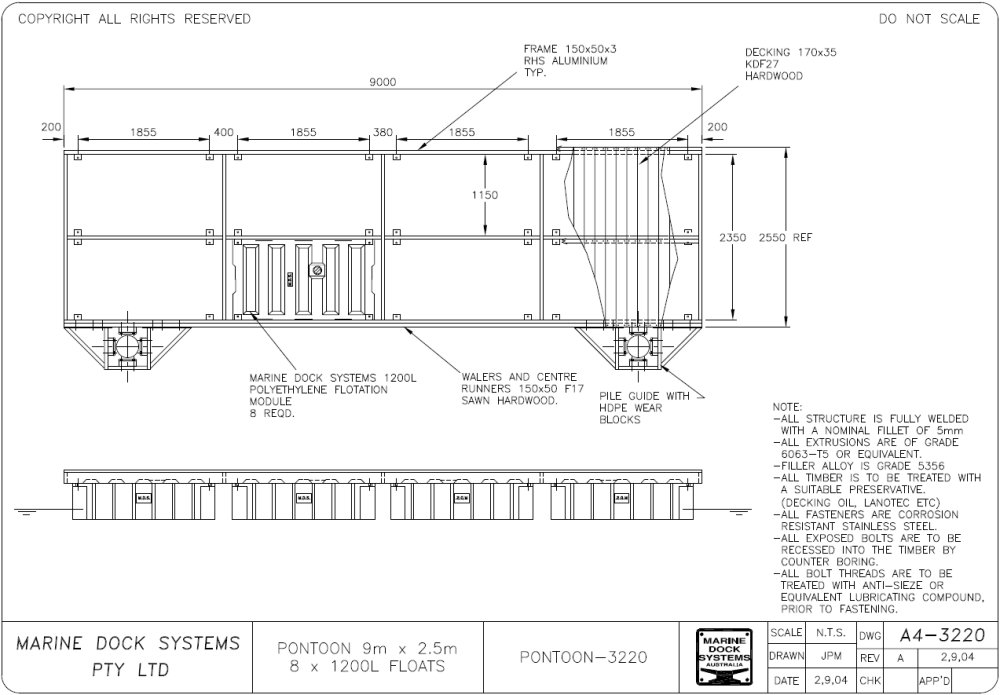

Pontoon 9 x 2.4 mtr Alloy Frame a4-3220 - Pontoon alloy frame 9 x 2.4 mtr, 8 x 1200 Litre Floats

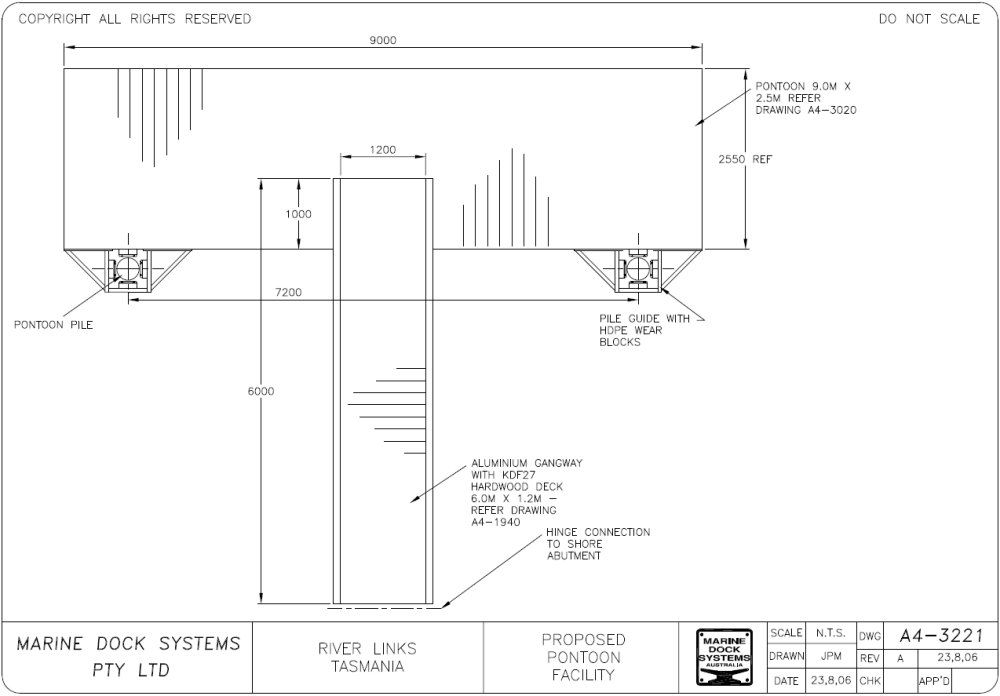

Pontoon 9 x 2.5 mtr Lay Out a4-3221 - Riverlinks 9 x 2.5 mtr pontoon Lay out pontoon and ranp

---

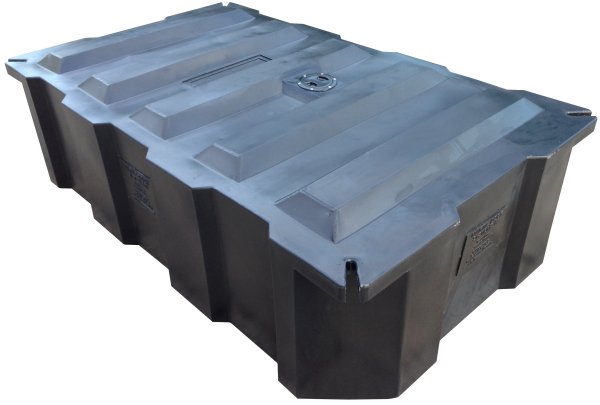

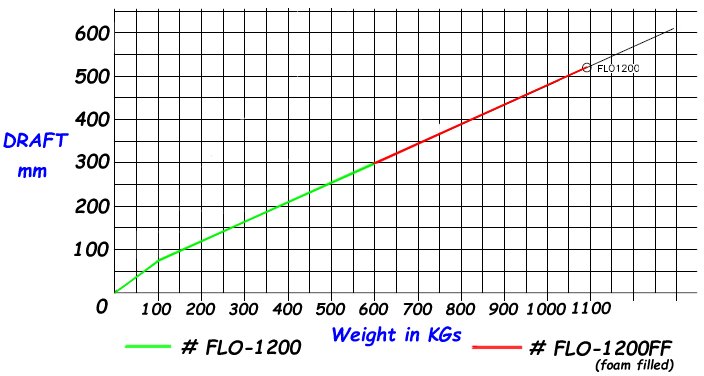

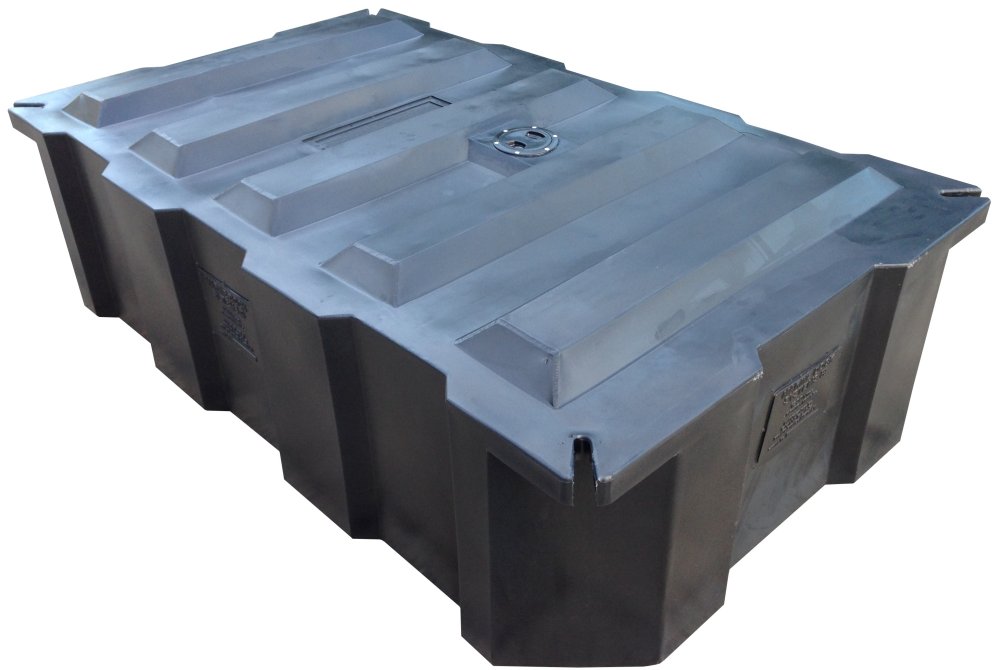

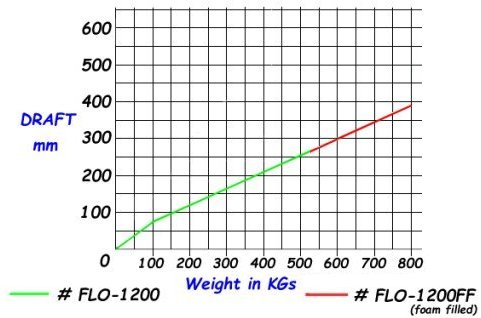

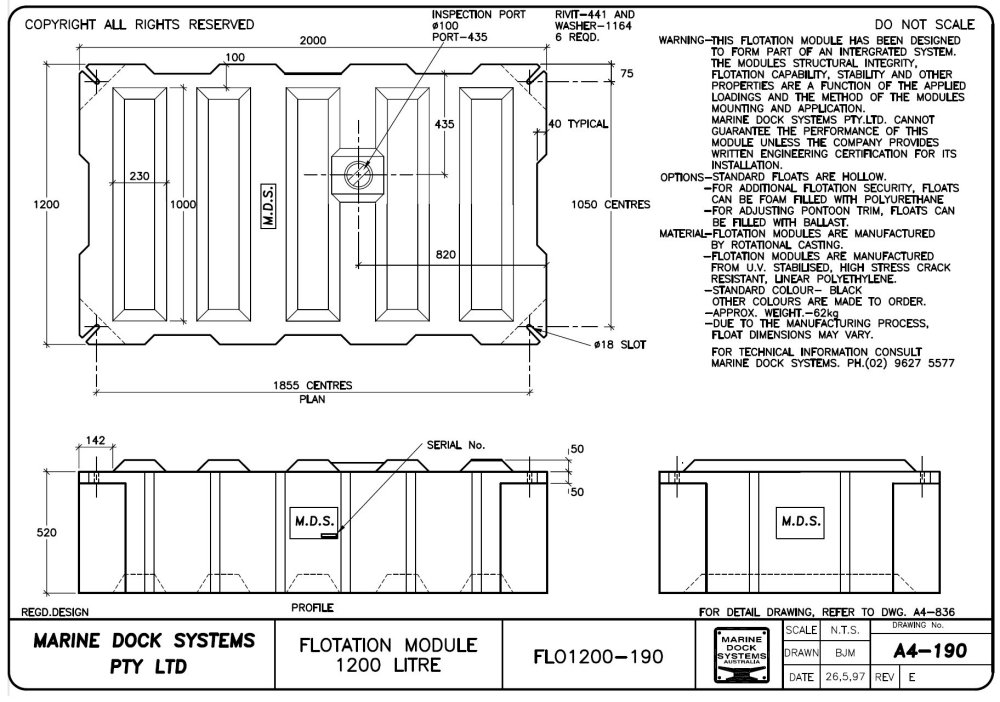

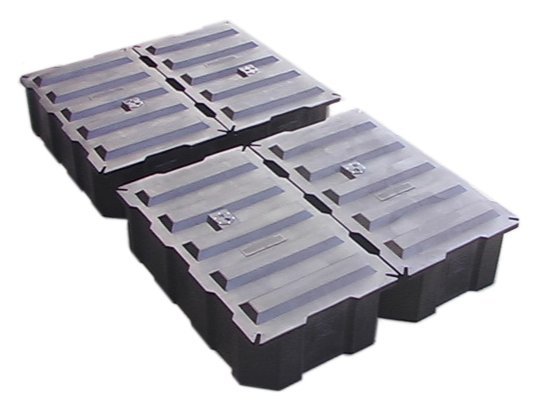

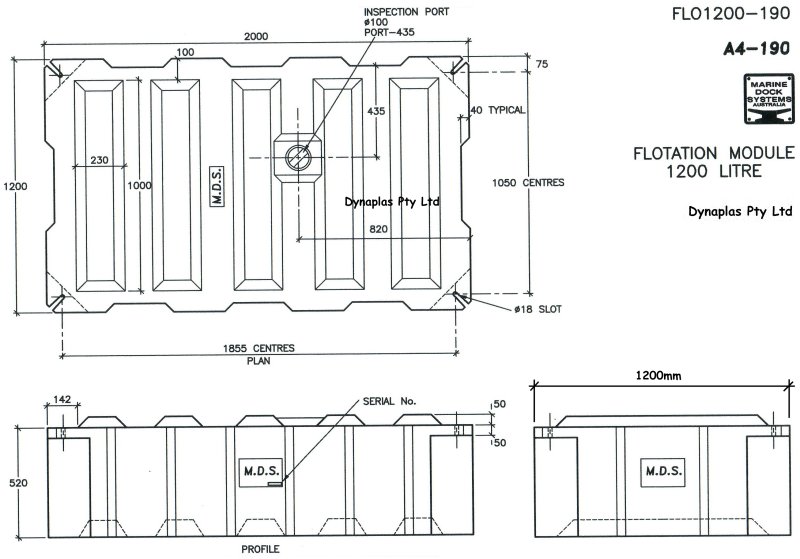

1200 LITRE POLYETHYLENE FLOAT 2000mm Long x 1200mm Wide x 570mm deep. 62kg each. manufactured using rotational moulding method, made from liner low density polyethylene.

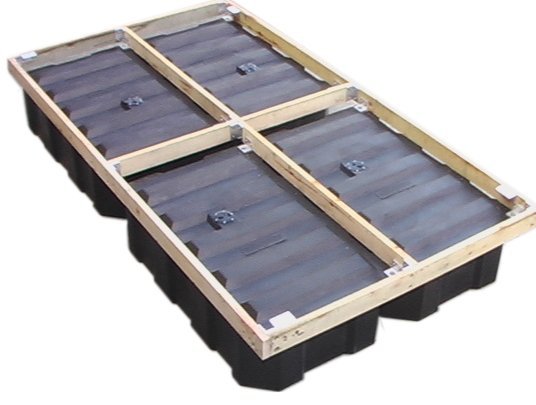

Build Your Own Pontoon, Marina or Ramp Marine Dock Systems designs has pontoon kits so that you can build your own pontoon. Many different kits are available. You can purchase the full kit or just the parts you want. All kits come with easy to read drawings and our staff are happy to answer any questions. All you need is one of our kits, a few tools, a spare weekend and maybe a case of beer.

---

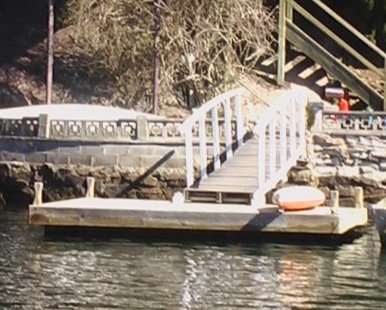

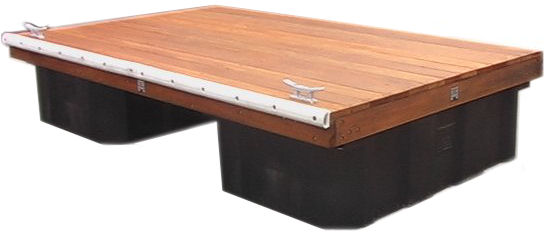

Residential pontoon 3.7 mtr x 2.46 mtr Part # PONTOON-330 Including 4 x 650 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides. a4-330 Residential pontoon 3.7 mtr x 2.46 mtr

Click here for more information on this pontoon.

---

Residential Pontoon 4.5 mtr x 2.55 mtr Part # PONTOON-2719 Including 4 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides. a4-2719 Residential pontoon 3.7 mtr x 2.46 mtr

Click here for more information on this pontoon.

---

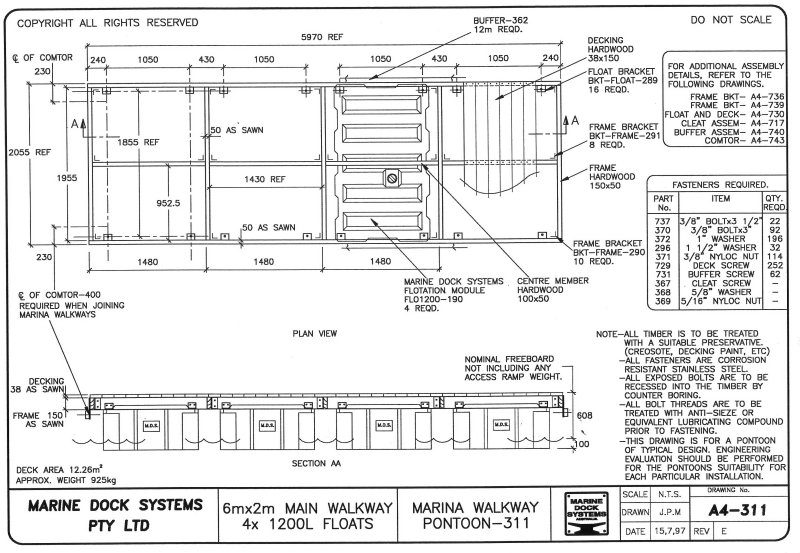

Marina Walkway 6mtr x 2mtr Part # PONTOON-311 Including 4 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 2 sides. Drawing a4-0311 a4-0311 Timber walkway 6mtr x 2mtr a4-0400 Comtor conecting unit

---

Marina Finger 5mtr x 1mtr Part # PONTOON-840 Including 2 x 900 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides. a4-0840 Marina Finger 5mtr x 1mtr a4-1852 9.6mtr x 1.3 mtr - Alloy frame

---

Pontoon 3.6 mtr x 2.15 mtr Including 2 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 2 x 300mm cleats and large buffer 3 sides. Residential pontoon 3.6 mtr x 2.15 mtr With Aluminium Frame Including 2 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Aluminium frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 2 x 300mm cleats and large buffer 3 sides. 3.6 mtr x 2.15 mtr

---
