2000 LITRE FLOTATION MODULE

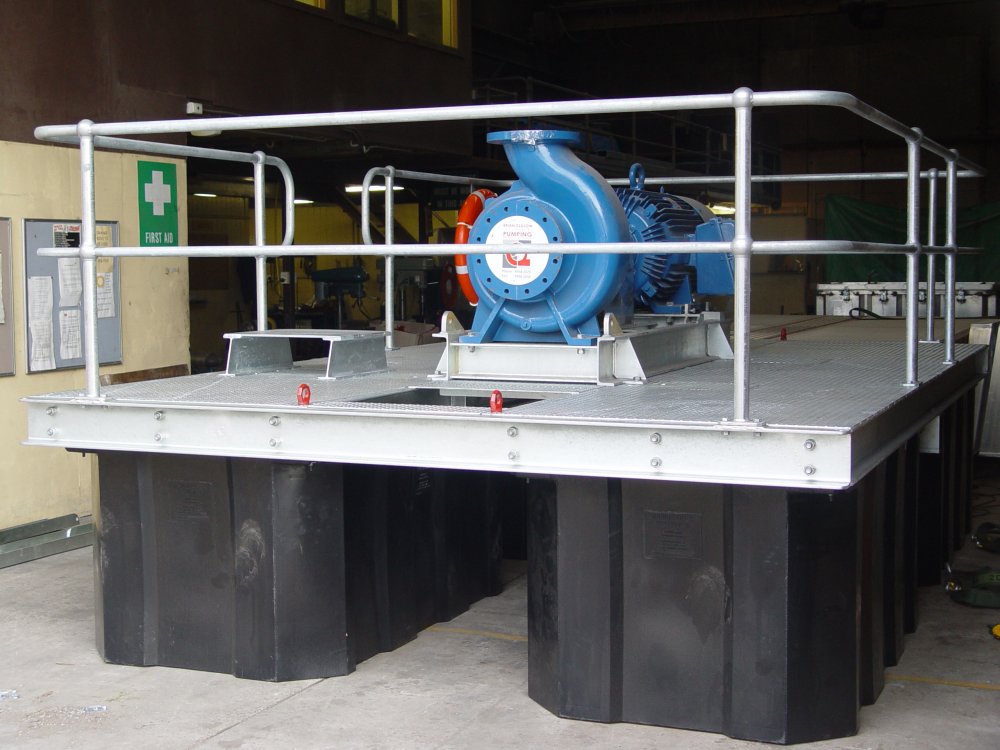

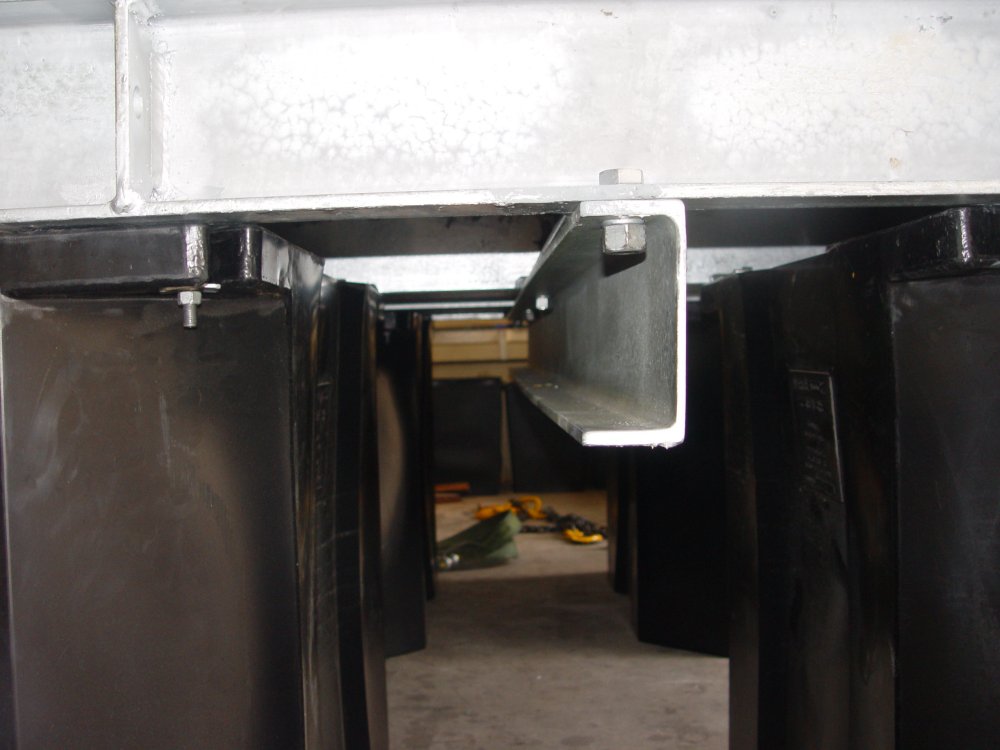

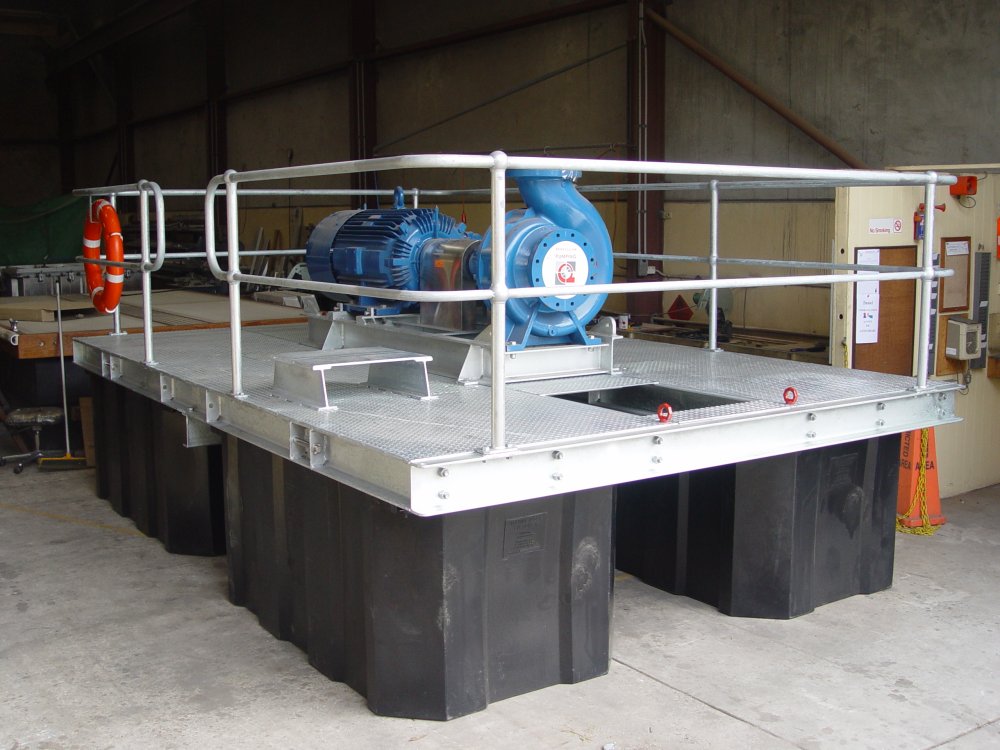

The 2000 Litre Flotation Module was computer designed for industrial applications such as mixer and or pump pontoons. The modules are instrisically very stable and have inbuilt horizontal lugs for assembly to framework with stainless steel nuts and bolts. This float is required to be foam filled, optimum load for this float is 1200kg but can take upto 1800kg when nearly fully submersed
Product weight 135kg foam filled.

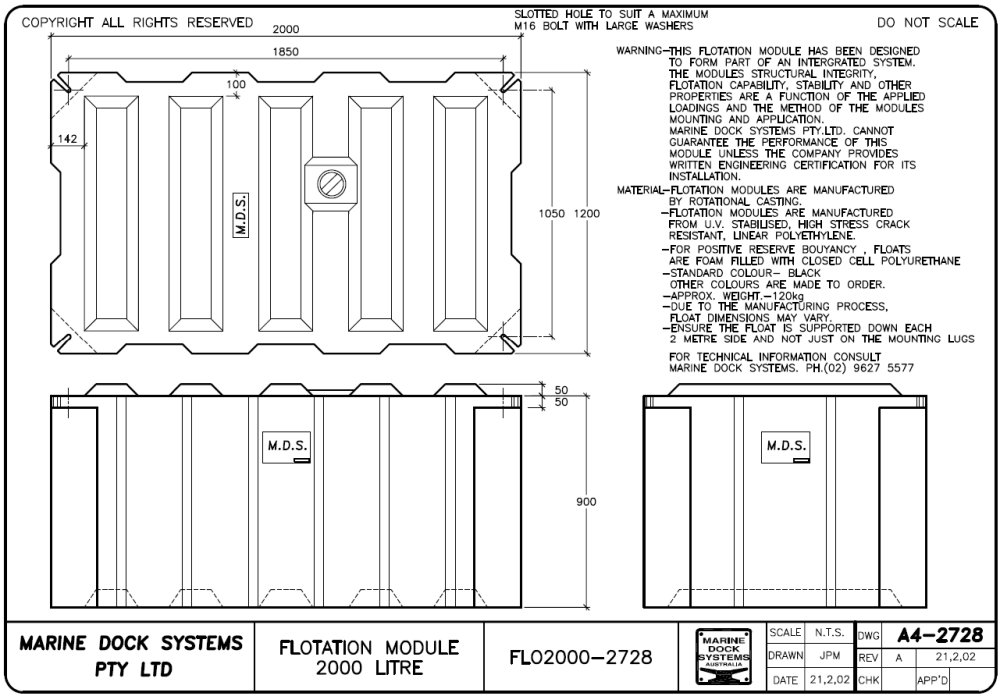

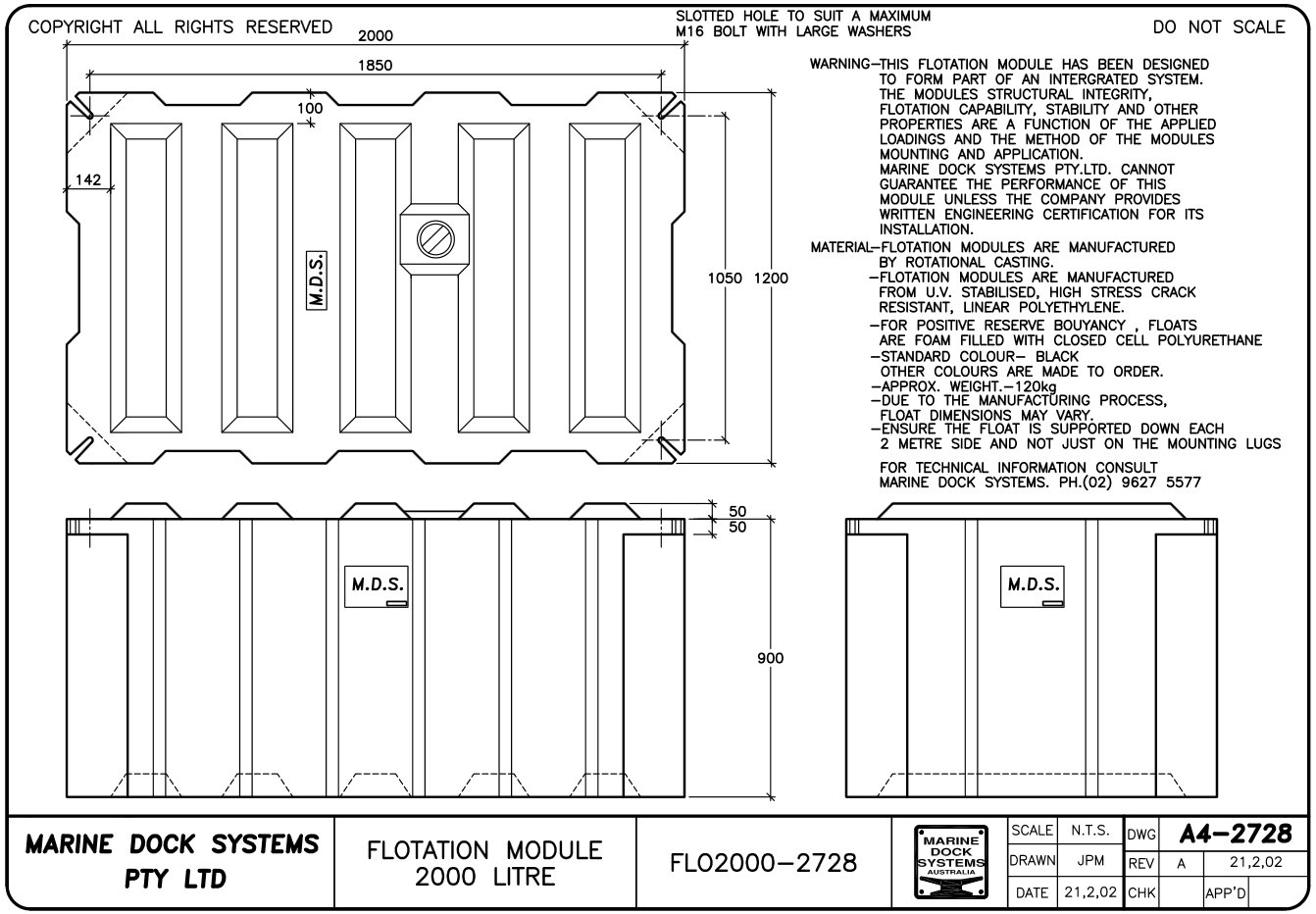

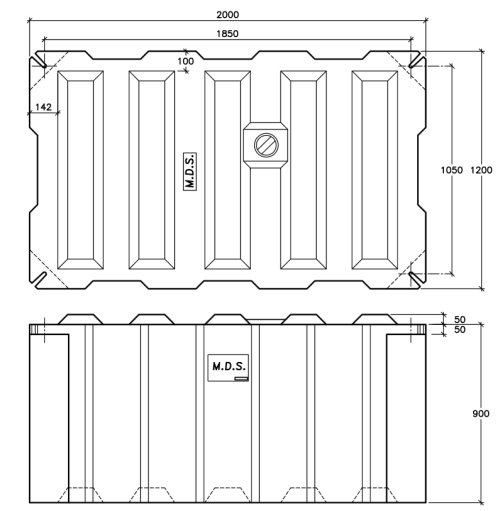

a4-2728 - 2000 Litre float
Warning
THIS 'FLOATATION MODULE' HAS BEEN DESIGNED TO FORM PART OF AN INTERGRATED SYSTEM.

THE STRUCTURAL INTEGRITY, FLOTATION CAPABILITY, STABILITY AND OTHER PROPERTIES ARE A FUNTION OF APPLIED LOADINGS AND THE METHOD OF THE MODULE MOUNTING AND APPLICATION.

MARINE DOCK SYSTEMS PTY. LTD. CANNOT GUARANTEE THE PERFORMANCE OF THIS MODULE UNLESS THE COMPANY PROVIDES WRITTEN ENGINEERING CERTIFICATION FOR ITS INSTALLATION AND USE AT A SPECIFIC LOCATION.

FOR TECHNICAL INFORMATION CONSULT MARINE DOCK SYSTEMS PTY. LTD.
