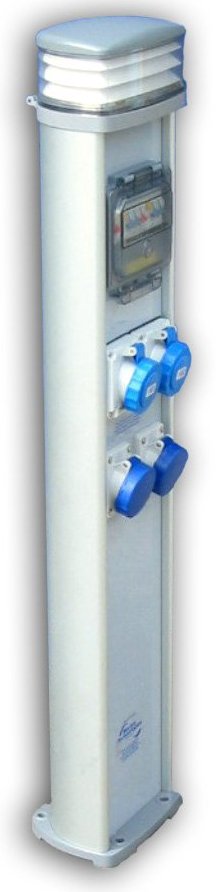

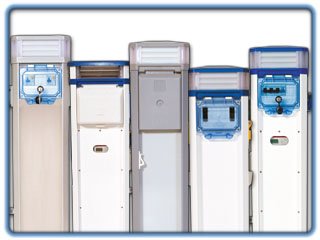

SERVICE PEDISTALS
Finally there is a service pedestal which matches the need of the boat owners and marina operators.

The boat owner requires safe and convenient power, water and lighting - perhaps even a TV and telephone or modem hook-up. Of course the marina operator needs these features too, but in addition looks for durability, ease of maintenance and cost effectiveness.

Floats
Enquiry


MDS Marine Dock Systems

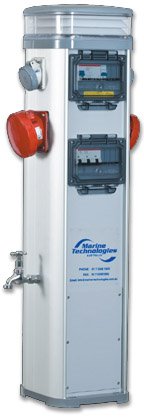

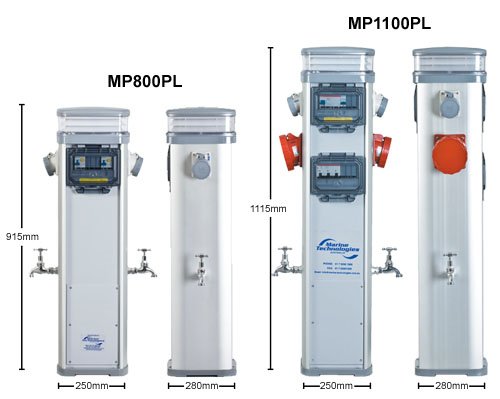

The Platinum Pedestal features:

• Extruded anodized aluminium side panels offering unparalleled strength and durability.

• Able to accommodate power outlets from 15 Amp to 250 Amp and 400 Amp direct connection.

• Light diffuser specifically designed to direct light downwaerd toward the marina docking, whilst radiating a soft filtered light for ambience.


MDS Marine Dock Systems

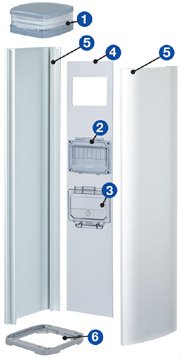

1. Light
2. MCB Cover
3. Door (Click On)
4. PVC Panel (Slides In)
5. Aluminum Extrusion
6. Aluminum Base
MDS Marine Dock Systems
MDS Marine Dock Systems

MDS Marine Dock Systems


MDS Marine Dock Systems

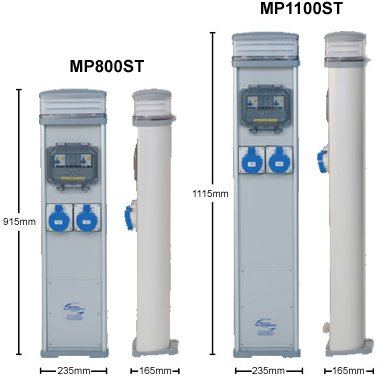

The Sterling

• Unique slimline design makes it ideal for installing along walkways and gangways.

• Can fit up to six outlets in combination from 16A single phase to 3 phase outlets up to 32A.

• Specifically designed light for marina applications with a hinged top means no loose parts to fall into the marina when replacing lamps. Surrounding louvres direct light downwards toward the marina decking.

• The main body of the pedestal is anodised, extruded aluminium and has a slide out panel for easy access during maintenance.

MDS Marine Dock Systems

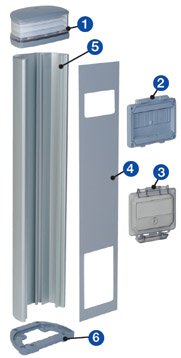

1. Light
2. MCB Cover
3. Door (Click On)
4. PVC Panel (Slides In)
5. Aluminum Extrusion
6. Aluminum Base

MDS Marine Dock Systems
MDS Marine Dock Systems

MDS Marine Dock Systems


MDS Marine Dock Systems


Recommended Power Outlet Amperage

Australia + NZ (for NZ substitute 15A for 16A)

Berth Size Minimum Recommended
10 - 12M
1 x 15A
1 x 15A
15M
2 x 15A
2 x 15A
18M
2 x 15A
2 x 15A + 1 x 32A-3Ph
20M
2 x 15A + 1 x 32A-3Ph
2 x 15A + 1 x 63A-3Ph
22M
2 x 15A + 1 x 63A-3Ph
2 x 15A + 1 x 63A-3Ph
25M
2 x 15A + 1 x 63A-3Ph
2 x 15A + 1 x 125A-3Ph
30M
1 x 15A + 1 x 125A-3Ph
2 x 15A + 1 x 125A-3Ph
Super Yacht
1 x 15A + 1 x 200A-3Ph
1 x 15A + 1 x 250A-3Ph

S.E.Asia

Berth Size Minimum Recommended
10 - 12M
1 x 32A - 1Ph
2 x 16A - + 1 x 32A - 1Ph
15M
2 x 16A + 1 x 63A-1Ph
2 x 16A + 1 x 63A-1Ph
18M
2 x 16A + 1 x 63A-1Ph
2 x 16A + 1 x 63A-1Ph
20M
2 x 16A + 1 x 63A-1Ph
2 x 16A + 63A-1Ph
22M
2 x 16A + 1 x 63A-1Ph
2 x 16A + 2 x 63A-1Ph
25M
2 x 16A + 1 x 63A-1Ph
2 x 16A + 1 x 125A-3Ph
30M
1 x 16A + 1 x 125A-3Ph
2 x 16A + 1 x 125A-3Ph
Super Yacht
1 x 16A + 1 x 200A-3Ph
1 x 16A + 1 x 250A-3Ph
