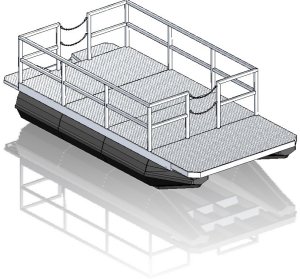

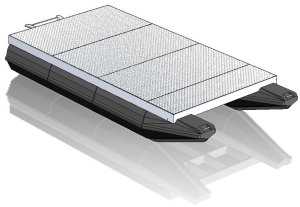

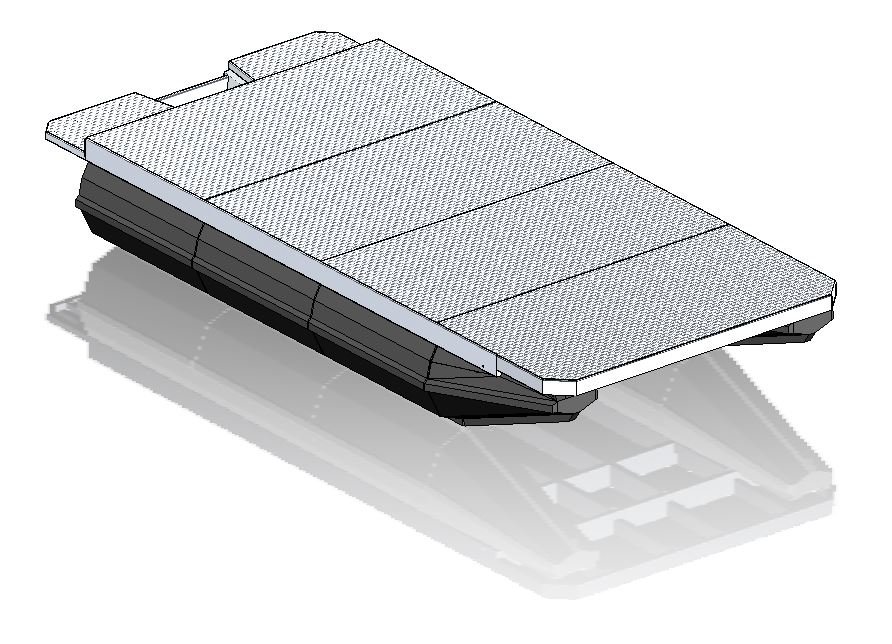

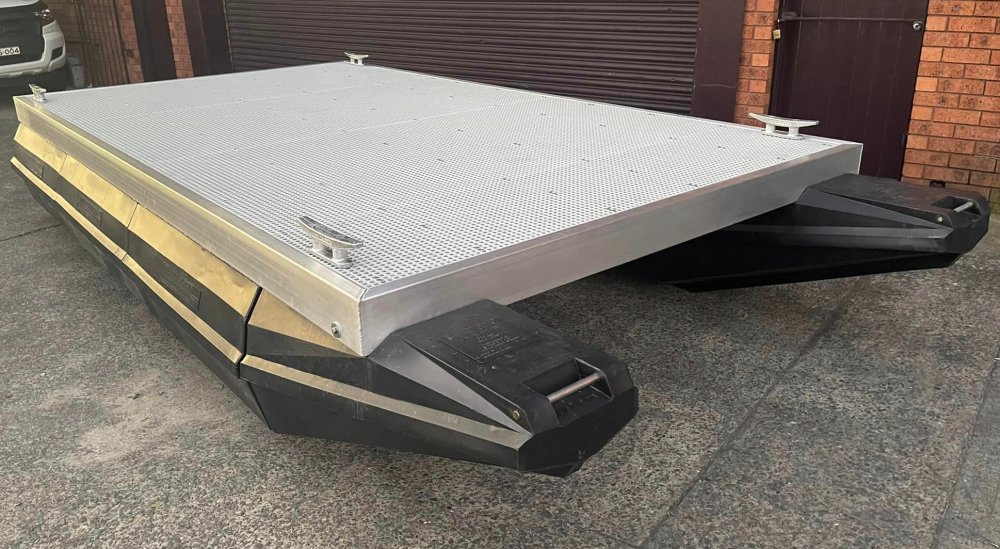

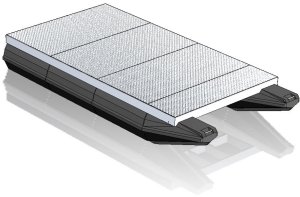

4.6 Metre Pontoon Boat (15 foot)
This pontoon boat is good for 1-4 people and is able to take upto 6 if a centre row of pontoons is added.
Marine Dock Systems has manufactured quite a few of these, good towing size!.
This model uses our 333 Litre floats and nose cones.
The 333 Litre floats will support 150kgs each.
Pontoon modules are moulded in one piece from tough, high stress crack-resistant, thermoplastic polyethylene resin. In built mounting lugs allow direct connection of the modules to the frame work system.
Floats are food grade and can be used for drinking water or waste storage.

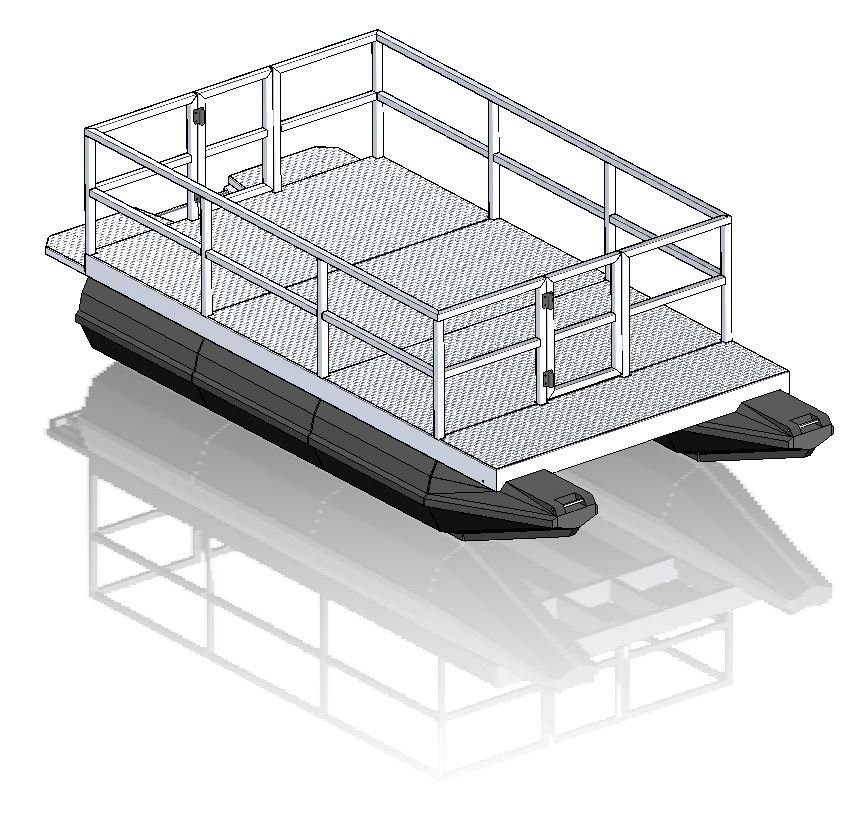

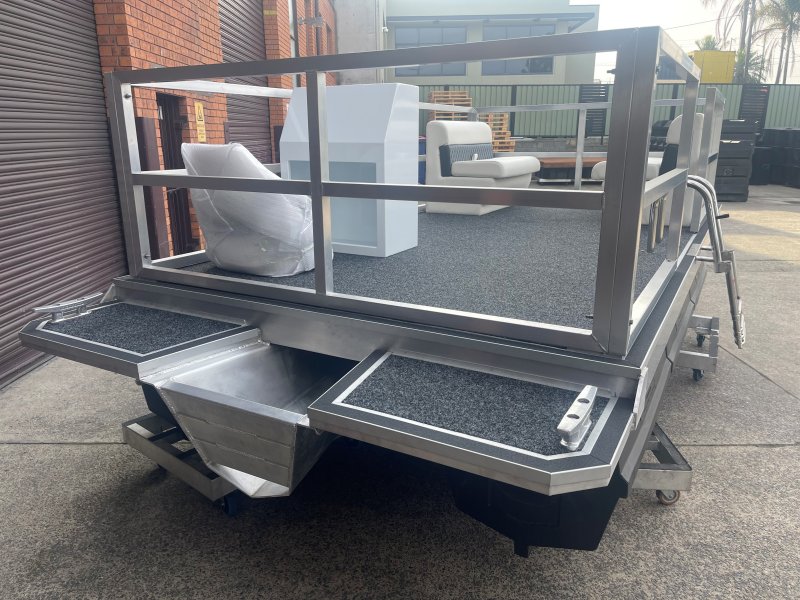

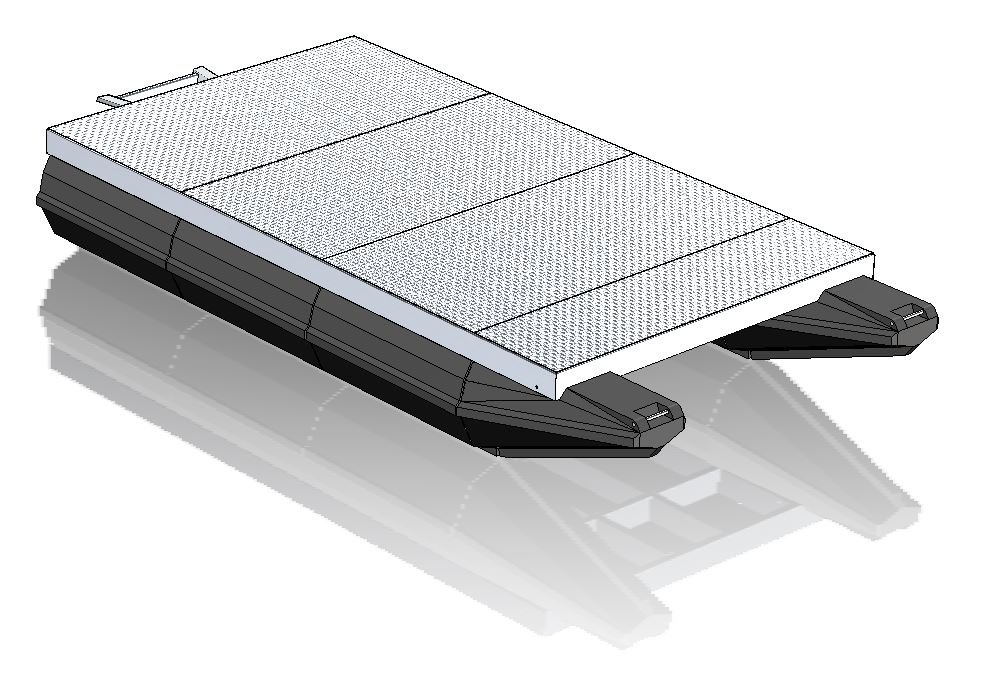

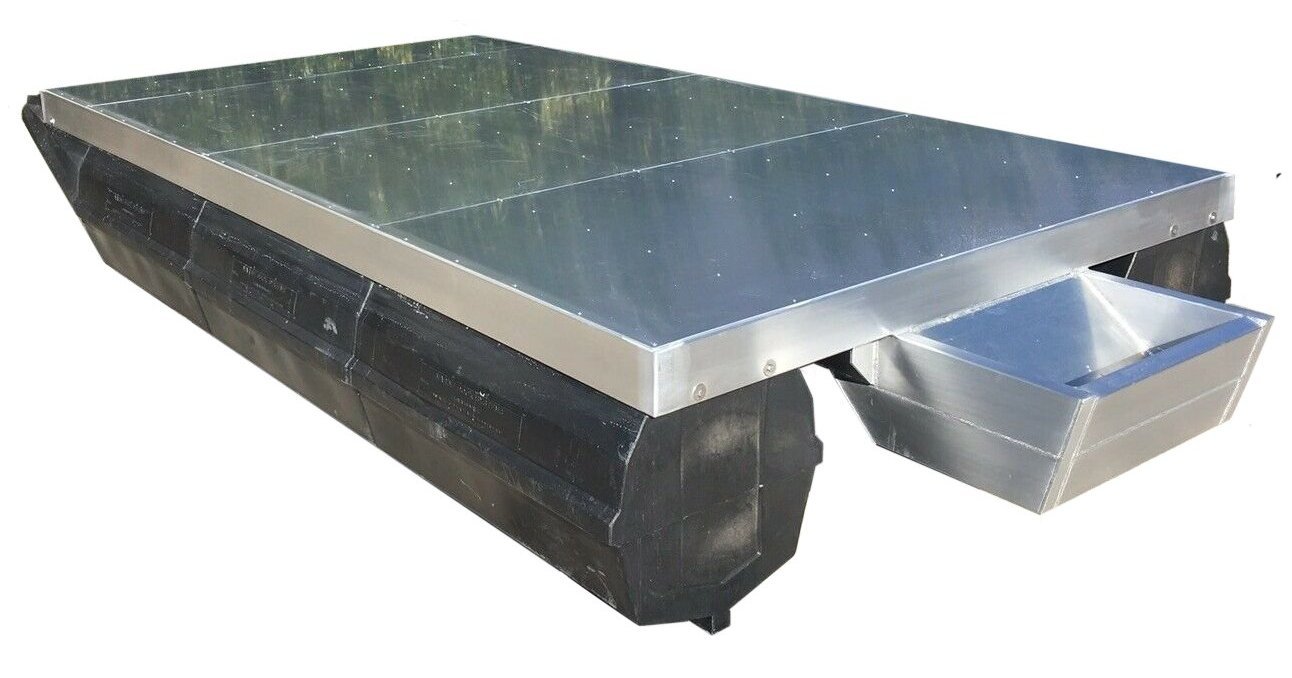

Extra available include motor bracket, carpet,

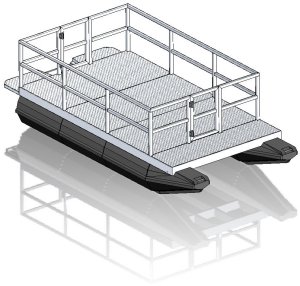

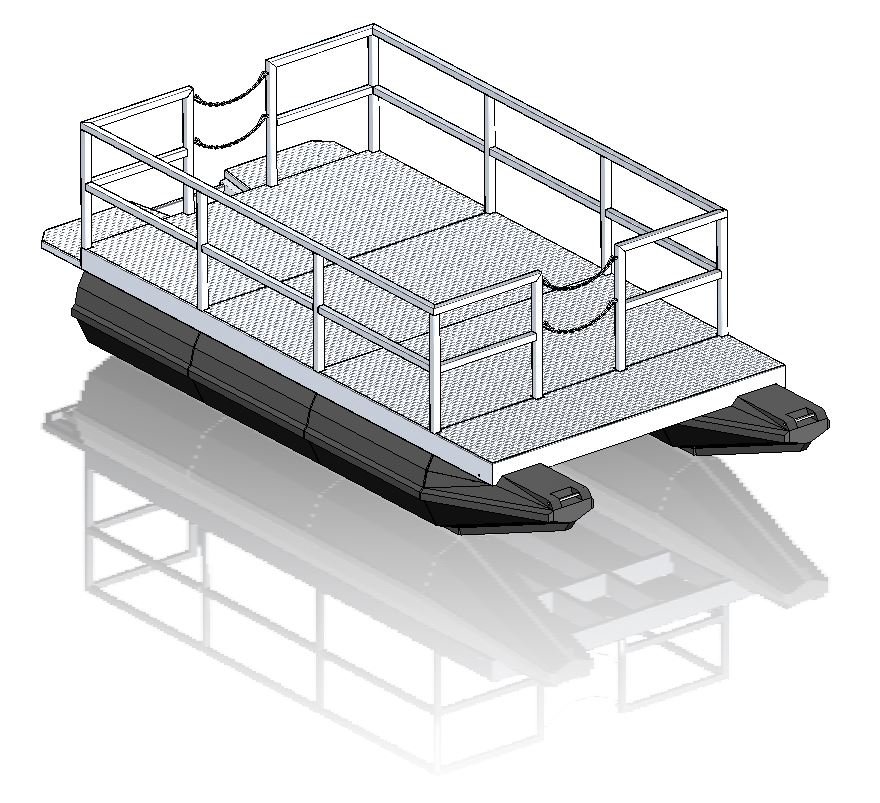

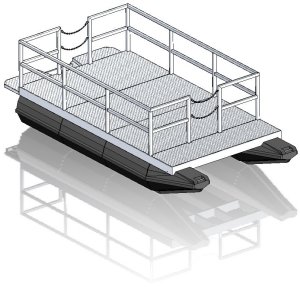

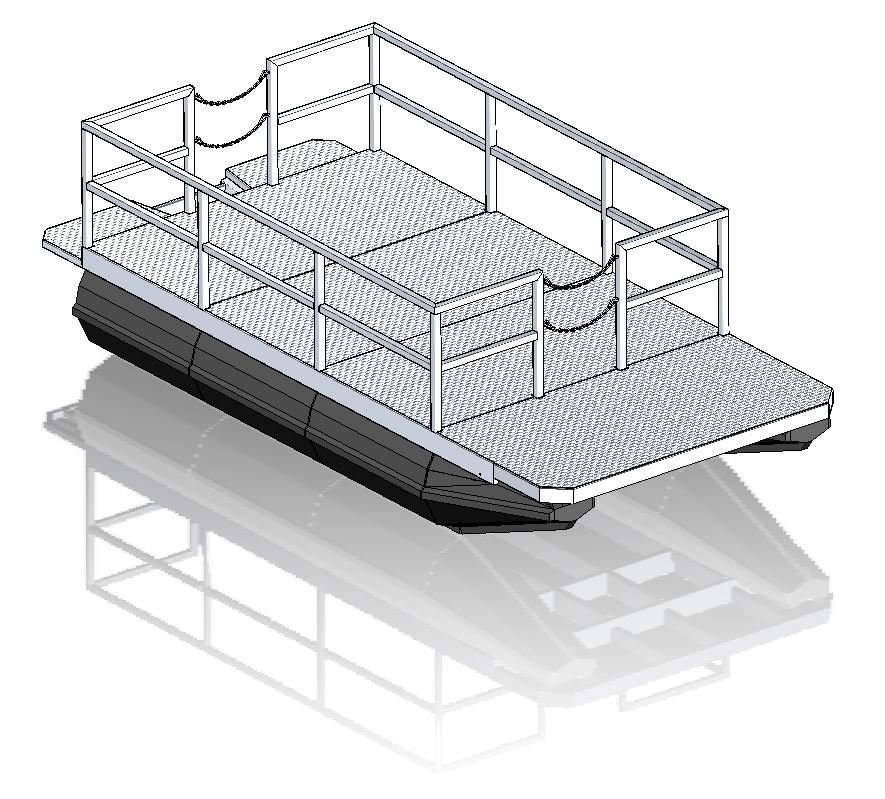

mooring cleats, handrails with gates, hardtop roof, steering wheel console.
individual floats are also available and can be purchased separately
 PDF Price List
|

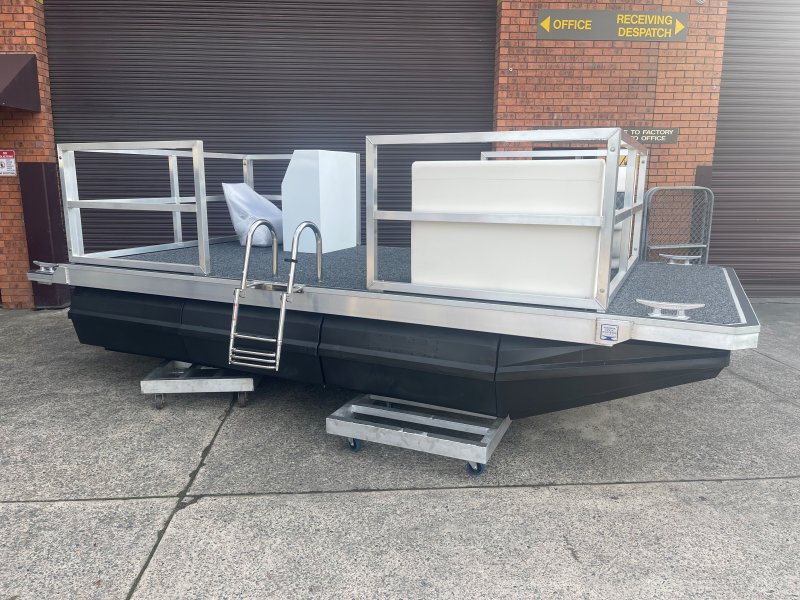

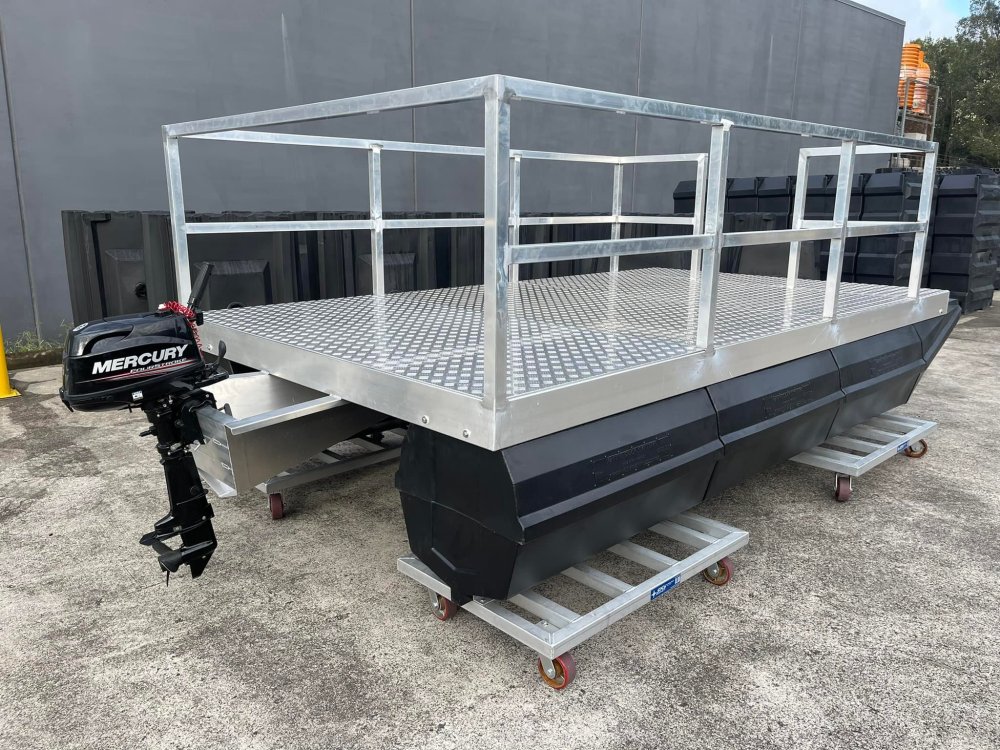

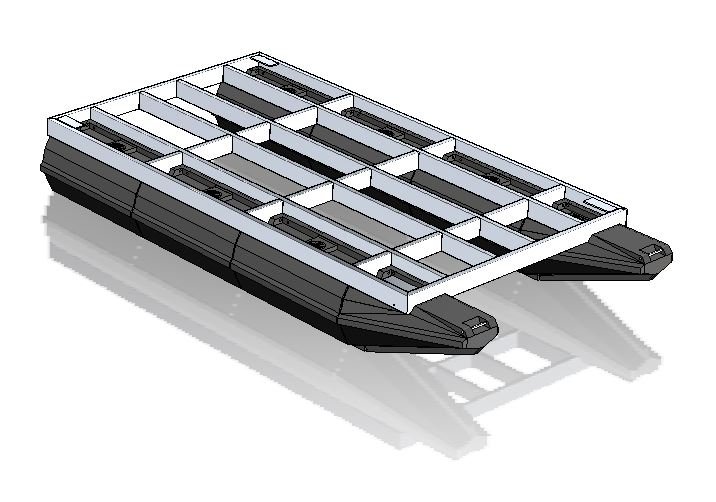

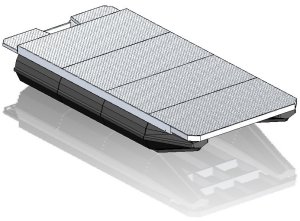

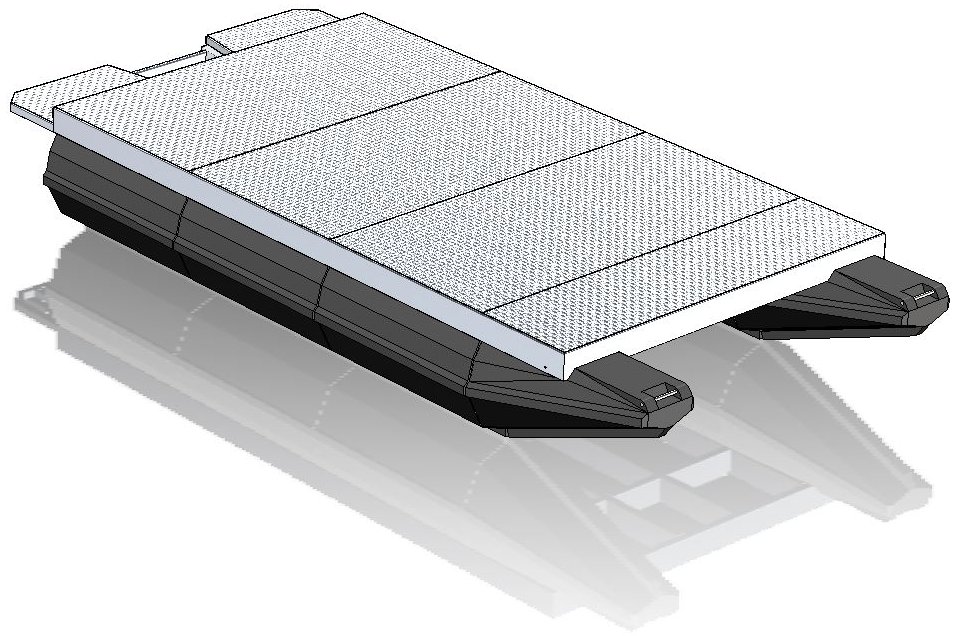

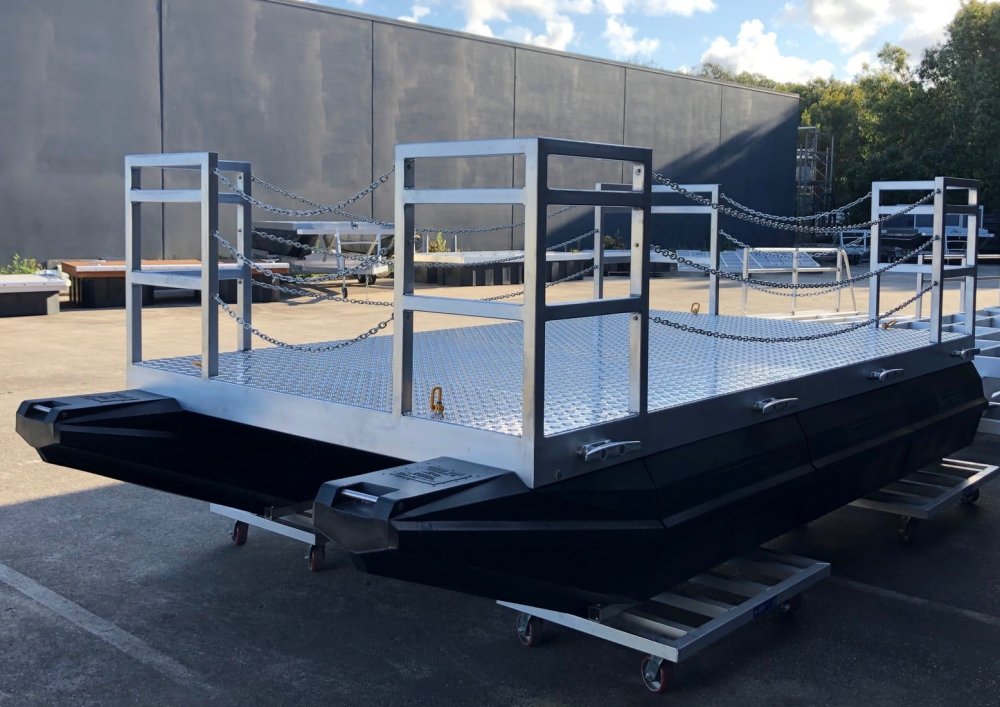

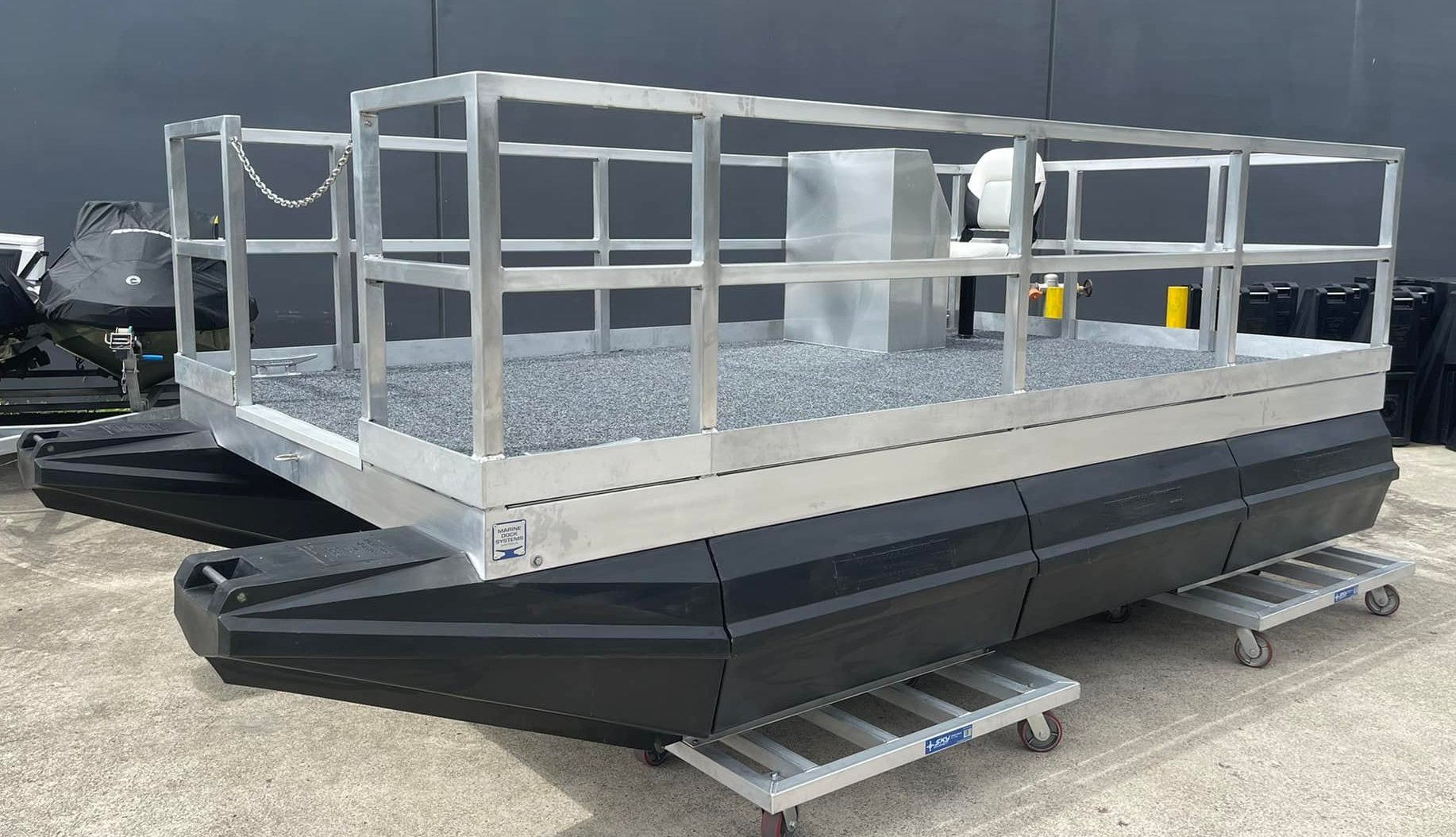

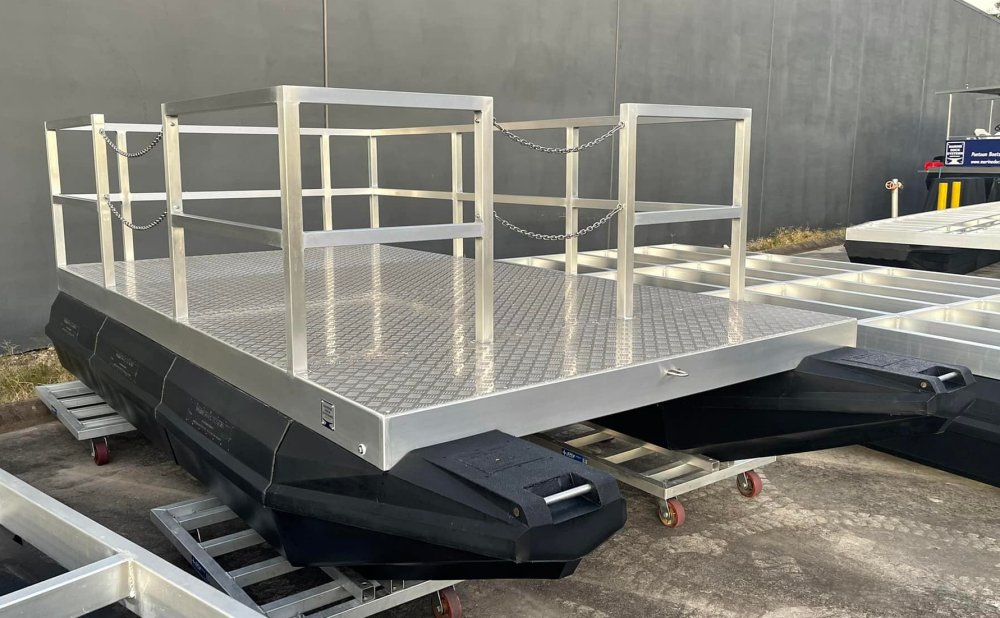

 4.6 Pontoon Boat - Custom Picture
4.6 Pontoon Boat - Custom Picture
4.6 Pontoon Boat - Custom Picture
 YouTube Channel
|

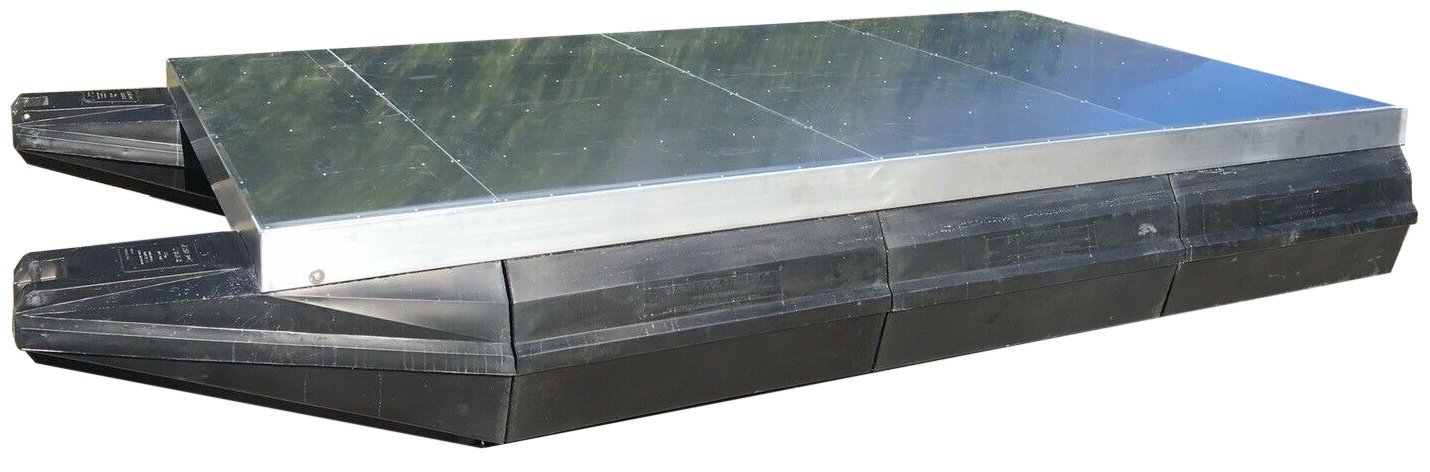

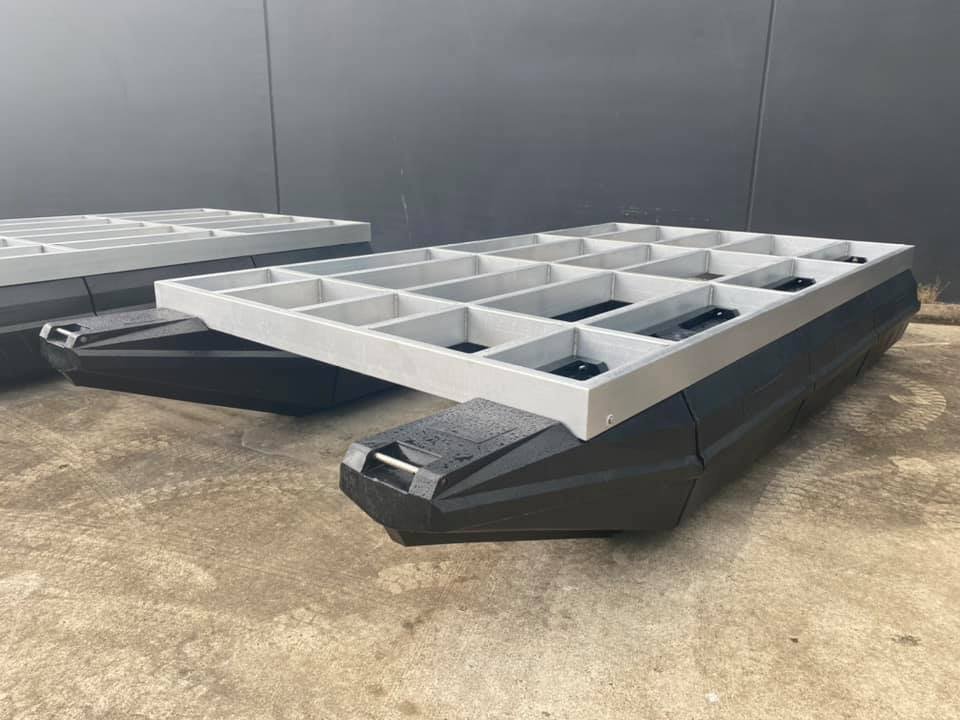

Option 1

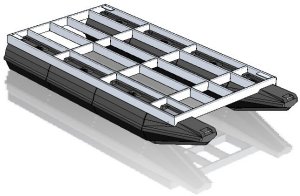

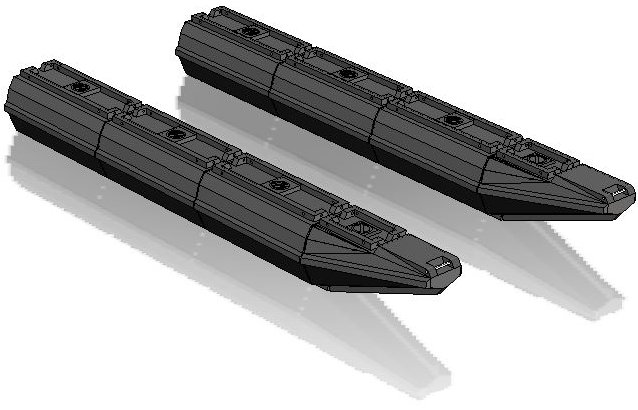

Pontoon hulls
Floats and fasteners
4.6 Mrs Long (15 feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
4 x M10 x 120mm 304 SS bolts
12 x M10 x 170mm 304 SS bolts
20 x M10 304 SS nyloc nut
40 x 3/8" X 1-1/2" 304 SS washer |
 | |

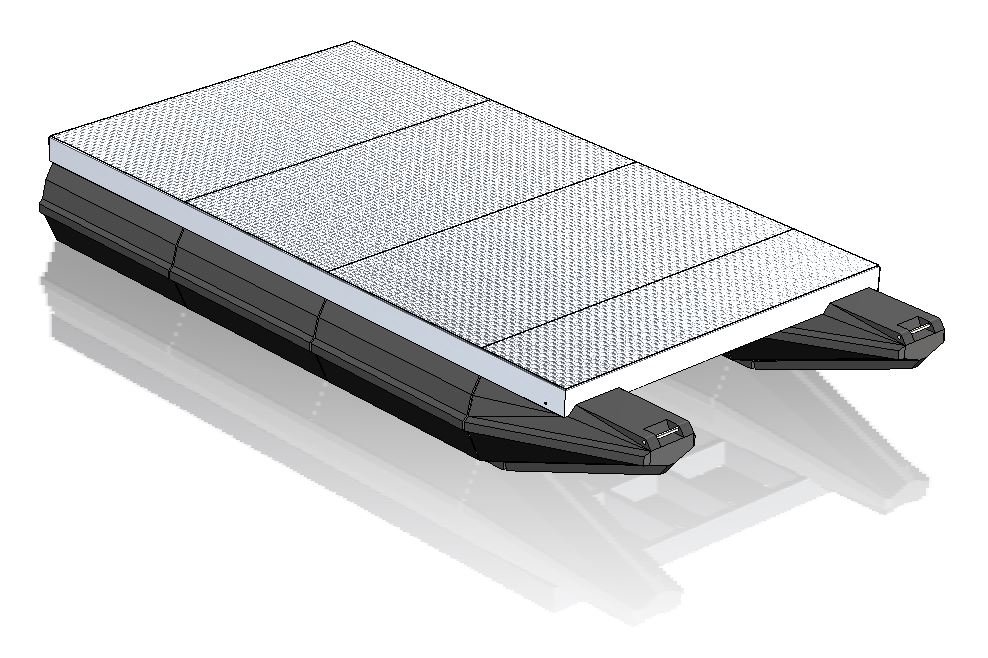

Twin Hull
Approximate
Total weight 184kg
Max Load 900kg
Tri Hull
Approximate
Total weight 276kg
Max Load 1350kg
PDF Price List
|
|

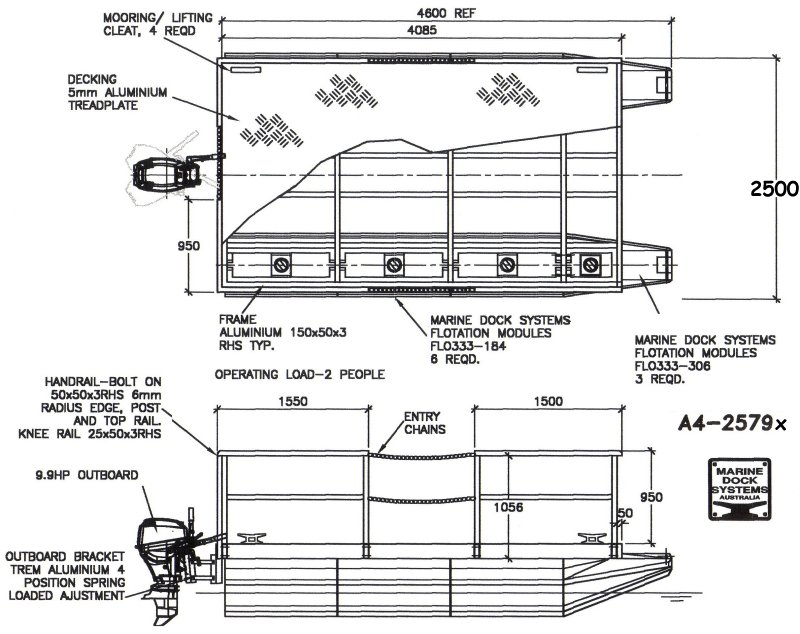

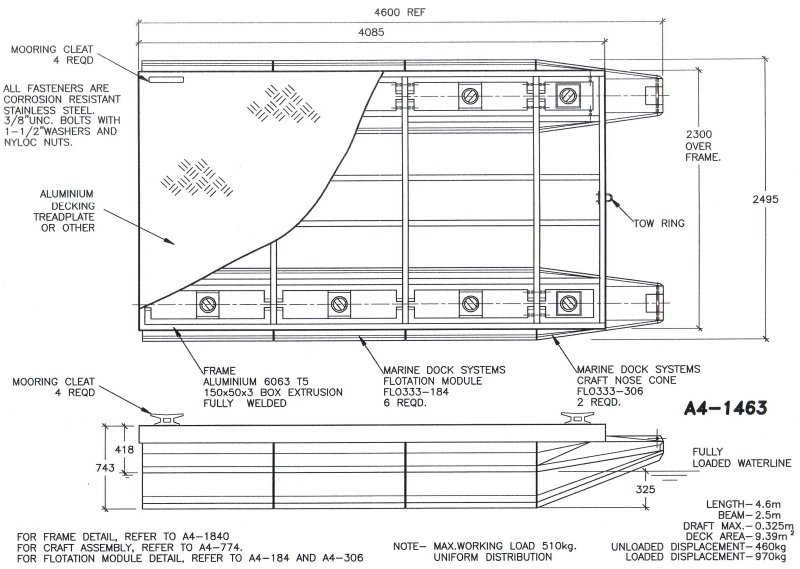

Drawings
 333 Litre Float
Nose Cone
|
Optional extra's
Centre row of floats (adds 450kg payload)
3 x 333 Litre Floats
1 x Nose Cone
4 x M10 x 120mm Stainless Steel Bolts
6 x M10 x 170mm Stainless Steel Bolts
10 x M10 Nyloc nuts stainless steel
20 x 3/8 x 1"1/2 304 stainless steel washers |
|
 |
Grey Marine carpet
UV Stabilsed polypropylene
32 x 32mm alloy angle
Countersunk alloy rivets |
|
 |
Mooring cleats 300mm
cast aluminium
with stainless steel fastners
1/2 inch stainless steel bolts
More info... |
|
 |
Aluminium edging with grip tape
Countersunk alloy rivets |
|
 |
Fishing rod holders stainless steel
with stainless steel fastners
|
|
 |
Folding stainless steel ladder
Fold down with telescopic treads
with stainless steel fastners |
|
 |

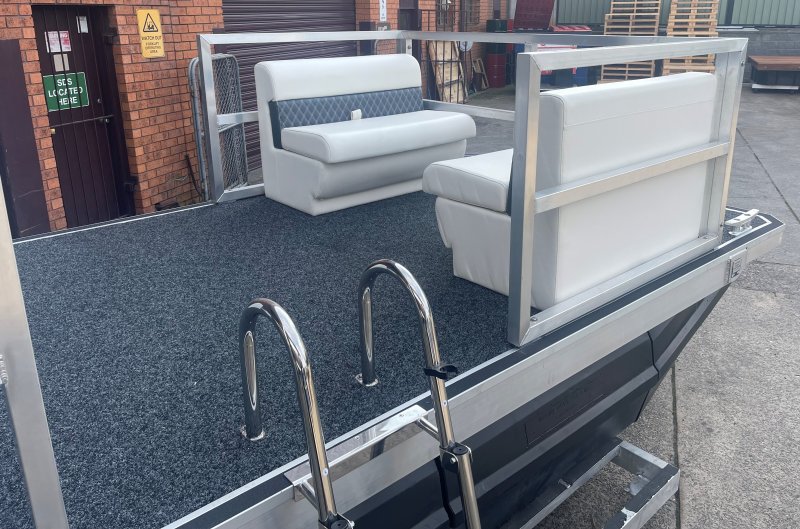

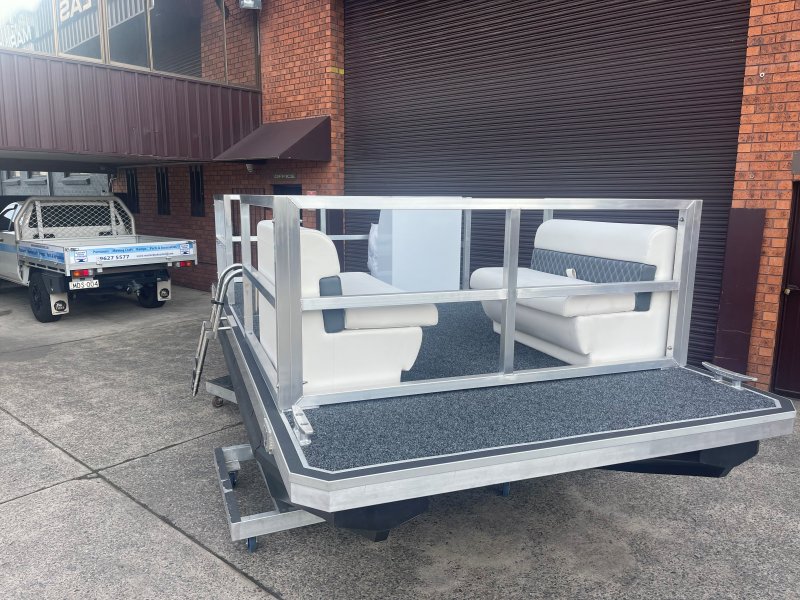

Pontoon Boat Furniture
Upholstered pontoon boat lounges. Our extra comfortable range includes Large straight lounge, meduim and small. Our pontoon seating is manufactured using polyethylene roto moulded bases which can handle extreme outdoor conditions, upholstered in heavy duty vynil. Lounges have lift up seats for storage, great for stowing away life jackets and more.
Click Here for details
|
|
 |

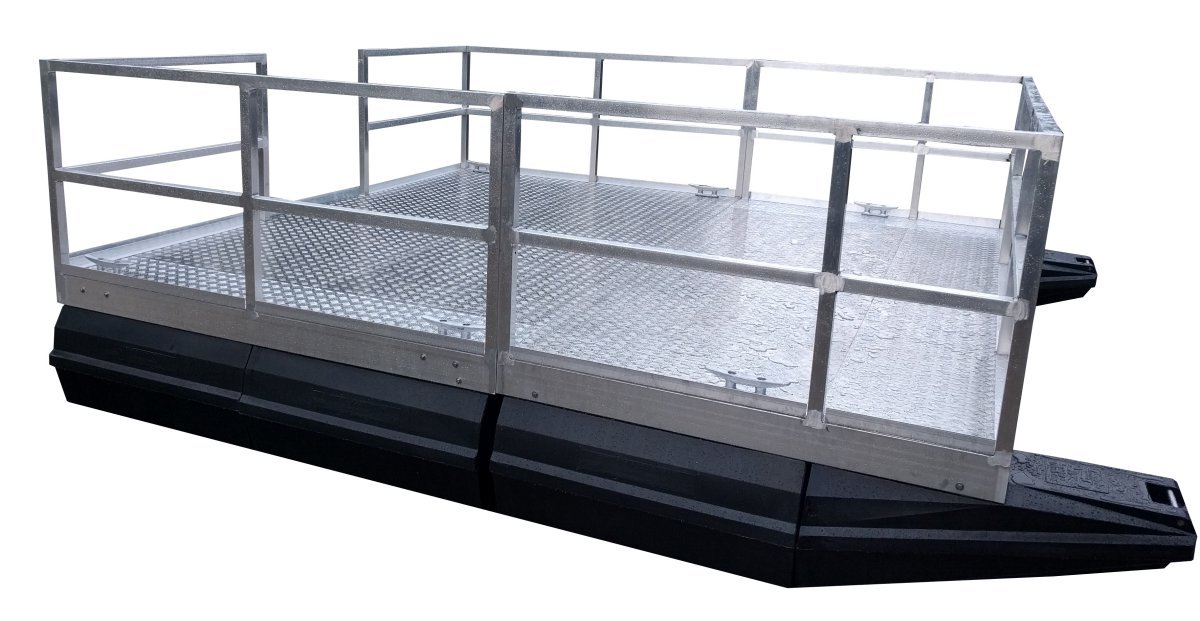

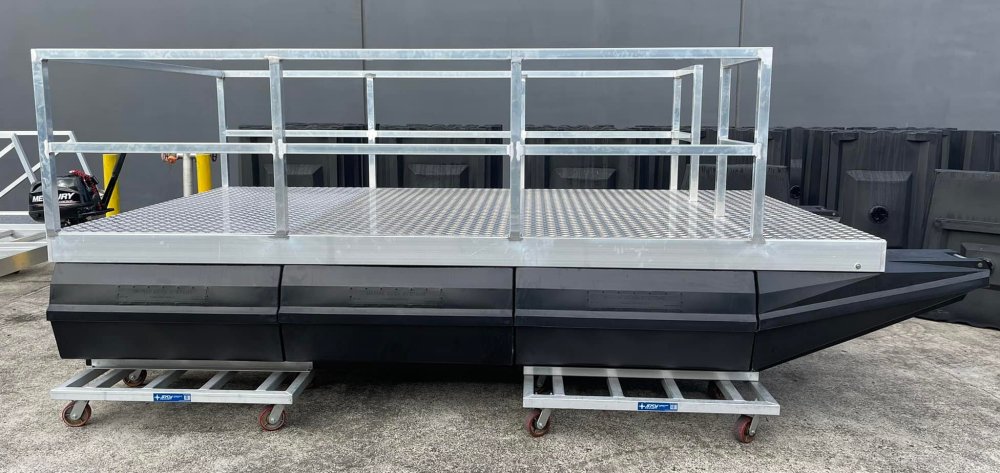

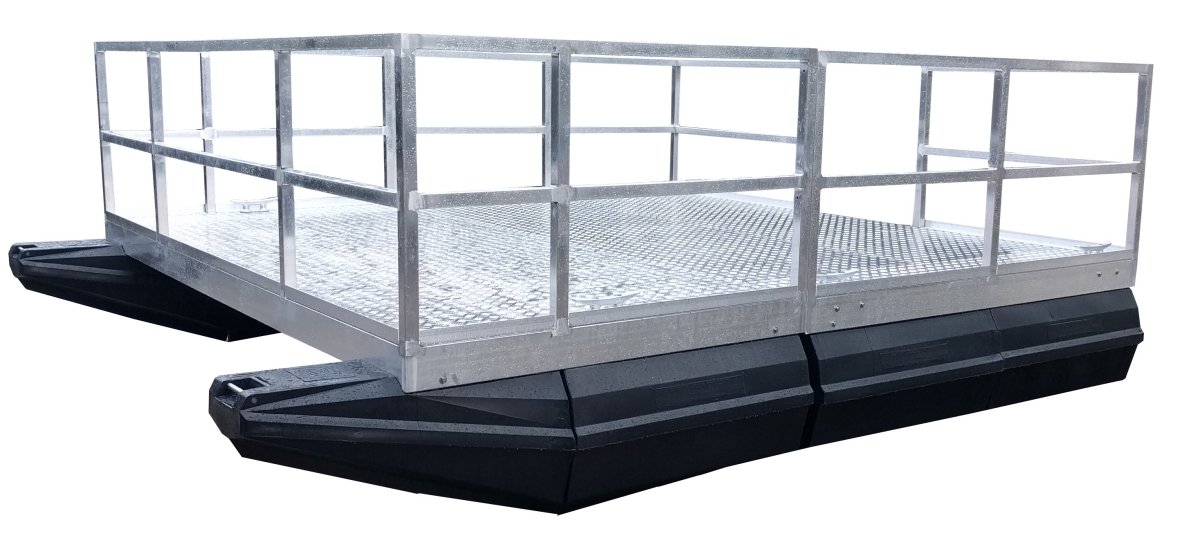

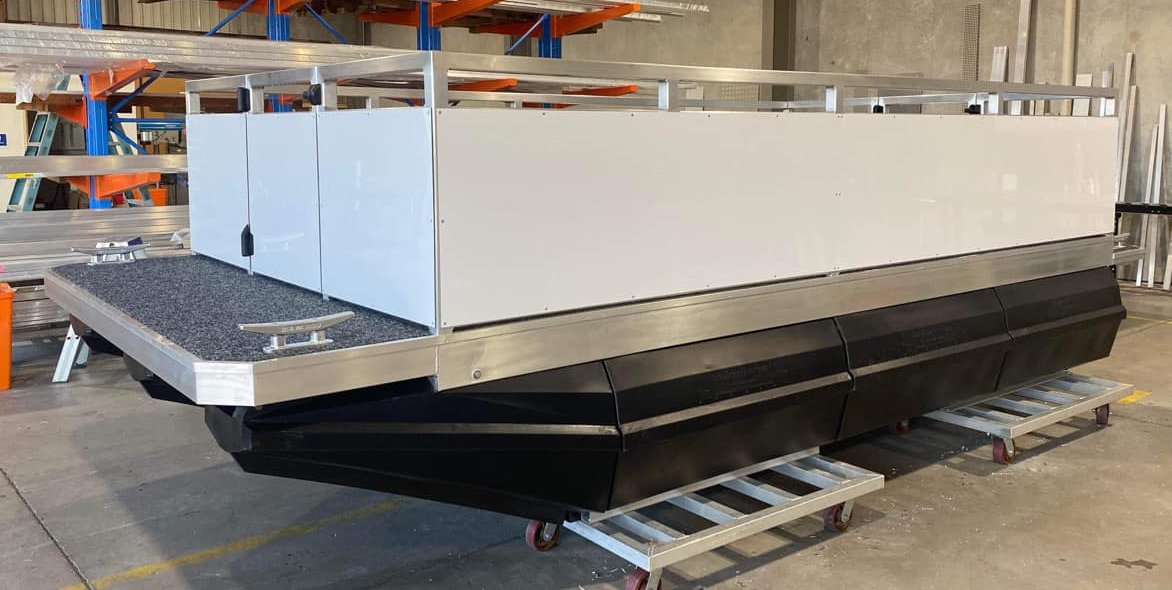

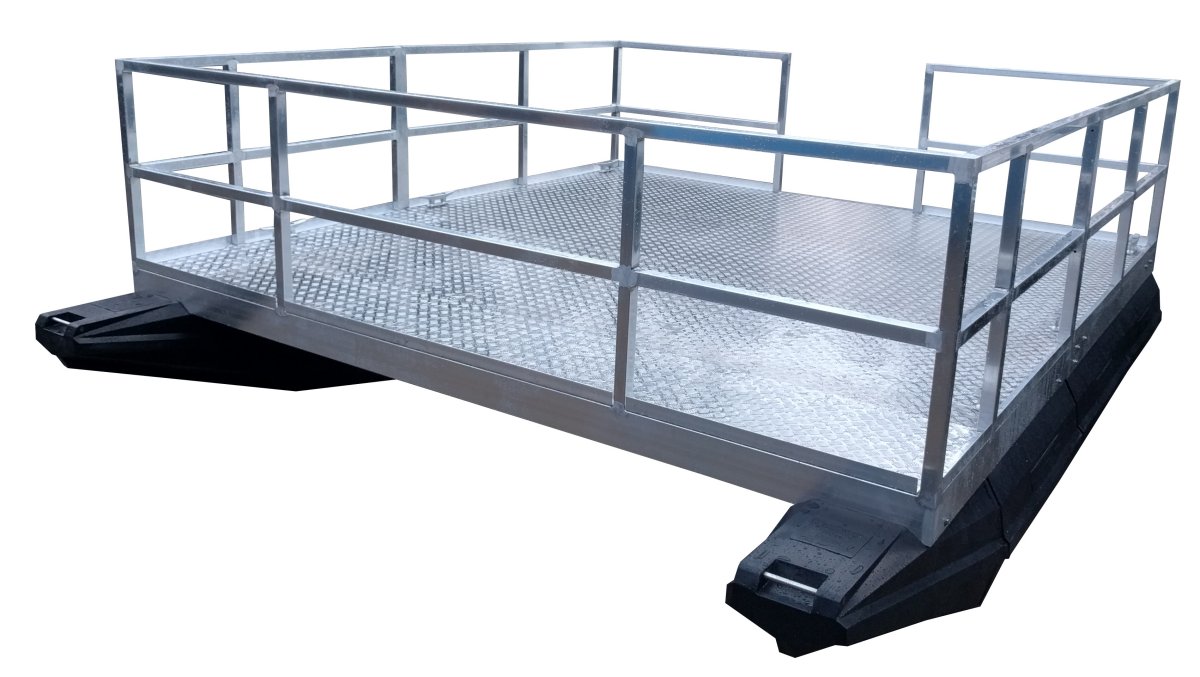

Custom extra wide work platform, full alloy decking and handrails. Made in two section for ease of transport.
Industrial Boats
This pontoon boat was manufactured to service a fresh water
dam. It is used to gain access to overflow screens for cleaning.
With customers such as Sydney Water, SA Water, The Australian
Submarine corporation, Australian Defense Force and many
local Australian councils. These pontoons are made to last,
we have been manufacturing these since the early 1980's
and have already proved themselves time and time again.
|
|
|
 |
|

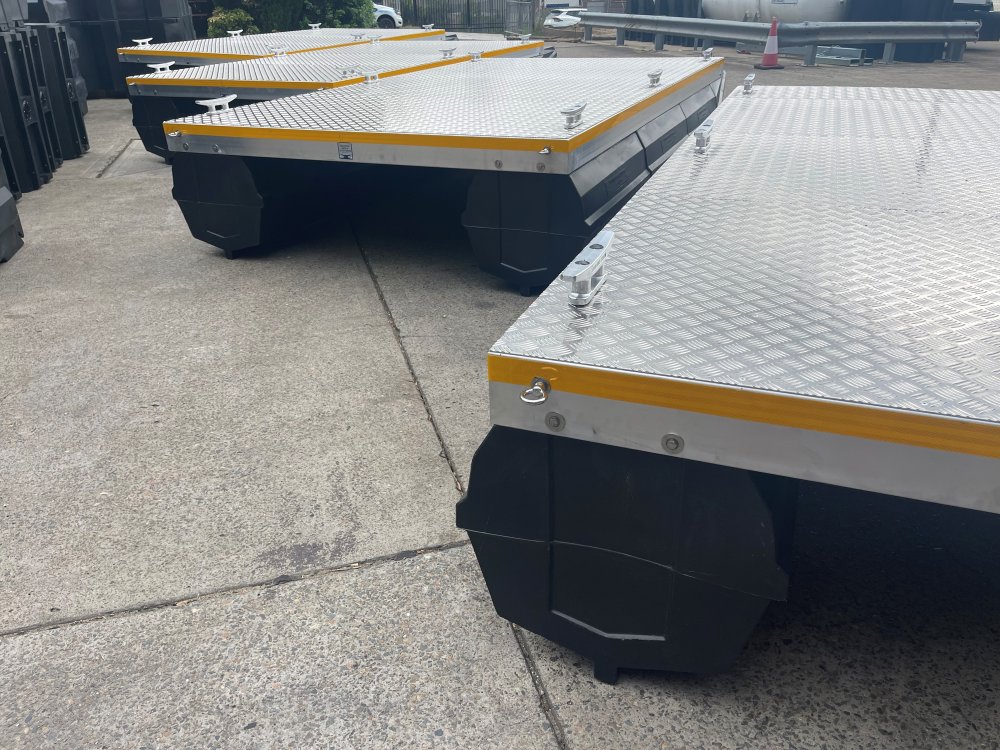

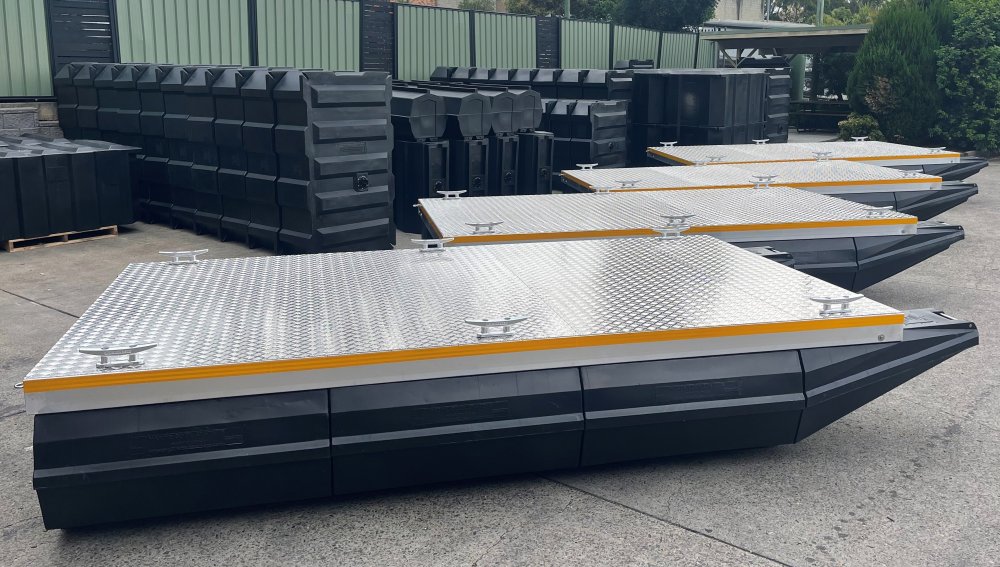

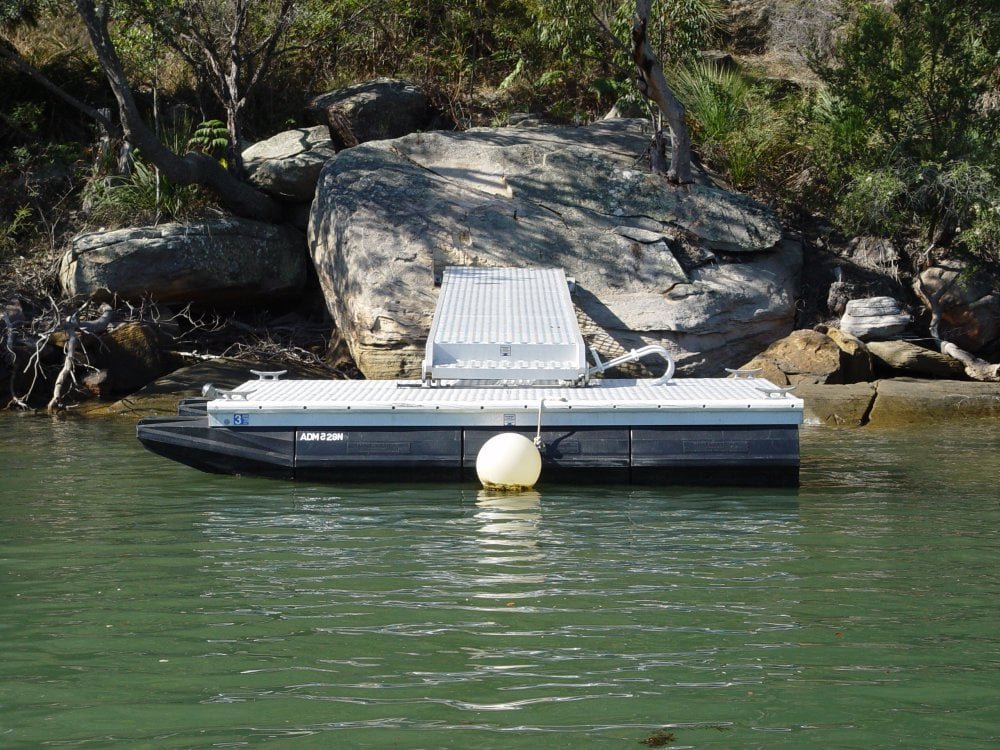

Boat Pontoon
This 4.6 mtr pontoon boat is used as a standard access dock when not in use. Supplied with hinge lugs on the side for a 6 x 1.2 wide meter ramp to be attached. |
|
 |
|
|
| |
