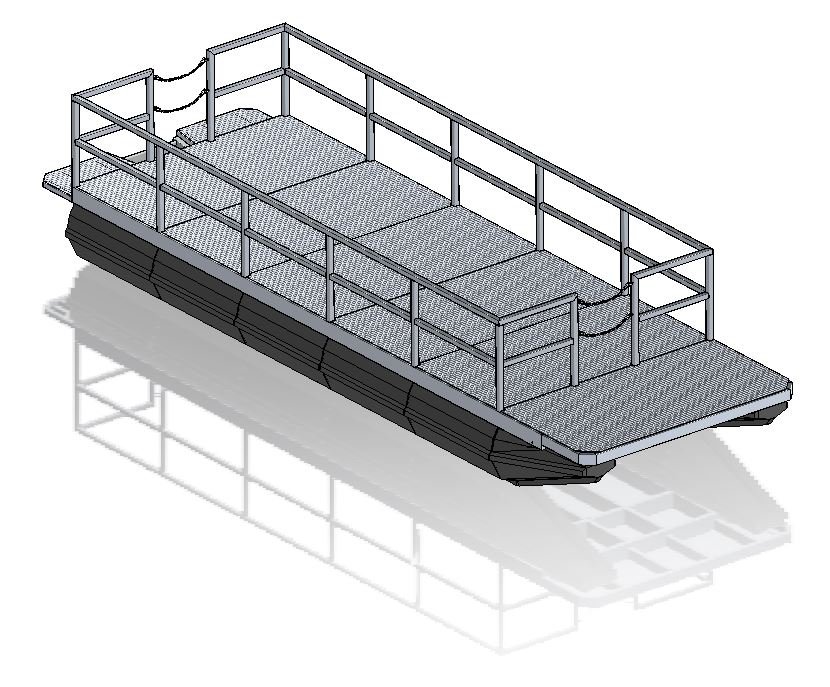

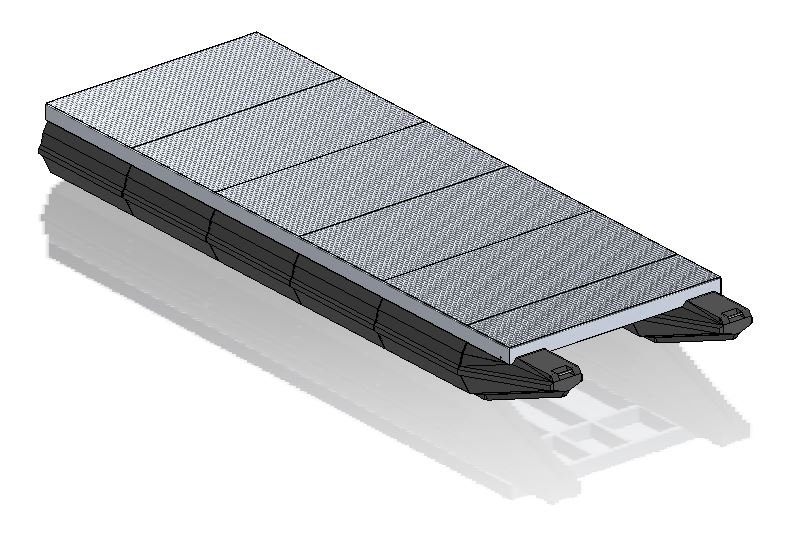

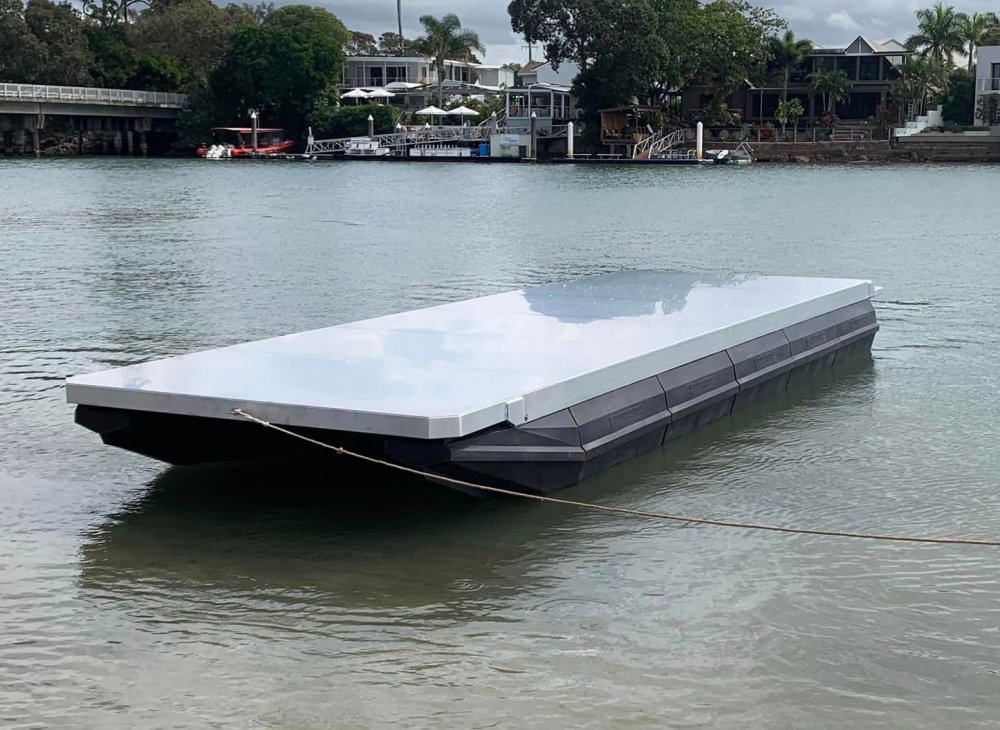

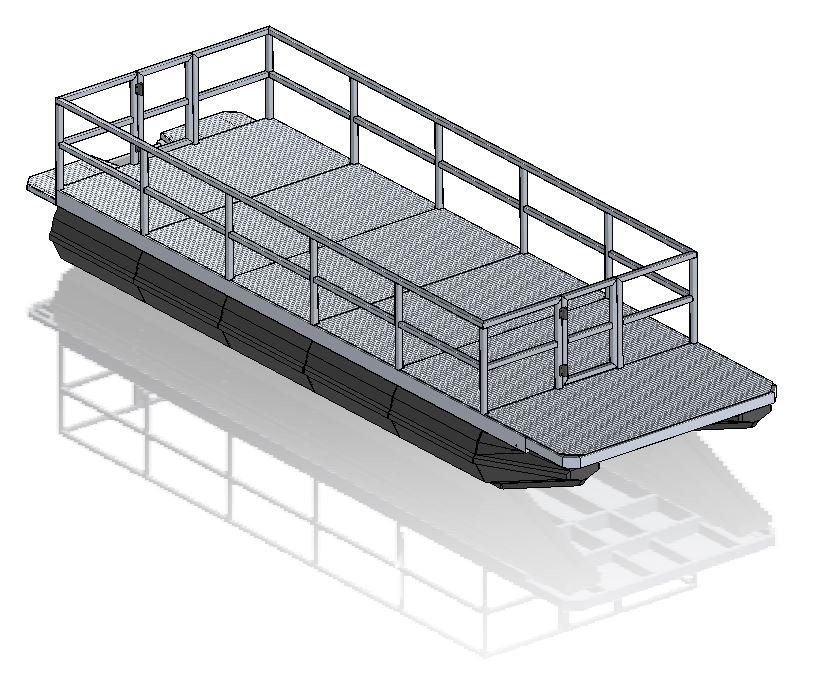

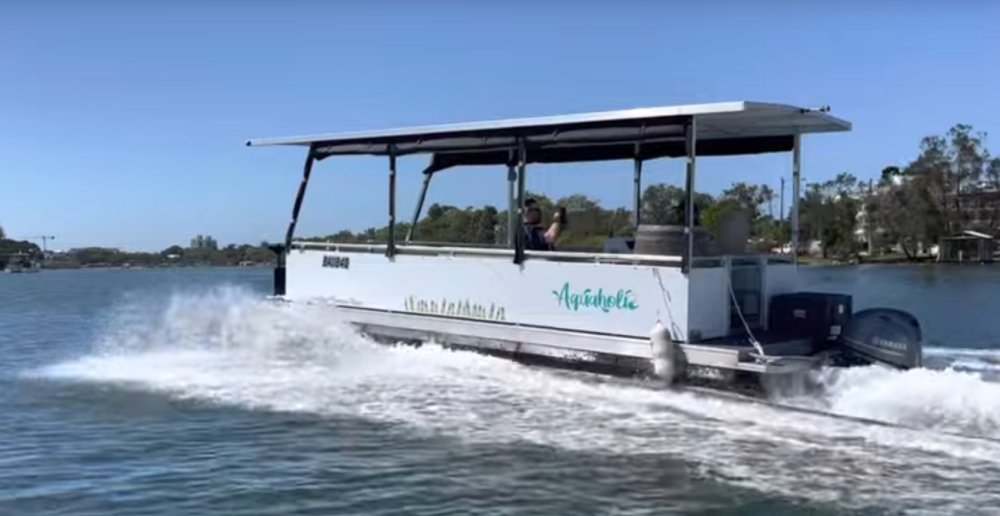

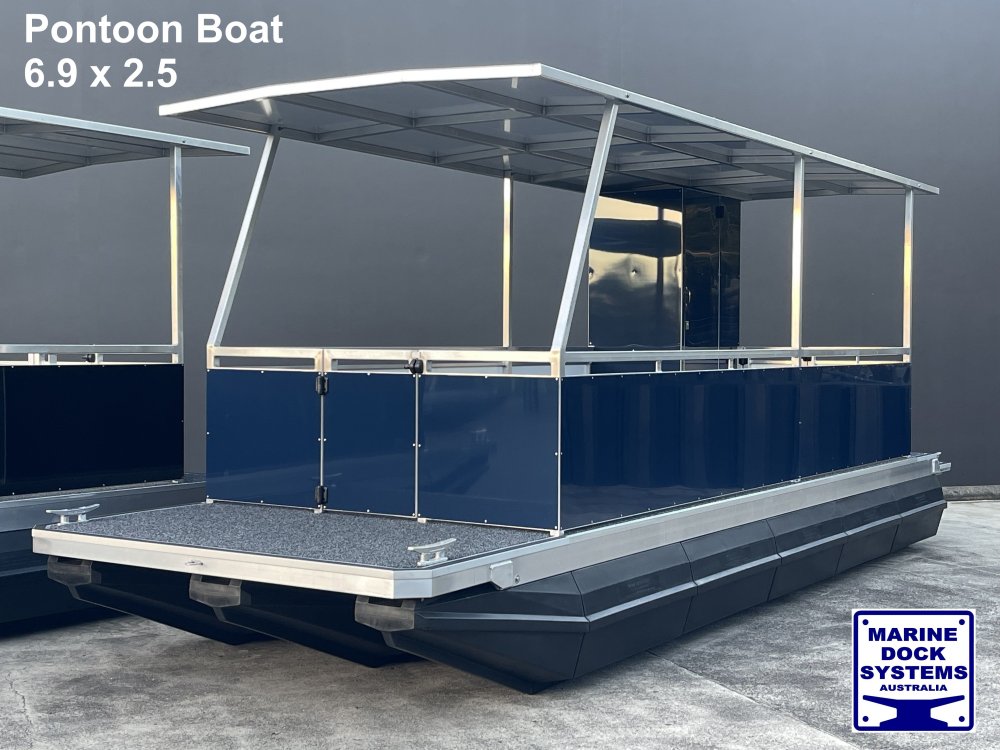

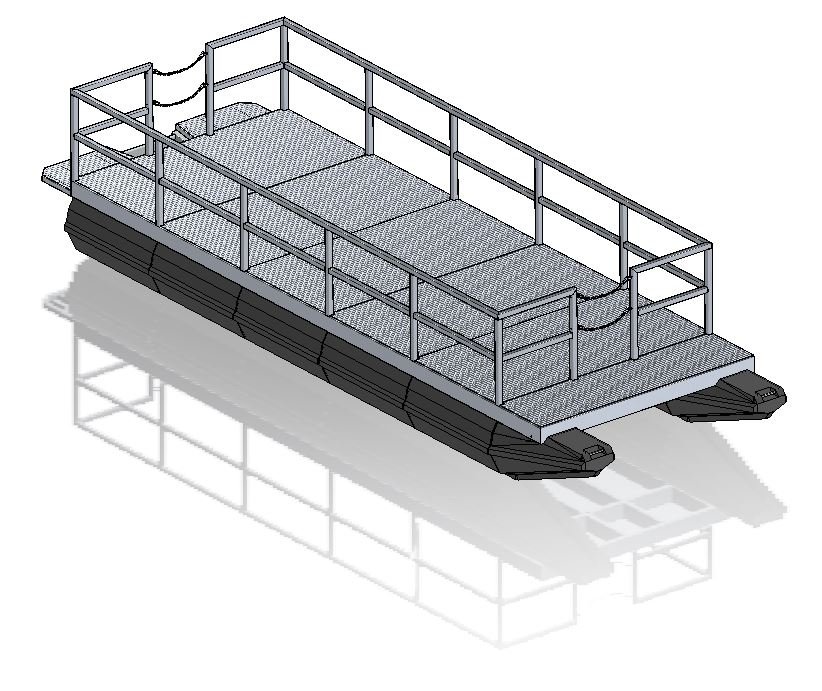

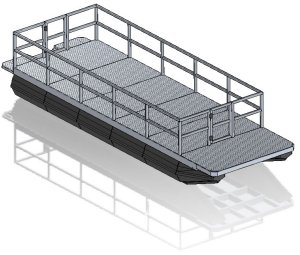

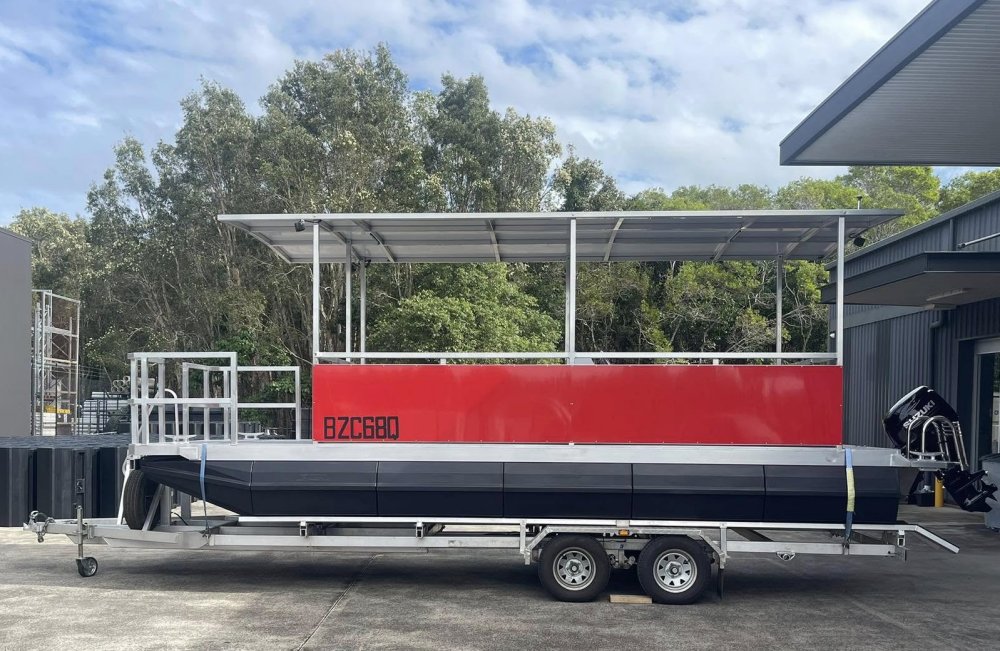

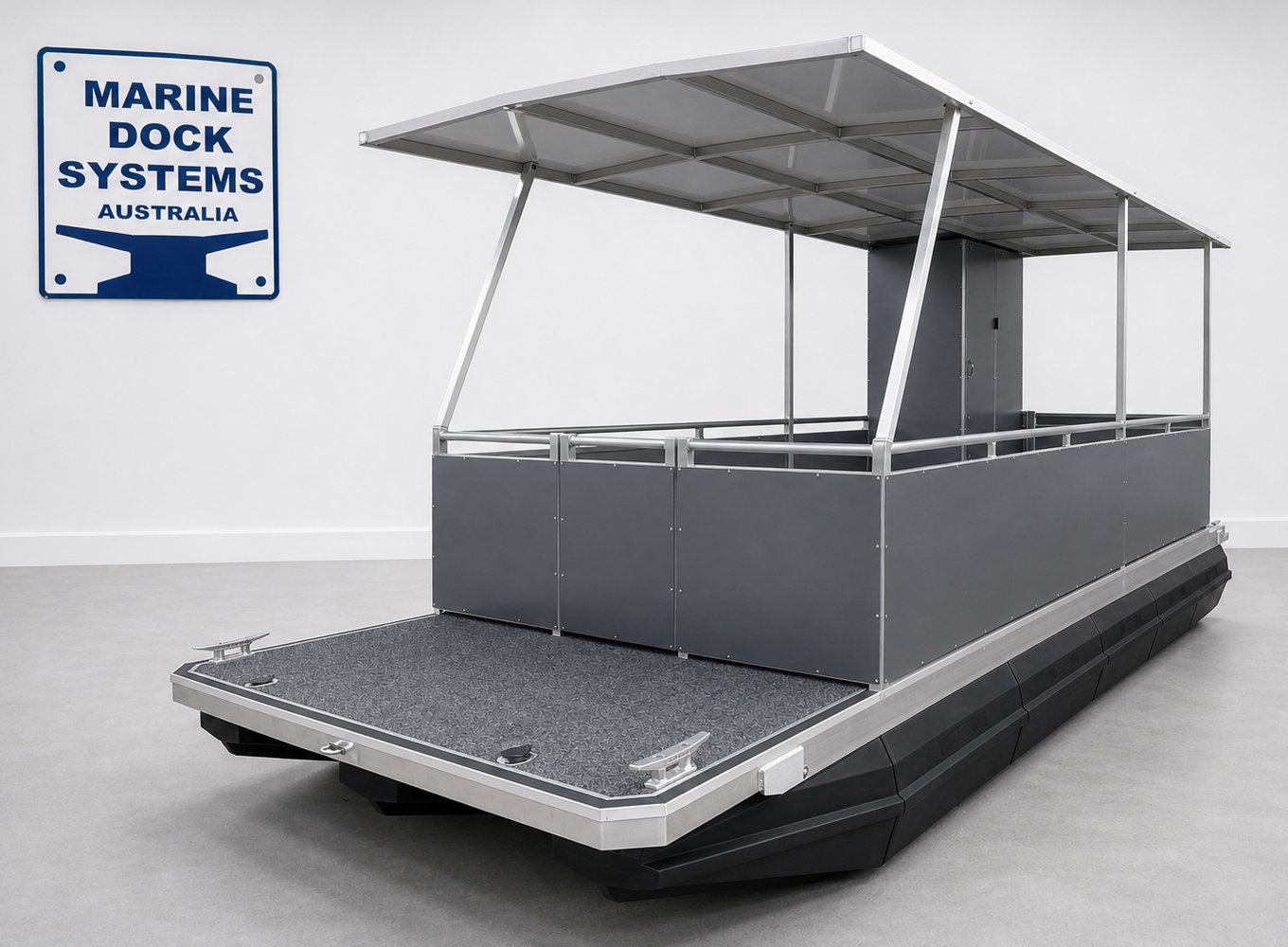

6.9 Metre Pontoon Boat (23 feet)
Our most popular size pontoon boat.
This pontoon boat is good for 1-10 people and is able to take upto 14 if a centre row of pontoons is added.
This model uses our 333 Litre floats and nose cones.
The 333 Litre floats will support 150kgs each.
Pontoon modules are moulded in one piece from tough, high stress crack-resistant, thermoplastic polyethylene resin. In built mounting lugs allow direct connection of the modules to the frame work system.
Floats are food grade and can be used for drinking water or waste storage.

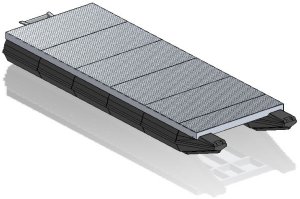

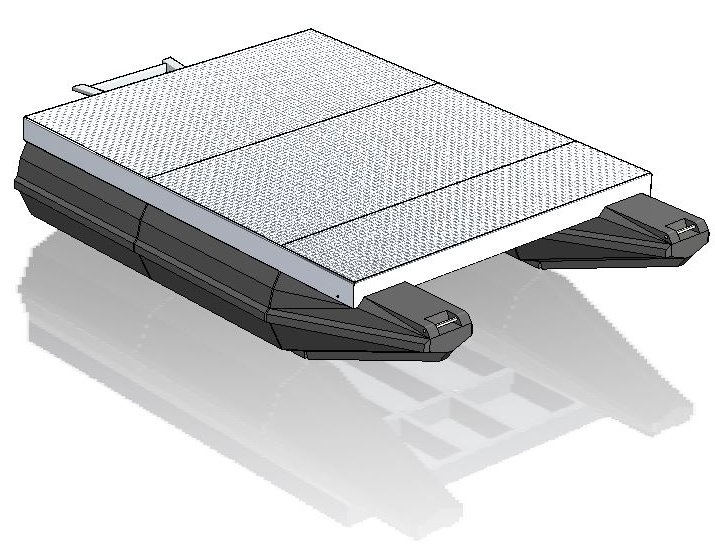

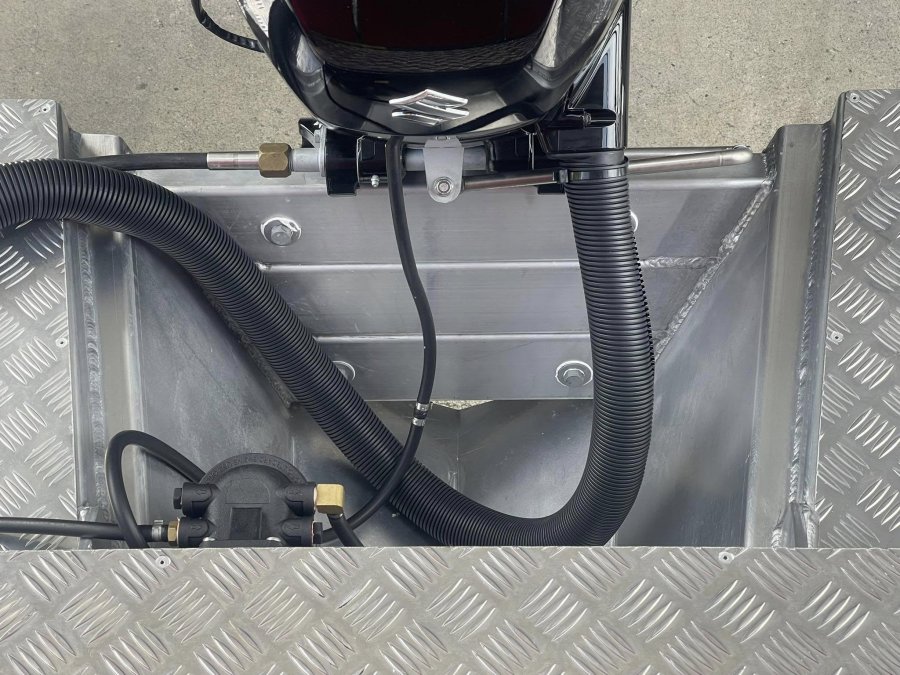

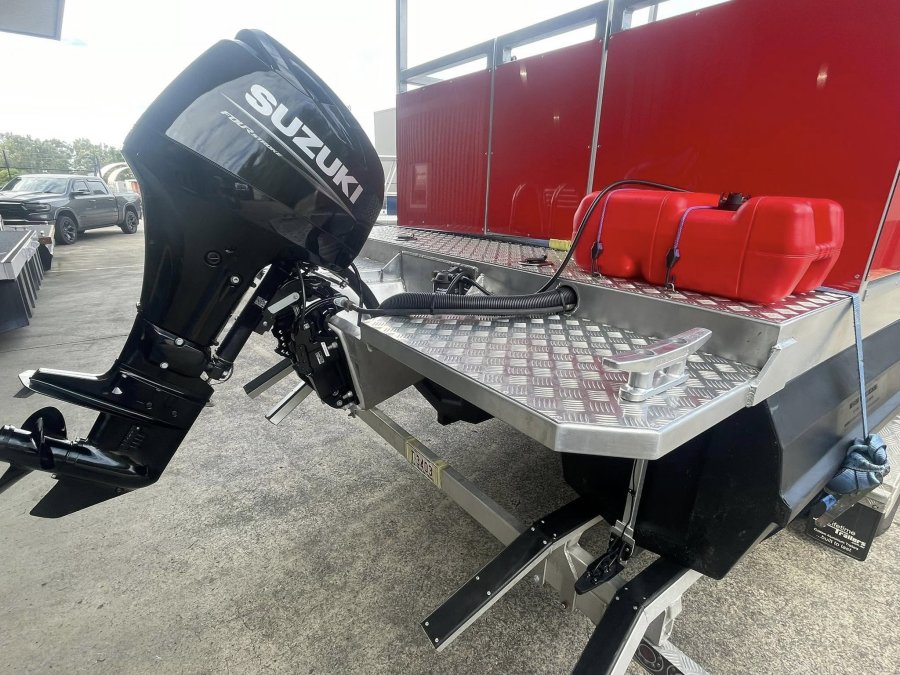

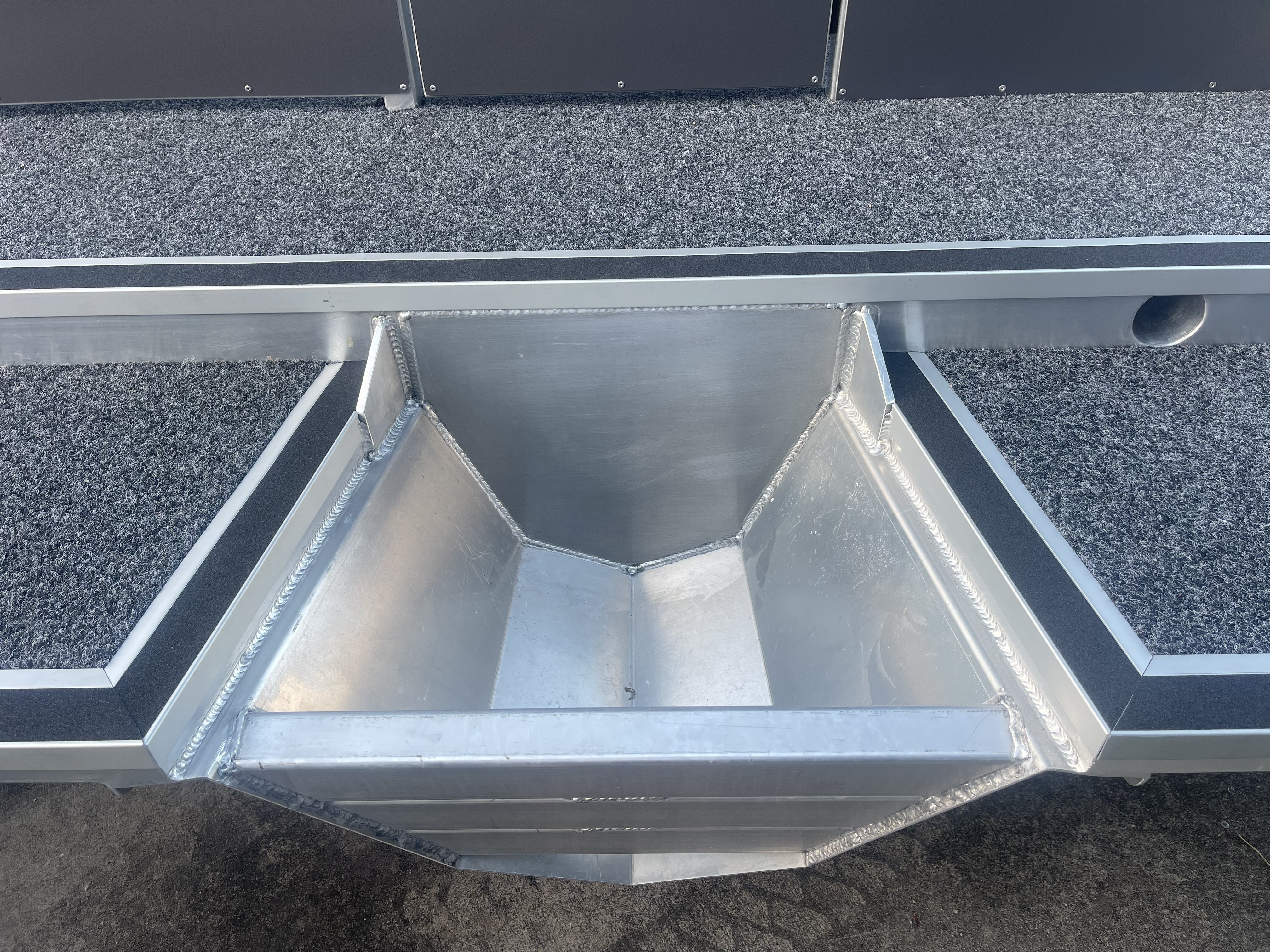

Extra available include motor bracket carpet,

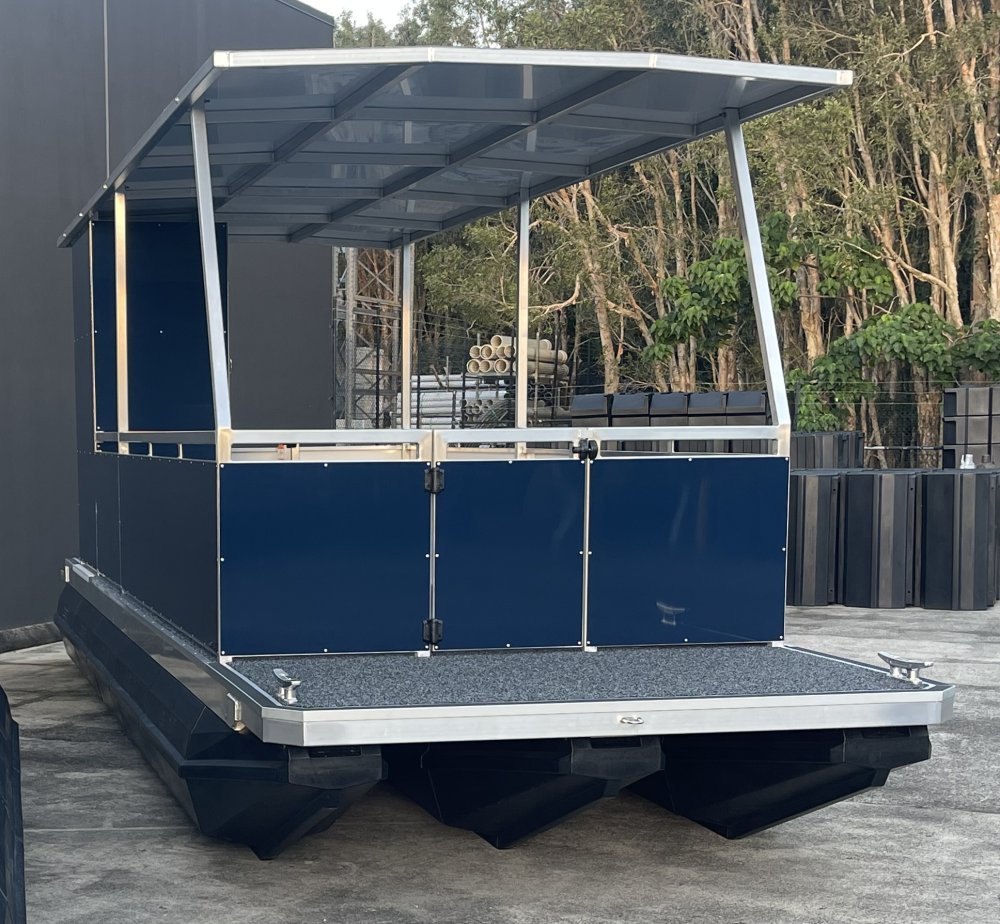

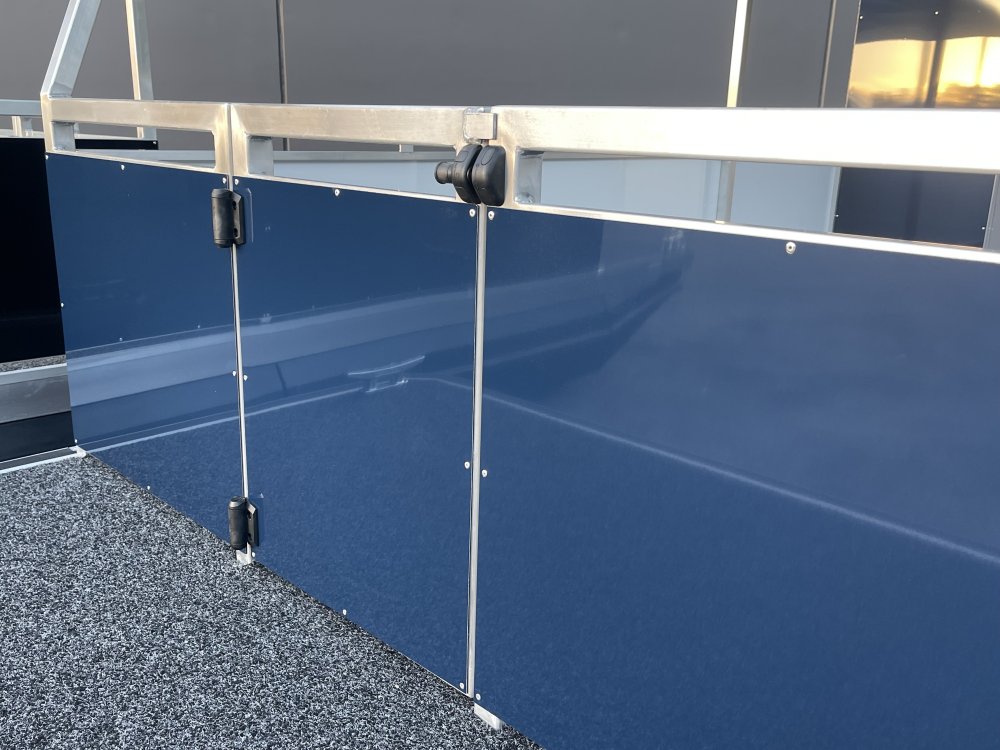

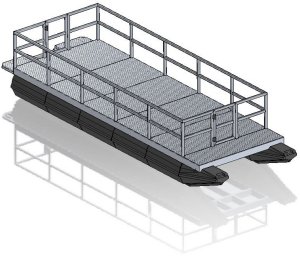

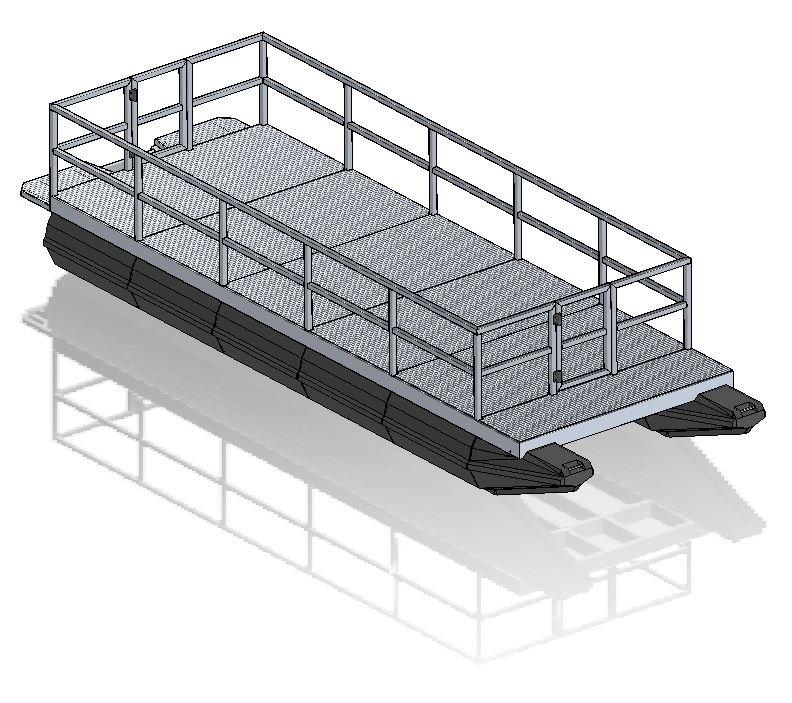

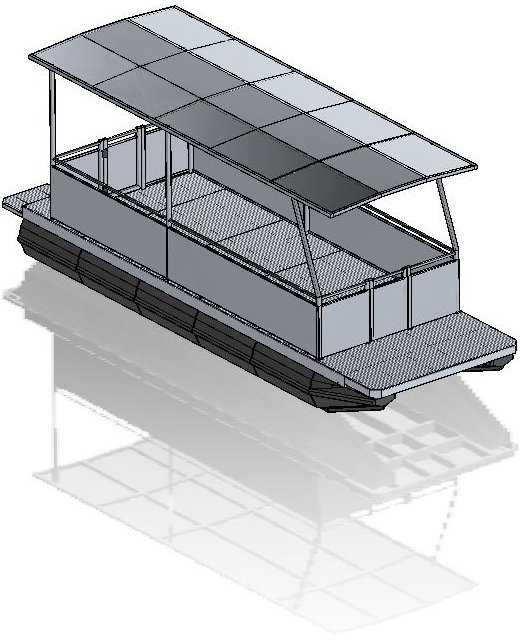

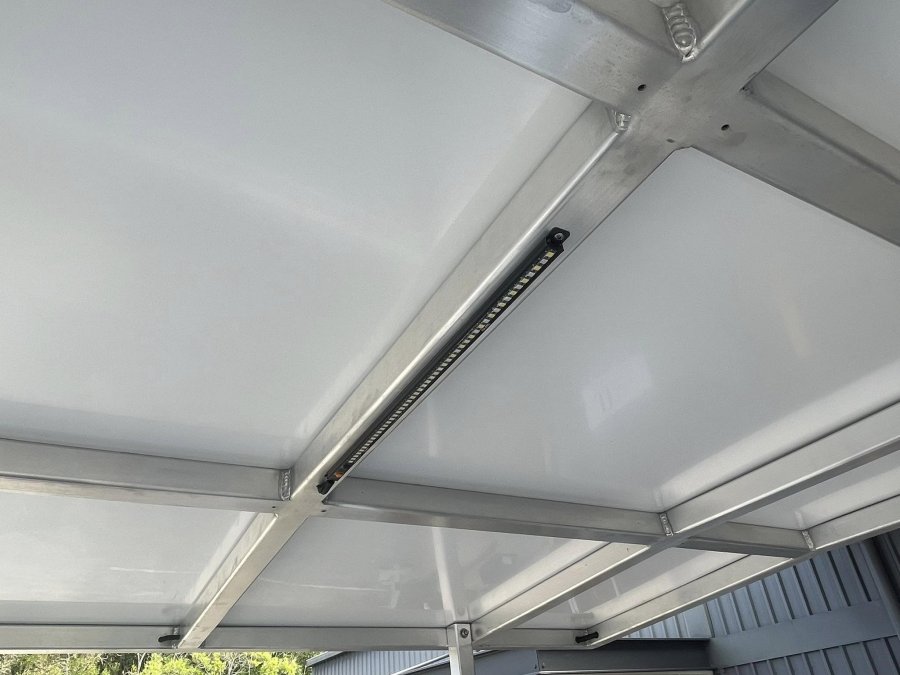

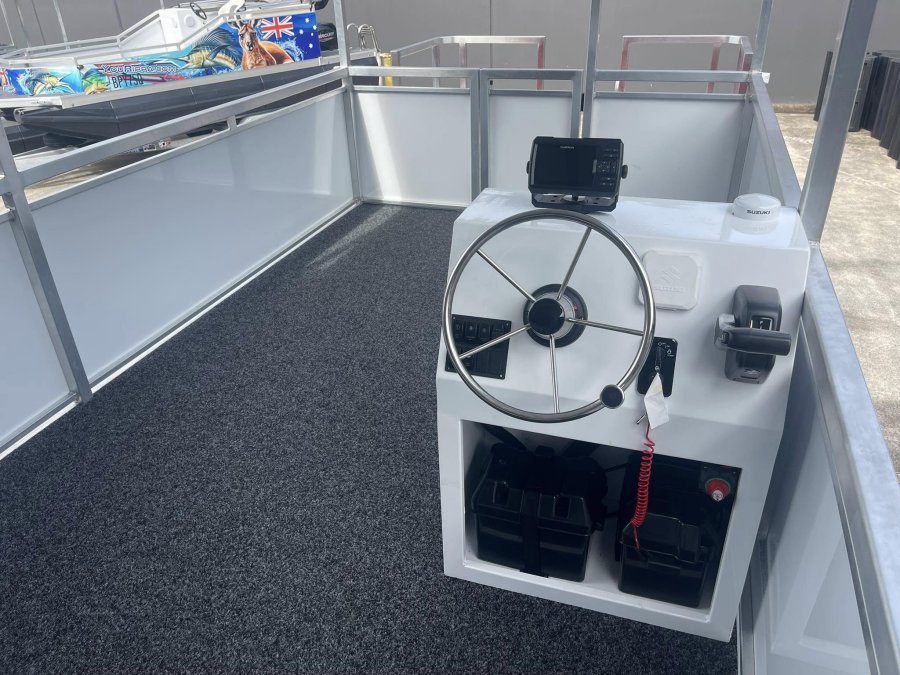

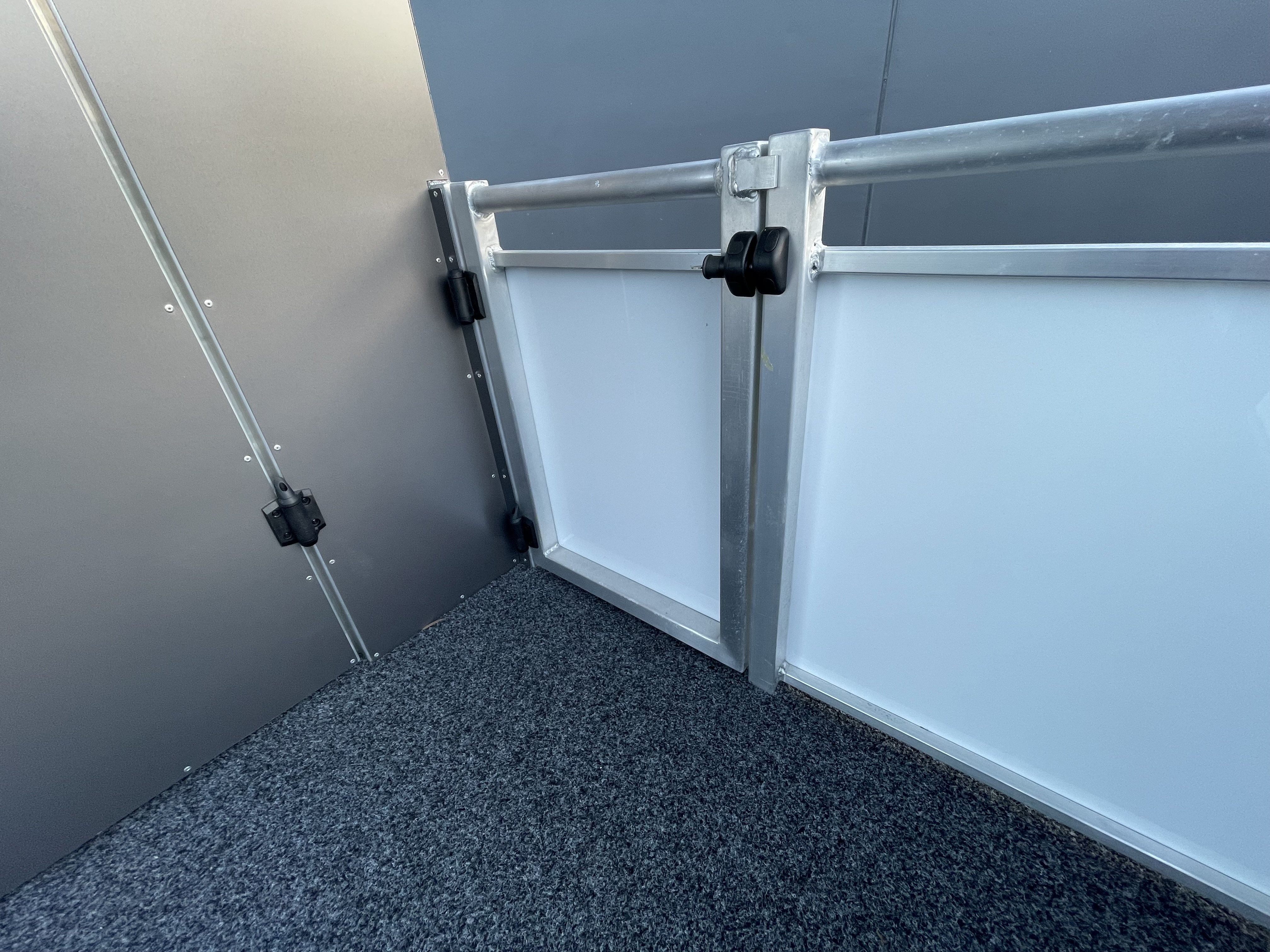

mooring cleats, habdrails with gates, hardtop roof, steering wheel console and furniture.
individual floats are also available and can be purchased separately
|
 YouTube Channel
|
Option 1

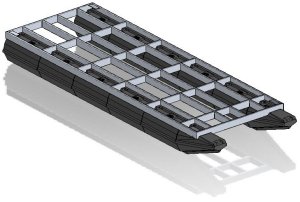

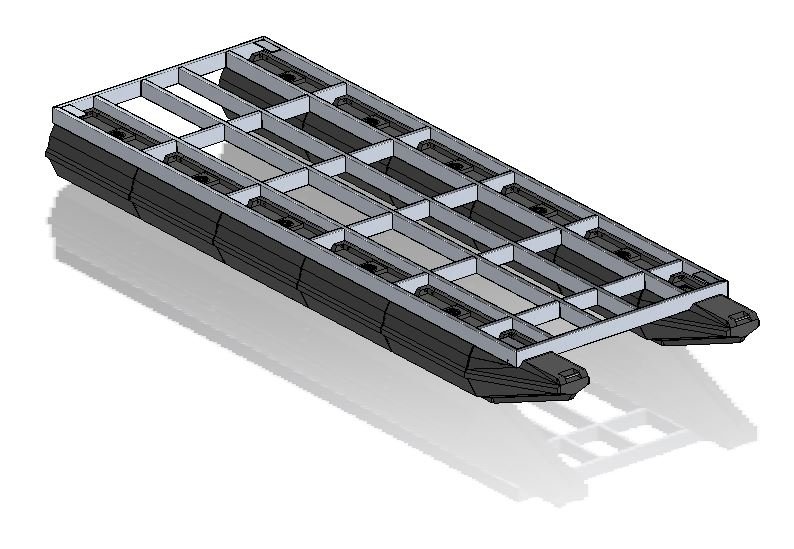

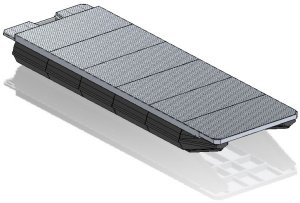

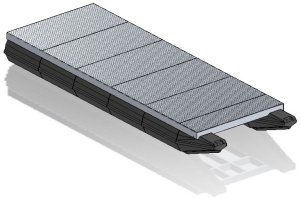

Pontoon hulls

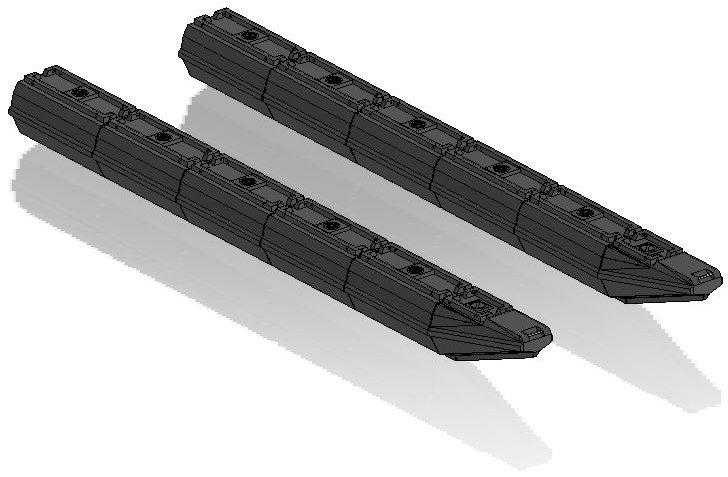

Floats and fasteners

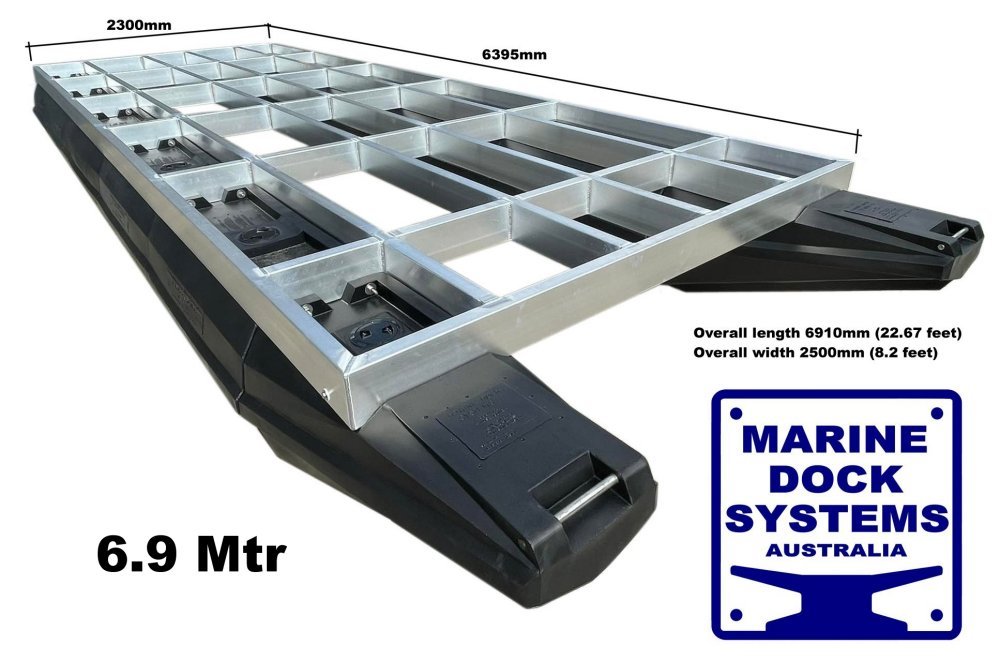

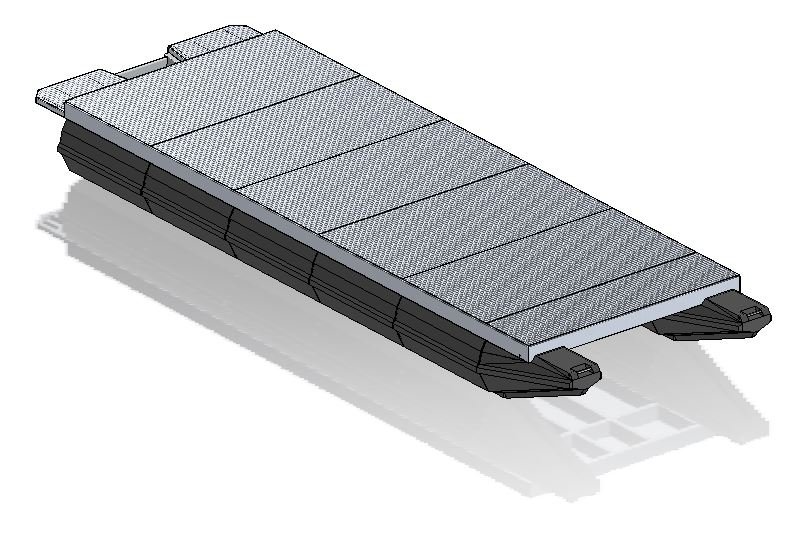

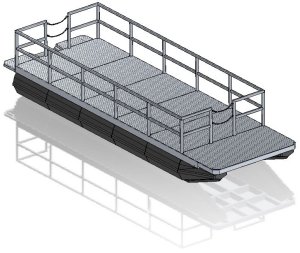

6.9 Mrs Long (23 feet)
Includes
10 x 333 Litre floats

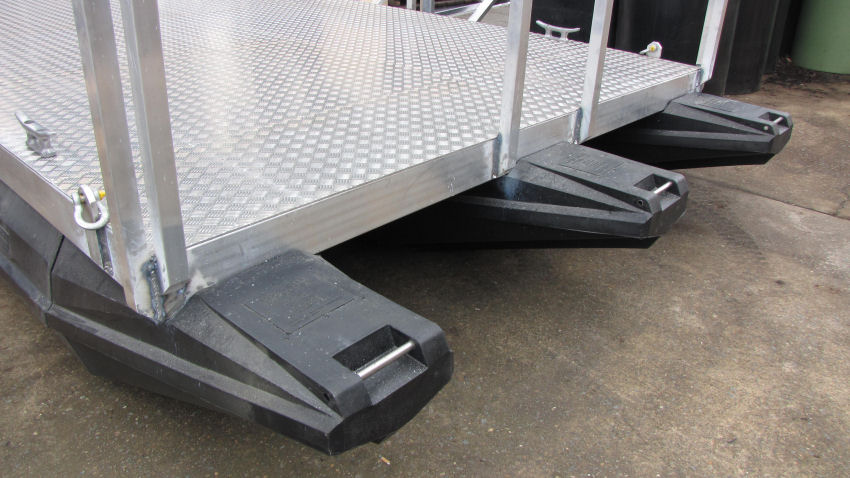

2 x Nose cones.
4 x M10 x 120mm 304 stainless bolts
16 x M10 x 170mm 304 stainless bolts
20 x M10 304 stainless nyloc nut
40 x 3/8" X 1-1/2" 304 stainless washer |
 | |
Twin Hull
Approximate
Total weight 284kg
Max Load 1500kg

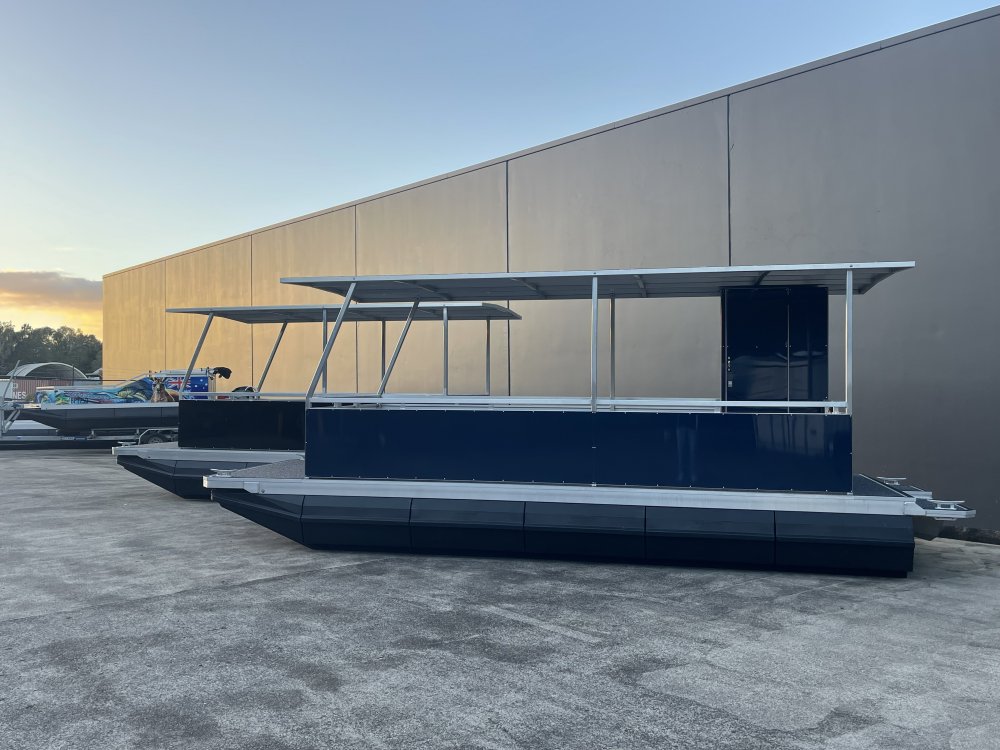

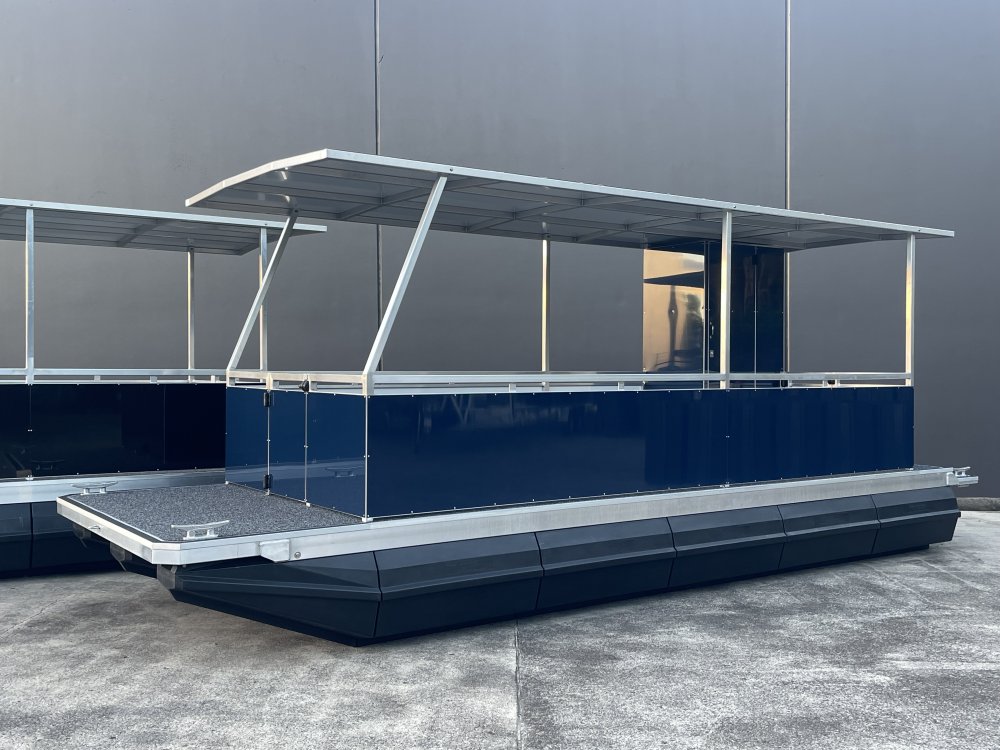

Tri Hull
Approximate
Total weight 426kg
Max Load 2250kg
 PDF Price List
|
|

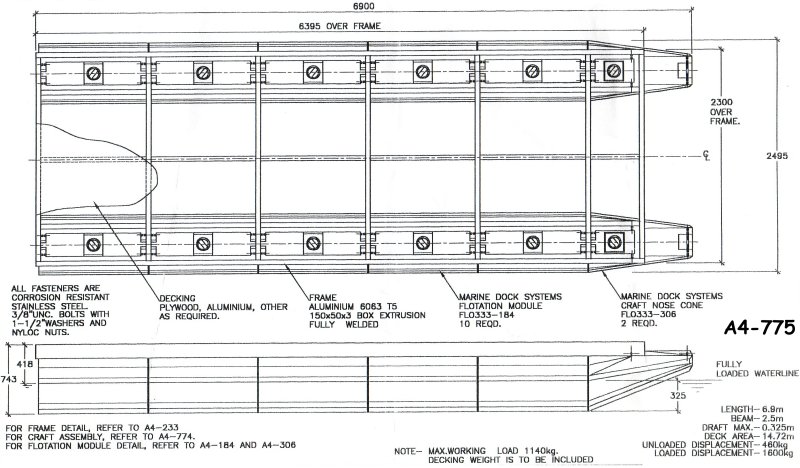

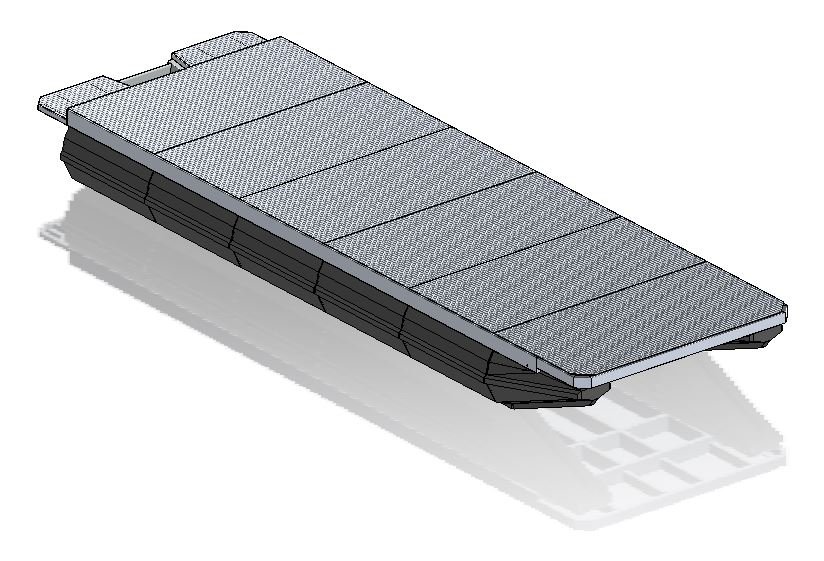

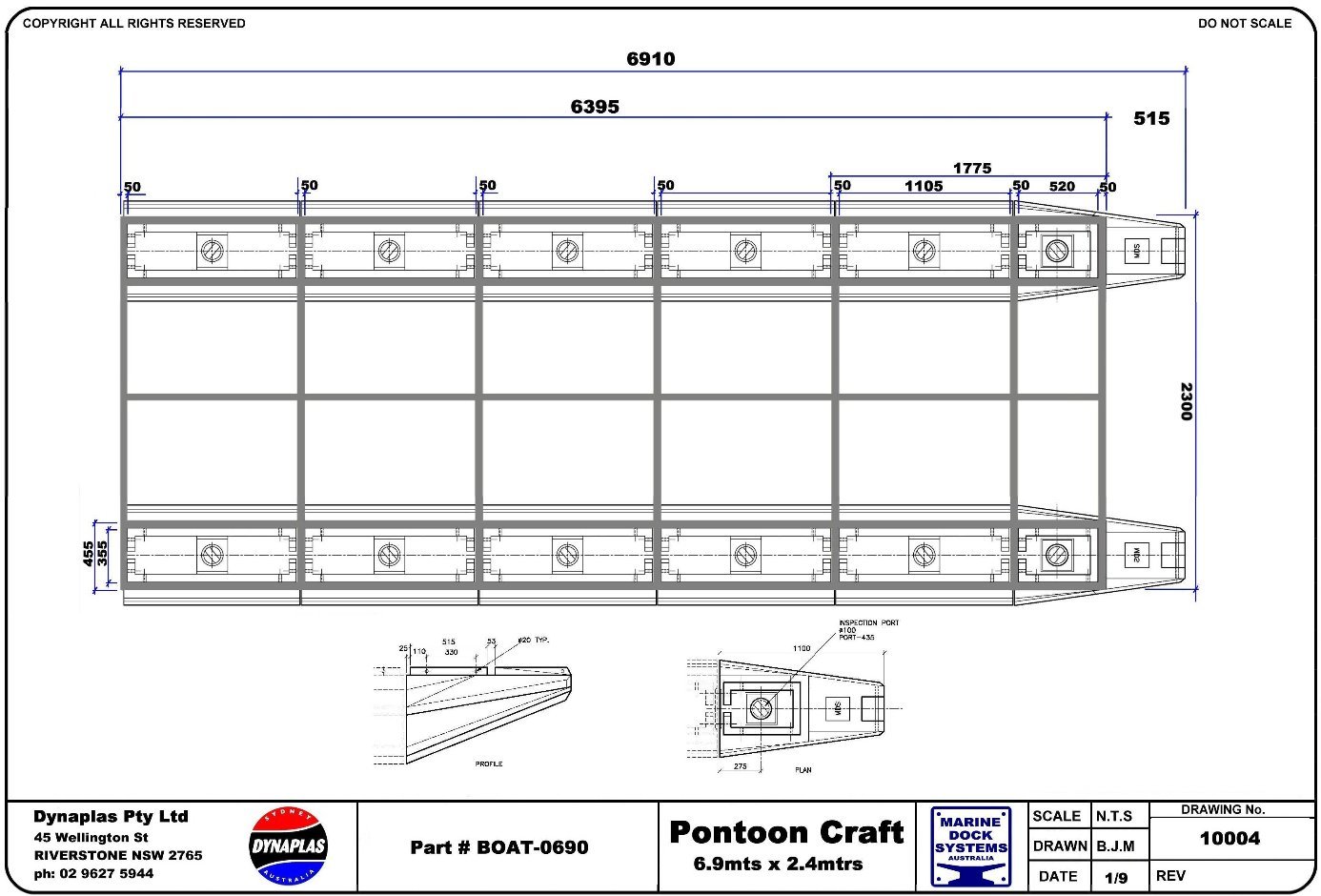

Drawings
 333 Litre Float
Nose Cone
|
Optional extra's

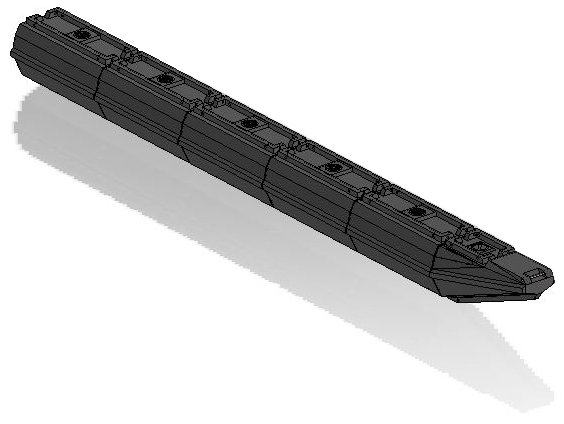

Centre row of floats (adds 600kg payload)
5 x 333 Litre Floats
1 x Nose Cone
4 x M10 x 120mm Stainless Steel Bolts
10 x M10 x 170mm Stainless Steel Bolts
14 x M10 Nyloc nuts stainless steel
28 x 3/8 x 1"1/2 304 stainless steel washers |
|
 |

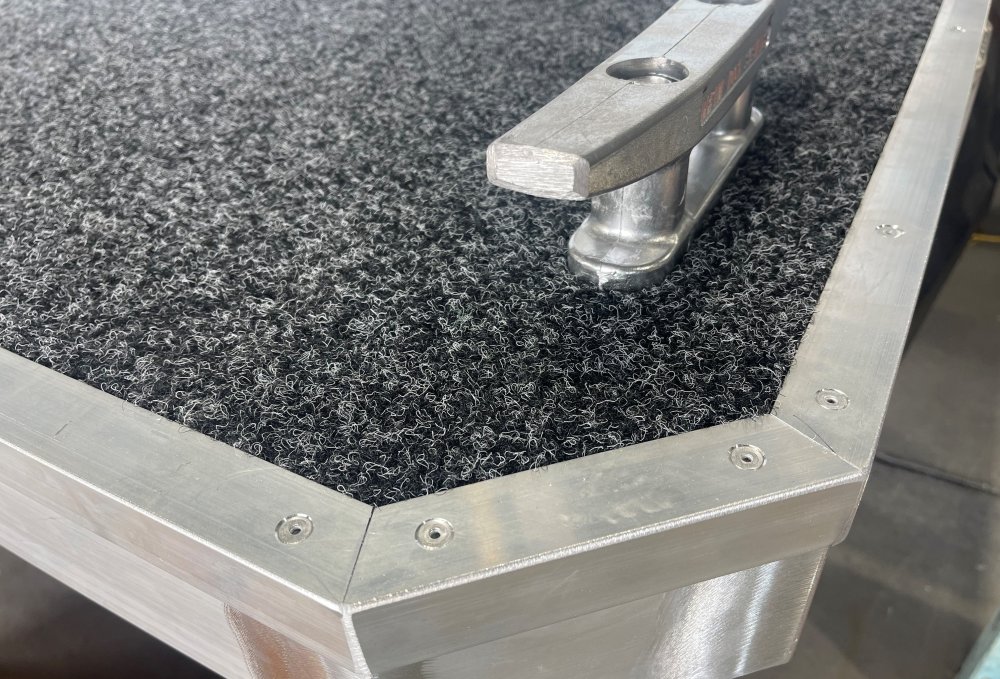

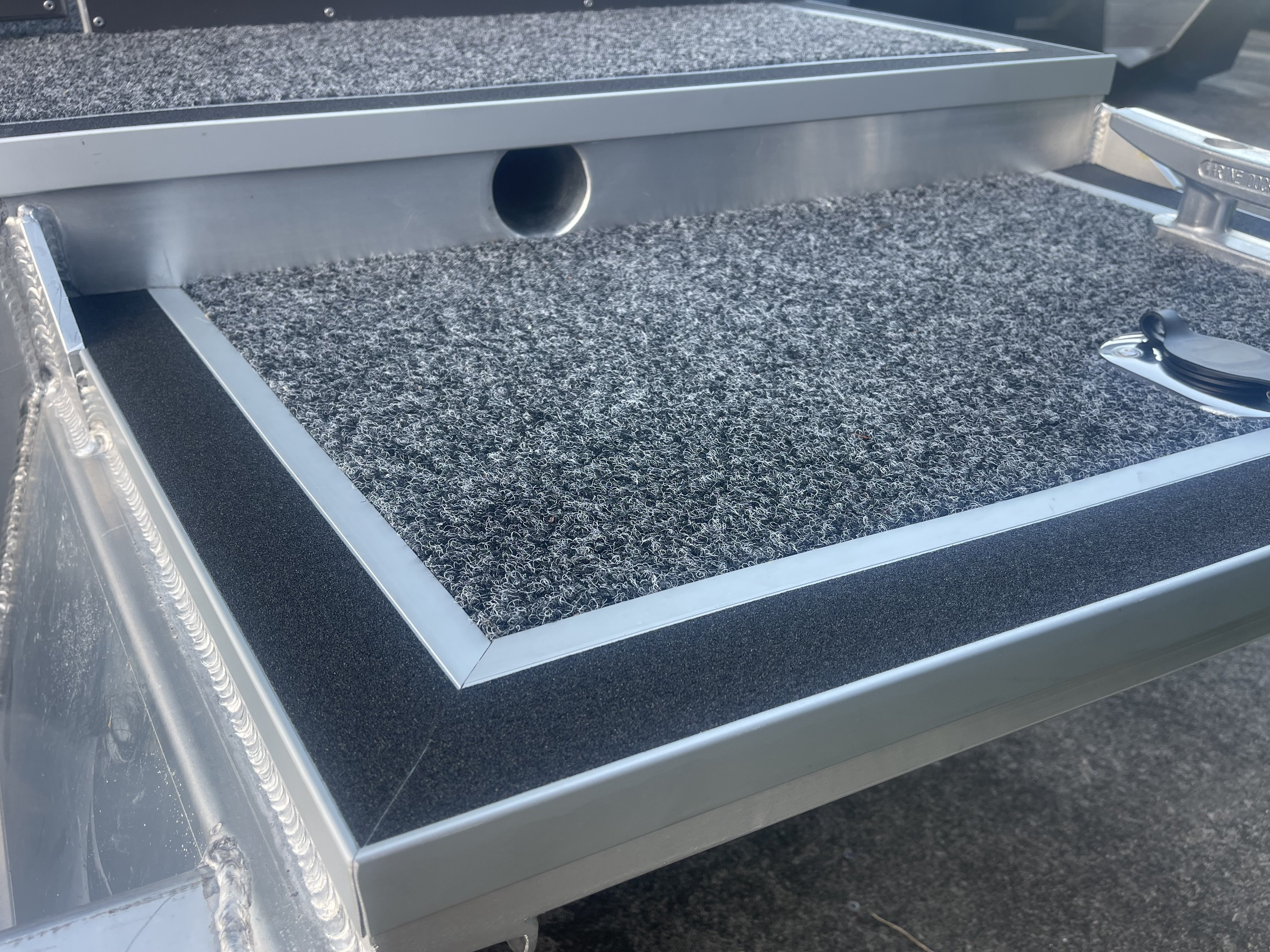

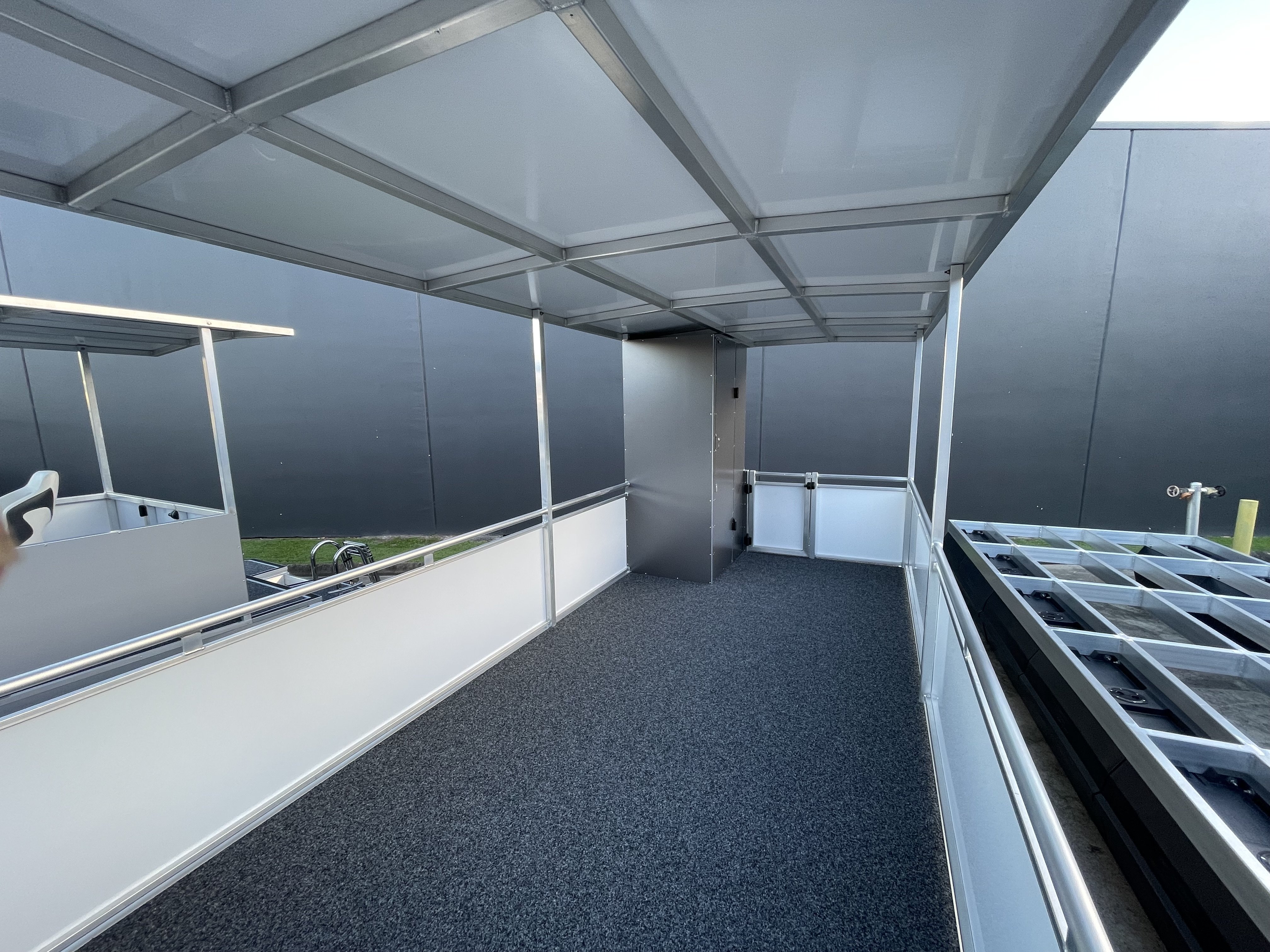

Grey Marine carpet
UV Stabilsed polypropylene
32 x 32mm alloy angle
Countersunk alloy rivets |
|
 |

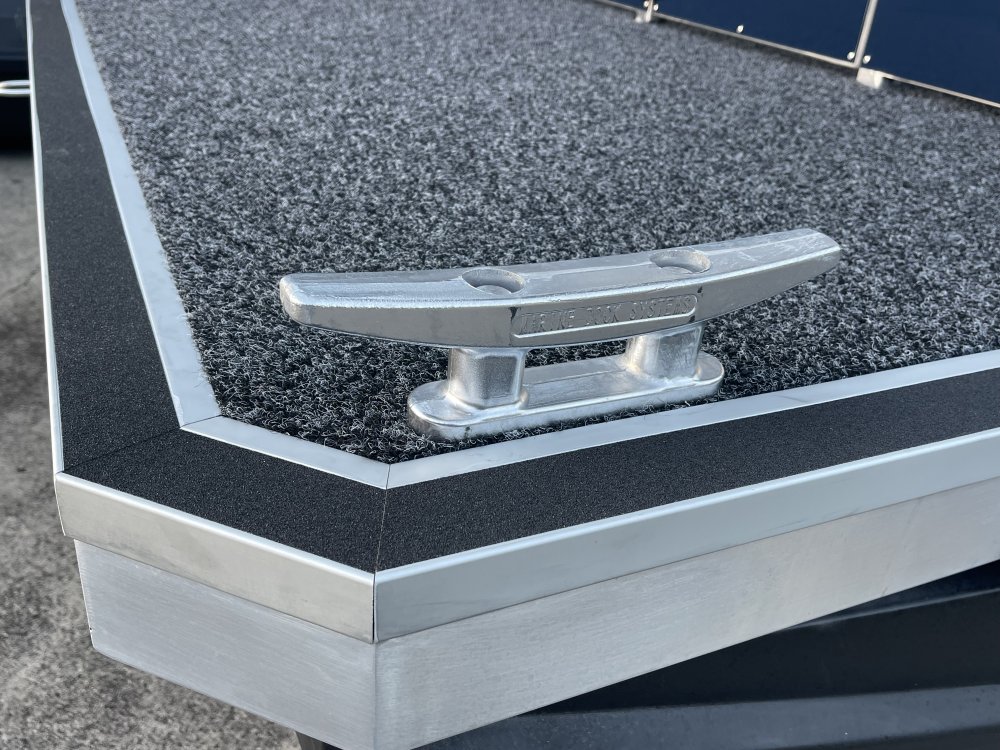

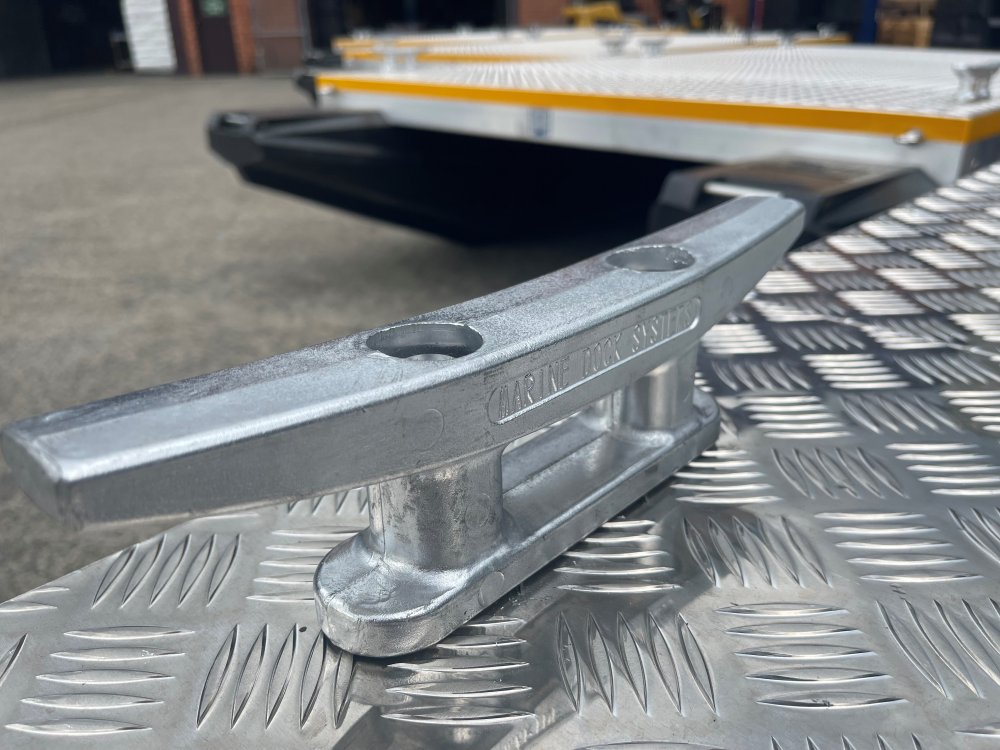

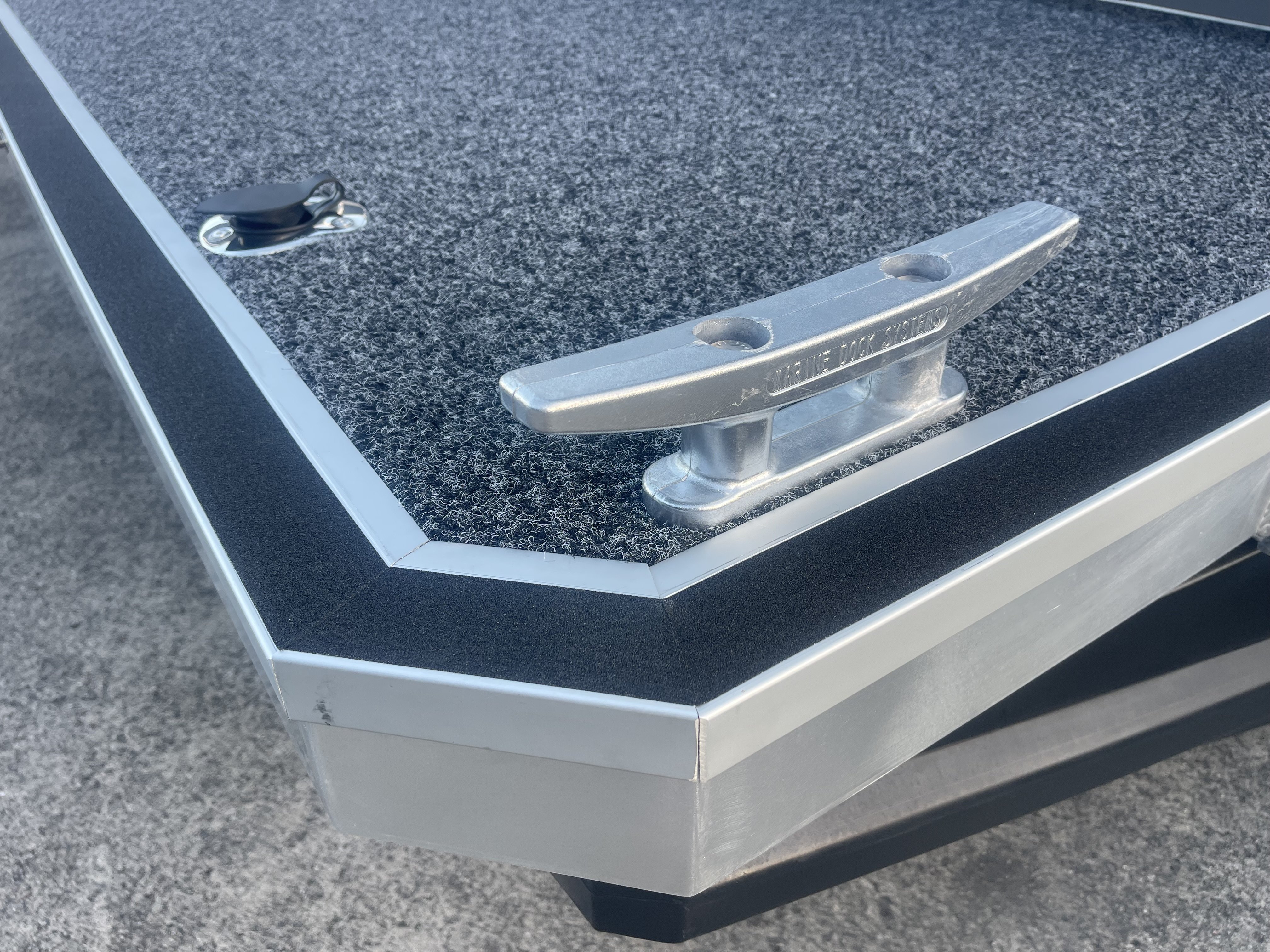

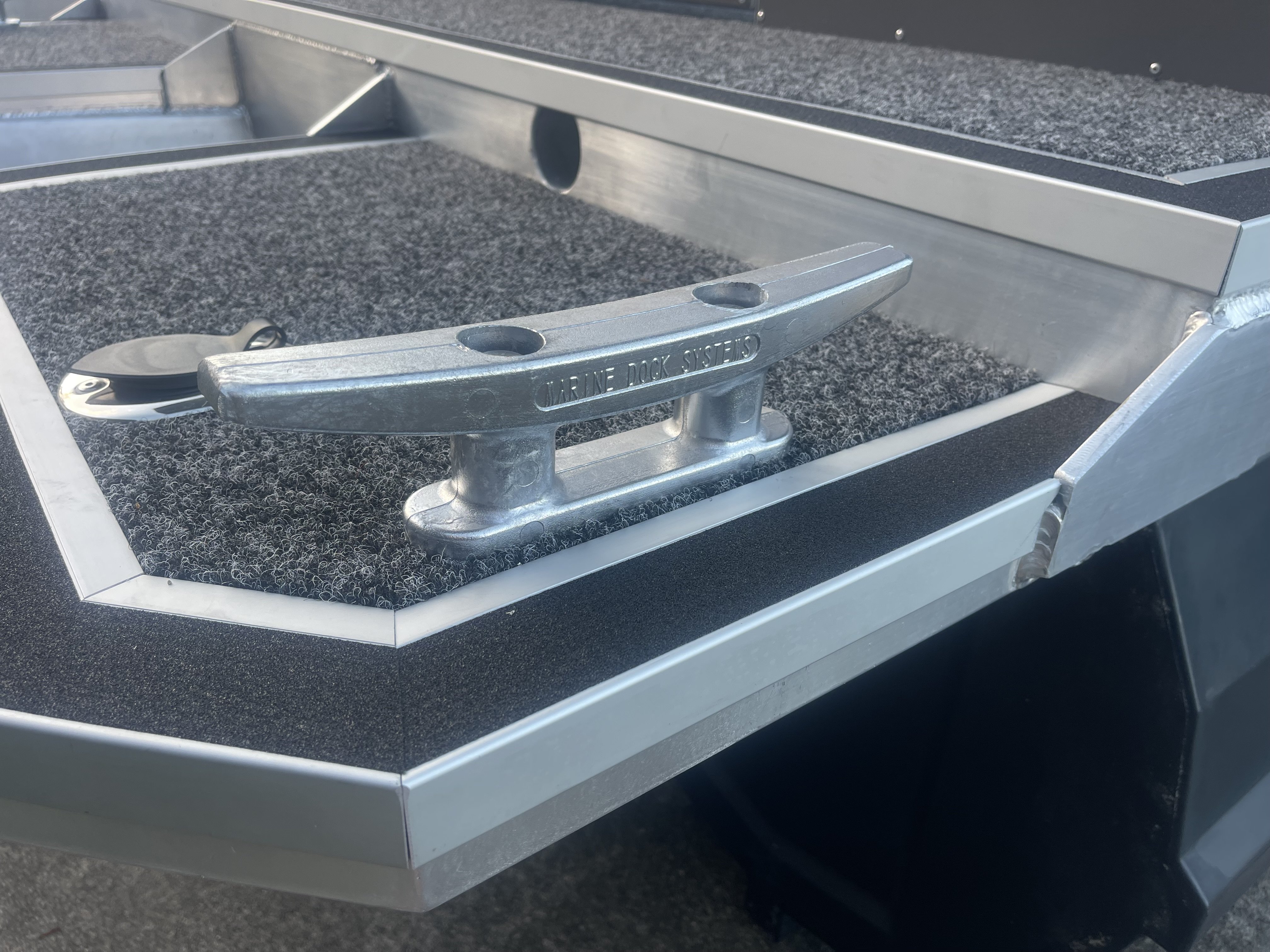

Mooring cleats 300mm
cast aluminium
with stainless steel fastners
1/2 inch stainless steel bolts
More info... |
|
 |

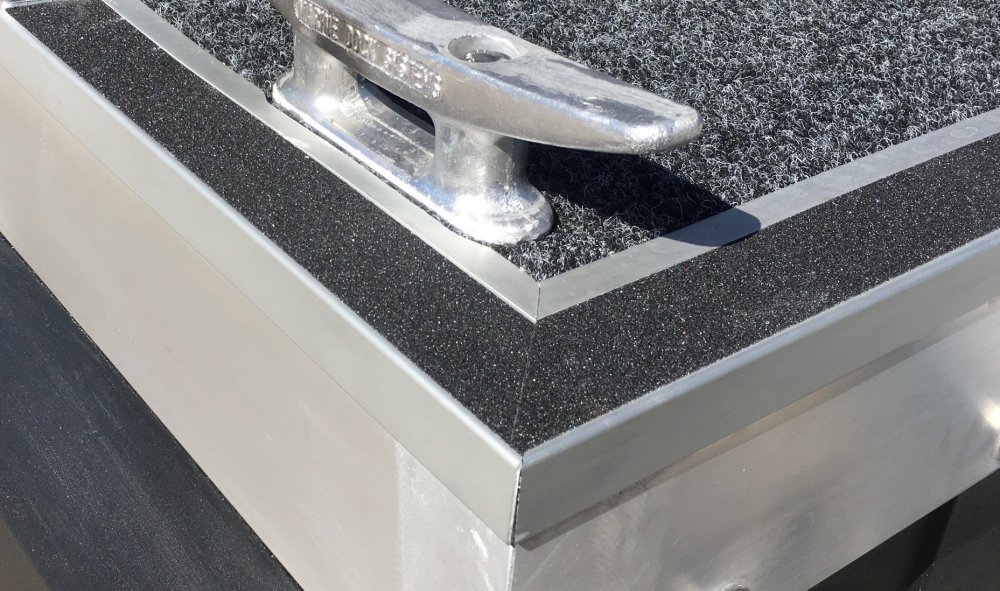

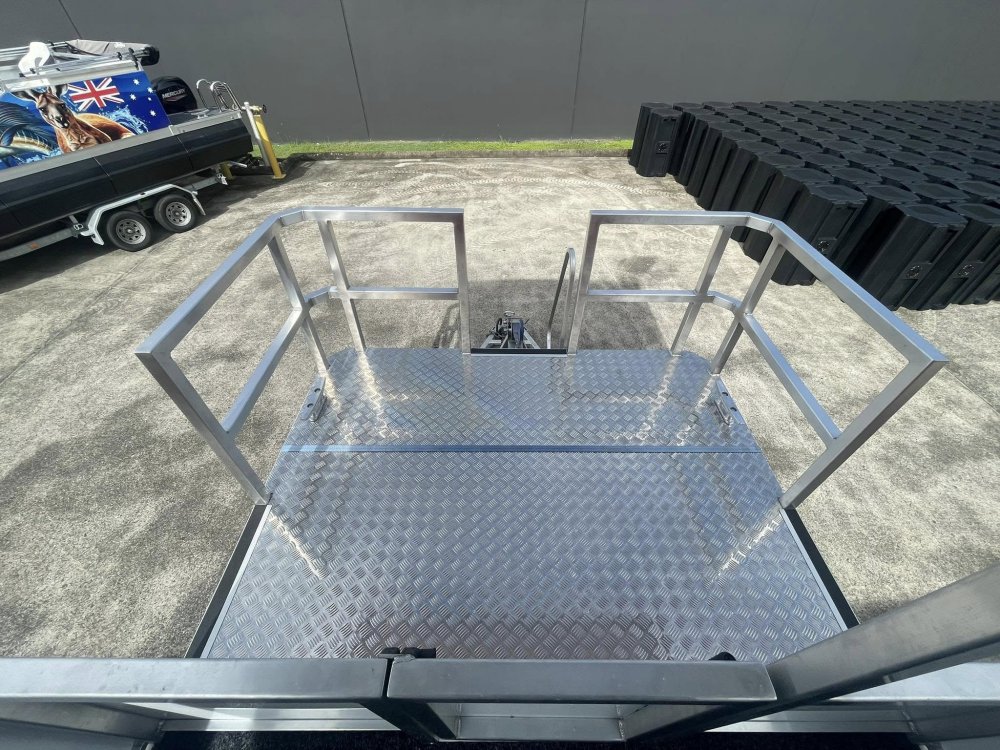

Aluminium edging with grip tape
Countersunk alloy rivets |
|
 |

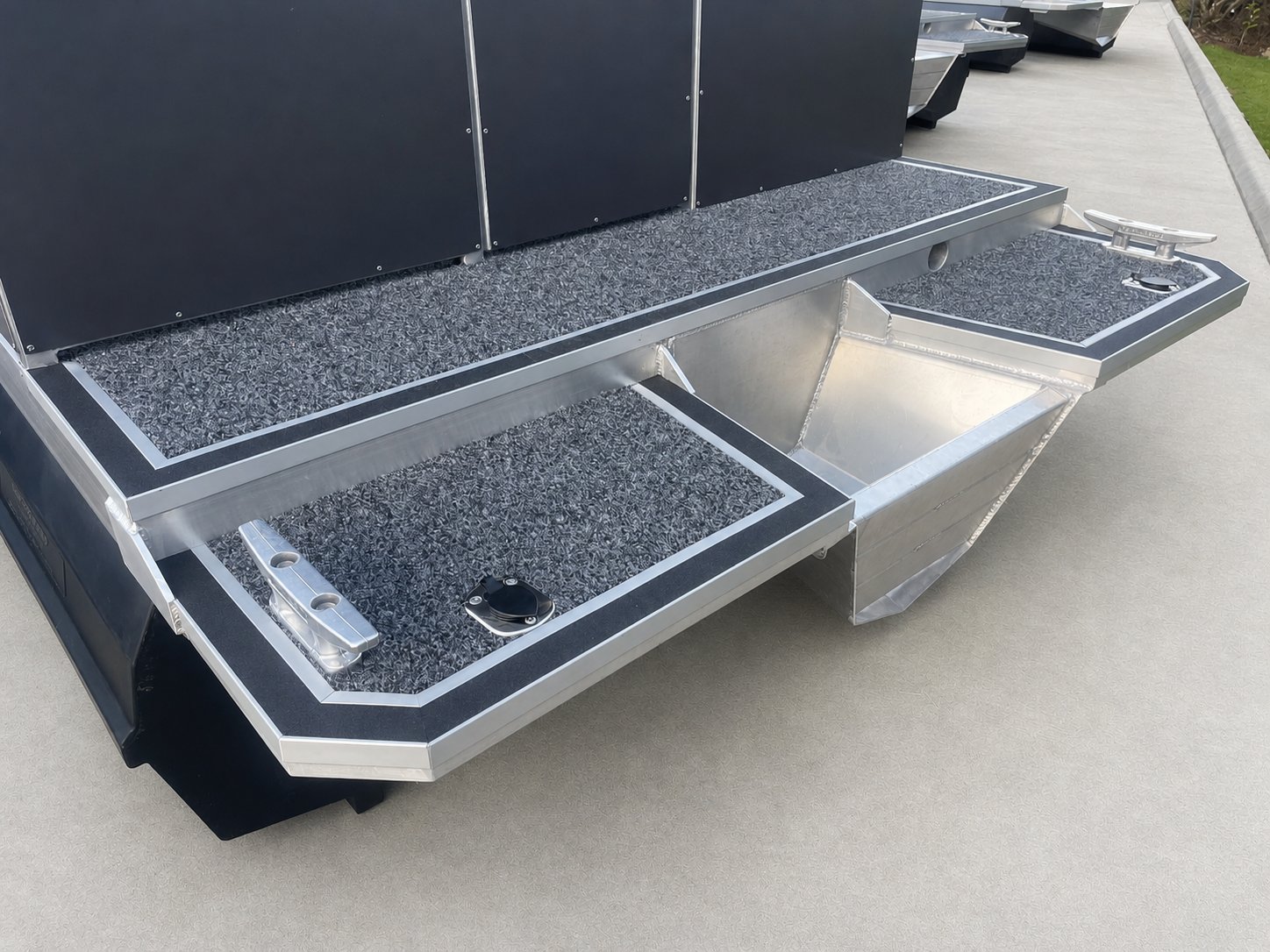

Fishing rod holders stainless steel
with stainless steel fastners
|
|
 |

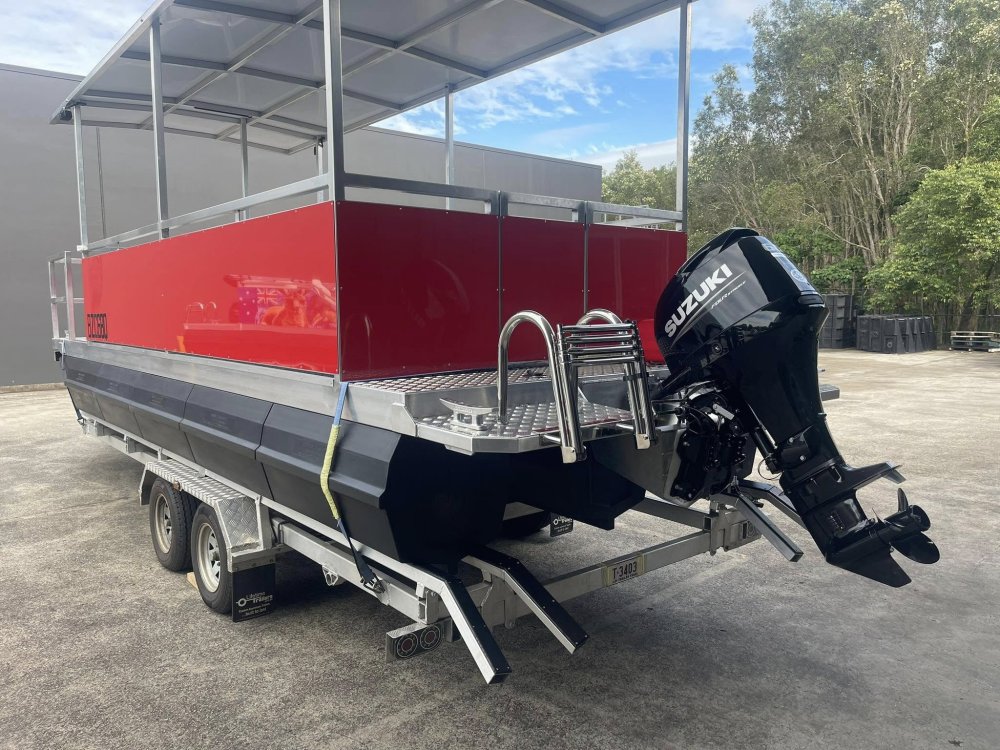

Folding stainless steel ladder
with stainless steel fastners |
|
 |
Pontoon Boat Furniture
Upholstered pontoon boat lounges. Our extra comfortable range includes Large straight lounge, meduim and small. Our pontoon seating is manufactured using polyethylene roto moulded bases which can handle extreme outdoor conditions, upholstered in heavy duty vynil. Lounges have lift up seats for storage, great for stowing away life jackets and more.
Click Here for details
|
|
 |

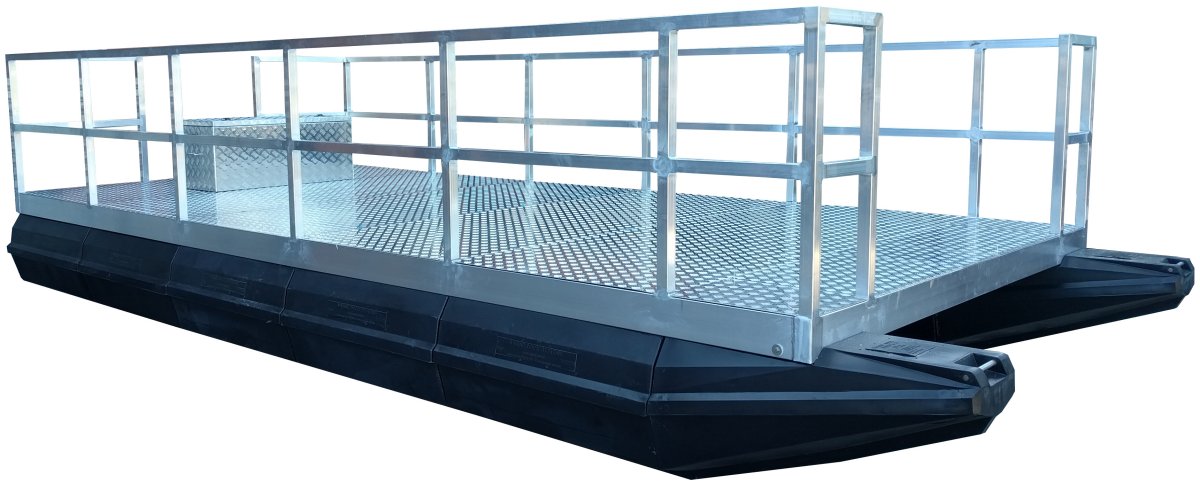

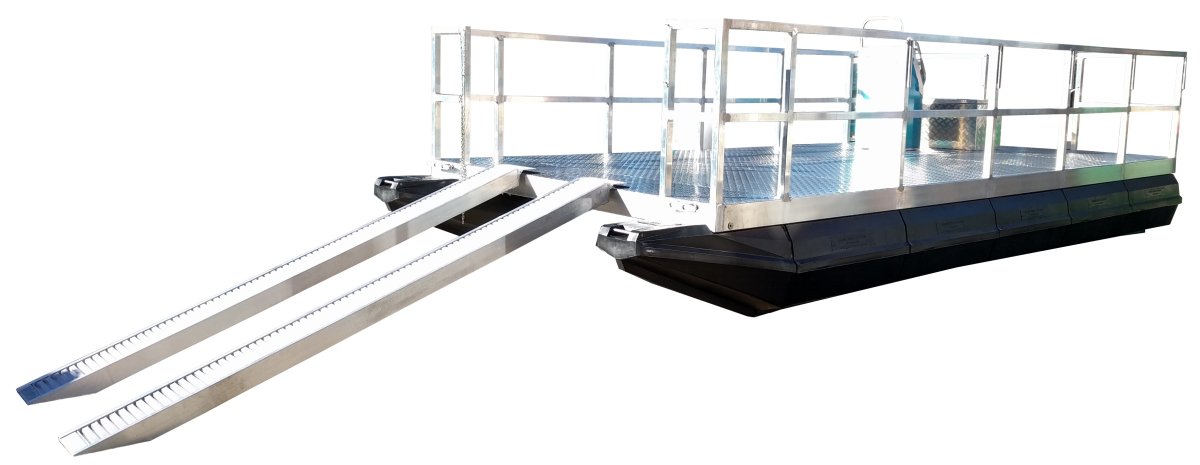

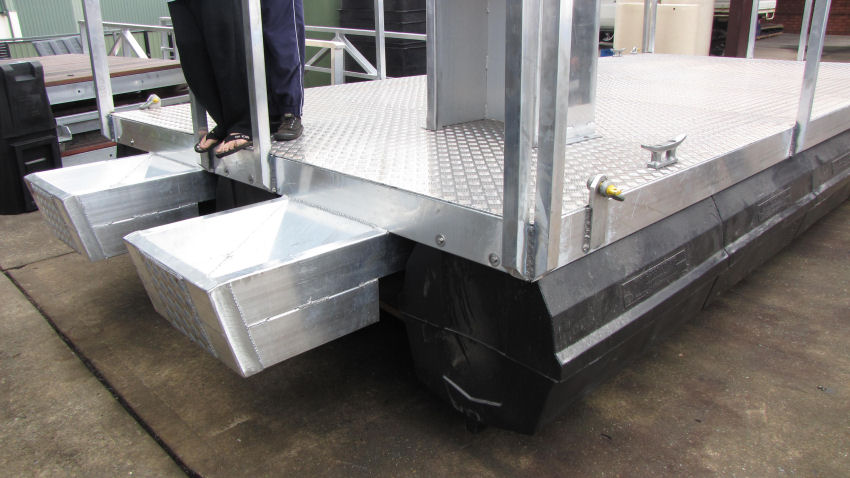

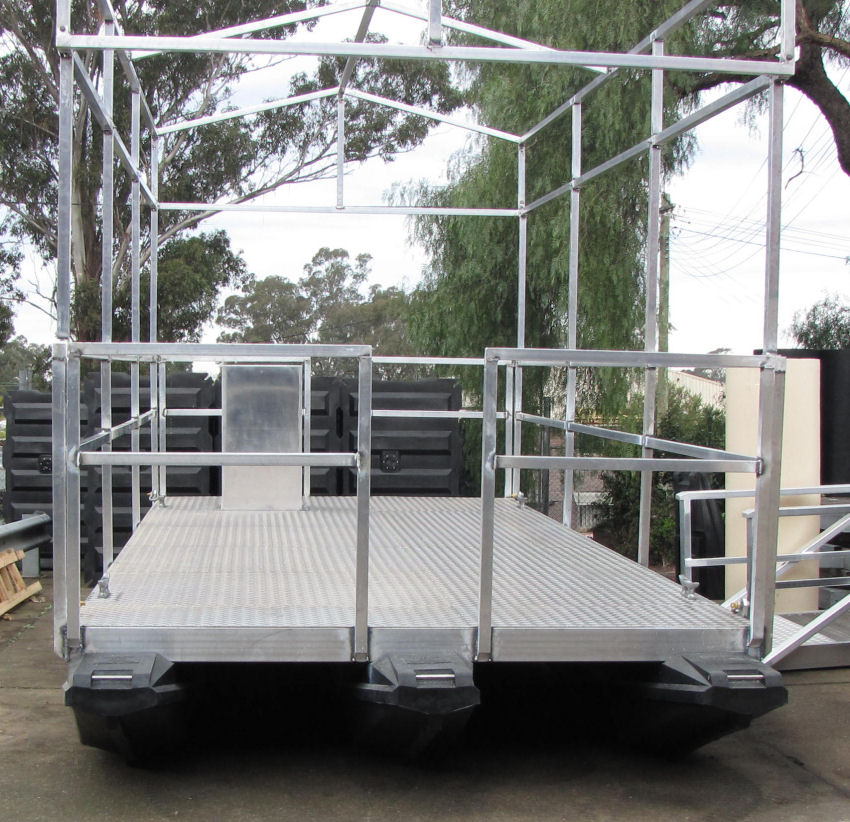

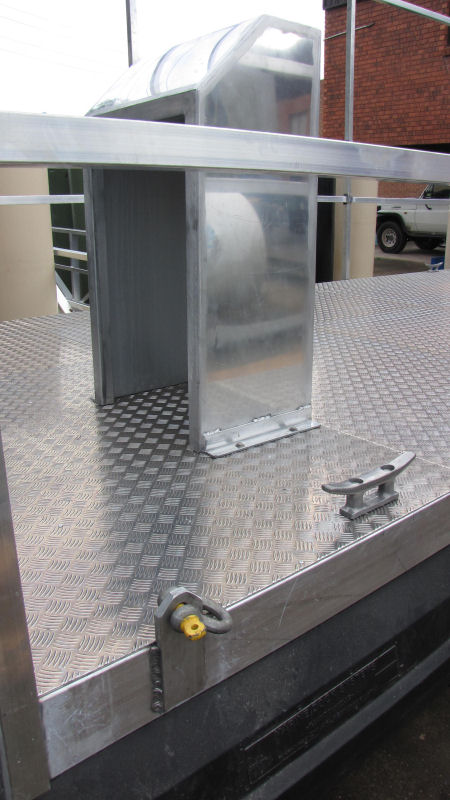

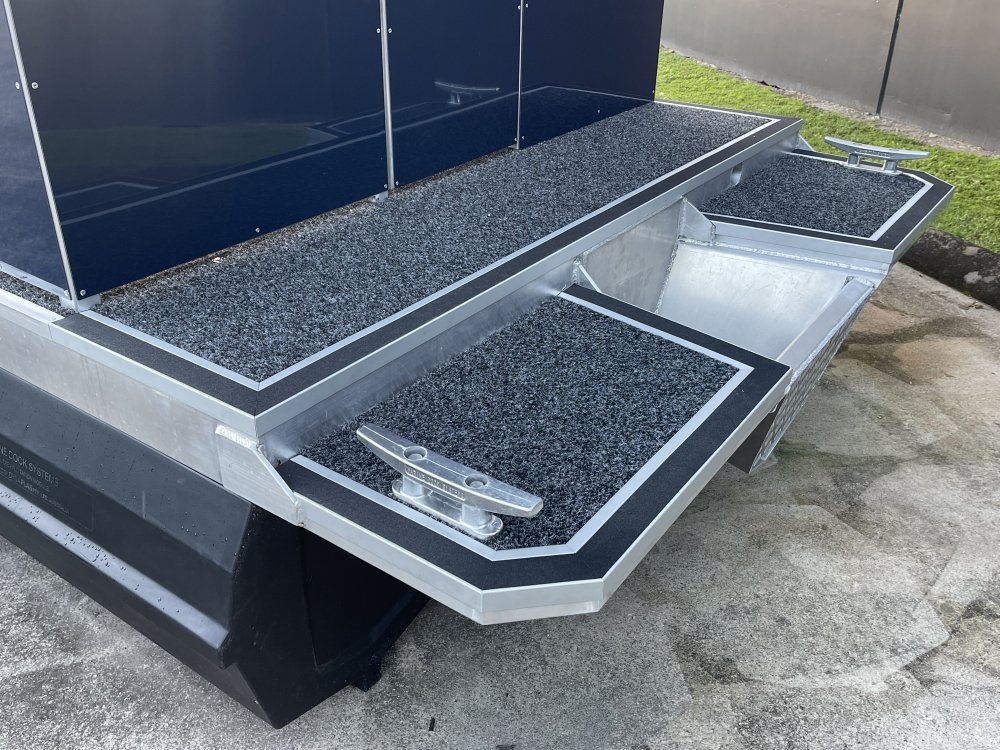

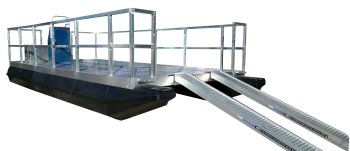

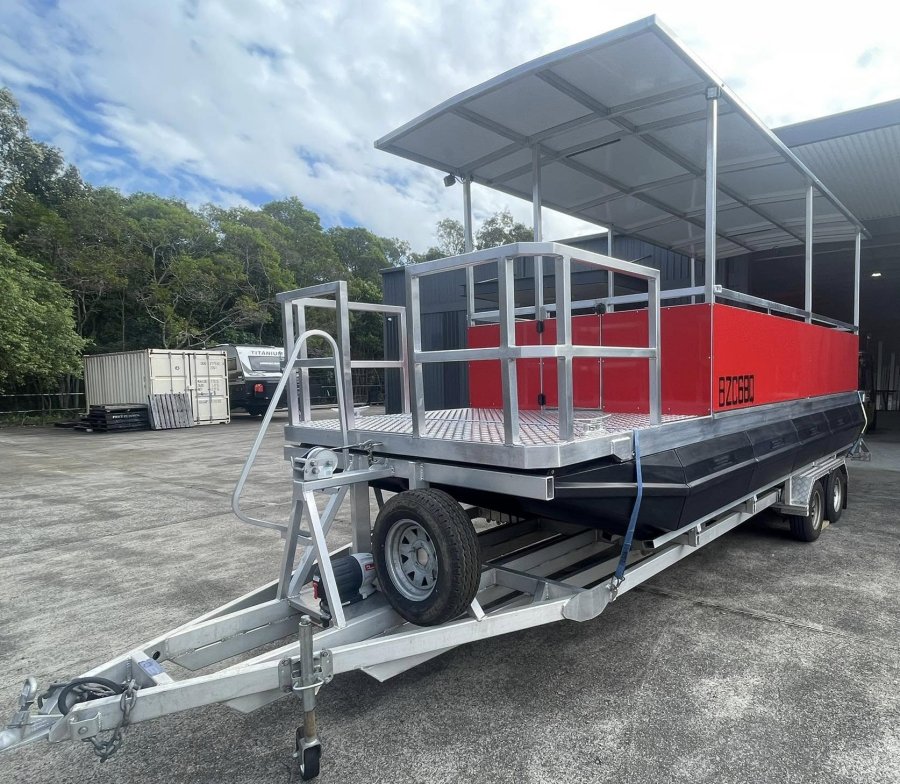

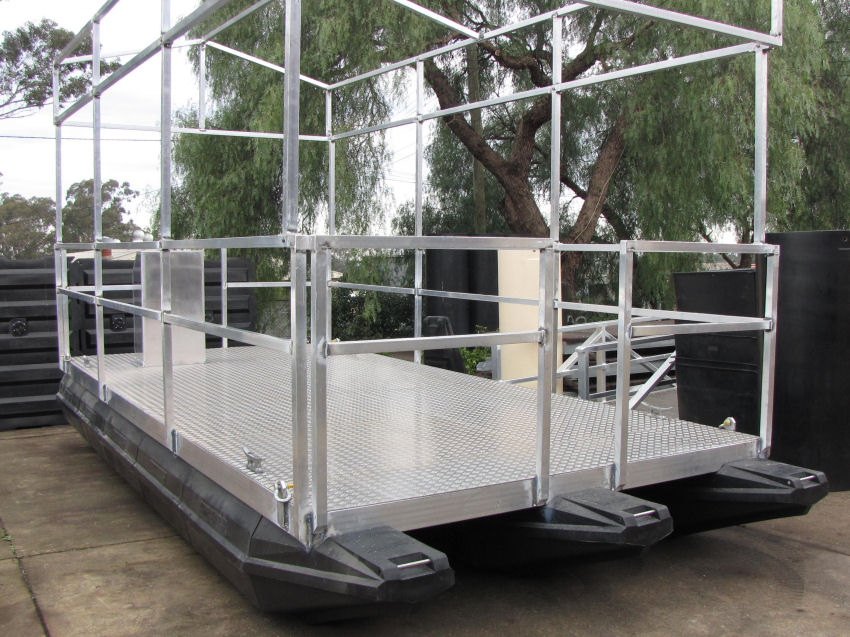

Shown here with alloy access ramps, storage toolbox, motor bracket with step, handrails, and control console. This boat was made to transport quad bikes.
|
|
| |
